Compatible with:
Suitable for Kawasaki KLX300 1996-2003
Suitable for Kawasaki KLX300R 1997-2007
Suitable for Kawasaki KLX250 1993-1996
Suitable for Kawasaki KLX250R 1994-1996
Suitable for Kawasaki KLX250S 2005-2014
Suitable for Kawasaki KLX250SF 2009-2010
Specifications
Type: Cylinder Big Bore Kit
Displacement: 292cc
Bore Size: 78mm
Stroke: 61.2mm
Pin Diameter: 17mm
Replacement Part Number:
Cylinder: Suitable for 11005-1983
Cylinder Base Gasket: Suitable for 11061-1506
Cylinder Head Gasket: Suitable for 11004-0091
Piston (Std): Suitable for 13001-1463
Pin, Piston: Suitable for 13002-1109
Piston Ring Set (Std): Suitable for 13008-1071
Circlips, piston: Suitable for 92033-1054
Package include:

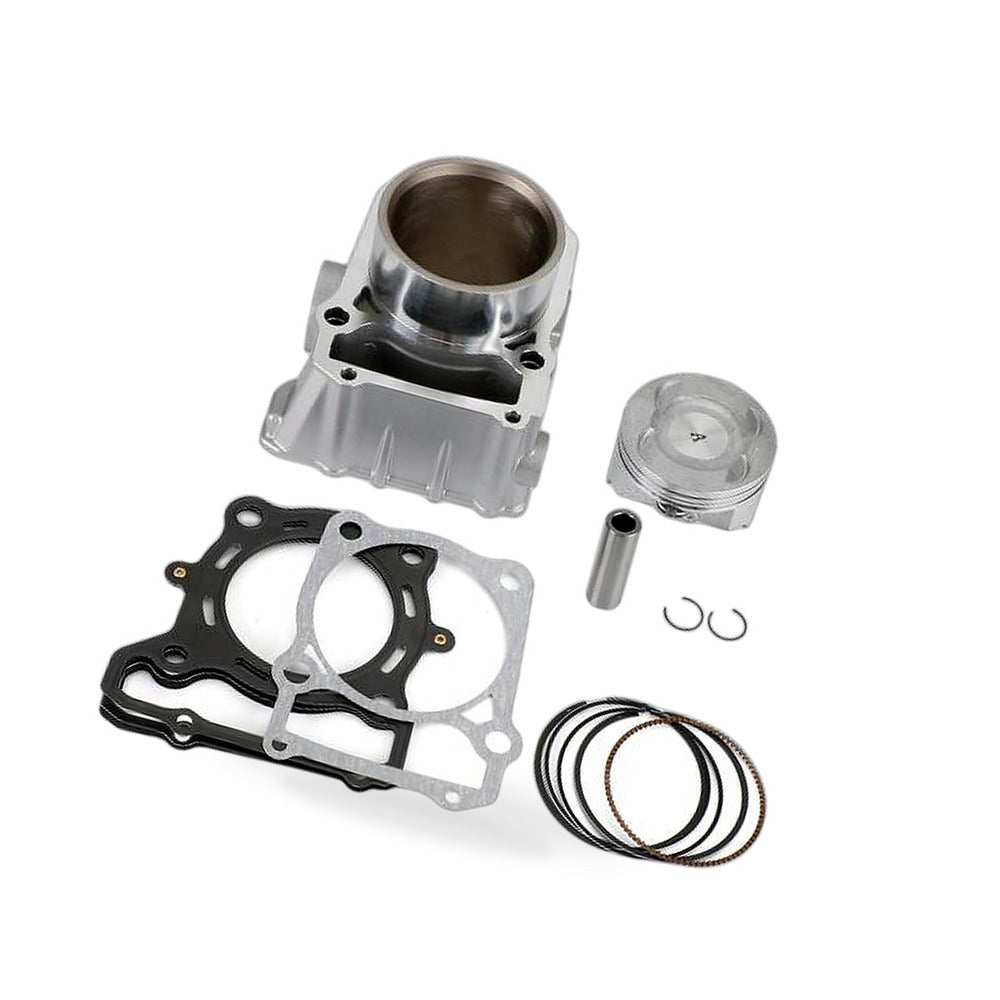

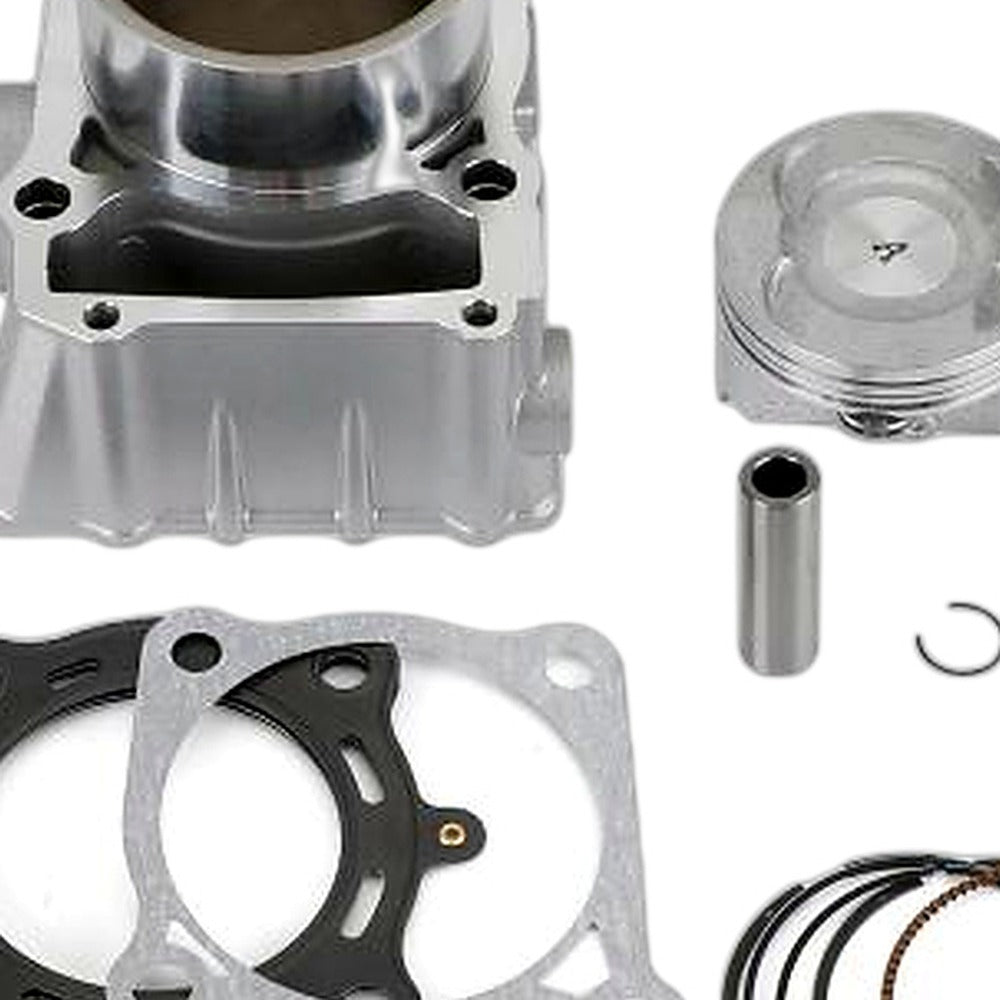

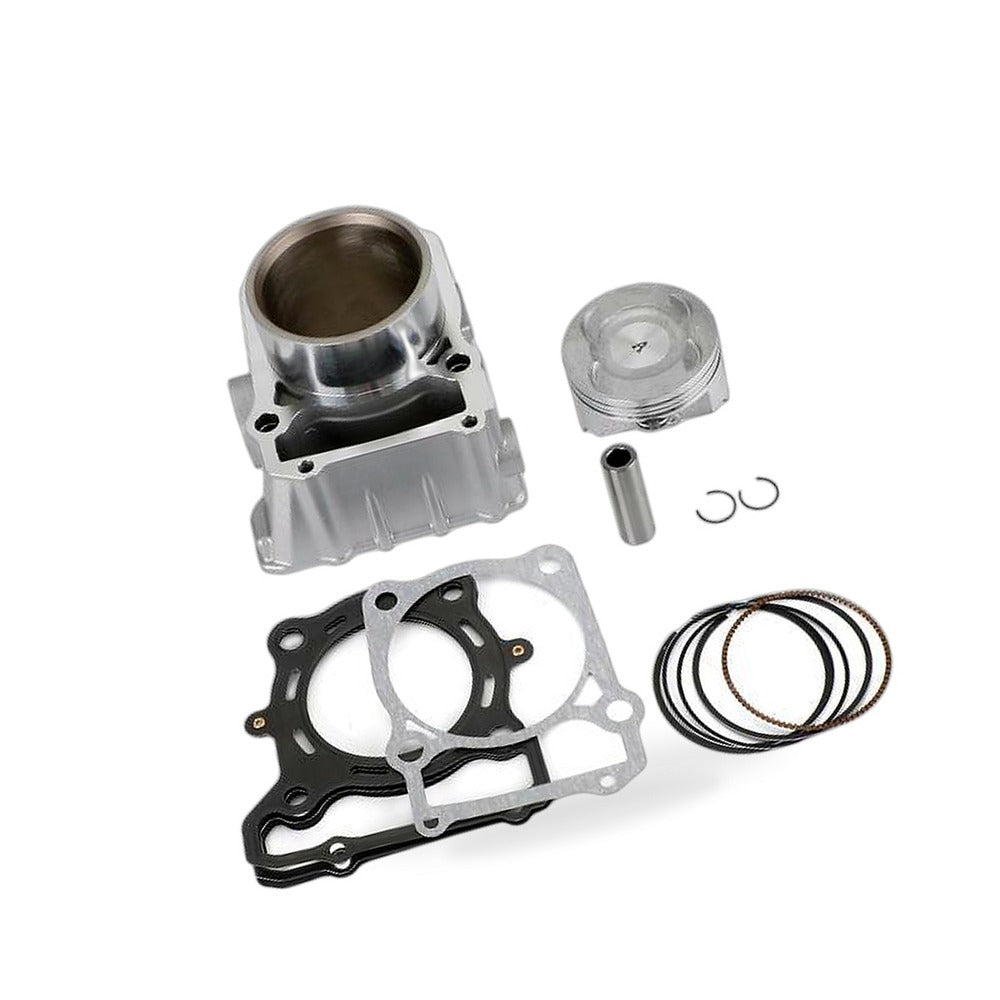

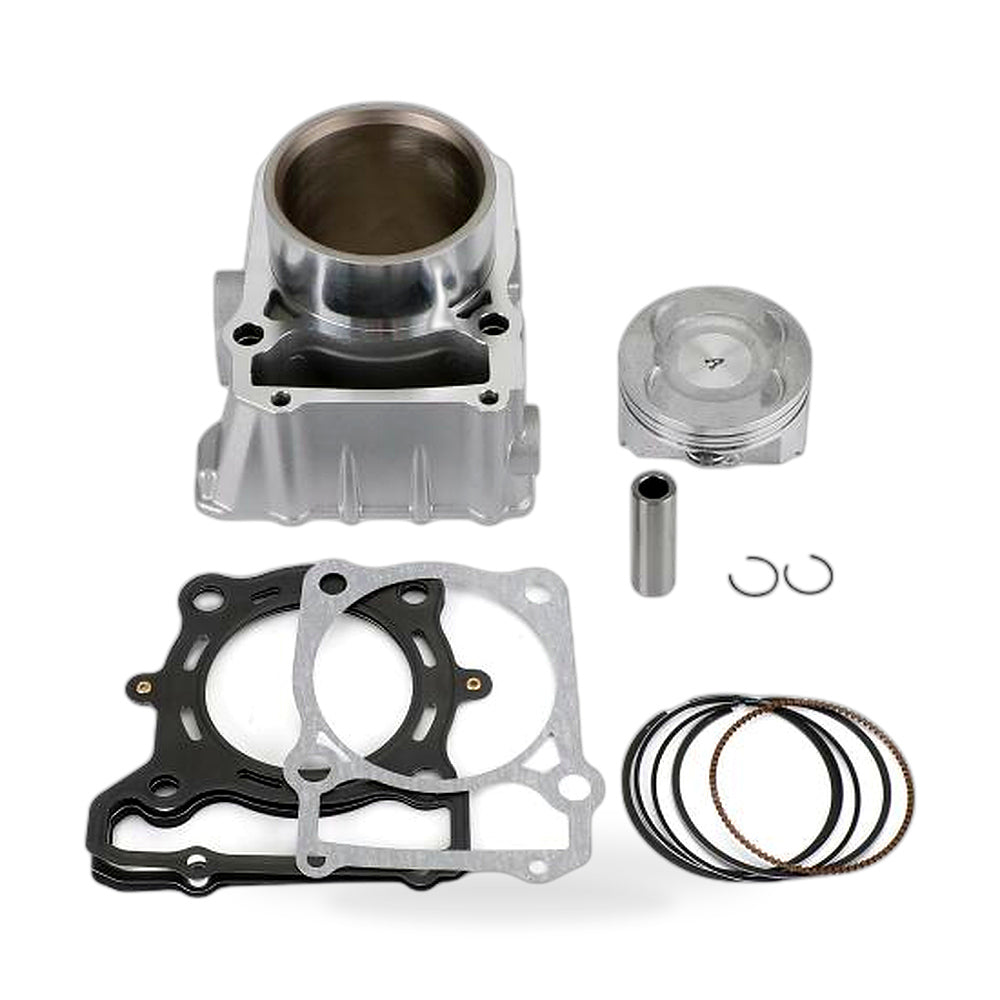

1 Kit Cylinder Big Bore (as shown in the figure)
Features:
The kit includes a piston, ring, pin, fixture, and top washer kit (as shown in the figure)
Cast pistons have additional strength with ultra-high silicon content
The piston skirt is coated with molybdenum polytetrafluoroethylene coating to minimize resistance/wear and extend service life
The piston dome has undergone anodizing treatment, providing excellent heat resistance and longer service life
The gasket is made of high-performance materials to improve durability and provide higher reliability
The kit has a large diameter of 78mm for KLX300, 17mm steel piston pin
All components in the kit are bolted and can be easily installed
🔧 Compatible Vehicles
| Make |
Model |
Years |
Engine |
| Kawasaki |
KLX300 |
1993-2014 |
- |
