Function:
1. Electrical parameter measurement function (voltage, current, power, energy).
2. The voltage alarm function (over voltage alarm thresholds, backlighting and voltage flicker tips).
3. The power button clear function.
4. Power-down data storage function.
5. Large-screen LCD screen full display function (display voltage, current, power, energy).
6. Backlight.
Display And Key:

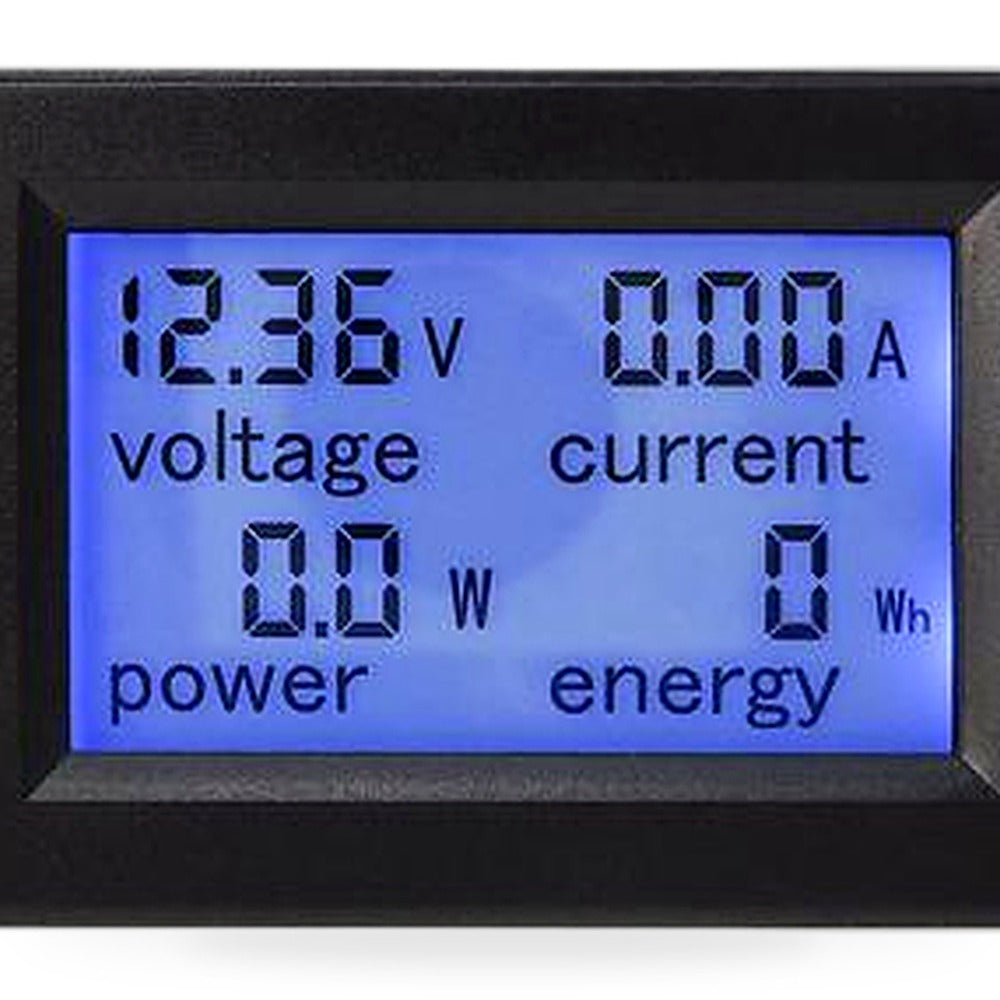

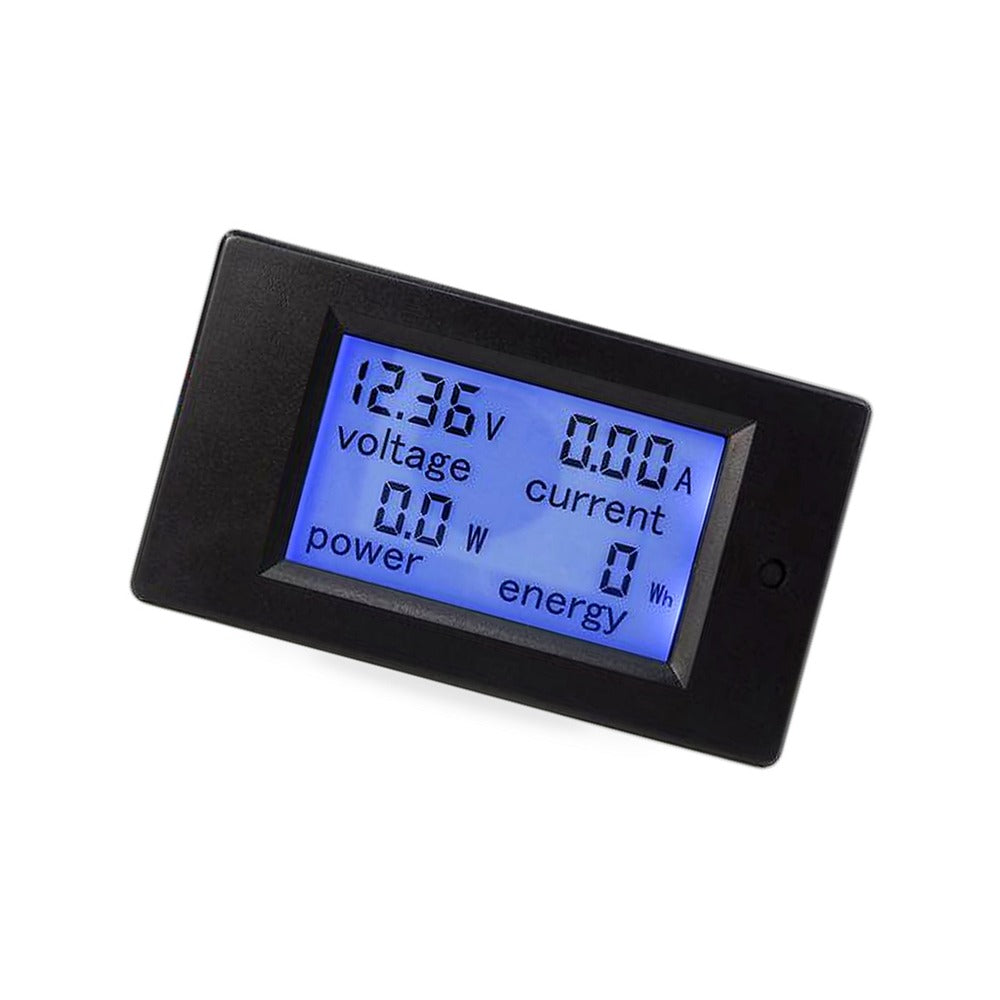

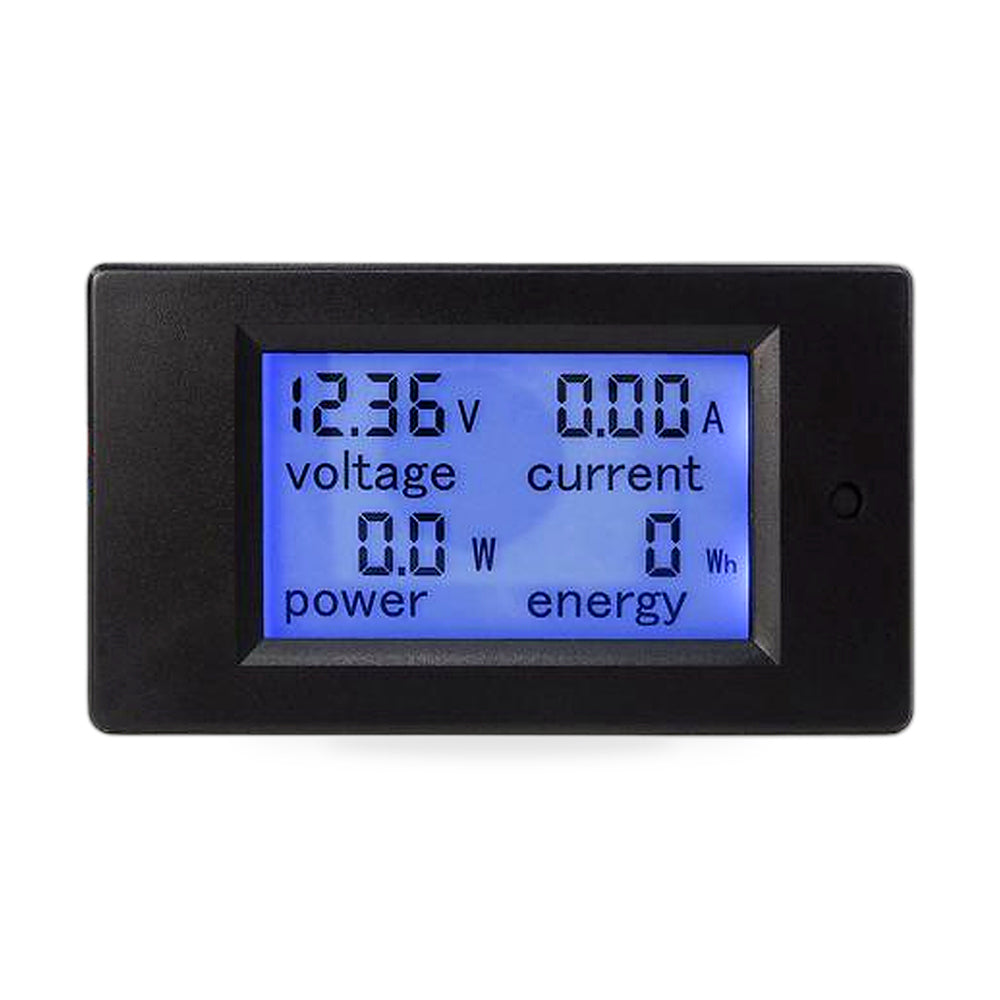

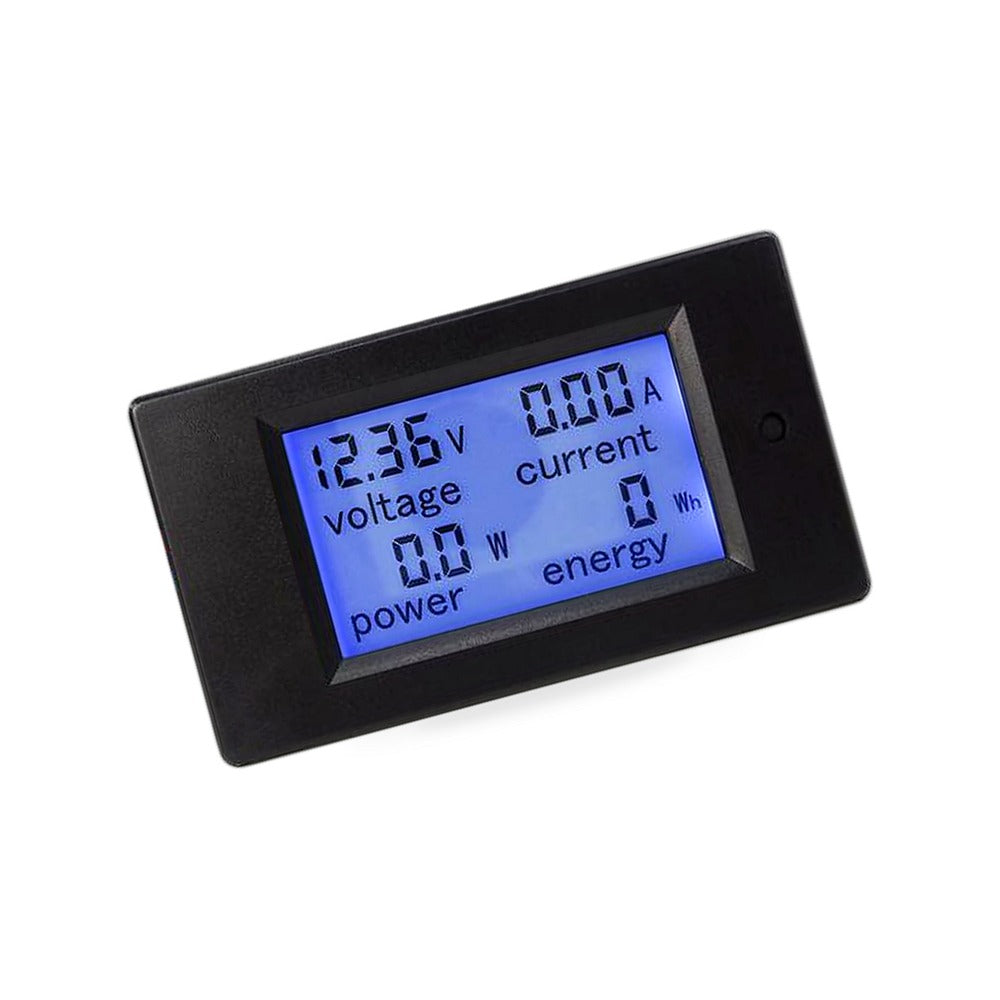

I.Display Interface
Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.
II. Display Format
1. Power: measurement range 0 ~ 2kW
1kW display format within 0.0 ~ 999.9W;
From 1kW display format 1000 ~ 2000W.
2. Power: measurement range 0 ~ 9999kWh
10kWh within the display format 0 ~ 9999Wh;
Above 10kWh display format 10 ~ 9999kWh;
3. Voltage: test range 6.5 ~ 100V
Display Format 6.50 ~ 99.99V
4. Current: Test Range 0 ~ 20A
Display Format 0.00 to 20.00.
III. Button
1. The backlight control
By short press the button to turn on or off the backlight, the backlight status automatic storage.
2. The power cleared
Step 1: Press the button until the power area show "CLr" character, then release the button;
Step 2: At this point in the power consumption flashing indicating the current status is cleared, if short press the button again, the
consumption data is cleared and cleared quit flashing;
Step 3: If no key is pressed within five seconds, it means that the power does not clear the data and exit cleared.
3. The voltage alarm value
Step 1: Press the button until the power area show "SET" character, then release the button;
Step 2: After entering this state, the voltage of the high pressure area shows the current alarm value, the current area displays the current value of low pressure alarm,and the least significant bit starts flashing, then you can press the button through the +1 bit short, when there is no button operation When more than three seconds, the automatic adjustment of the position switch from high pressure to low pressure alarm alarm value has a value, a total of six, the scope voltage alarm threshold set for the 6.5 ~ 99.9V;
Step 3: After setting, press the button until the display shows "PASS" character indicates the setting is successful and automatically exit the setting mode.
Specification:
Brand: ALL IN HOME BOX
Working Voltage: 6.5 ~ 100V DC
Test Voltage: 6.5 ~ 100V DC
Rated Power: 20A/50A/100A 2000W
Measurement Accuracy: 1.0
Type: Volt Amp Power Watt Meter
Package Included:
1 x Digital LCD Meter
(0-20A: Built-in Shunt , 0-50A/0-100A: With Shunt)
Notes:
1. This module is suitable for indoor, not outdoor
2. Applied load can not exceed the rated voltage and current.
3. The wiring order can not be wrong.
