Feature:
Stable & Efficient Performance: High stability and efficiency in operation
Compact & Easy Installation: Small size with overvoltage, overcurrent, and short-circuit protection
IP68 Waterproof & Dustproof: Durable in various working environments
Flame-Retardant Housing: Safe and reliable plastic casing
Versatile Applications: Suitable for motors, security, vehicles, solar, and more
Specification:
Type: Step-Up Voltage Regulator
Module nature: DC-DC power supply (Non-isolated)
Shell Material: Flame retardant plastic shell
Input voltage: DC 12V
Input Voltage Range: DC 9-20V
Output voltage: DC 24V±0.2V
Output current: 5A
Output power: 120W
Protection level: IP68
Working temperature: -40~80℃
Conversion efficiency: 92%~96%
Static power consumption: 10~15ma

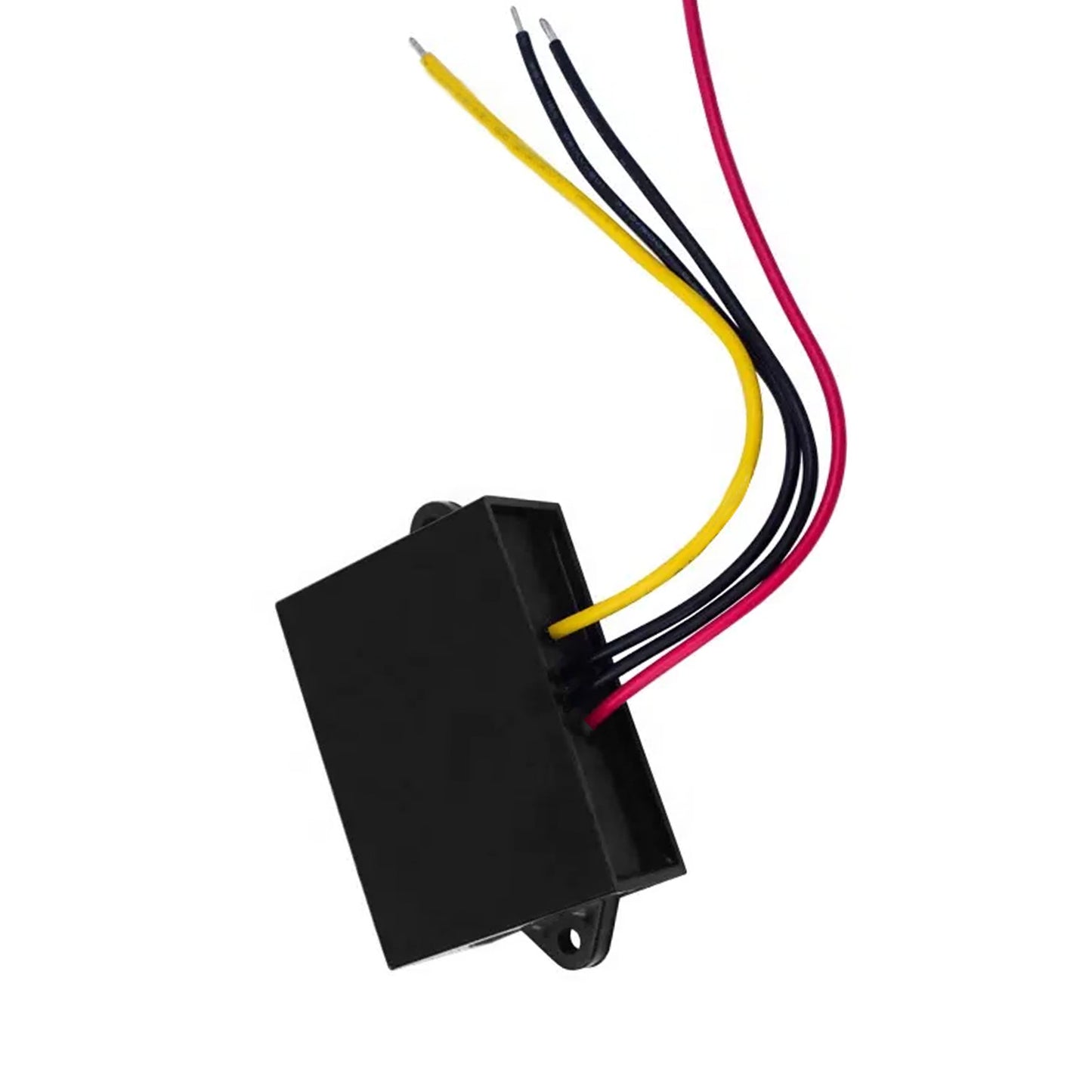

Input wire color : (+)Red, (-)Black
Output wire color : (+)Yellow, (-)Black
Package Include:
1x DC-DC Boost Step-Up Converter
Note:
1.Manual Measurement: Please allow a 1-2 cm error due to manual measurement. Thank you.

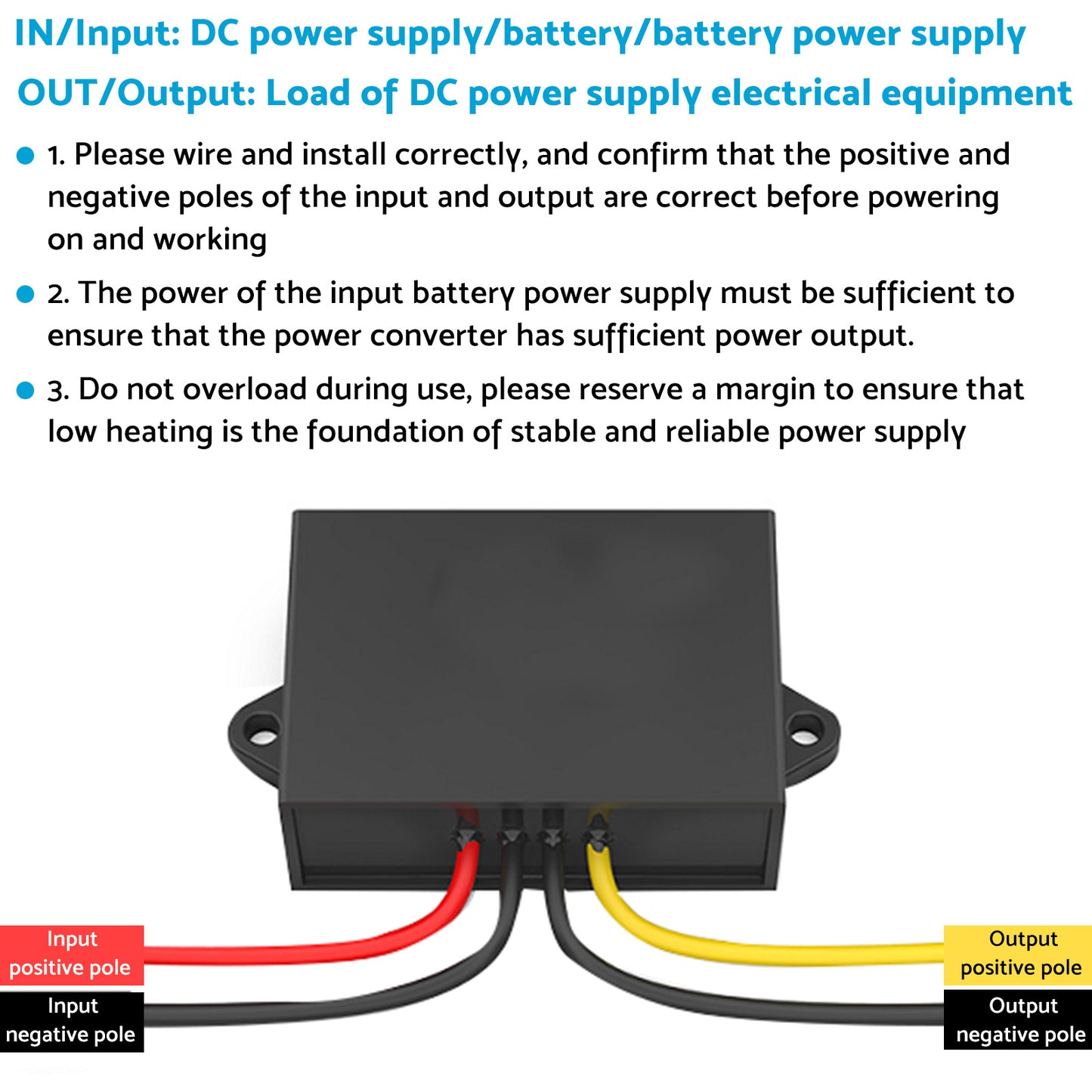

2.Correct Wiring: Follow the proper wiring method and avoid reversing the positive and negative poles.
3.Initial Testing: After receiving the product, test it first using a multimeter or voltmeter to check the output voltage. If the voltage is correct, you can safely power your device.
