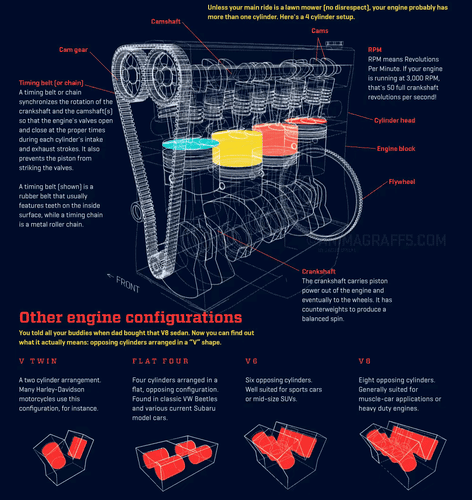

If you've ever popped the hood and seen the intricate components inside your car’s engine, you might have wondered how they work together to keep your engine running smoothly, like a well-fed cat. Let’s break down the key parts inside a 4-cylinder engine, explore how they operate, and offer some installation tips and quality-check advice, along with common problems and solutions.
The Engine's Conductor: How the Timing Belt and Its Teamwork Keep Things Running Smoothly
In a car engine, the timing belt acts as the "conductor" connecting the crankshaft to the camshaft, ensuring precise coordination between the valves and pistons. As the crankshaft rotates, it drives the timing belt, which moves the camshaft to control the opening and closing of the intake and exhaust valves. This synchronization is essential for smooth engine operation and preventing damage.
The cylinder head seals the cylinder block and supports the valve movement, while the engine block provides the structure for the pistons to move freely. The flywheel helps maintain the crankshaft's stable rotation through inertia, reducing vibrations. Together, this well-coordinated system ensures the engine runs smoothly and efficiently, functioning like a finely tuned machine.
Key Engine Parts: Roles and Maintenance
Cylinder Head: The Engine's "Conductor"
The cylinder head directs the flow of air, fuel, and exhaust, ensuring that each intake and exhaust happens at the right time. It houses the valves and camshaft, which are at the heart of the engine’s breathing process. Without a well-sealed cylinder head, the engine could overheat and lose performance. Regular maintenance helps keep the engine running harmoniously.
Engine Block: The Engine's "Foundation"
If the engine were a skyscraper, the engine block would be its foundation. It supports all critical components and ensures smooth engine operation. To maintain this "foundation," check the cooling system for leaks and ensure proper lubrication. Cracks or damage to the engine block could lead to failure of other components.
Flywheel: The Engine's "Invisible Dancer"
The flywheel is the unsung hero of the engine. It smooths out the power pulsations coming from the pistons by maintaining rotational inertia. If it becomes unbalanced or worn, engine vibrations may occur, affecting the driving experience. Regularly check the flywheel’s condition for balance and functionality.
Crankshaft: The Engine's "Energy Converter"
The crankshaft converts the up-and-down motion of the pistons into rotational power, transmitting this energy to the wheels. Without it, the car wouldn’t start. Ensure proper lubrication and replace worn crankshafts to avoid engine failure.
Timing Belt (or Chain): The Engine's "Clock"
The timing belt (or chain) ensures precise synchronization between the valves and pistons. If the timing belt fails, it disrupts the engine's rhythm, potentially causing severe damage. Regular inspection and timely replacement of the timing belt are essential.
Camshaft and Cam Gear: The Engine's "Director"
The camshaft and cam gear control the timing of intake and exhaust valve openings and closings. This synchronization is key to engine efficiency. Regularly check the camshaft and cam gear for smooth operation to maintain optimal performance.
Common Problems and Solutions
Timing Belt (or Chain) Wear or Breakage Symptoms
- Sharp, high-frequency noise from the engine.
- Decreased power, causing engine instability or stalling.
- Unusual vibrations when starting the engine.
Solutions:
- Regularly check the timing belt for tension and wear.
- Replace the timing belt or chain as recommended by the manufacturer.
- Avoid using subpar components to prevent faster wear.
Cylinder Head Cracks or Valve Failures Symptoms
- Oil leakage around the engine.
- Unusual engine sounds, like metallic clattering.
- Engine overheating or strange odors from gas leaks.
Solutions:
- Check the engine’s cooling system regularly.
- Inspect the cylinder head and valve seals to avoid leaks.
- Replace or repair a cracked cylinder head immediately.
Flywheel Wear Symptoms
- Vibrations during driving, especially during acceleration.
- Uneven driving feel or shaking at startup.
Solutions:
- Regularly inspect the flywheel’s condition for balance.
- Replace worn flywheels to avoid early failure.
Crankshaft Wear Symptoms
- Knocking or metal collision sounds from the engine.
- Lack of power during acceleration.
- Vibrations at high RPMs.
Solutions:
- Regularly change engine oil to ensure proper lubrication.
- Inspect the crankshaft for cracks or excessive wear.
- Severe damage may require an engine replacement.
Camshaft and Cam Gear Failures Symptoms
- Unstable idle or fluctuating RPMs.
- Slow acceleration response.
- Sudden performance drop during driving.
Solutions:
- Regularly check for wear on the camshaft and cam gear.
- Replace damaged parts as necessary.
- Ensure proper lubrication to reduce friction.
Installation Tips and Quality Check
Proper installation and quality checks are critical for ensuring the longevity and performance of engine parts. Here are some key tips for installation and quality verification:
Timing Belt (or Chain)
Installation Tips:
- Ensure correct tension—neither too loose nor too tight.
- Align the timing marks on the crankshaft and camshaft.
Quality Check:
- Use high-strength rubber or composite materials for wear resistance.
- Look for visible cracks or breaks in the belt.
Cylinder Head
Installation Tips:
- Use new gaskets to avoid leaks.
- Tighten bolts to the specified torque to avoid damage.
Quality Check:
- Ensure the cylinder head is made from high-quality aluminum alloys.
- Check for a smooth, crack-free surface for proper pressure distribution.
Flywheel
Installation Tips:
- Balance the flywheel to prevent vibrations.
- Ensure a secure connection between the flywheel and crankshaft.
Quality Check:
- Ensure the flywheel is made from high-strength steel.
- Look for cracks or wear marks on the surface.
Crankshaft
Installation Tips:
- Lubricate properly to avoid dry friction.
- Check balance before installation.
Quality Check:
- Look for smooth, blemish-free surfaces.
- Ensure durability and consistent performance.
Camshaft and Cam Gear
Installation Tips:
- Ensure proper alignment and lubrication.
- Tighten bolts to the specified torque.
Quality Check:
- Use wear-resistant alloy steels for durability.
- Ensure smooth gear teeth for proper meshing.
Conclusion
Maintaining and understanding the key components of a 4-cylinder engine—such as the timing belt, cylinder head, and crankshaft—is essential for smooth engine operation. Regular checks, proper installation, and the use of high-quality parts can prevent common issues, extend engine life, and keep your vehicle running efficiently.
