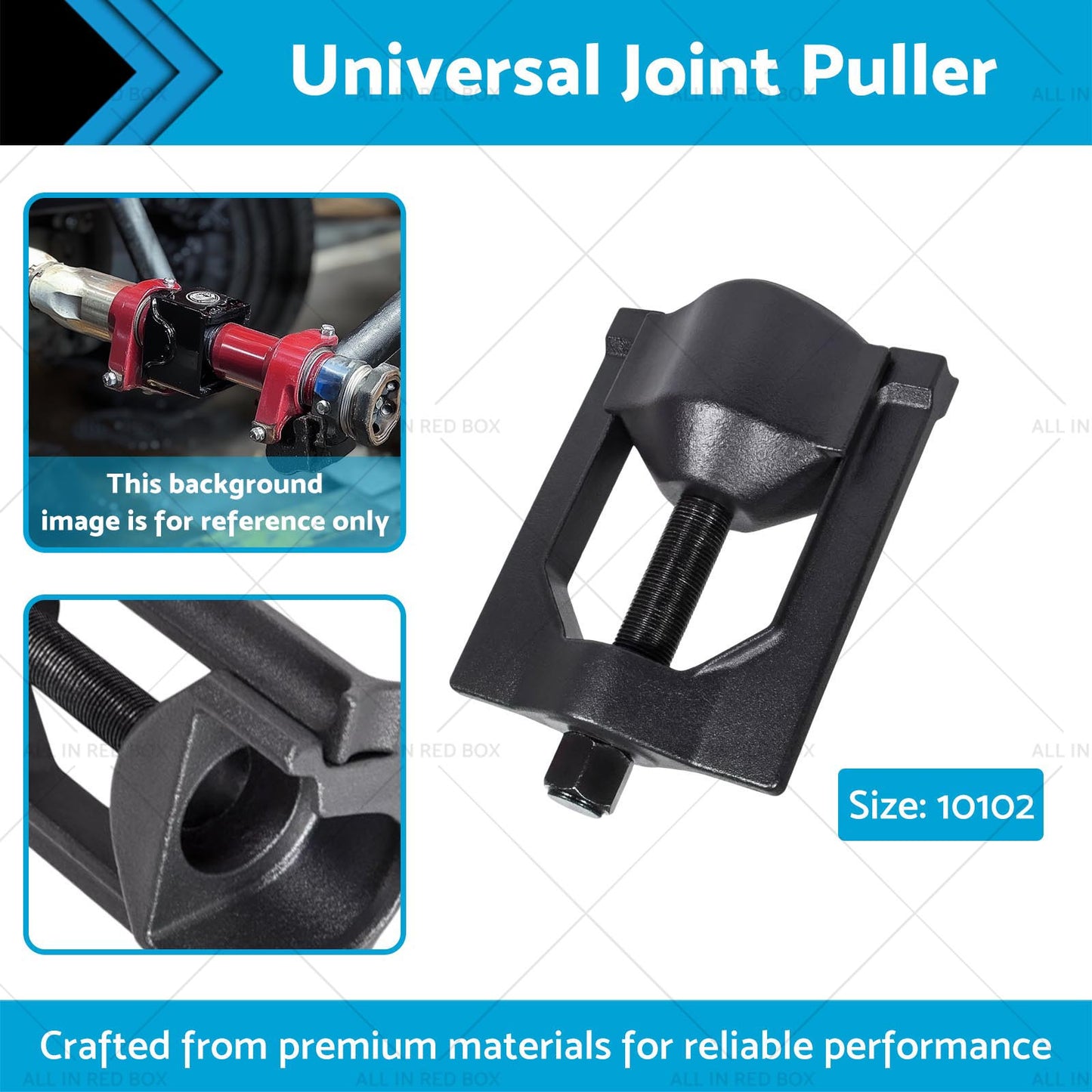

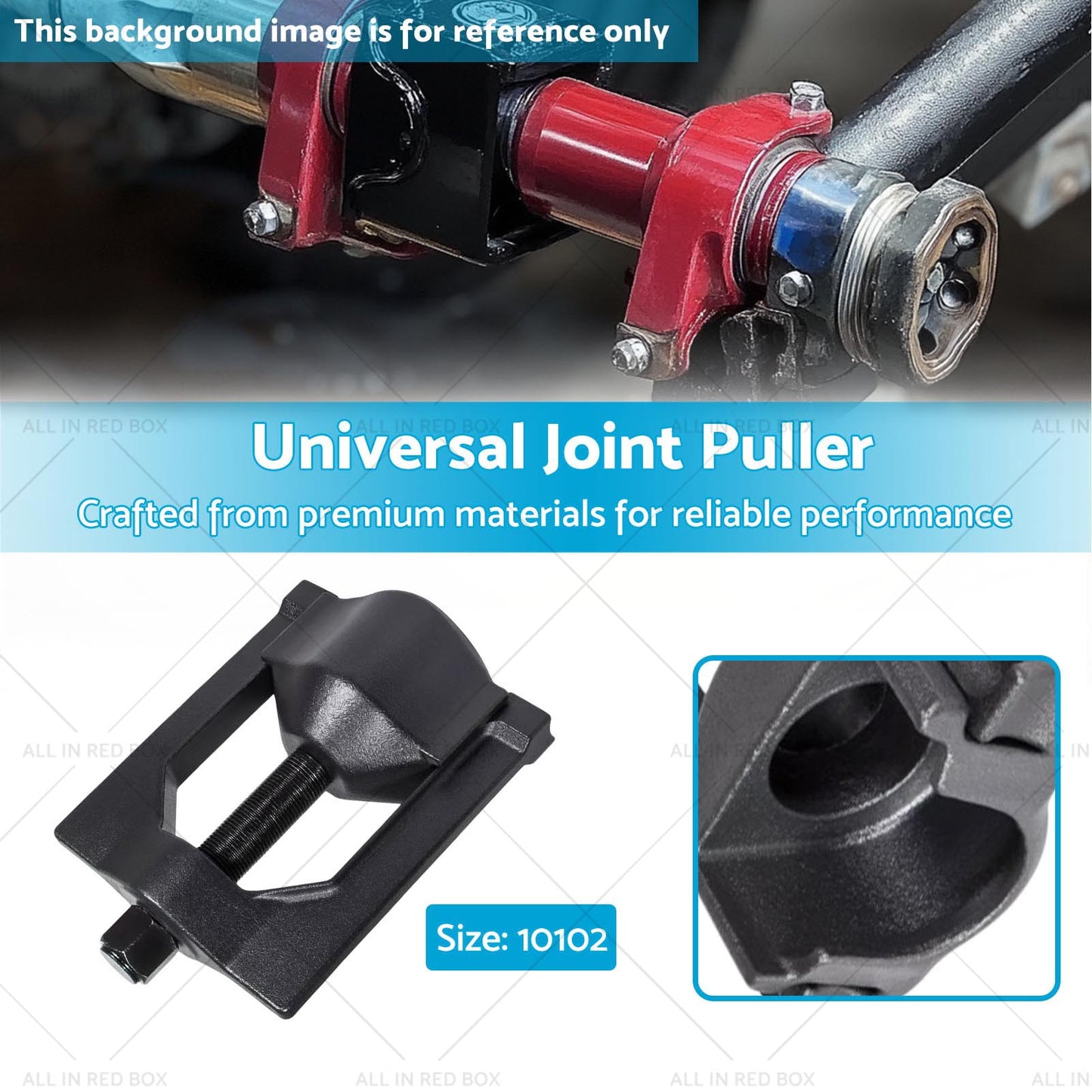

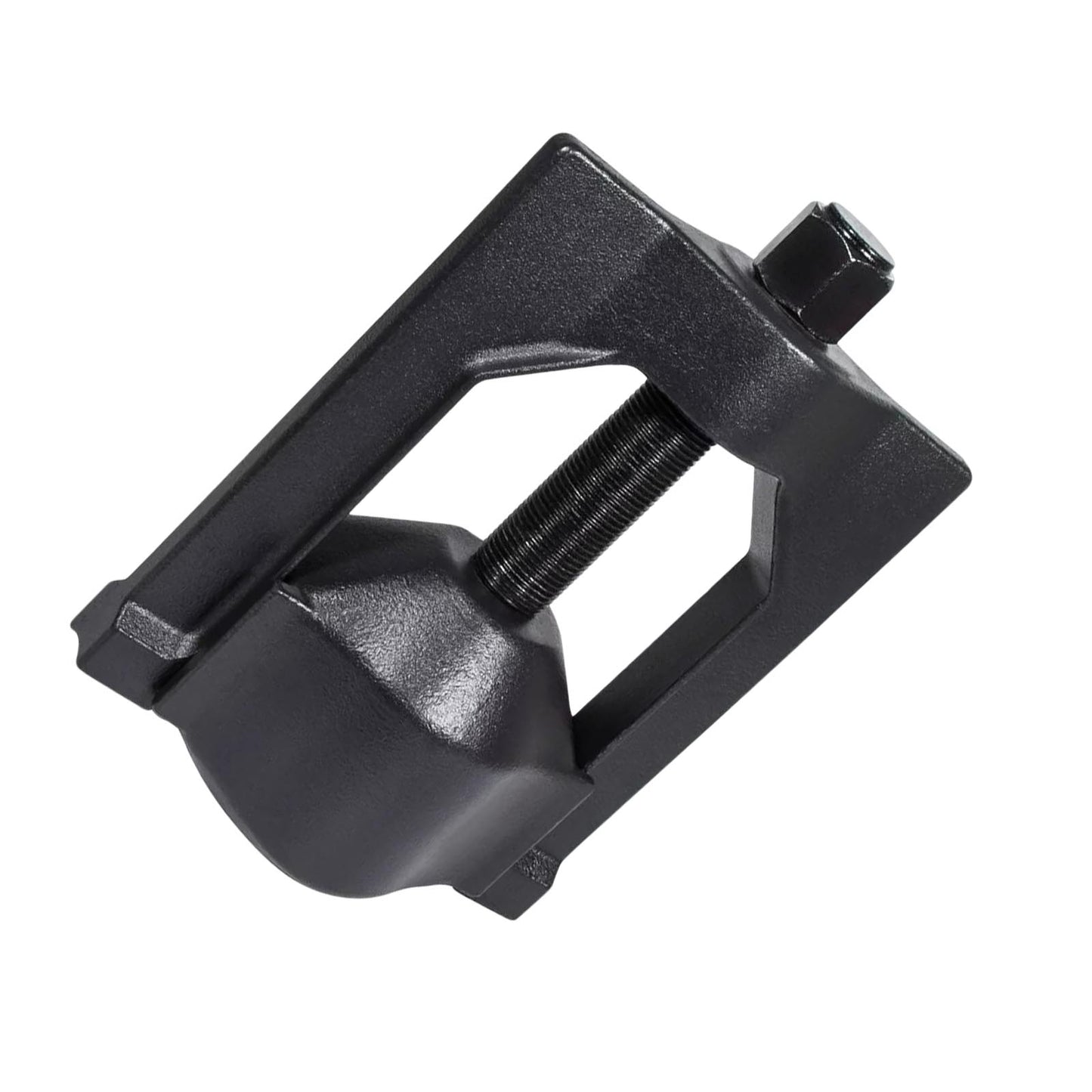

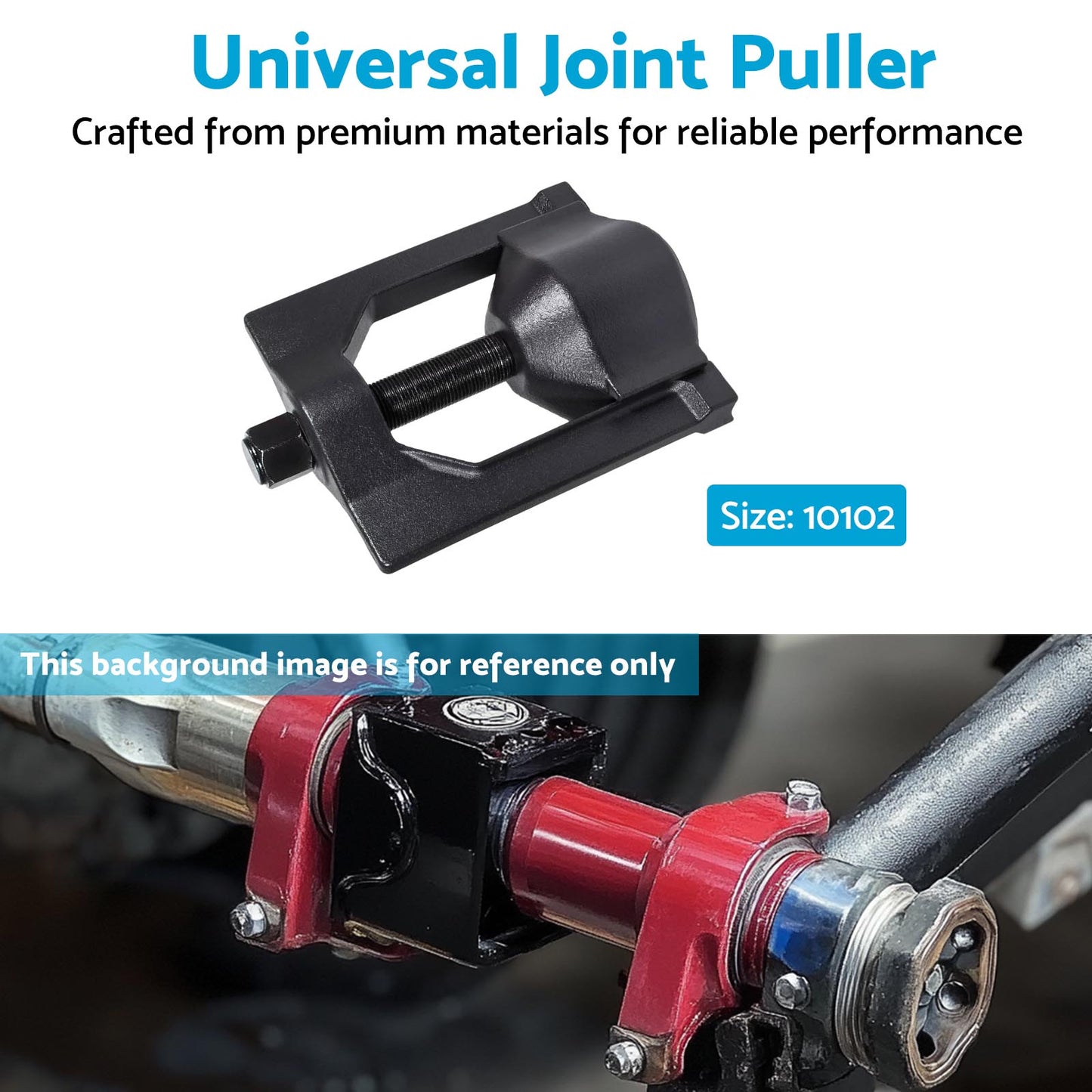

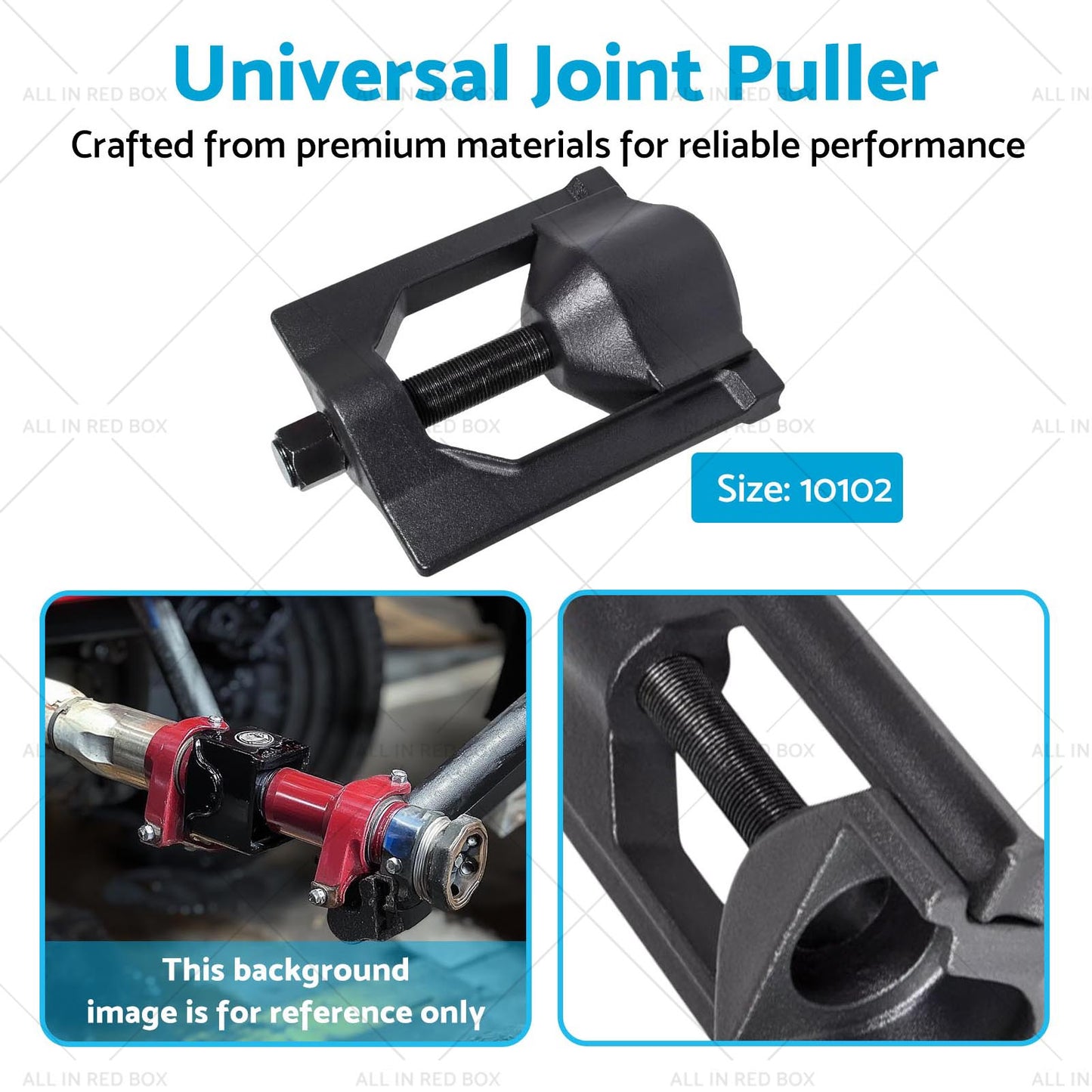

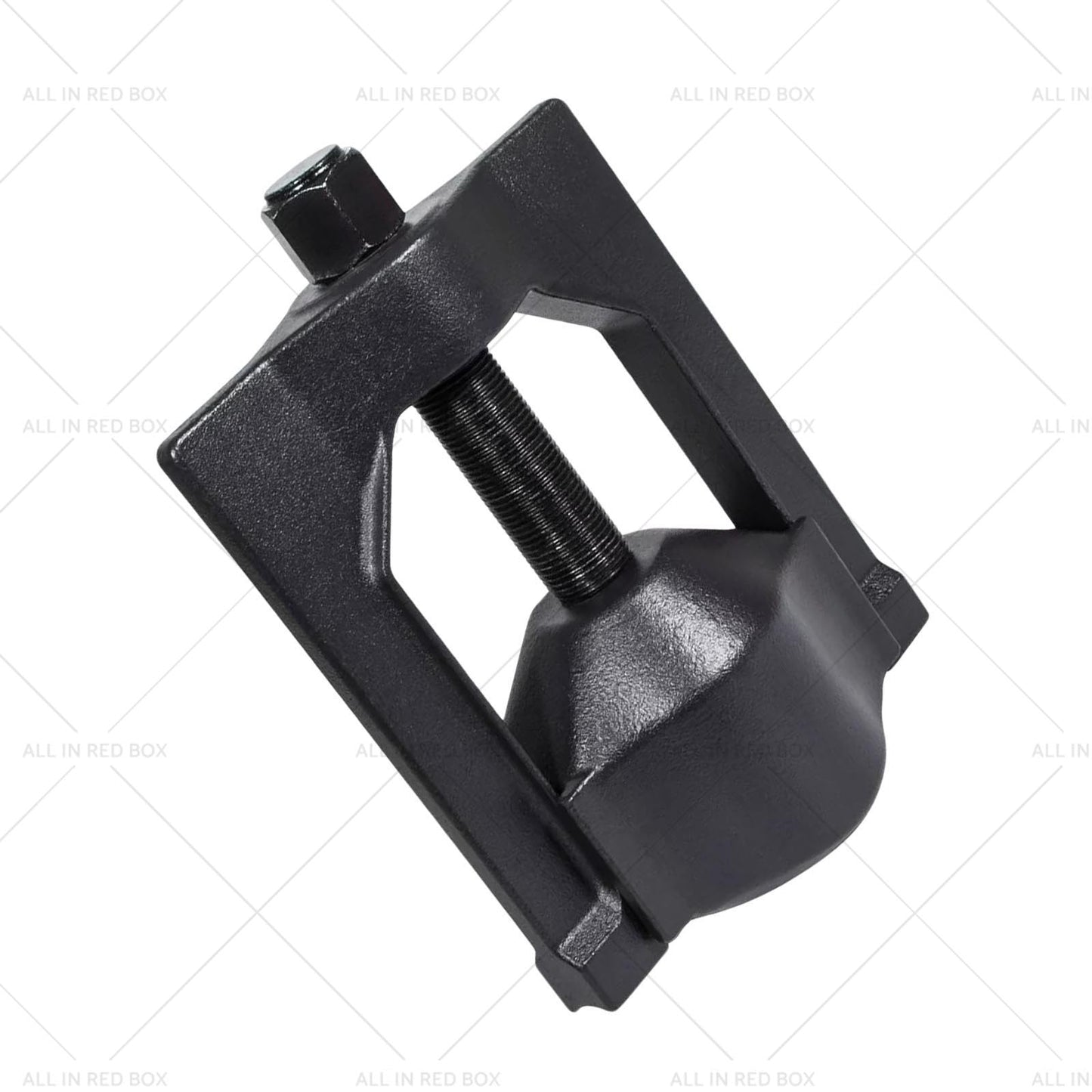

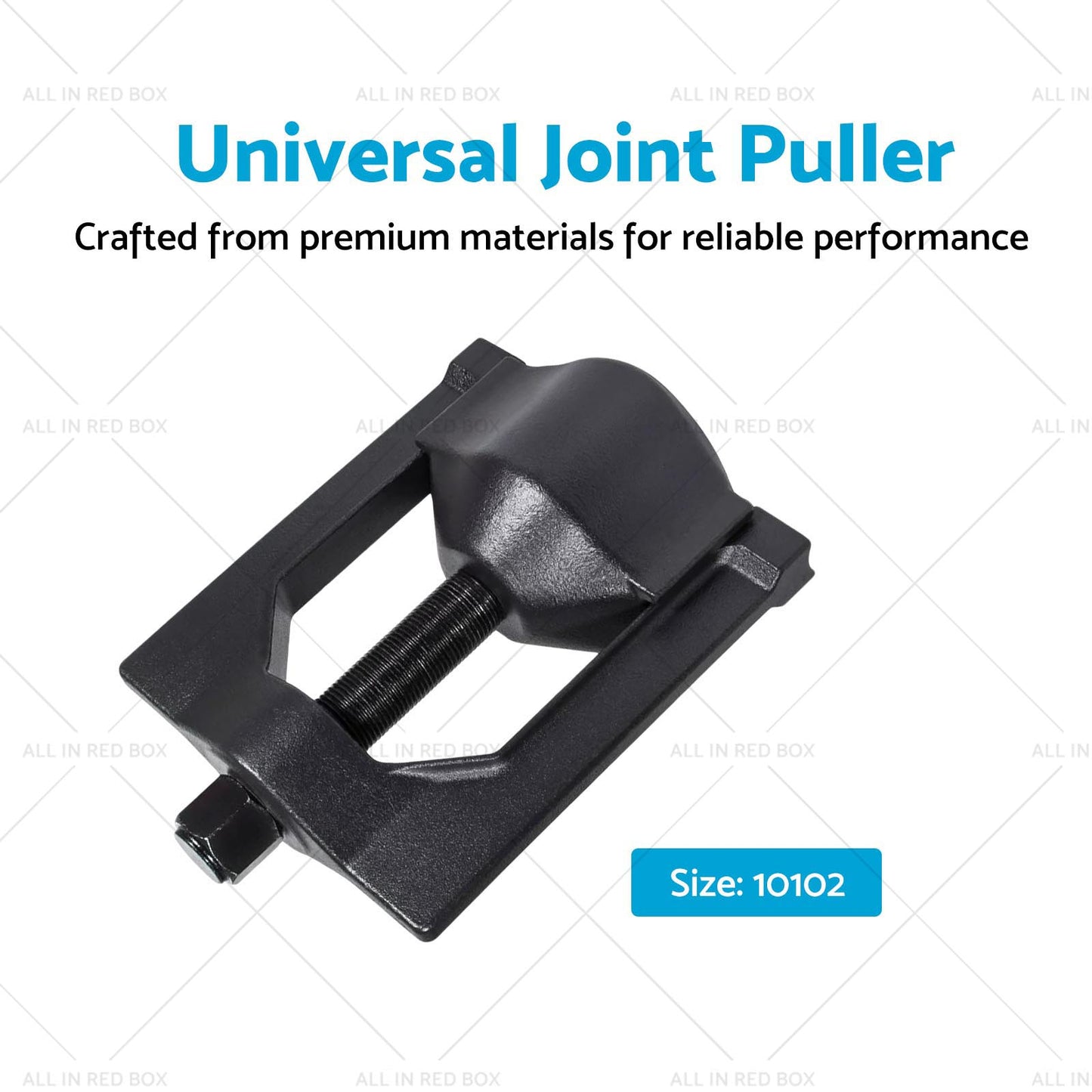

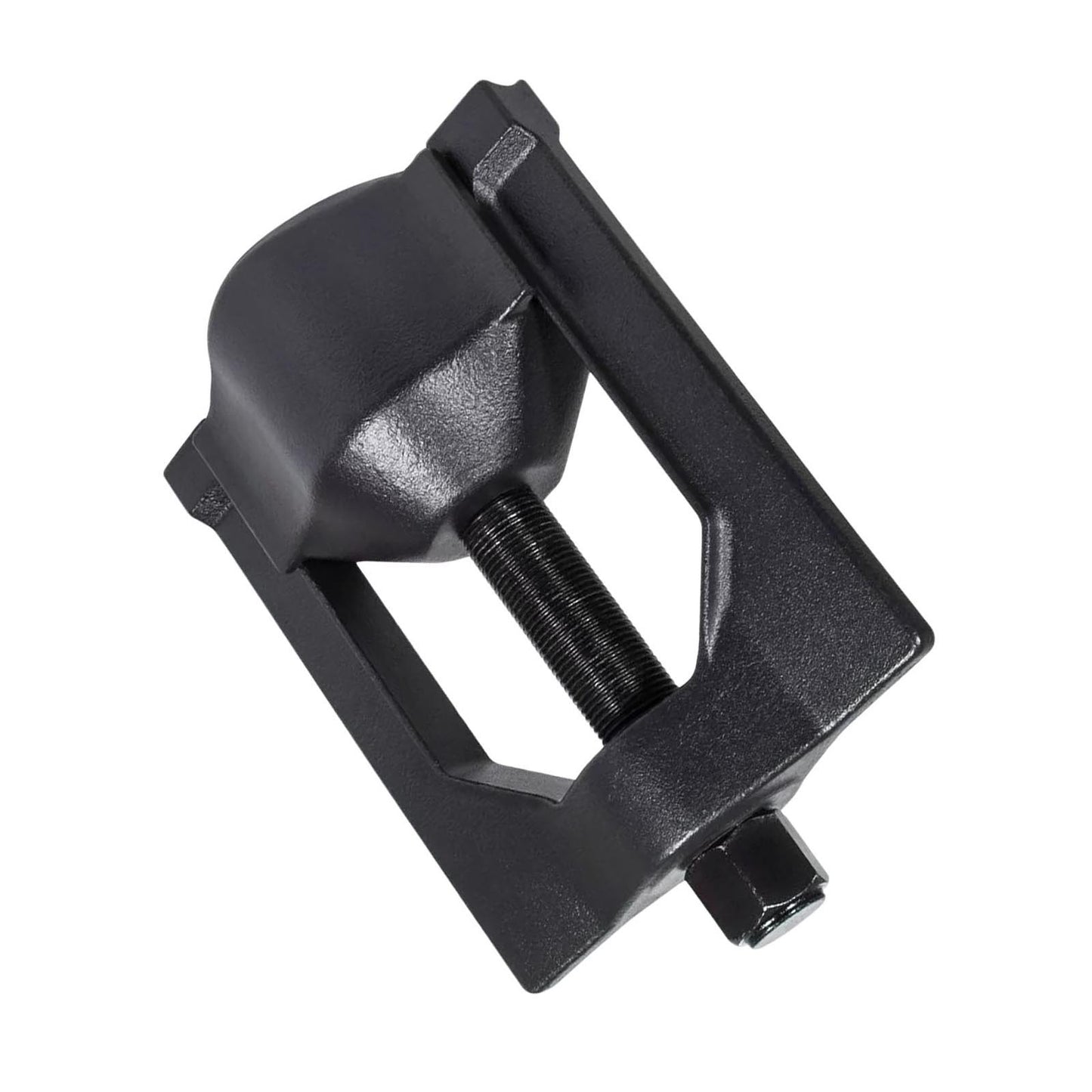

10102 HD Universal Joint Puller Suitable For Rockwell Meritor Spicer Class 6 & 8

Compatible with:

Suitable For Spicer 1610, 1710, 1760, 1810, 1880 Series

Suitable For Spicer SPL 140, 170, & 250 Life Series

Suitable For Meritor (Rockwell) 16N, 17N, 18N, 1710 Series

Suitable For Meritor RPL 20, 25 Permalube Series

(Designed to work with U-Joint bearing cups from 1.5" to 2.2" and will suitable for virtually all Class 7 and 8 Trucks and Machinery)

Feature：

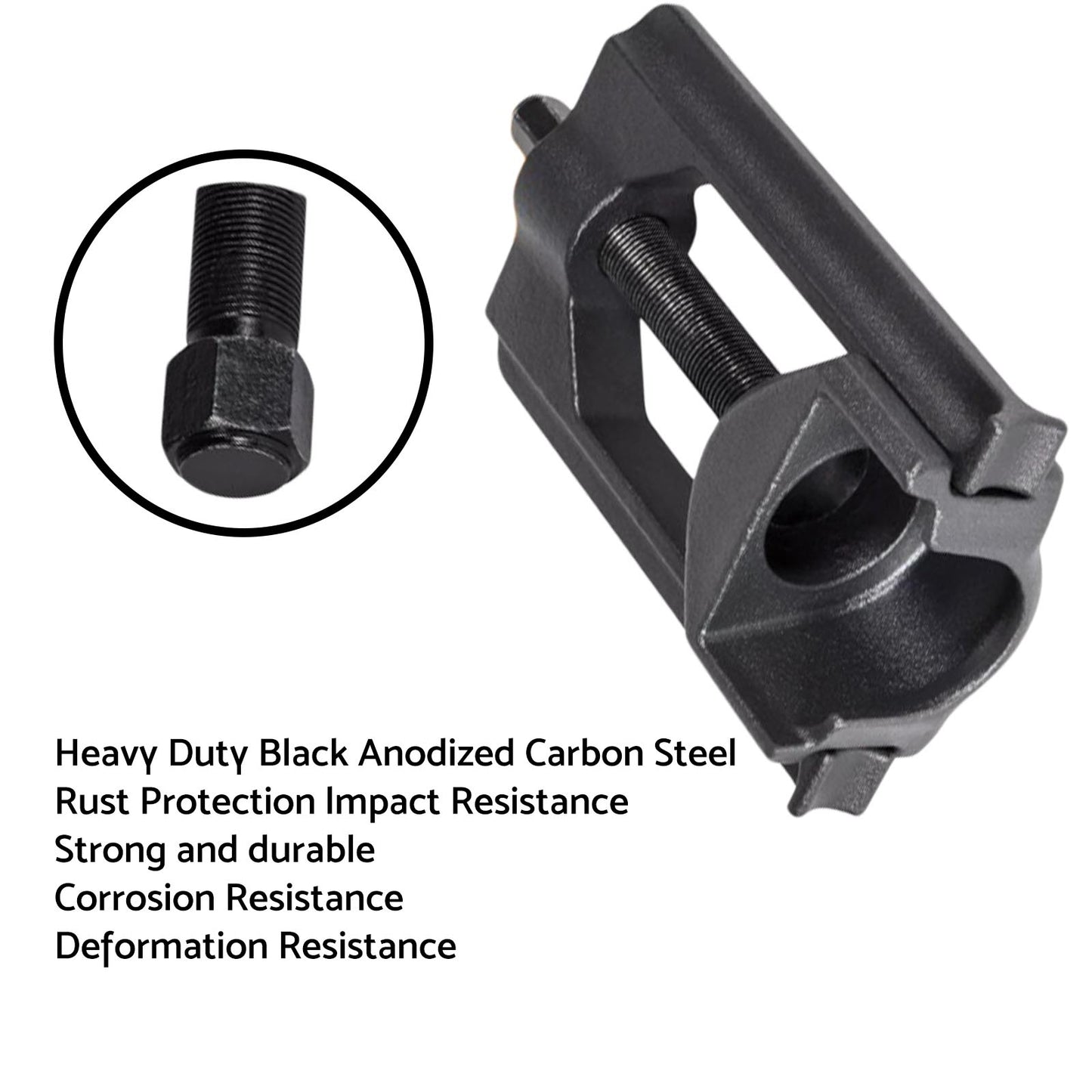

High-Quality Steel Construction: Made from premium steel for high toughness and impact resistance. Built for strength and broad compatibility.

Essential Tool: Eliminates the need for risky vice, socket, or hammering methods while protecting the driveshaft, yokes, joints, and bearing cups.

Usage Notice: Suitable for use with up to a 1″ impact wrench and compatible with U-joint bearing cups ranging from 1.5″ to 2.2″ O.D. Always wear safety gear to prevent injuries.

The heavy-duty universal joint puller is compatible with up to a 1-inch impact wrench, delivering maximum strength for drivelines.

It provides efficient mechanical leverage, replacing risky methods and removing sealed U-joint cups in minutes.

Specification：

Type: U Joint Puller

Warranty: 1 year

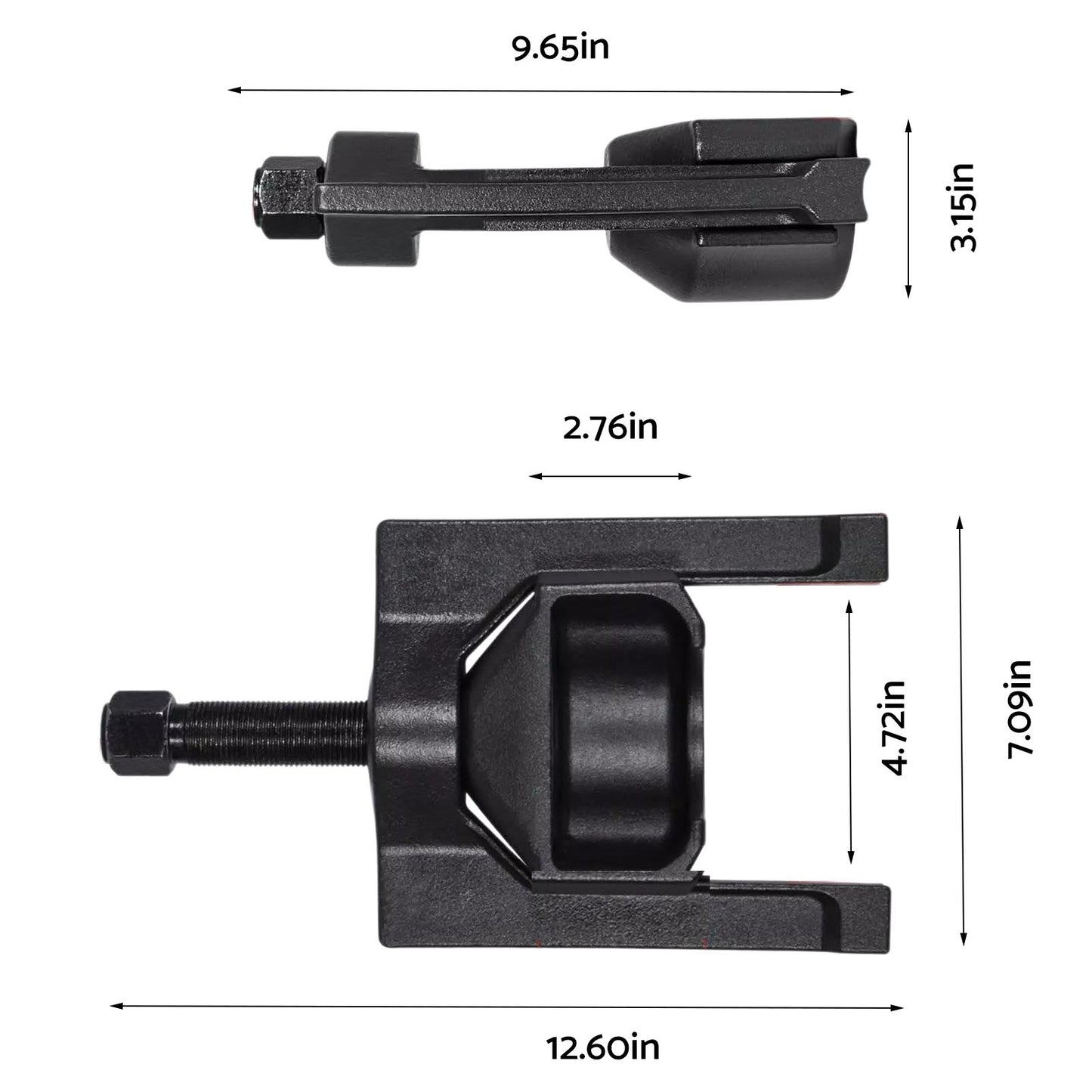

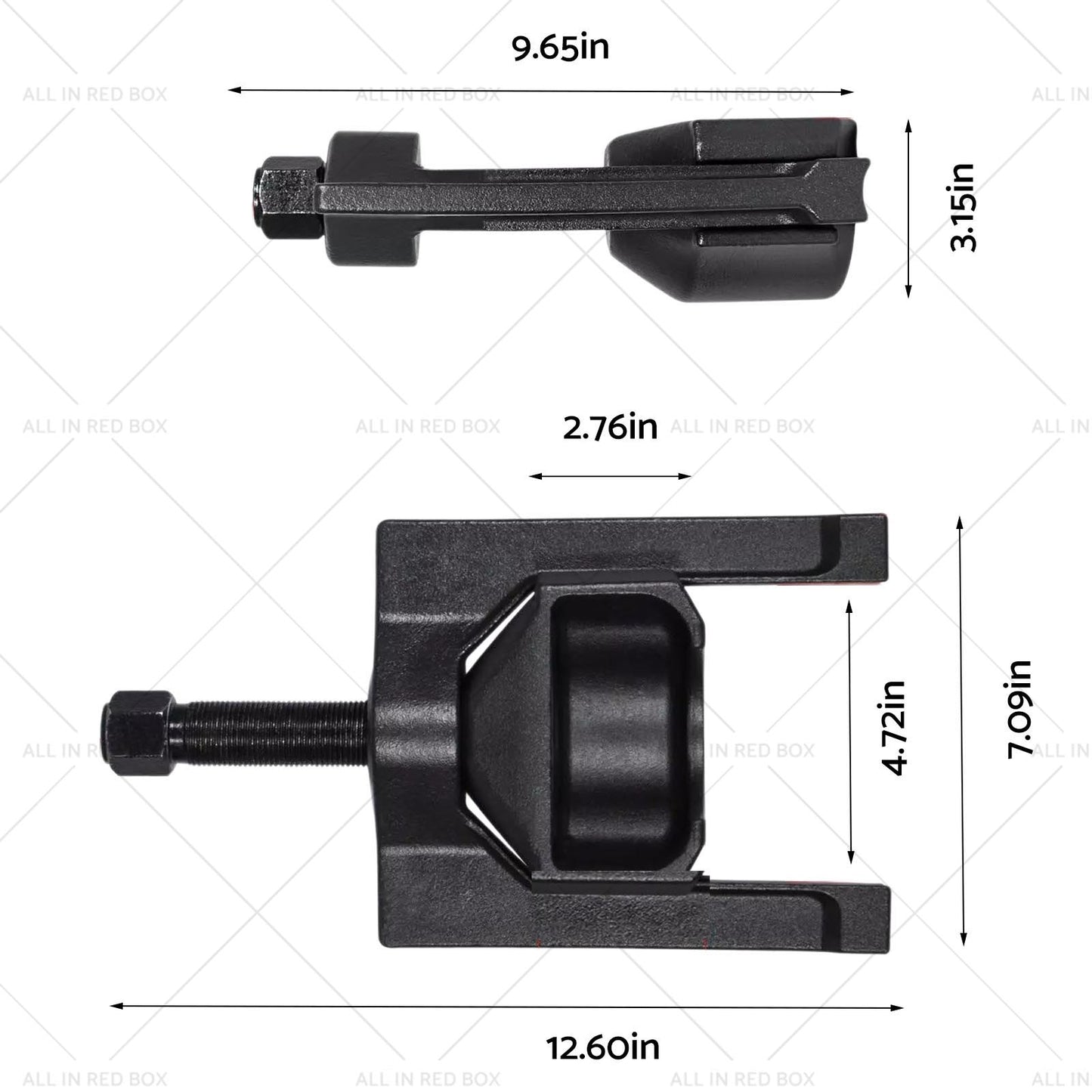

Size: 10102

Material: Steel

Fitment Type：Direct Fitment

Package Include:

1x U Joint Puller Tool

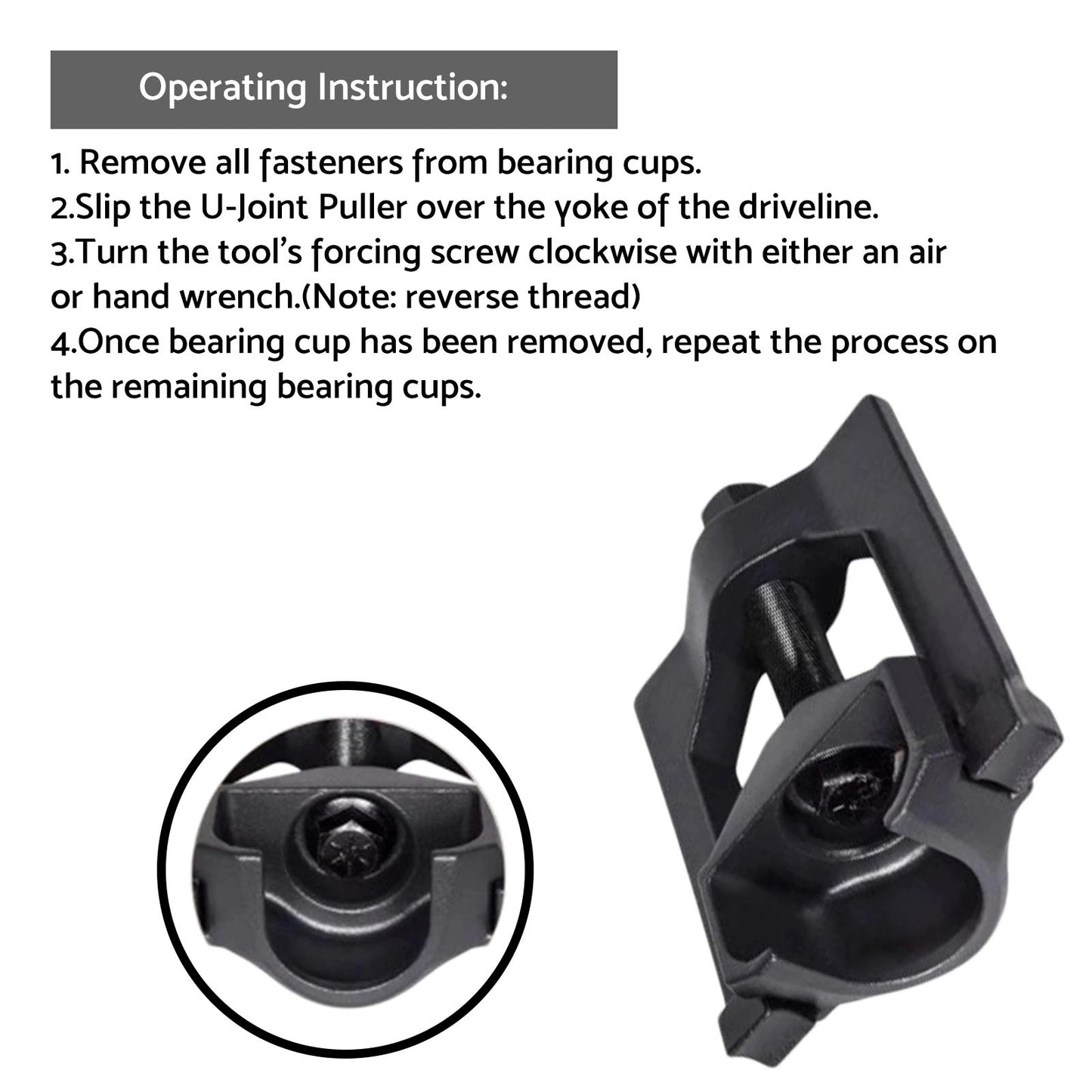

Easy to Use:

Step 1: Remove all fasteners from the bearing cups.

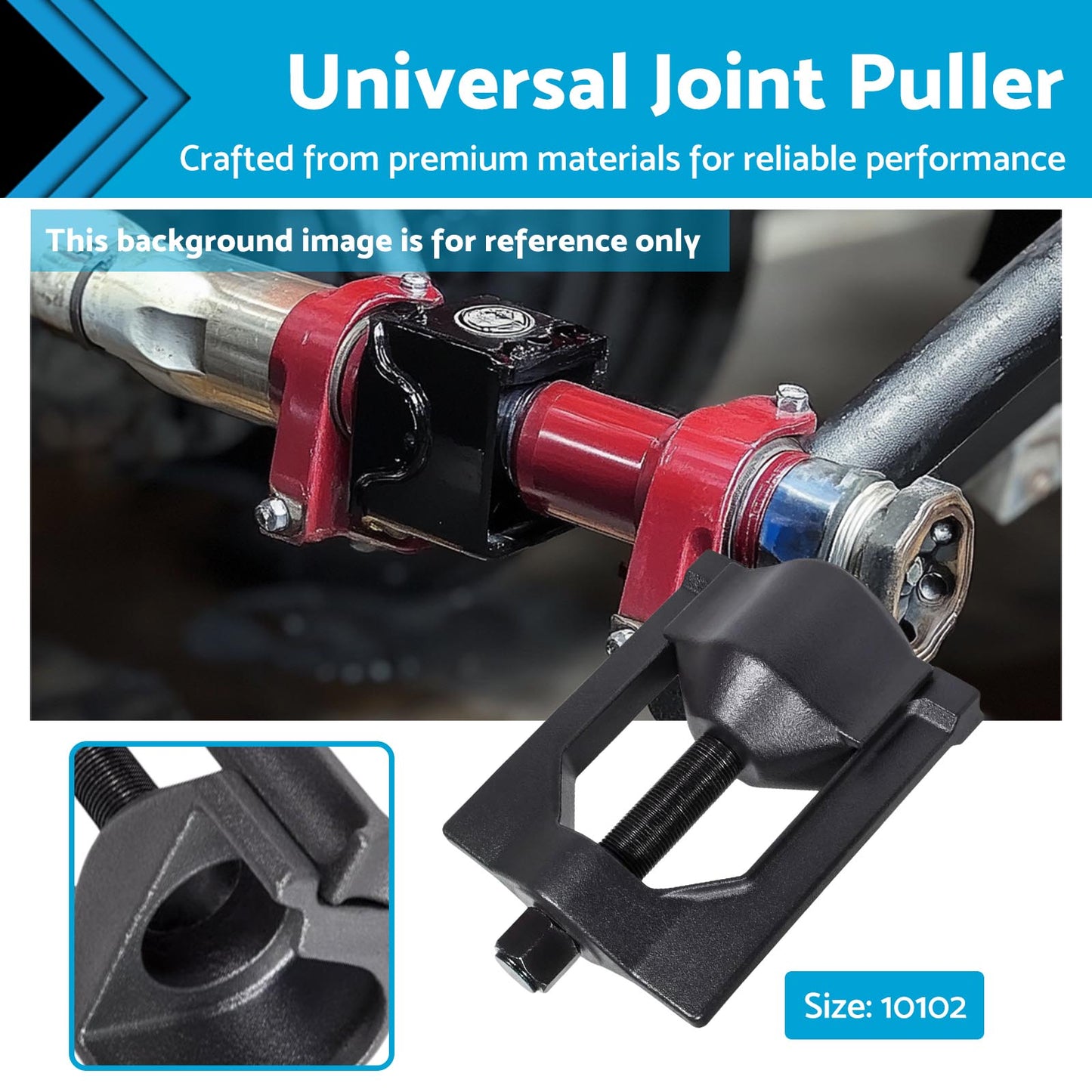

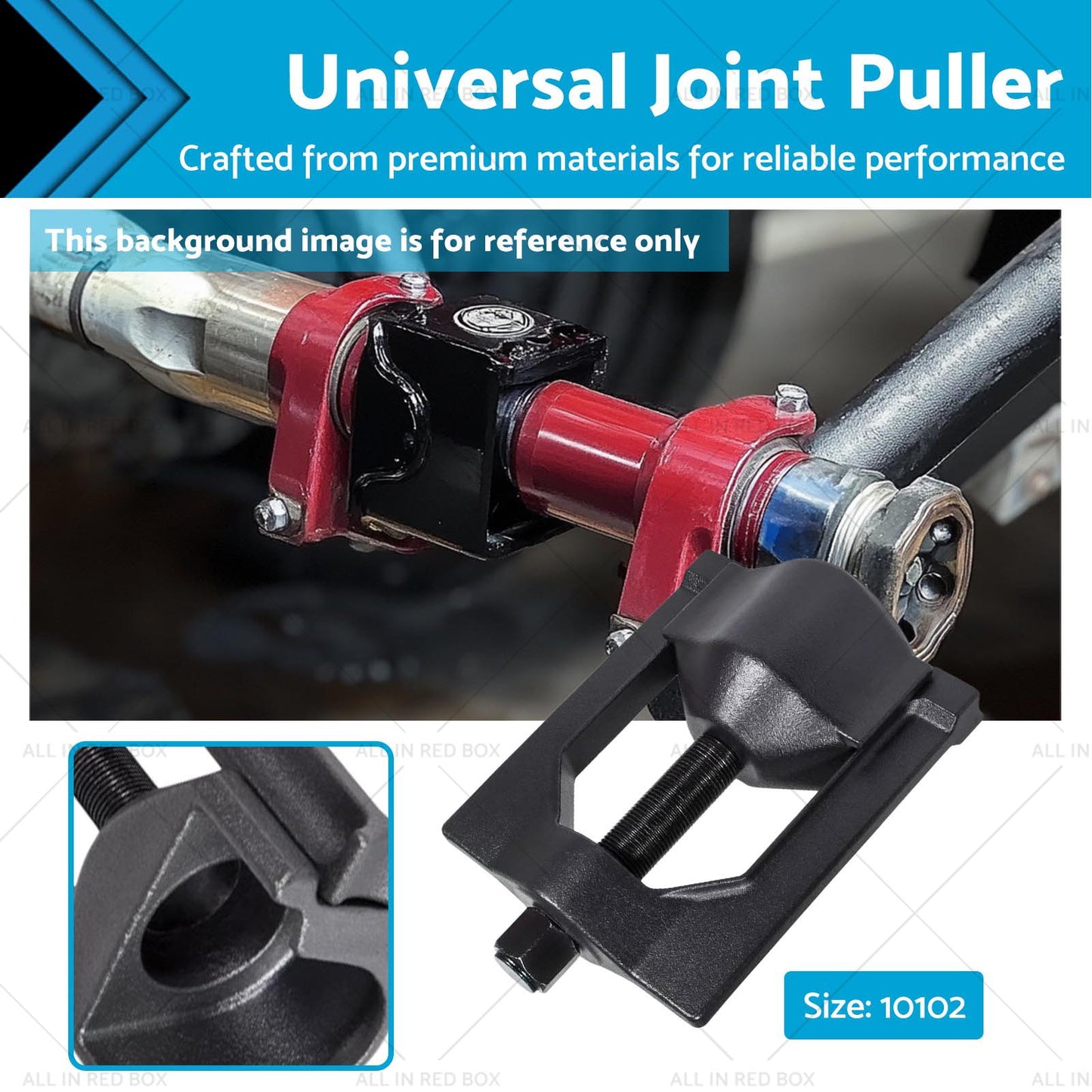

Step 2: Place the U-Joint puller over the yoke of the driveline.

Step 3: Turn the tool's forcing screw clockwise using a hand or impact wrench. (Note: Reserve thread.)

The 10102 U-Joint Puller works with up to a 1-inch impact wrench.

Step 4: Once the bearing cup is removed, repeat the process for the remaining cups.

Safety Warnings & Cautions:

1.Use caution and exercise common sense when operating this tool.

2.Do not operate while under the influence of alcohol, drugs, or medication.

3.Always wear safety equipment to avoid injury.

4.Operators and anyone in the work area must wear face and eye protection.

Keep your work area clean and well-lit.

Note:

Please note that all parts sold on this platform are aftermarket products.

While they are compatible with specific vehicle models, they are neither manufactured nor endorsed by the original equipment manufacturers (OEM).

All trademarks and brand names are used for identification purposes only and remain the property of their respective owners.
