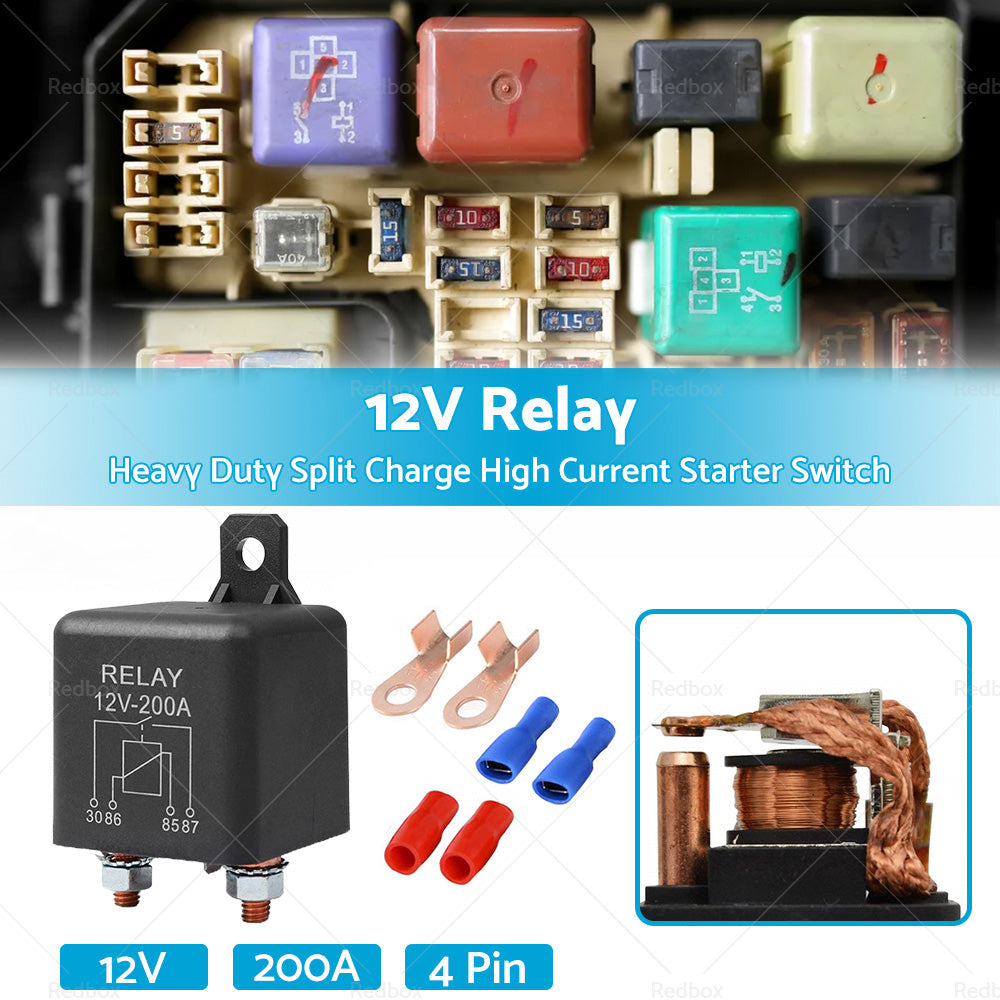

Features
High 200A coil capacity- able to handle those high current applications with ease, Heavy duty make or break (on/off) relay.
With 2pin footprint + 2 terminal accessories, Hundreds of uses include- starter kills, domelight supervision, trunk release, polarity change, power door lock/actuator control.
100% brand new and high quality Durable & Firm & Stable Contact Load: High Power Ideal for universal 12V applications
Vinyl install tools, building tools, industry tools, advertisement film install, mobile screen protective film install
Scope of application:
Widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment, it is one of the most important control components
Contact Data:

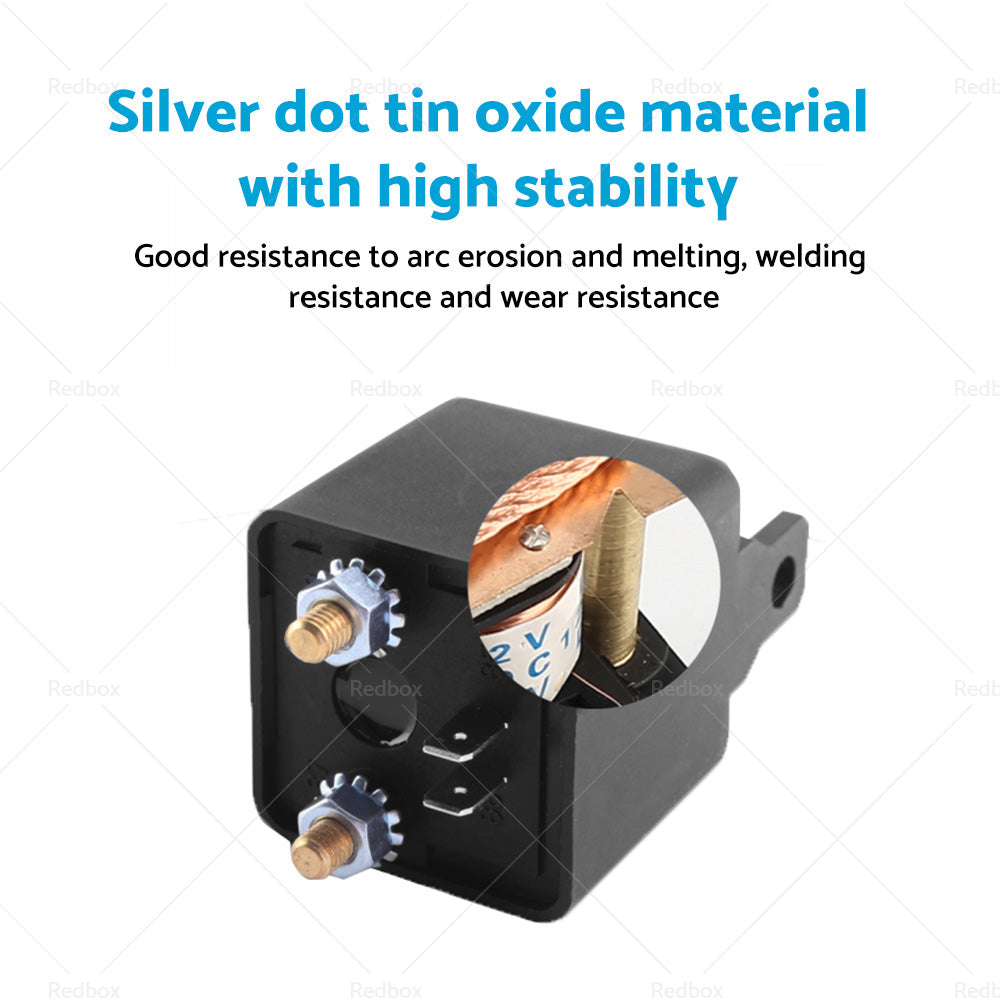

Contact Material: AgSnO12
Contact Ratings: No: 200A 14V DC
Contact Resistance: 200mMax at 6V DC 1A
Max switching Current: 200A
Max Switching Voltage: 14VDC
Max Switching Power: 100A
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations
Coil Specification:
Rated voltage: 12V DC
Resistance: 30 Ω
Max Operate Voltage (VDC): 8.0
Mix Release Voltage (VDC): 1.2
Max Applicable Voltage (VDC): 14
Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m Ω Min at 500VDC
Dielectric Strength Between Open Contacts 2000V AC (for one minute/sec)
Between Contact and coil: 1500V AC (for one minute/sec)
Operate Time: 15ms
Release Time: 15ms

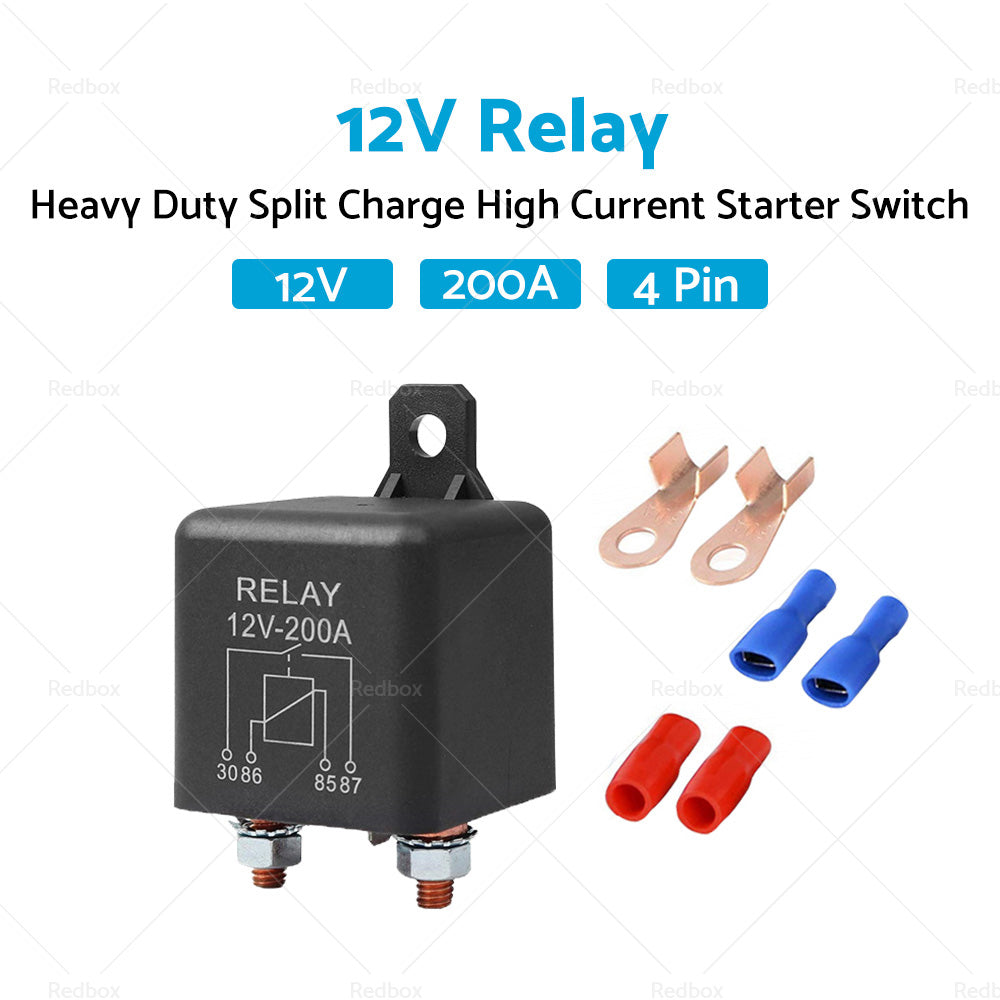

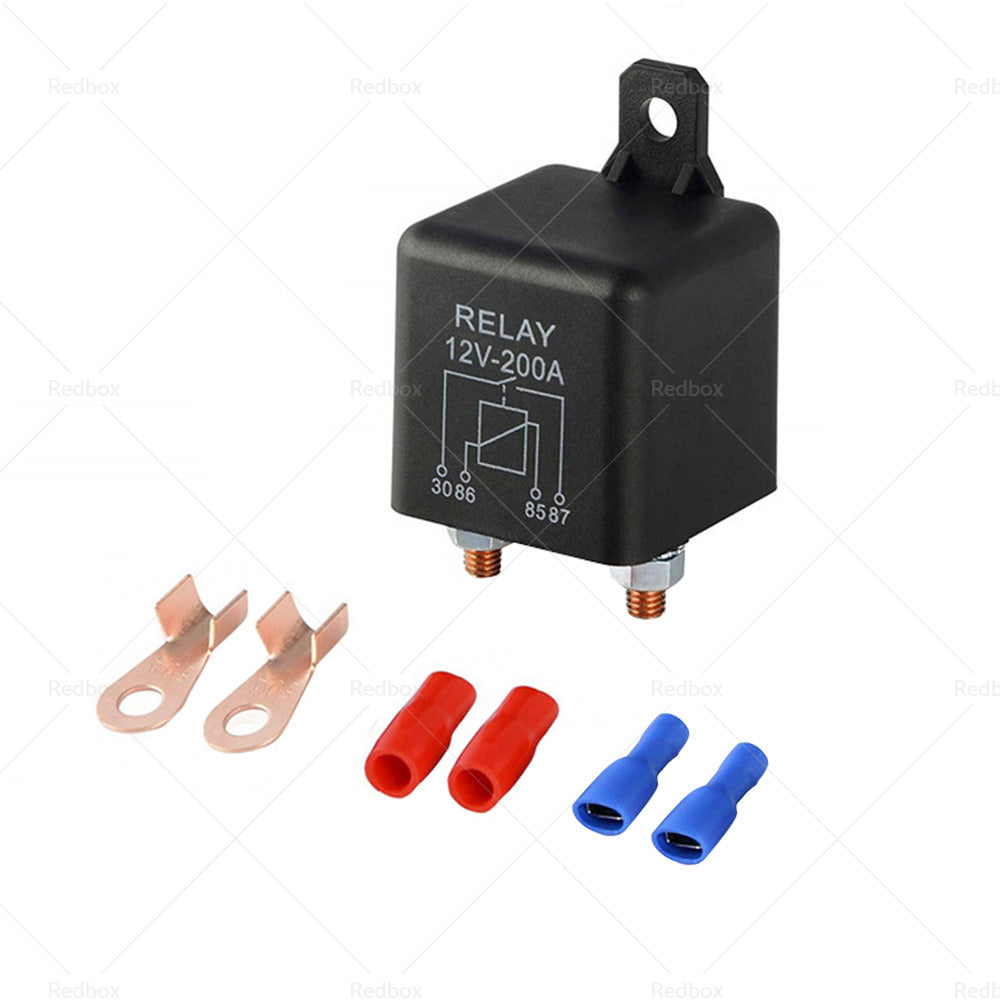

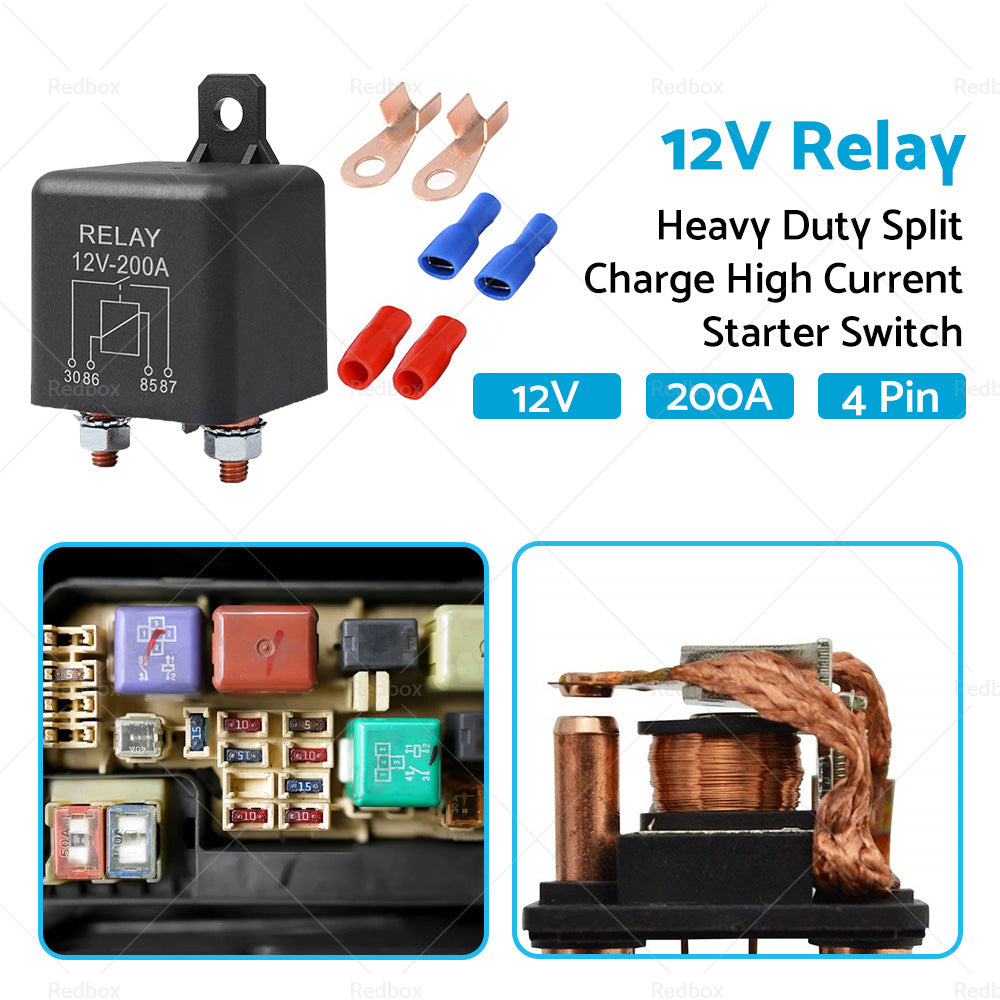

Package include:
1 x Relay
2 sets of Teminals（Totally 4 pcs）
2 x Heat shrinkable tube
