2 Way 6 Way Bus Bar Power Distribution 12V 150A Rated Terminal Block Black Red

Feature

★Rated at 150 AMP with

★Modular box design for easy wiring configurations and neater finish

★Glass fiber reinforced nylon base and enclosure delivers strength and durability

★Blank space to you can write on the top and this allows for easy labeling for each branch

Specification

Brand: MAXCOOL

Type: Power Distribution

Color: Black/Red

Quantity Sold: One

Warranty: 1 Year

Bus Type: 2 Way/6 Way

Bolt Material: Tinned Brass

Base Material: Fireproof Plastic

Continuous Rating: 130A AC/150A DC

Max Voltage: 300V AC/48V DC

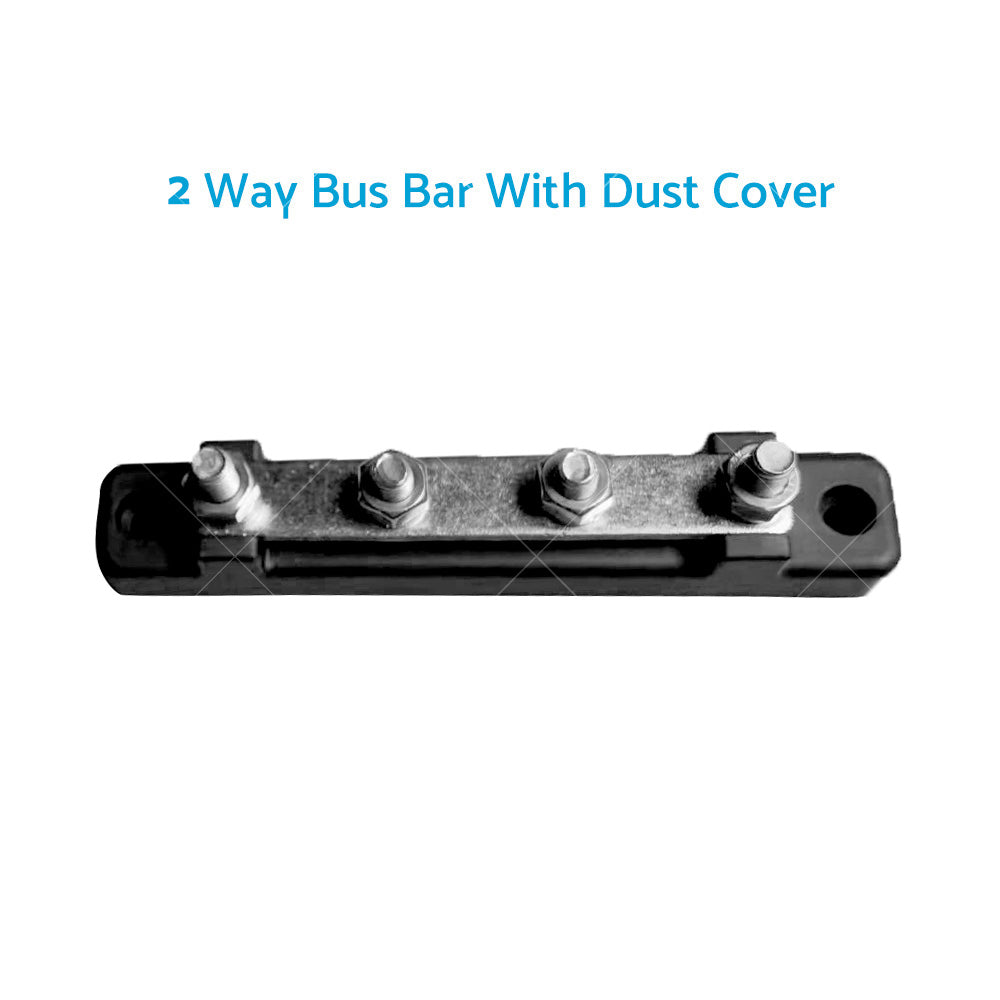

2 Way
Size: 107*23*37mm/4.21*0.9*1.45 inch

Studs: 6mm x 4

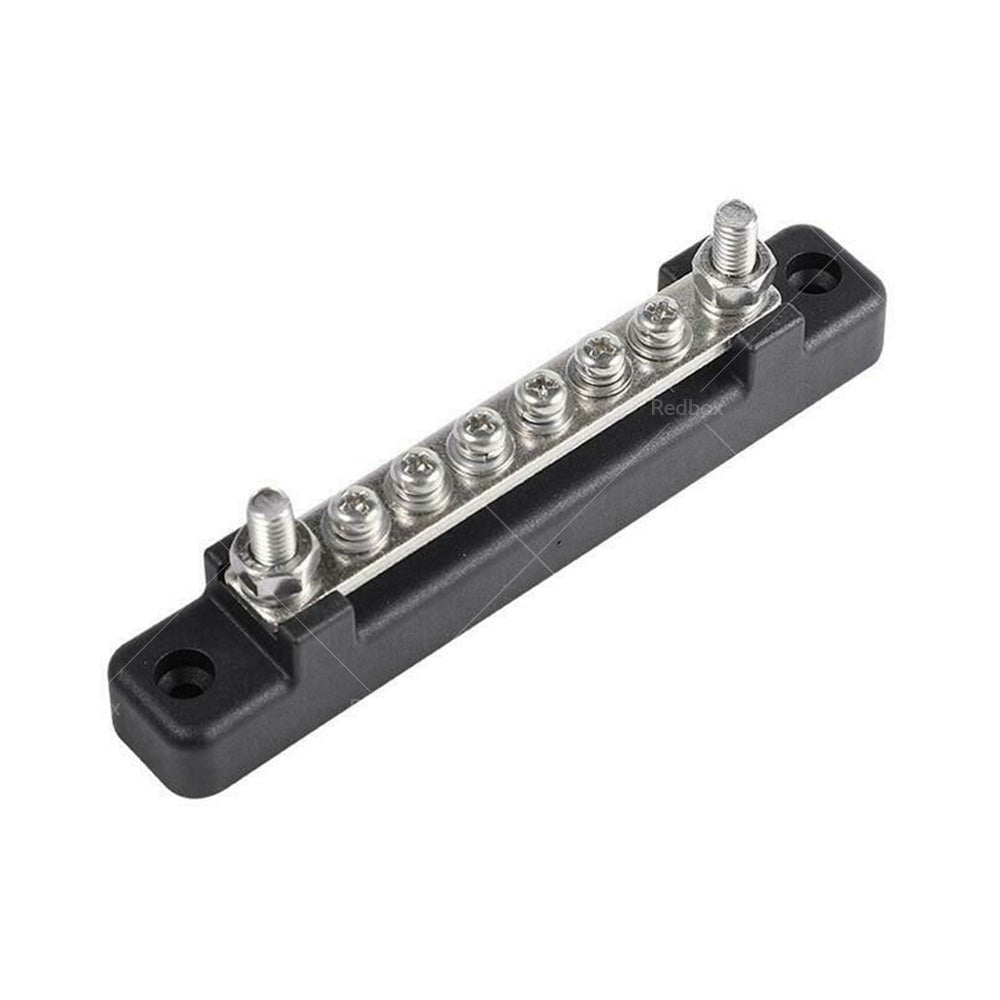

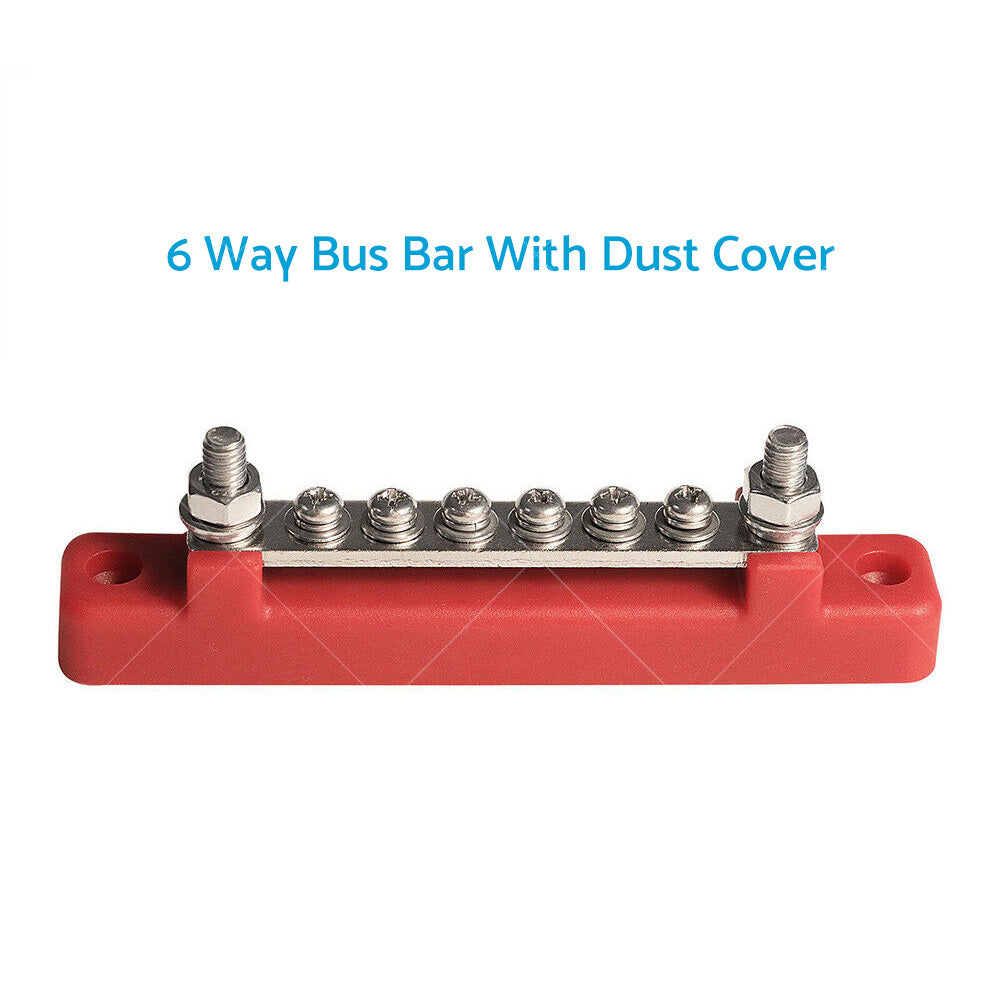

6 Way

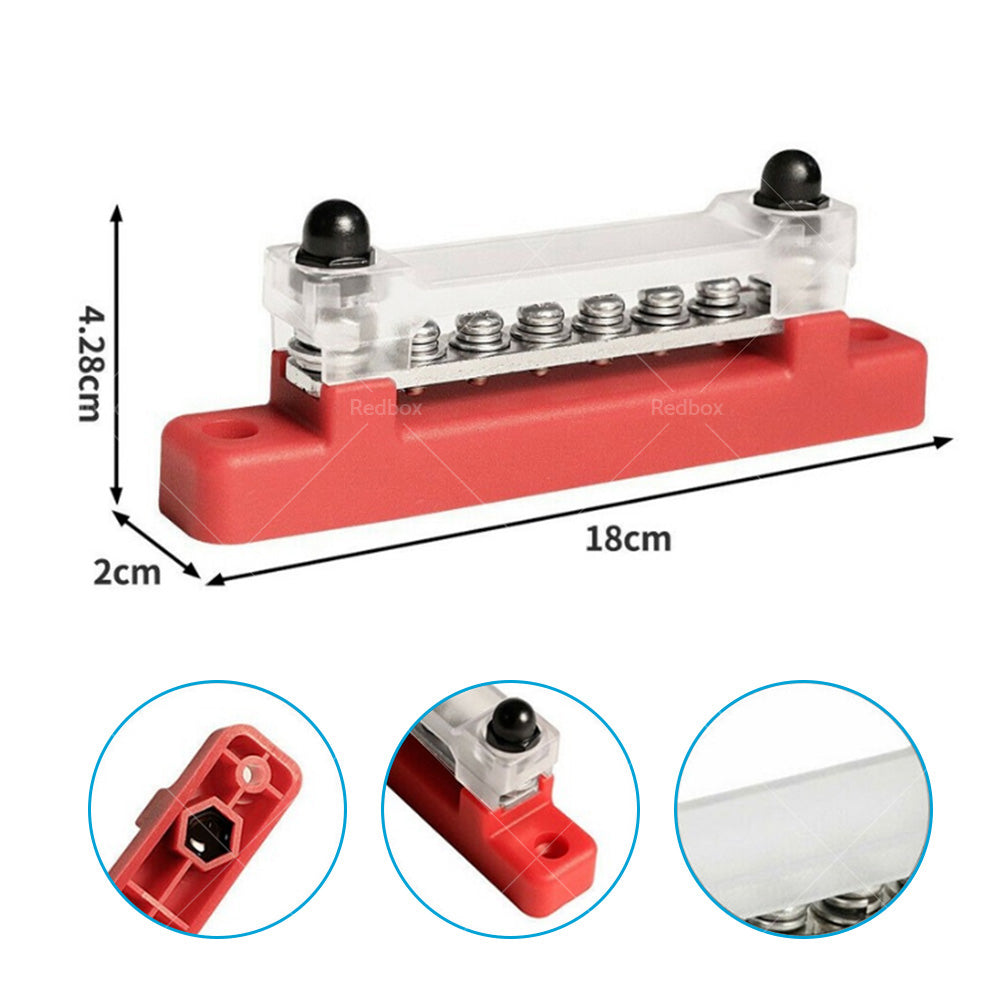

Size: 180.0*20.0* 42.8 mm/7.08*0.78*1.69 inch

Terminal Screw: M4 x 6

Terminal Stud: M6 x 2

Application

The Bus Bar is mainly used for circuit connection of recreational vehicle, yacht and ship.

Package

1 x Black 2 Way Bus Bar

1 x Red 2 Way Bus Bar

1 x Black 6 Way Bus Bar

1 x Red 6 Way Bus Bar

(Just One as your choice)

Note:

Please allow 2-3cm difference due to manual measurement. Apart from the colors of the actual item showing different colors from different computers, the color of the actual item may vary slightly from the following images, thank you for your understanding (1 inch = 2.54 cm).
