3-Button Remote Smart Car Key ID46 Suitable For Mitsubishi Lancer / Outlander / ASX

Compatible with:
Suitable For Mitsubishi Outlander 2006-2019
Suitable For Mitsubishi ASX 2010-2015
Suitable For Mitsubishi Lancer 2008

Features
High quality materials and humanized precise design (no logos).
The symbol of elegant and fashion, distinguished identity accompany with you.
Excellent abrasion resistance, it can be used for a long time.
Comfortable tactility and delicate polish.

Specifications
Brand: MAXCOOL
Type: Remote Car Key
Warranty: 1 year
OEM:Suitable For G8D-644M-KEY-E
Blade: MIT11 Blade
Transponder Chip: ID46
Electronics/Battery: Yes
Operating Frequency: 433 MHz
Material: ABS + Metal

Package include:

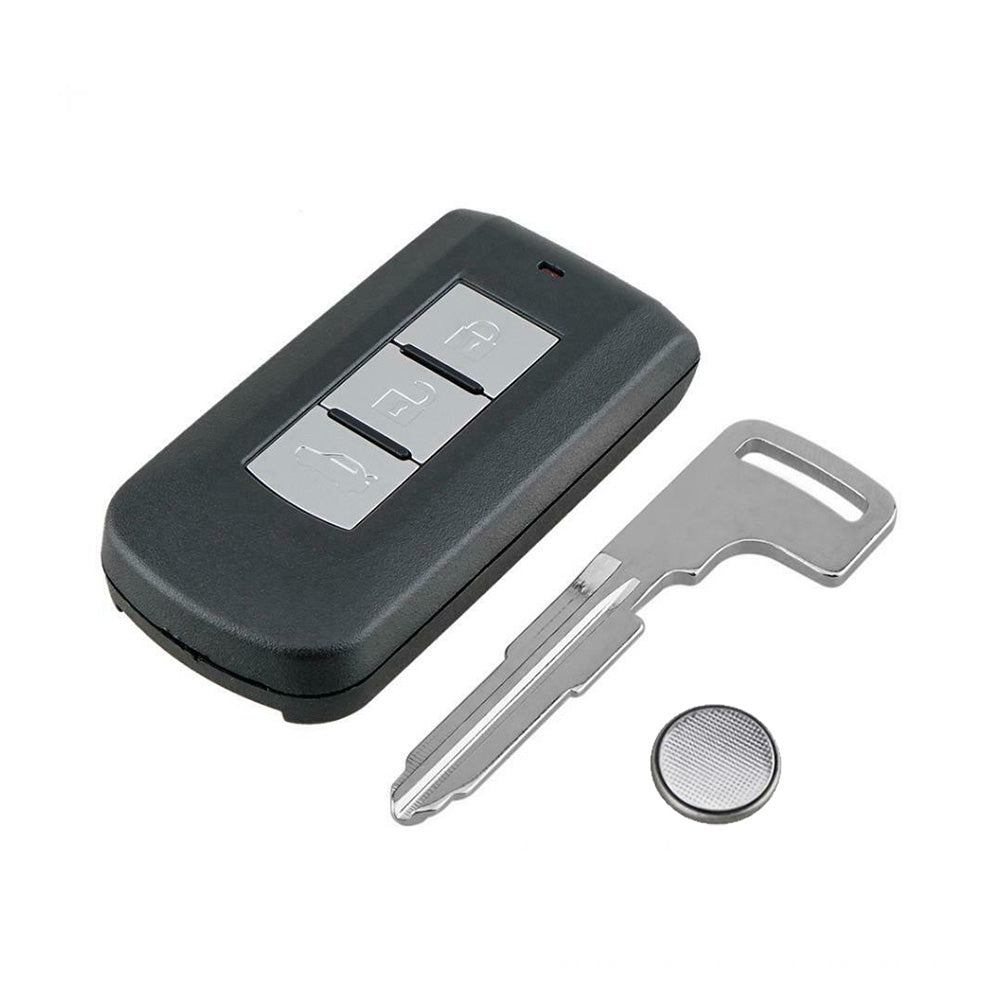

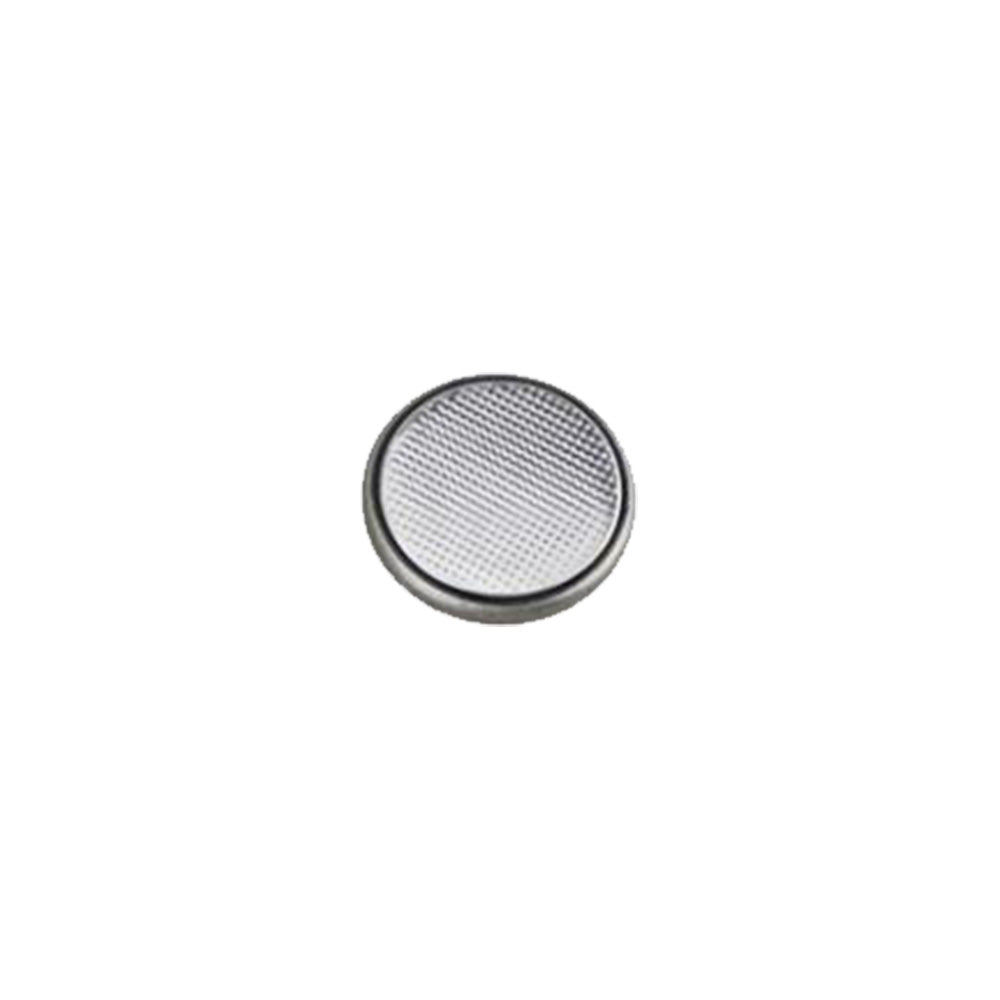

1 x Remote Car Key (includes Battery)

Important Notice:
Key will need to be cut and programmed by either a Locksmith or program yourself by following instructions listed.
You will need to have at least one working black key or another remote key.
It will not work if you have service grey key.

Remote Programming Steps - Do it yourself
3 Easy steps to do it yourself:
1- Program remote once received (Central locking will work now)
2- Take key to locksmith shop and get them to cut your key to code
3- Program transponder chip (this will now start car)

Remote Programming Procedure - Do it yourself
1. Open Driver side door
2. Put the Original key in and out of ignition 2 times
3. Close and open driver door 2 times
4. Put Original Key in and out of ignition once
5. Shut and open door twice
6. Close door
7. Insert key, Turn ignition on
8. Turn ignition off and remove key
9. Door locks will cycle
10. Press lock and unlock together for 1 second then lock button (To delete remotes turn the key on and off 5 times, door locks will cycle 5 times. Turn the key on then off. Open shut door)
11. Locks will cycle, put key in ignition turn to on then off
12. Remove key from ignition, close door and test remote

Transponder chip programming - do it yourself
1. Put Original master key in and out of ignition 5 times. Finish with key in ignition
2. Open and shut door 6 times
3. Remove original, insert new key
4. Leave for 60 seconds (or till Security light goes out on dashboard)
5. After 60 seconds security light stops flashing then you can start car.
6. Take key out
7. Open and shut door
