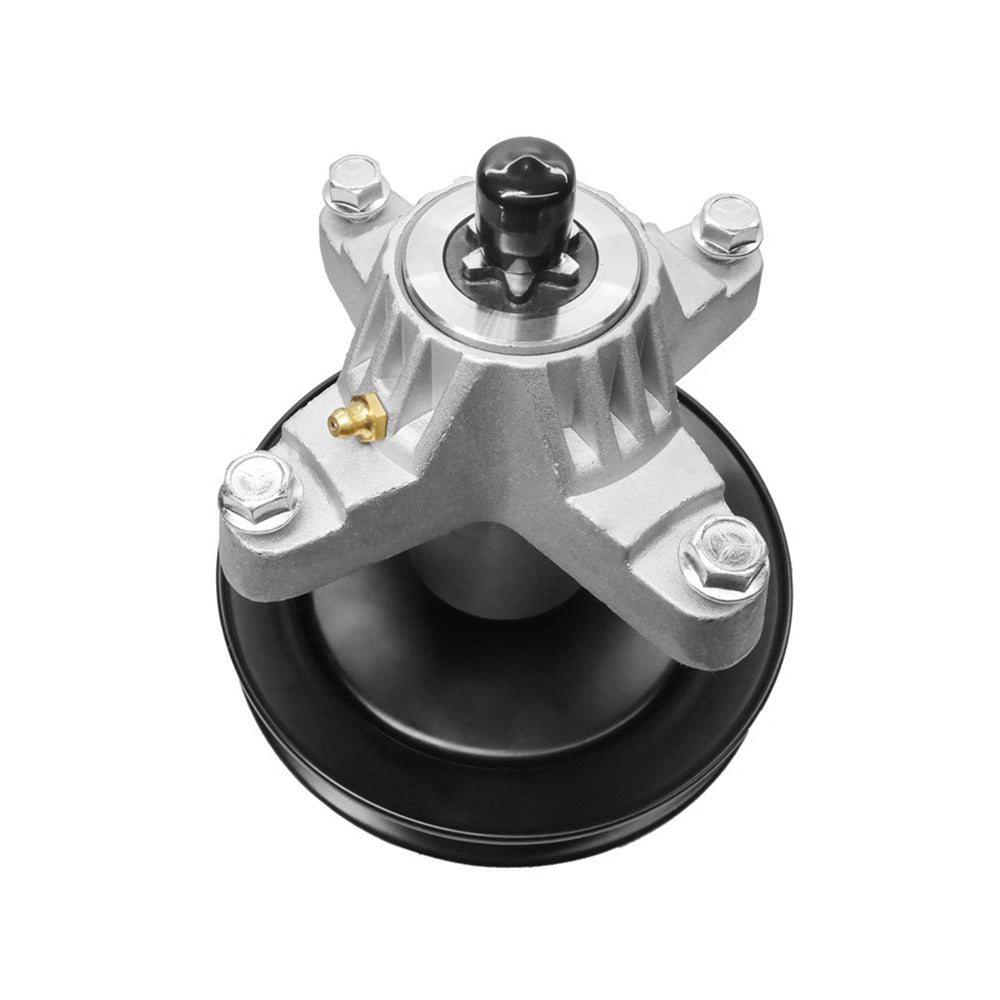

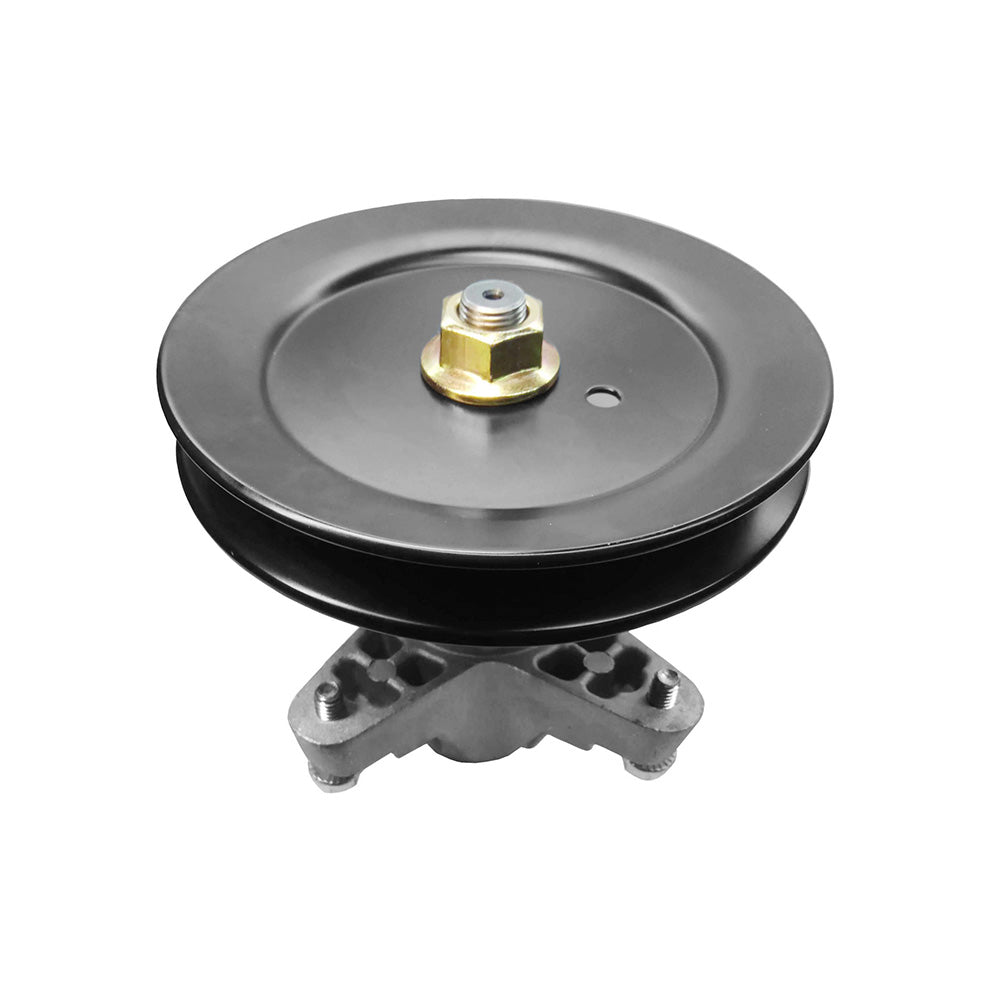

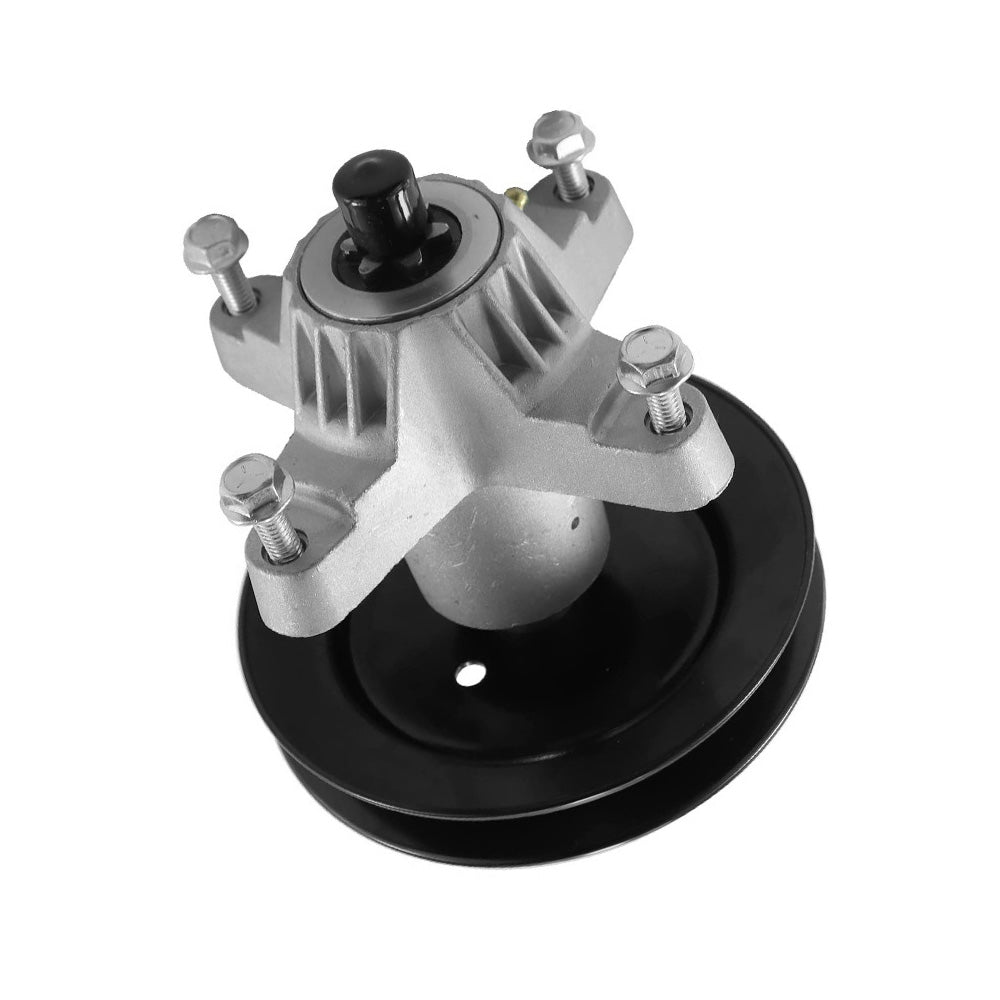

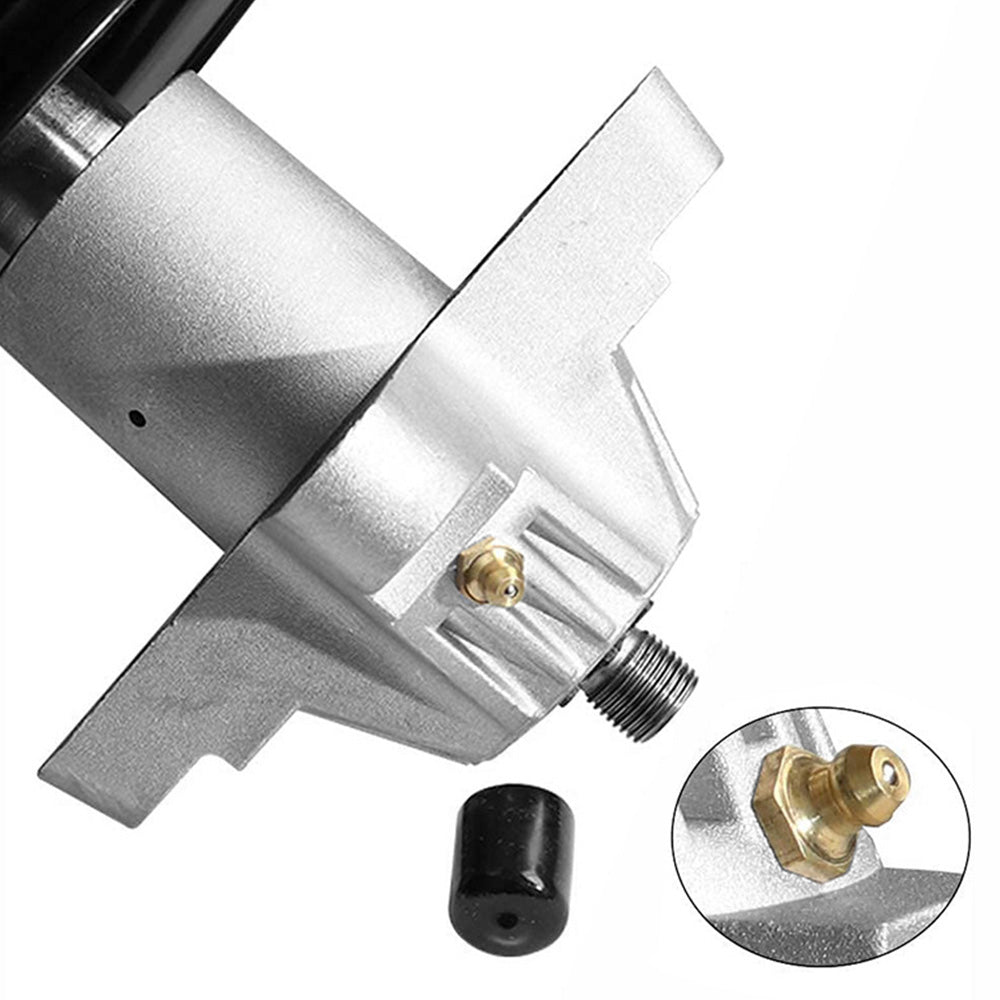

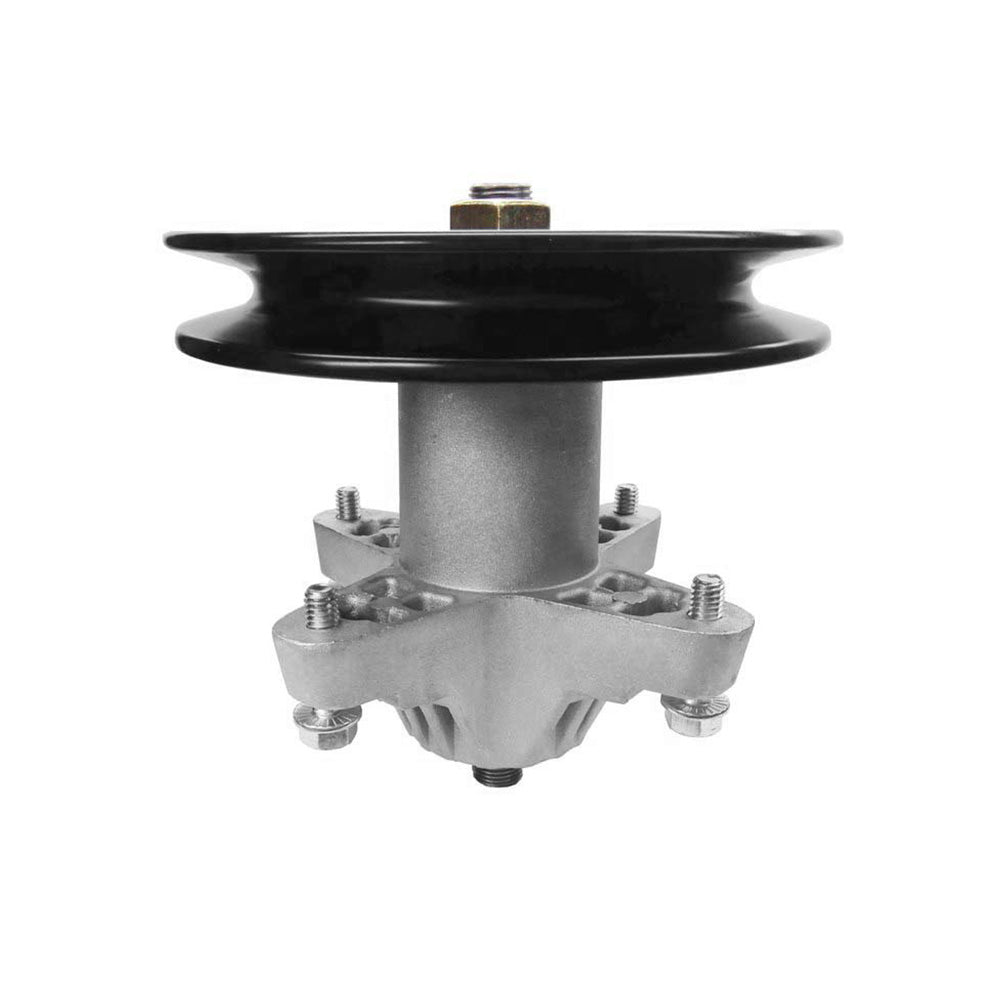

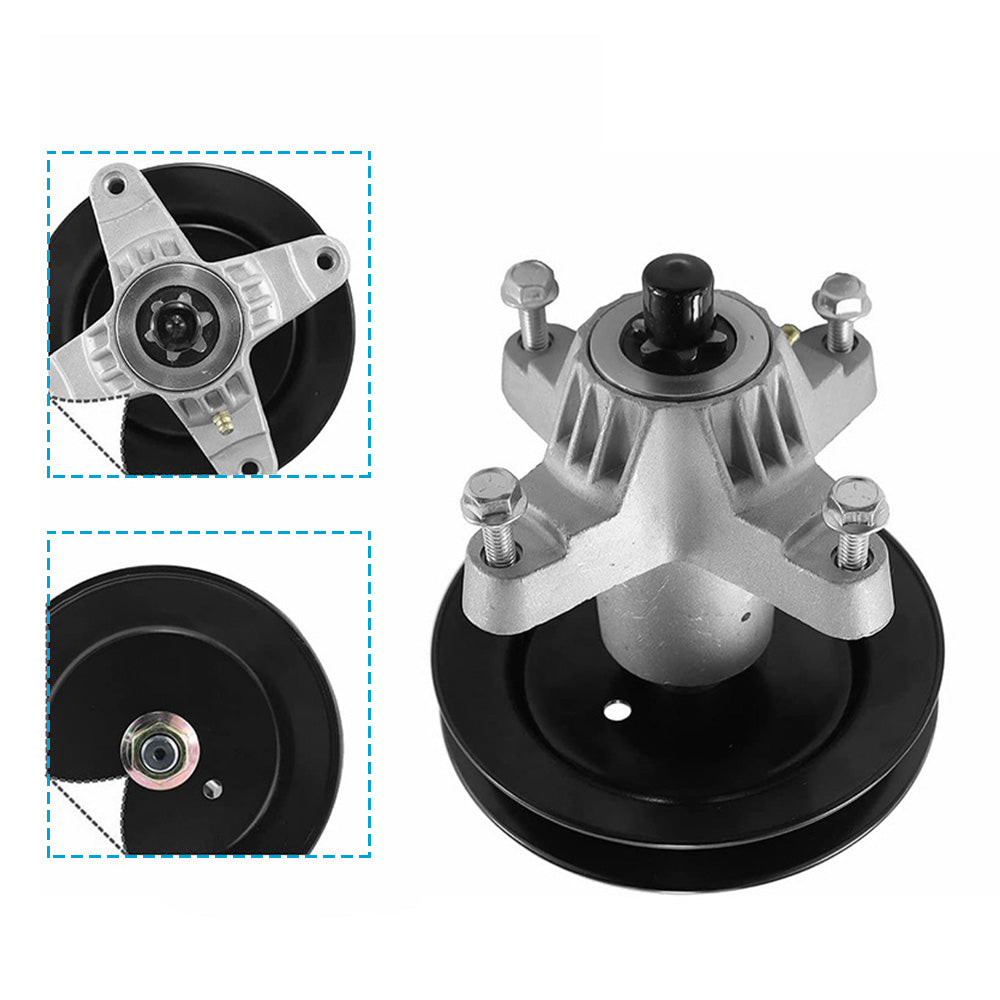

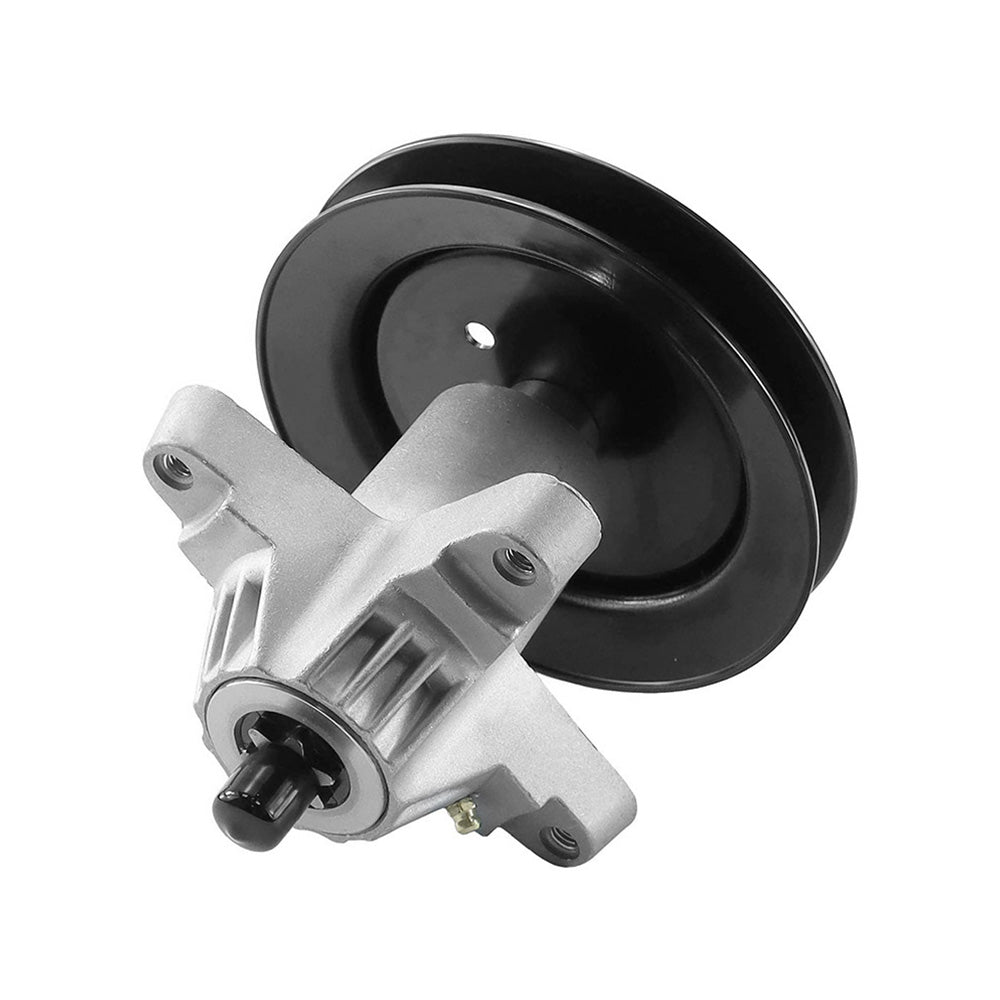

42'' Spindle Assembly Suitable For MTD / Cub Cadet / Troy-Bilt / Toro 618-0659A, 918-0659

Compatible with:
Suitable For 42” cut decks using star centre hole blades and fitted with a 6.250” spindle pulley.

Specification:
Type: Spindle Assembly
Centre Hole Type: Fits 6-Point Star
Deck (cm): 104.2 cm & 106.7 cm
Deck (inches): 41" & 42"
Deck (mm): 1042 mm & 1067 mm

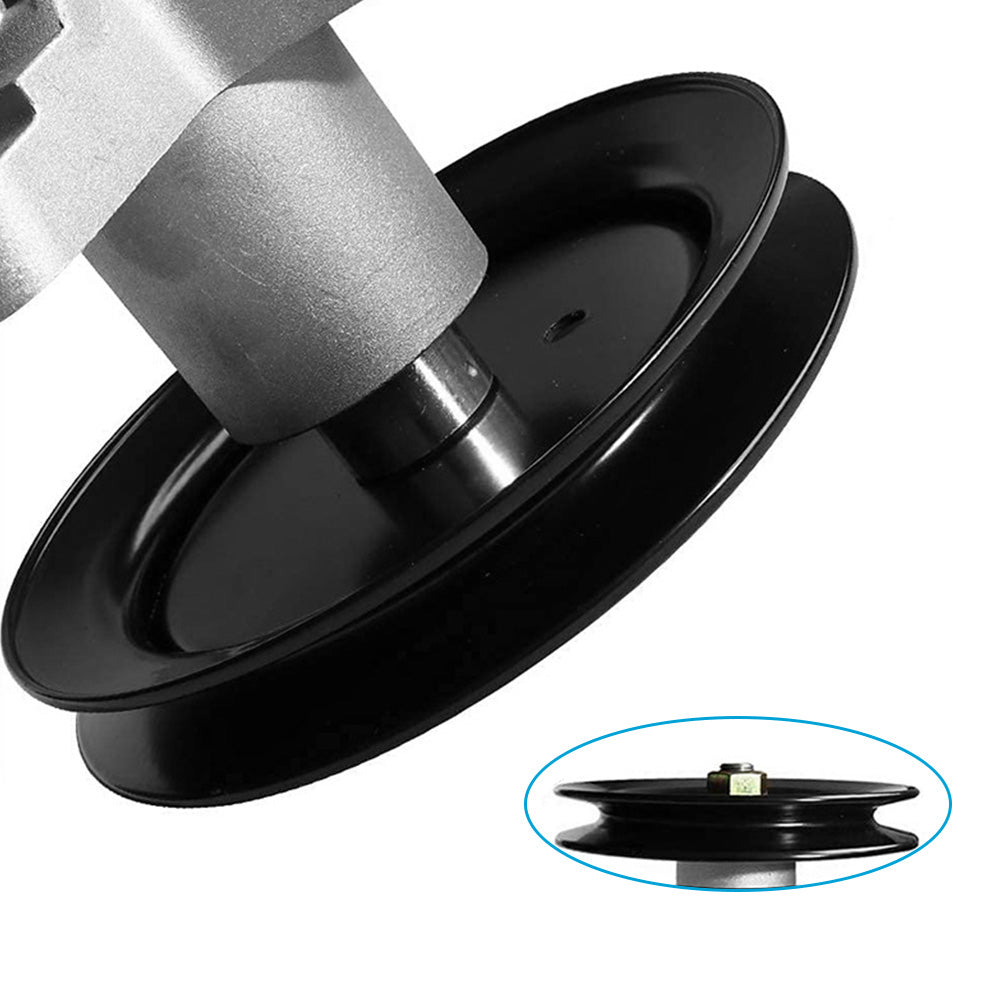

Pulley Diameter (inches): 6 1/4"
Pulley Diameter (mm): 158.75 mm
Pulley Height (inches): 0.938"
Pulley Height (mm): 23.825 mm
Thread Size: 5/8" - 18 UNF

Reference Number:
Suitable For Cub Cadet: 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A, 918-0624B, 918-0659, 918-0659A
Suitable For Massey Ferguson: 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A, 918-0624B, 918-0659, 918-0659A
Suitable For MTD: 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A, 918-0624B, 918-0659, 918-0659A
Suitable For Toro: 112-0460
Suitable For Troy Bilt: 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A, 918-0624B, 918-0659, 918-0659A

Compatible Models:
Suitable For 42" (1067 mm) cut Cub Cadet 1000 Series LT1042* (19 hp model 13AX11CG630, 2005-2006) and RZT-42 (models 17AE2ACG330, 2010; 17 hp model 17AE2ACG630, 2007-2008) zero turn radius (ZTR) ride-on mowers – 2 required per unit.
Suitable For 41" (1042 mm) cut Massey Ferguson MF41-20RD (model 13AE51CN695, 2007) – 2 required per unit.
Suitable For 42" (1067 mm) cut MTD Black Beauty (18.5 hp model 13A0771G670, 2006), Yard Machines (models 13A7771G670, 2005-2006; 13AD791G670, 2005), Yard-Man (models 13AP604G671, 2006-2007; 13AV604G371, 2009; 13AV604G671, 2007; 20 hp 13AX604G671, 2005), and Yard-Man Z Series RZT-42 (models 17AC2ACG055, 2010; 17AE2ACG678, 2010) – 2 required per unit.
Suitable For Selected Toro models – 2 required per unit.
Suitable For 42" (1067 mm) cut Troy Bilt (17.5 hp model 13AN779G766, 2005) – 2 required per unit.

Package Including:
1 x Spindle Assembly

Note:
When installing new spindle assemblies, pulley nuts must be checked and correctly tightened.
