65. 5mm Standard Cylinder Piston Suitable For Honda CRF230F CRF230 F SL230 XR230

Feature：

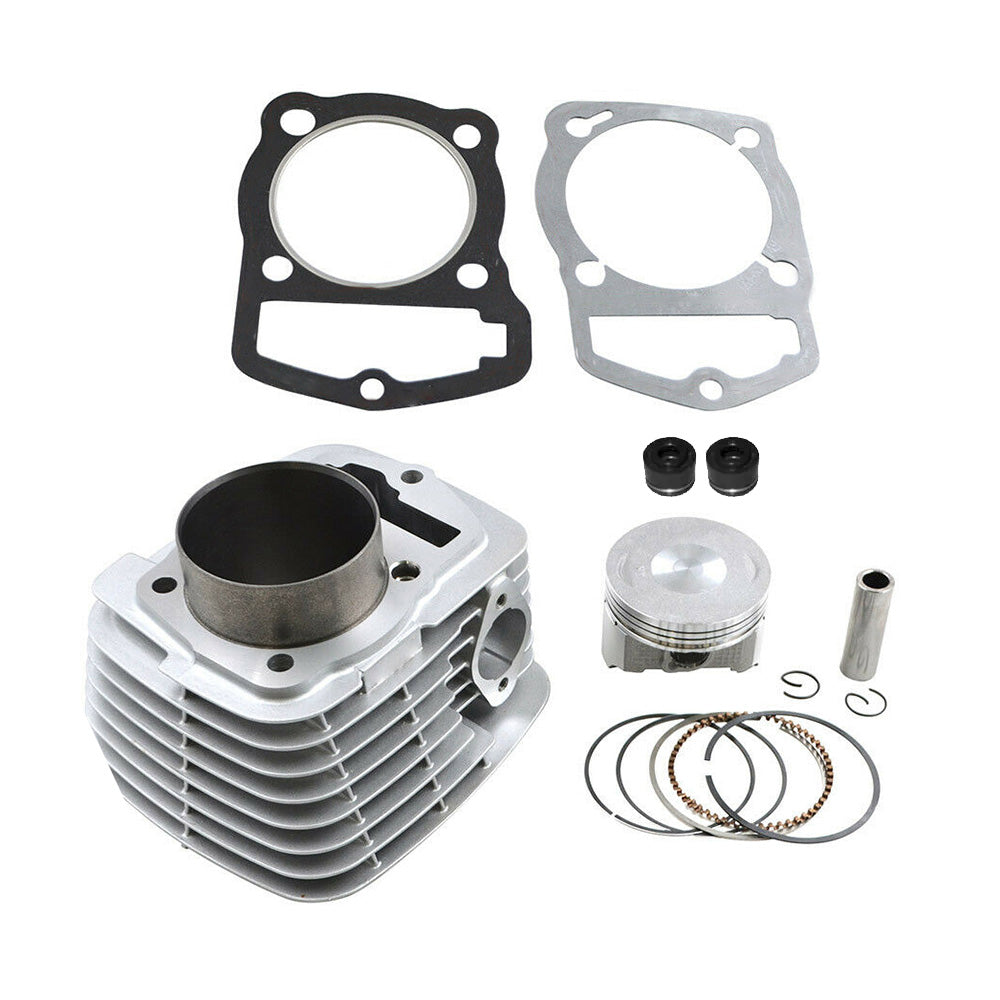

-This kit includes everything pictured: piston, rings, pin, clips, top-end gasket kit.

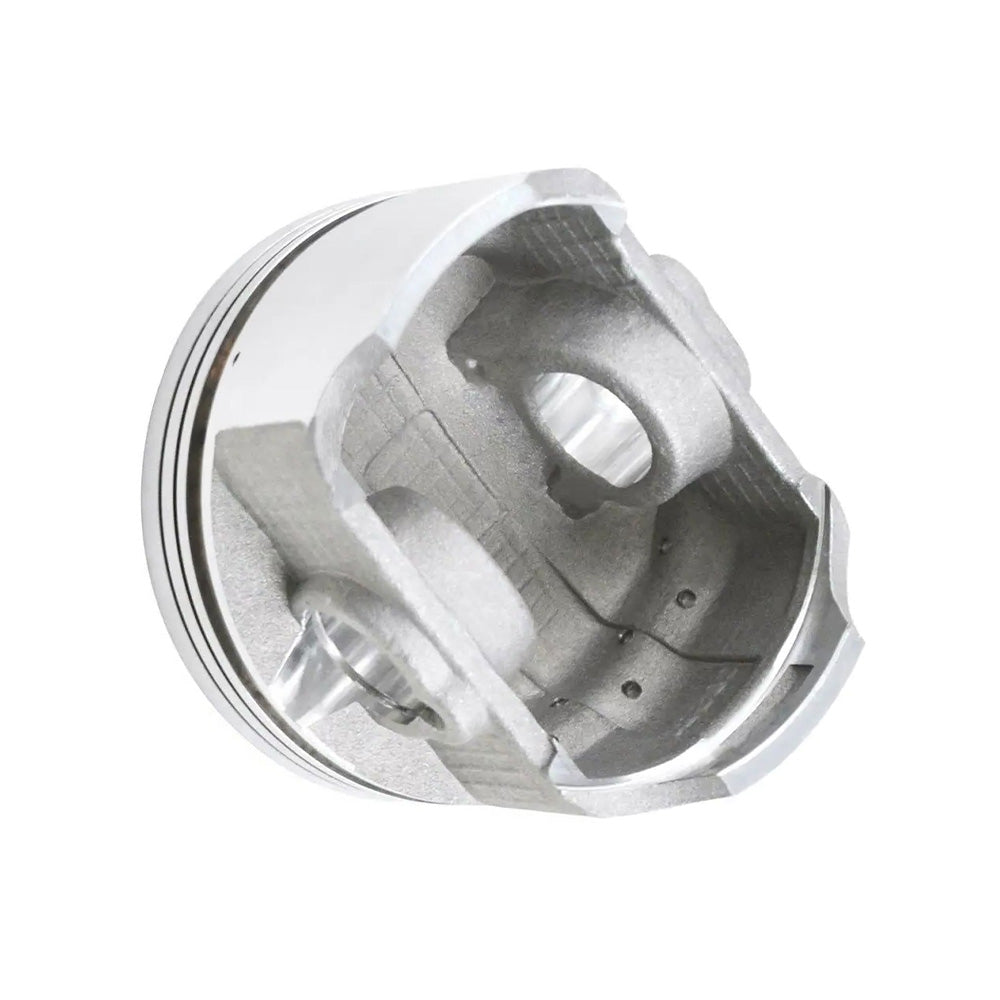

-The cast piston is high in silicone for added strength.
-Piston skirts have Molybdenum Teflon coating for durability and reduced wear.
-Piston dome is anodized for heat resistance and a longer lifespan.
-Gaskets use high-performance materials for reliability and durability.
-Includes all gaskets needed for a top-end rebuild.
-Standard compression ratio of 11:1.
-All components are ready for bolt-on installation for an easy setup.

Specification：
Piston Material: Forged Aluminum
Actual Displacement: 250 cc

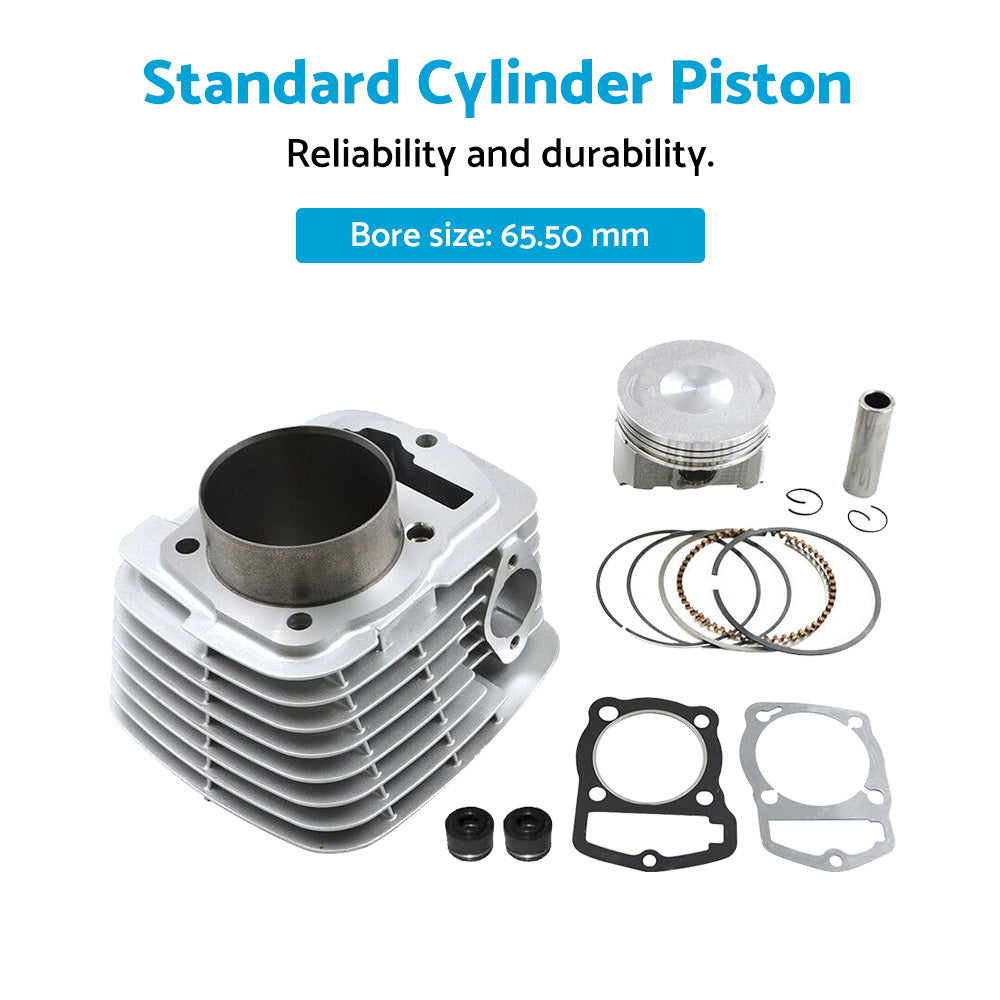

Bore size: 65.50 mm
Piston diameter: 65 mm
Piston height: 42 mm
Piston pin diameter: 15 mm
Piston pin height: 47 mm
Cylinder height: 81.5 mm
Overview height: 107.5 mm
Ring groove: 0.8 x 0.8 x 1.5
Replace OEM Number:
Intake Gasket: 16214-KPS-900, 16214-KPS-901
Base Gasket: 12191-KCN-000, 12191-KCN-010
Valve Stem Seals: 12208-413-003

Fitment:
Compatible with Honda SL230 1997-2008
Compatible with Honda XR230 2003-2008
Compatible with Honda CRF230F 2003-2019
Compatible with Honda CRF230L 2008-2009
Compatible with Honda CRF230M 2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Compatible with Honda ATC200X 1983-1987 (might be a little big, make sure it is what you want)
Compatible with Honda ATC200S 1983-1985 (might be a little big, make sure it is what you want)
Compatible with Honda XL200/XR200s 1979-1983 (might be a little big, make sure it is what you want)
Compatible with Honda XL200/XR200s 1986-2002 (might be a little big, make sure it is what you want)
It will work for some Honda 250CM3 ATC 200 XL200 ATC 250
(These kit fits most of ATC 200 after 1986, but it is not 100% sure for the older models, might be a little big.
So please check out the bore size and other dimensions to make sure this kit is what you want!)

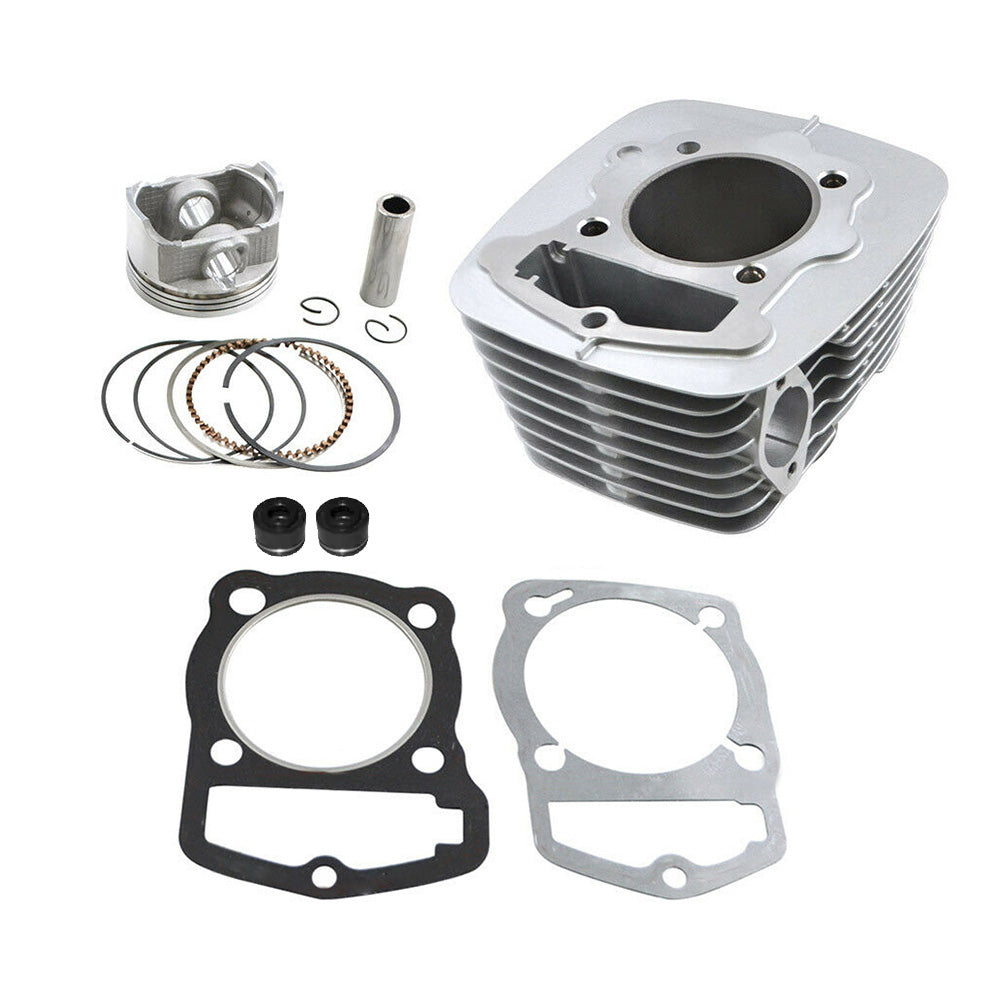

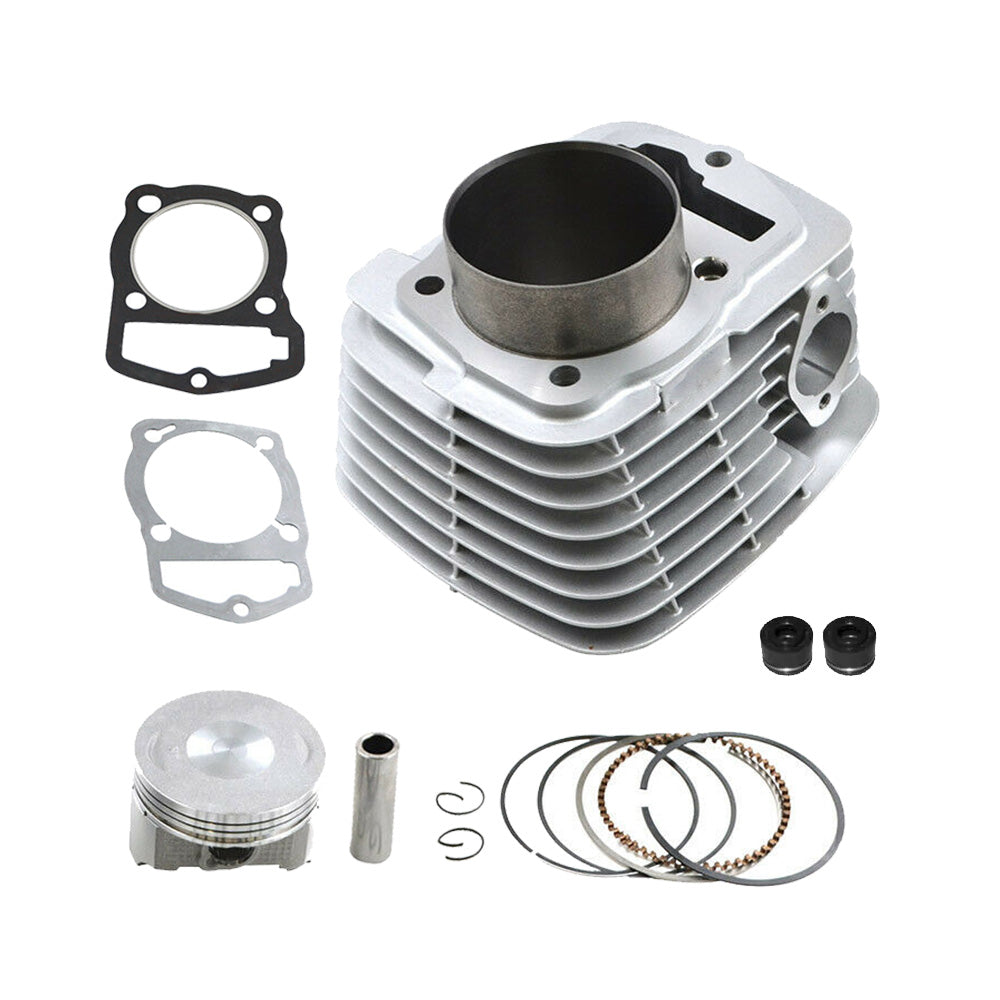

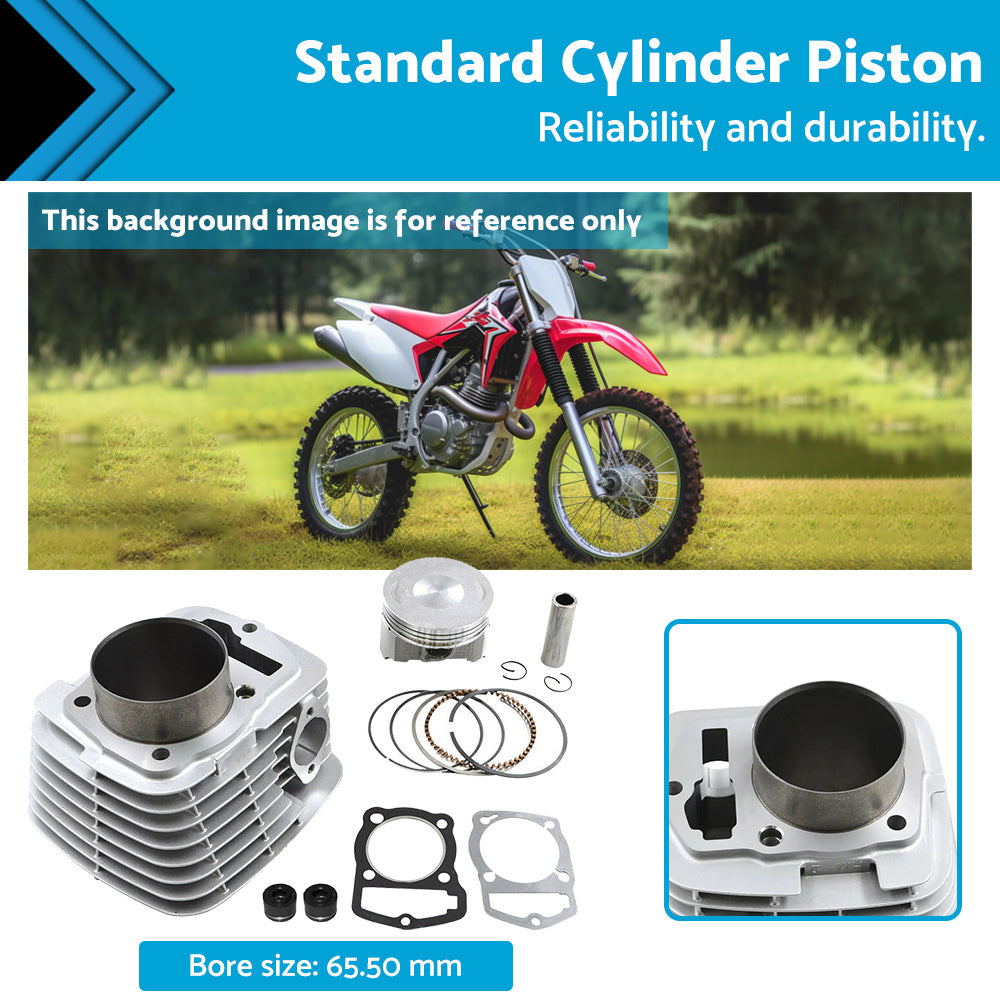

Package Including:

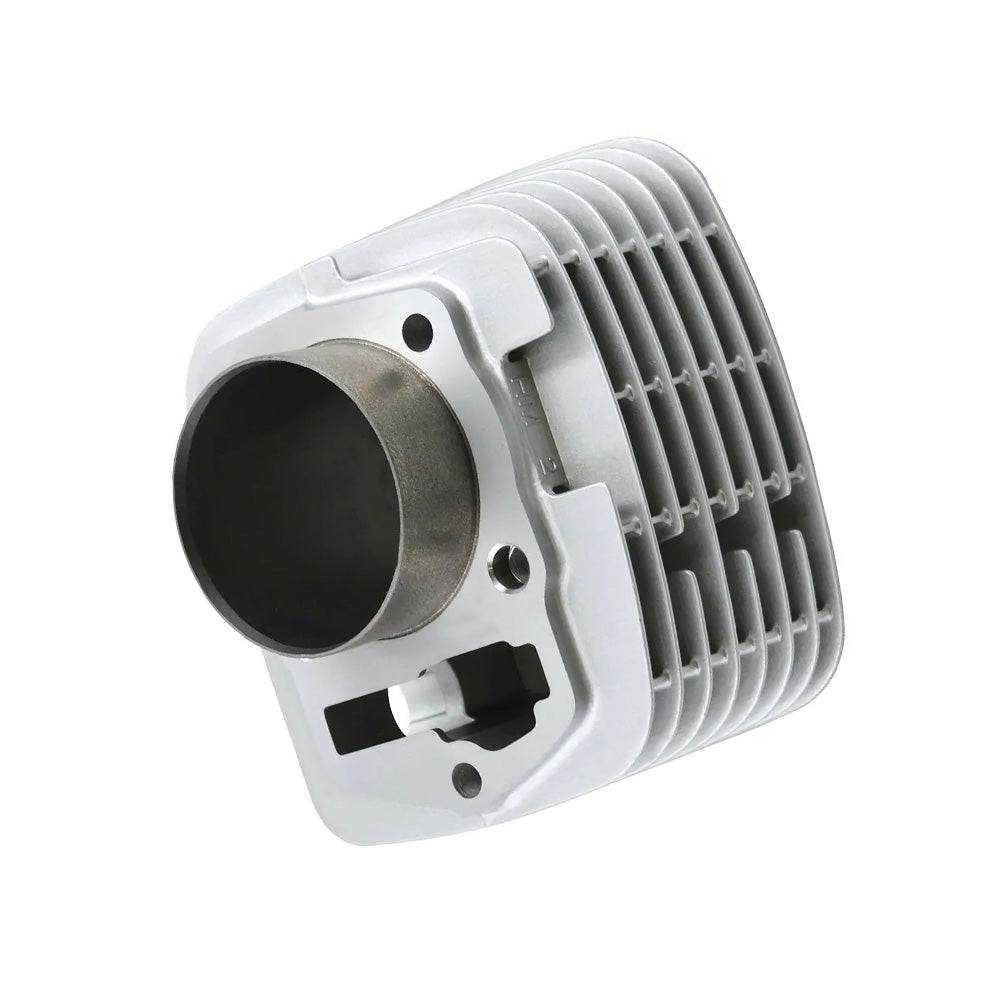

1x Cylinder

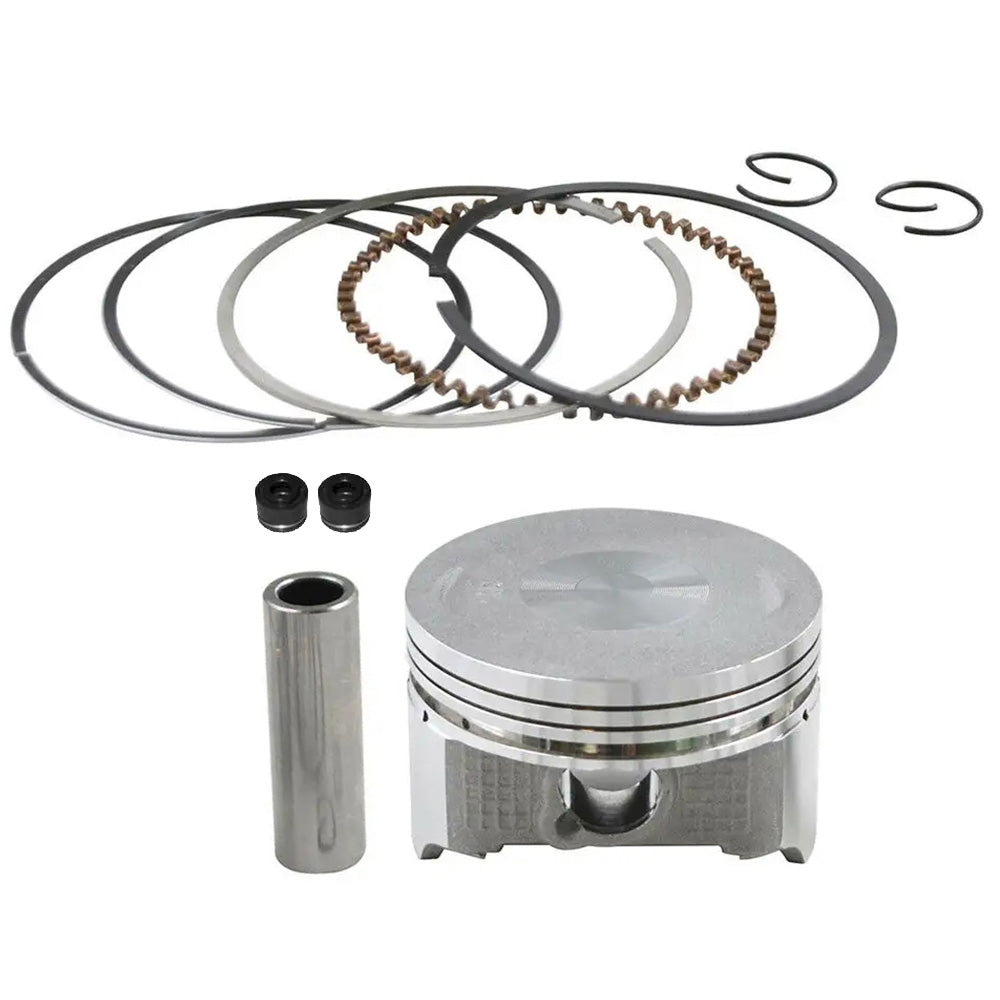

1x Piston
1x sets of Rings
1x Wristpin
2x Circlips

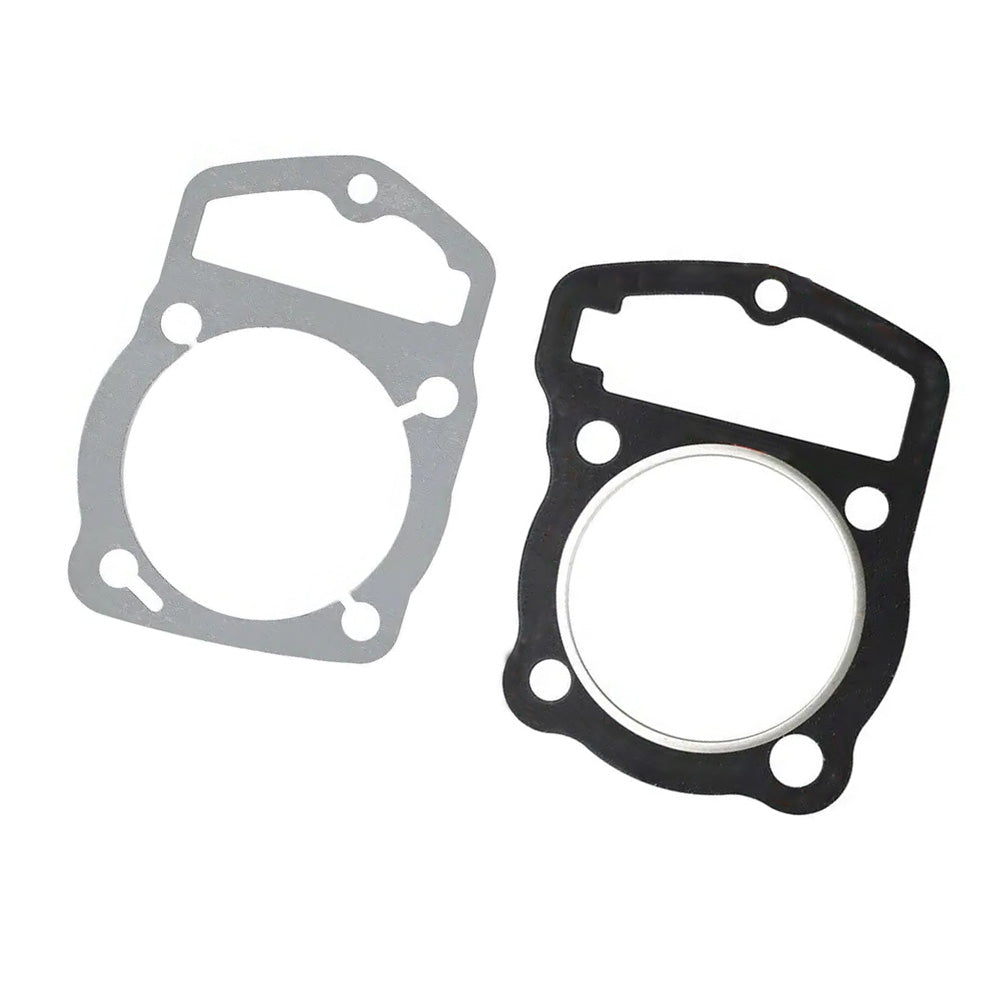

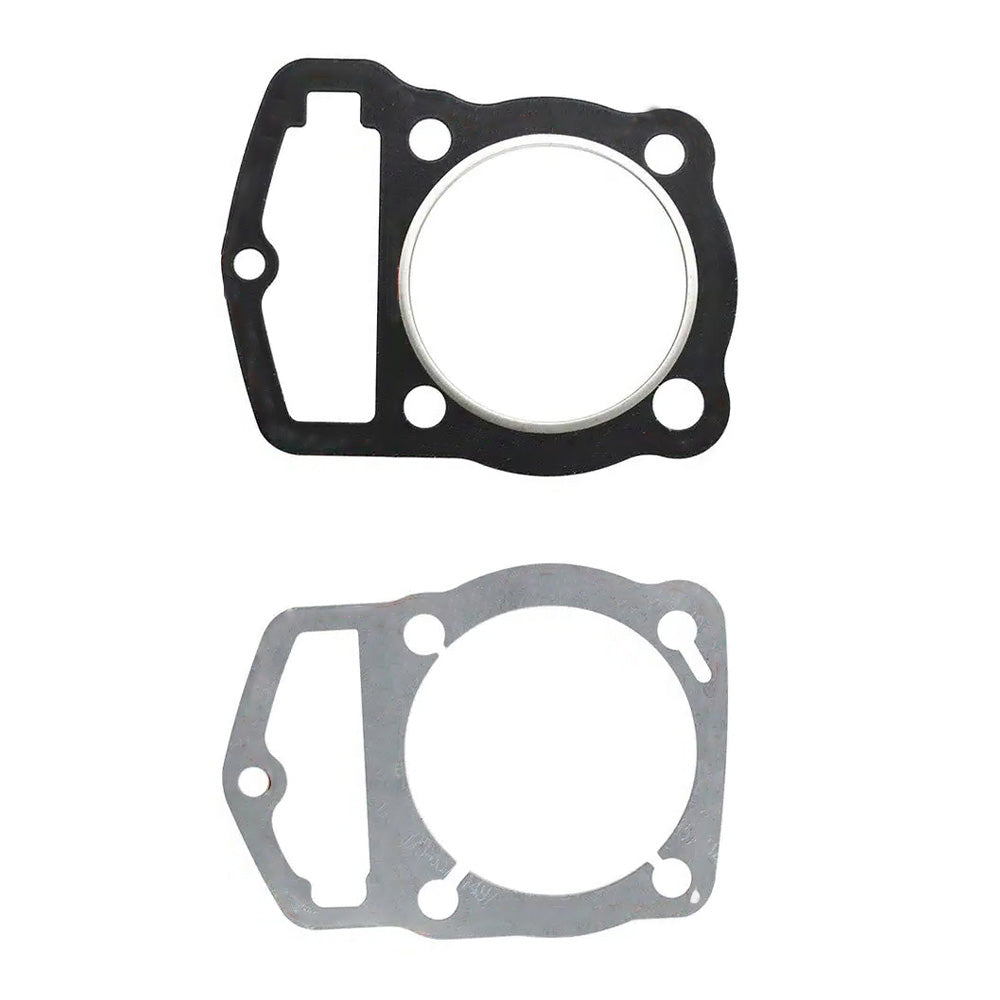

1x Intake Gasket
1x Cylinder Head Gasket
1x Cylinder Base Gasket
2x Valve Stem Seals

Note：

-Keep in mind that this cylinder kit may be slightly oversized for certain models, like the 1983 ATC200x. Please consider this before making a purchase.
-Prior to buying, we strongly recommend verifying if this product's size is compatible with your motorcycle.
