76mm Engine Cylinder Big Bore Kit Suitable For Bayou 300 KLF300 Prairie 300

Compatible with:

Suitable For Kawasaki Bayou 300 KLF300A 1985-1987

Suitable For Kawasaki Bayou 300 KLF300B 1988-2004

Suitable For Kawasaki Bayou 300 KLF300C 4X4 1989-2005

Suitable For Kawasaki Prairie 300 KVF300A 1999-2002

Suitable For Kawasaki Prairie 300 KVF300B 1999-2002

Suitable For Kawasaki Lakota 300 KEF300A 1995-2000

Suitable For Kawasaki Lakota 300 KEF300B Sport 2001-2003

Specifications

Type: Cylinder Big Bore Kit

Manufacturer Part Number: suitable for 11005-1446, 11005-1533

Material: Aluminum

Displacement: 290cc

Bore Type: Standard Bore

Bore Size: 76mm

Stroke: 64mm

Pin Diameter: 18mm

Replacement Part Number:

Cylinder: 11005-1446, 11005-1533

Cylinder Base Gasket: 11060-1652, 11009-1515

Cylinder Head Gasket: 11004-1183, 11004-1340

Piston (Std): 13001-1244, 13001-1430

Pin, Piston: 13002-1059

Piston Ring Set (Std): 13008-1068, 13008-1111

Circlips, piston: 92033-1099

Package include:

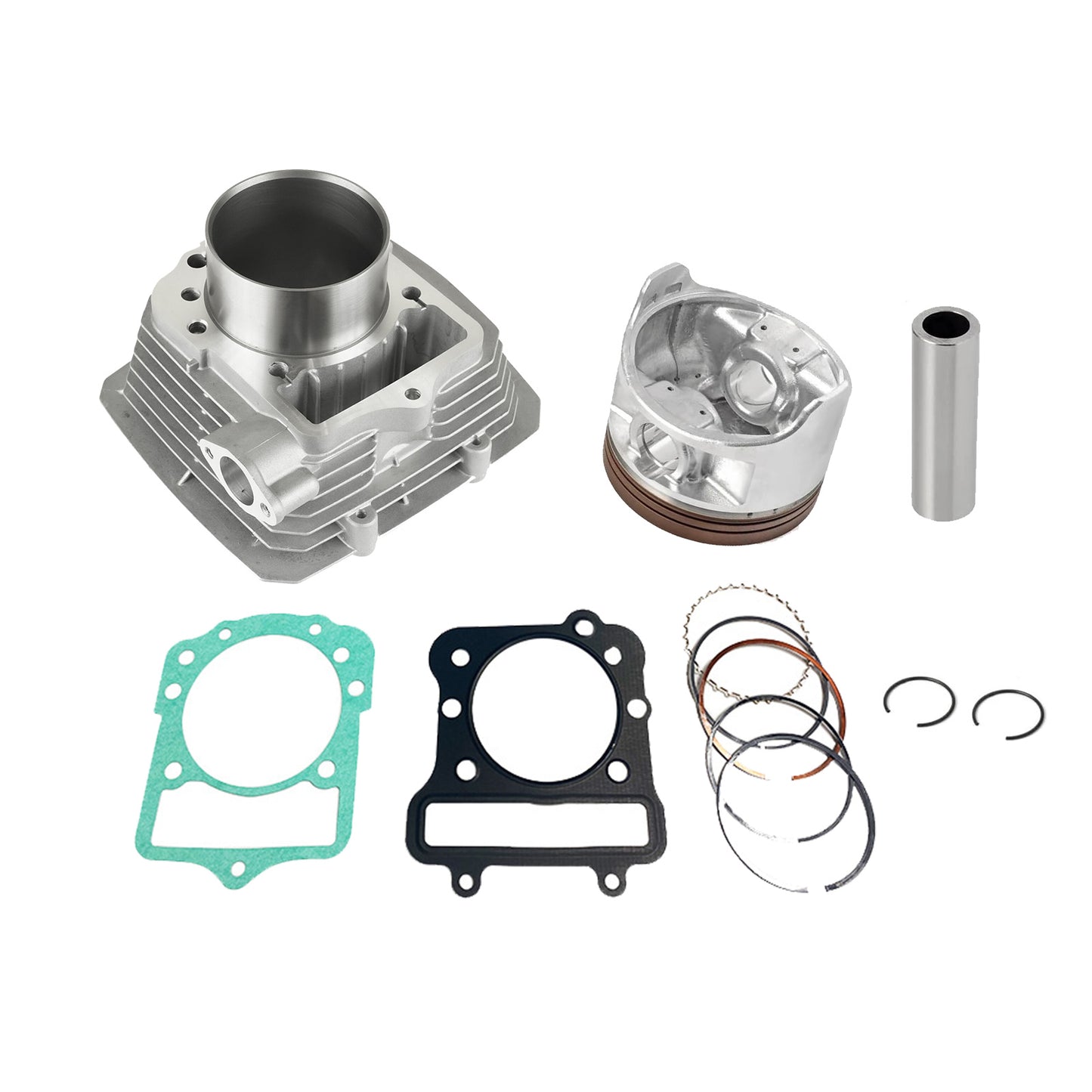

1 Kit Cylinder Big Bore (as picture show)

Featrue:

Easy installation and use.

Piston feature a aluminum to reduce friction, minimize wear, and extend their lifespan.

The piston dome is anodized, offering superior heat resistance and a longer overall lifespan.

Kit is for standard bore size -76mm, 18mm steel piston pin.

The gaskets are crafted from high-performance materials to enhance durability and provide increased reliability.
