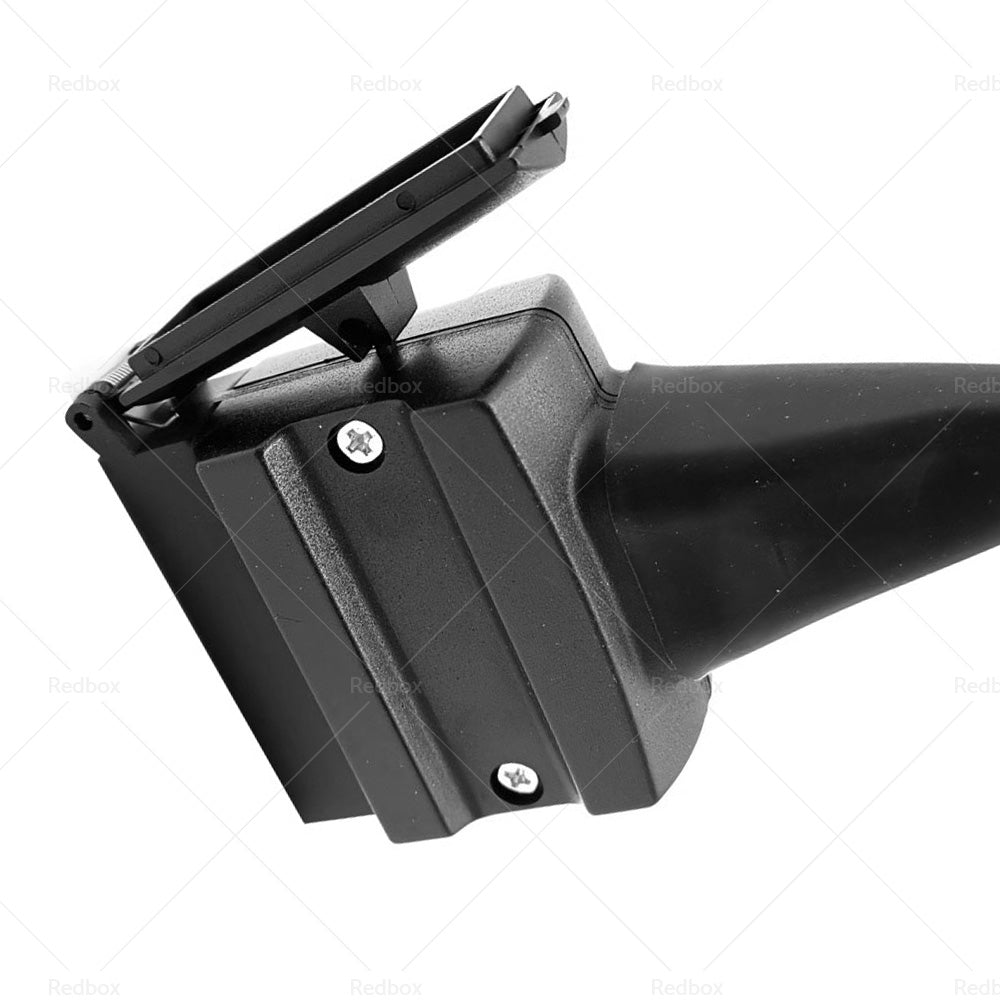

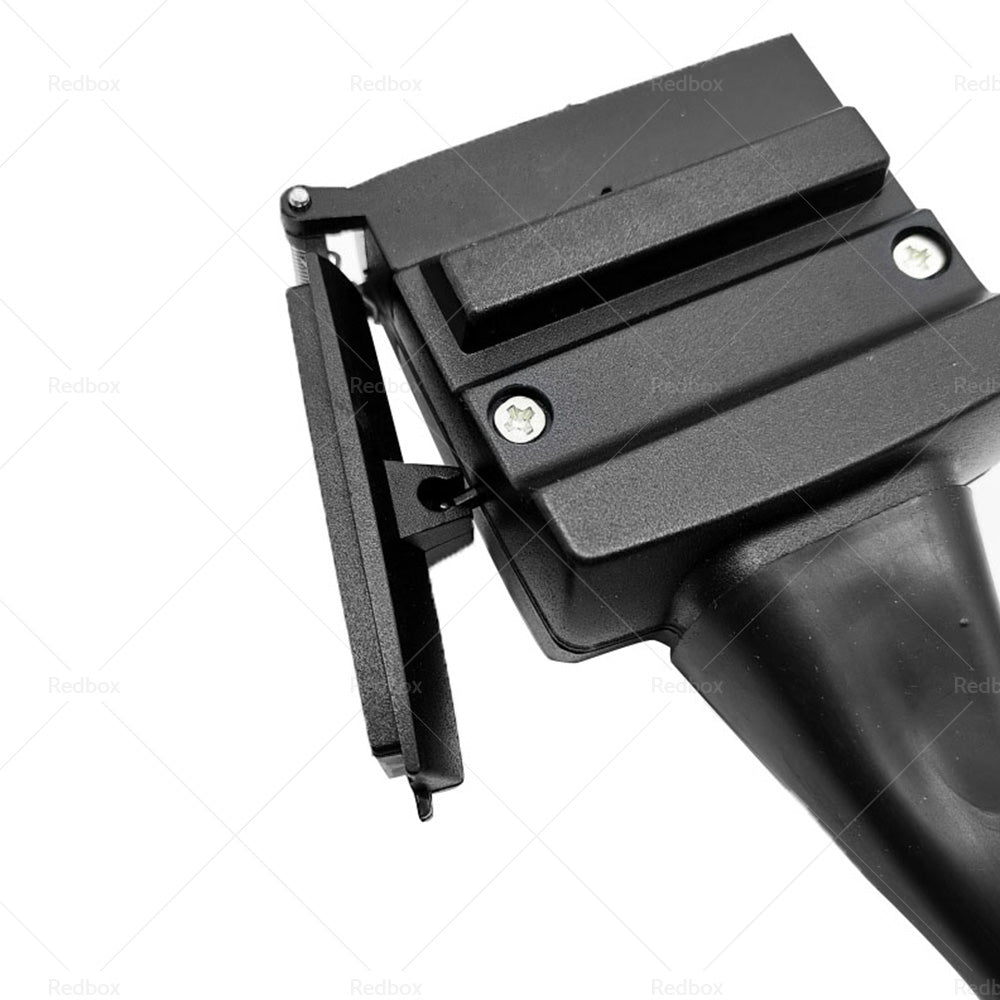

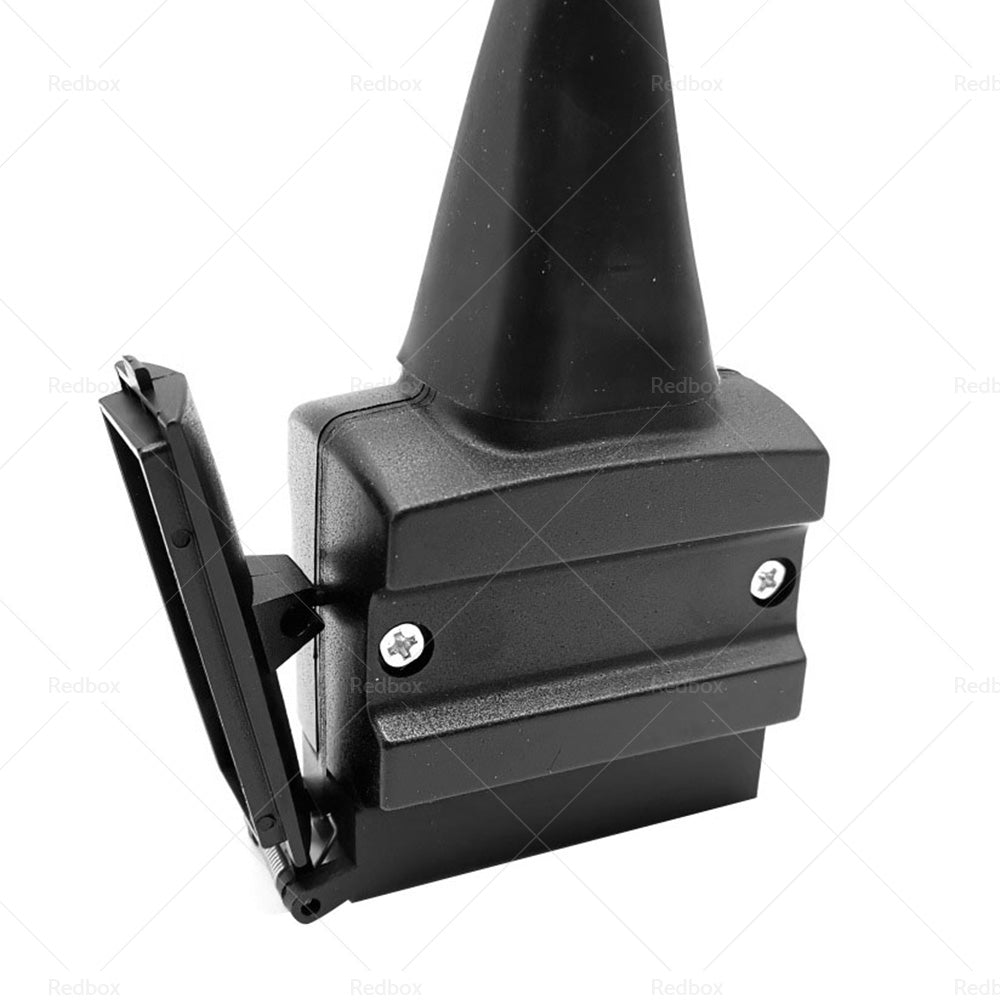

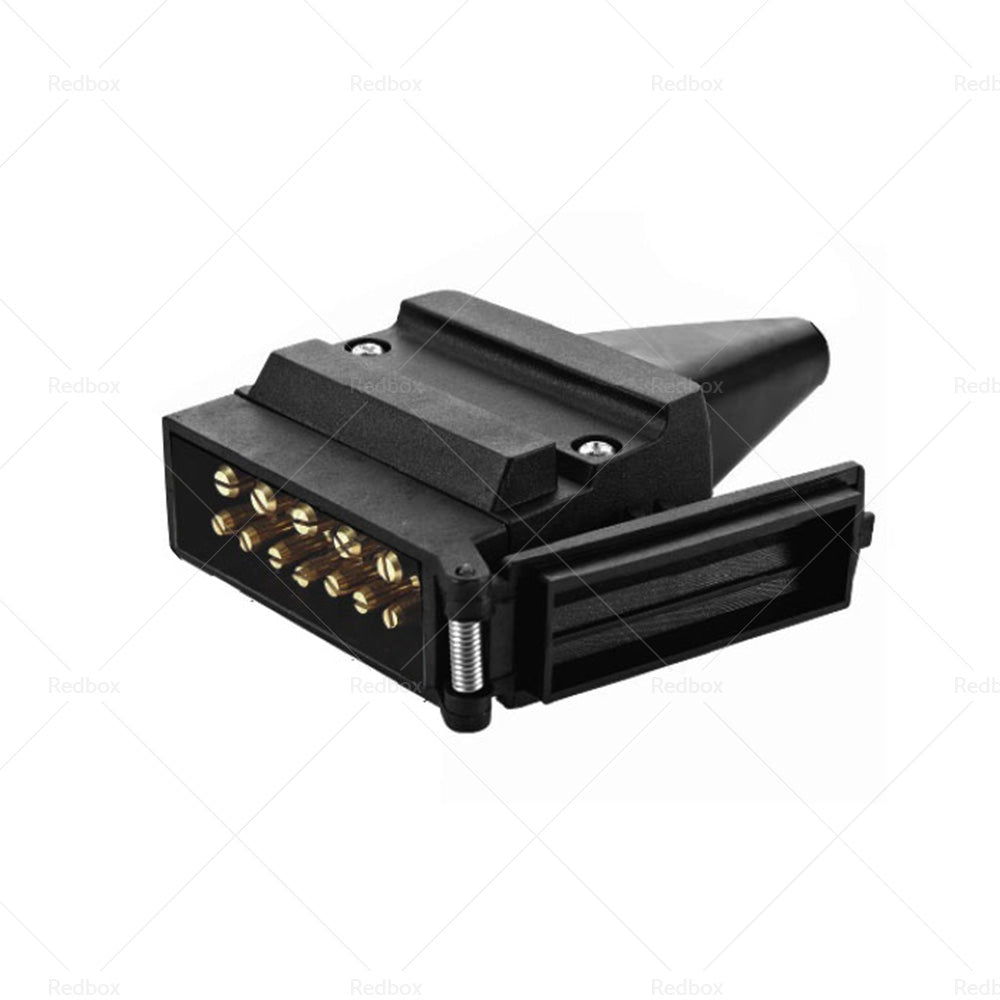

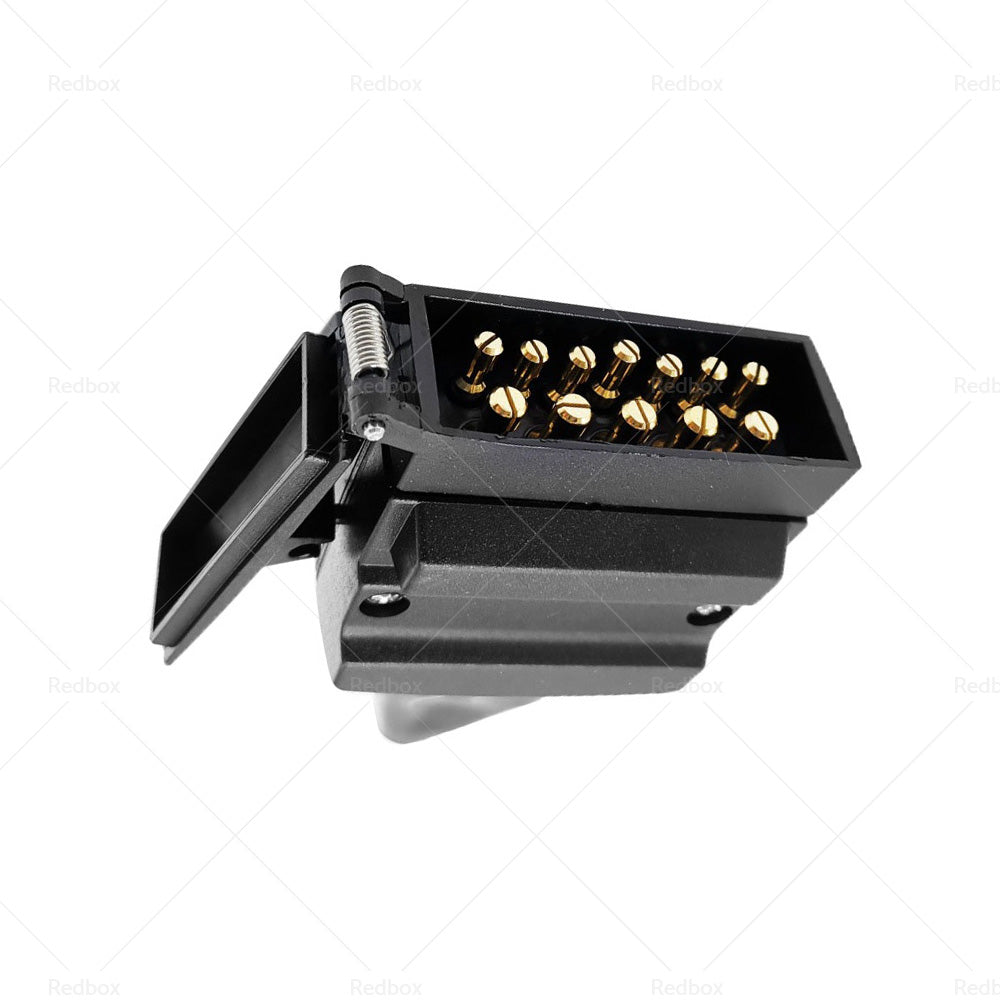

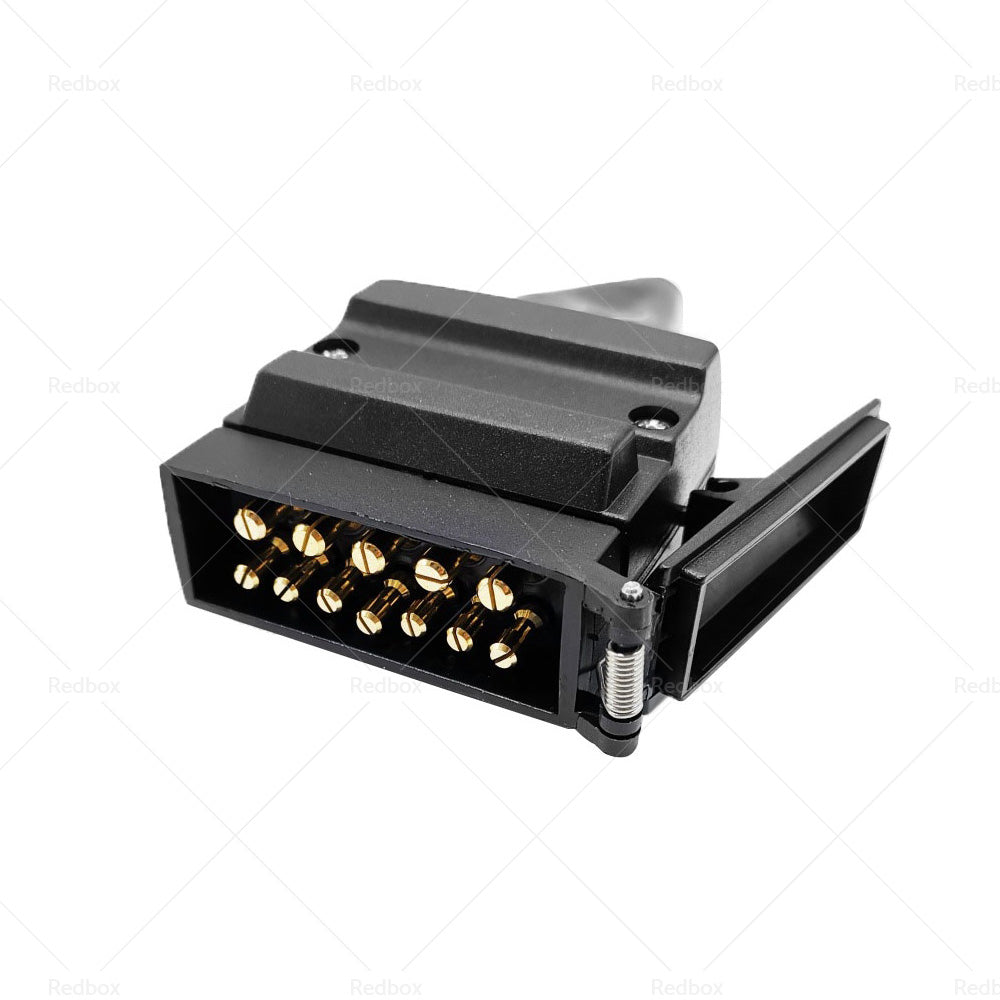

82171BL 12 Pin Flat Connector Plug Suitable For Trailer Caravan Boat Vehicle

Feature:

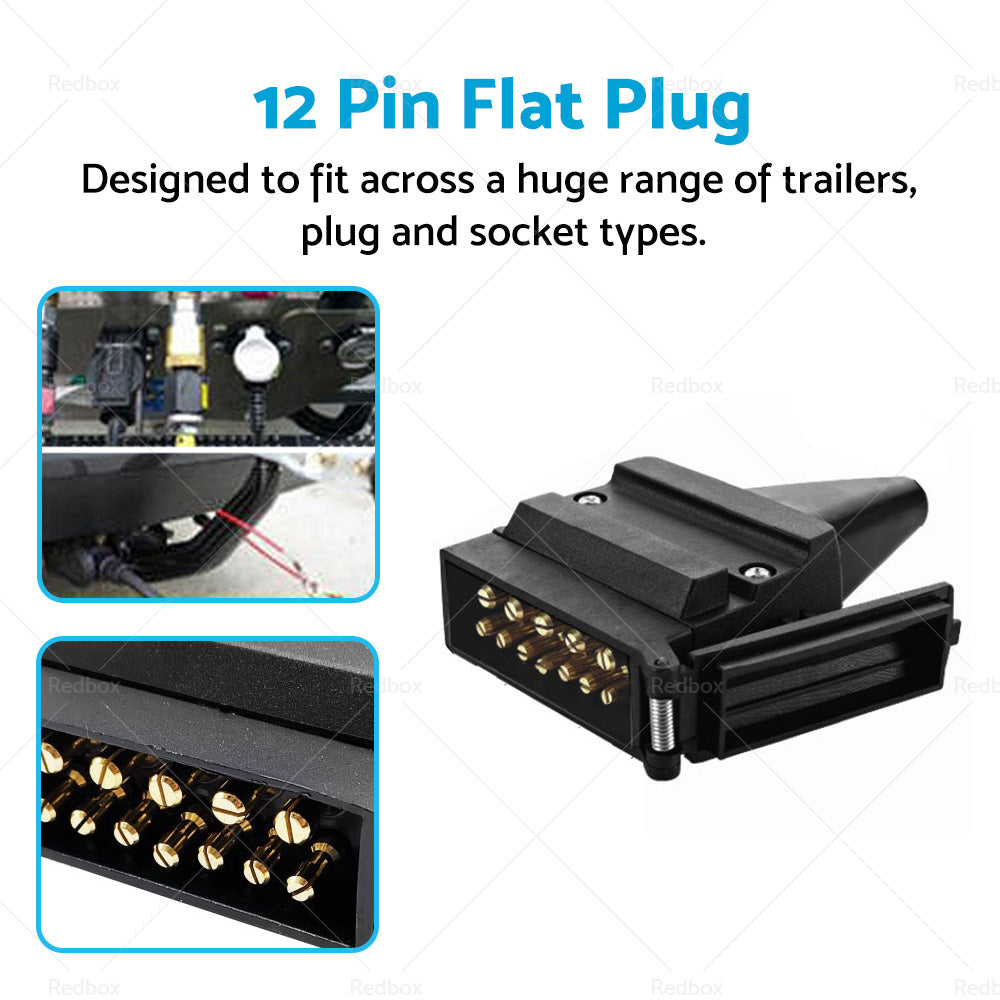

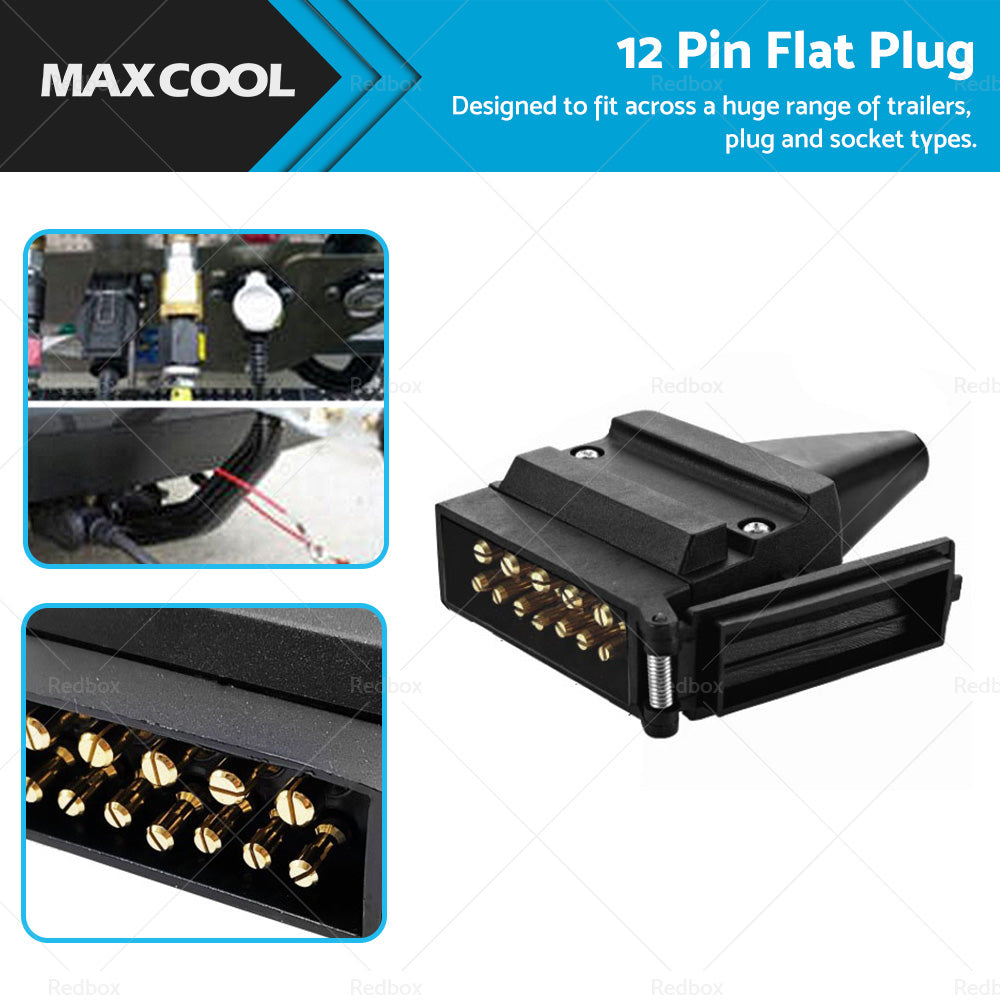

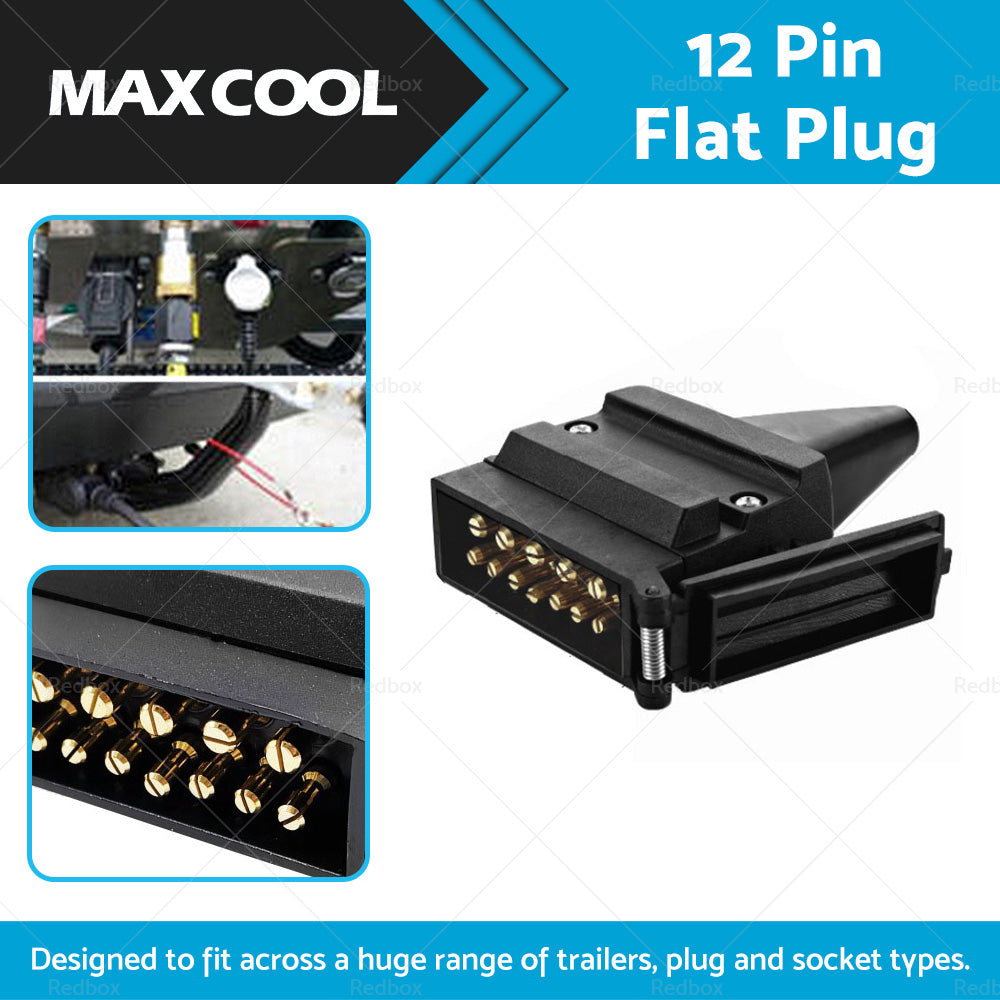

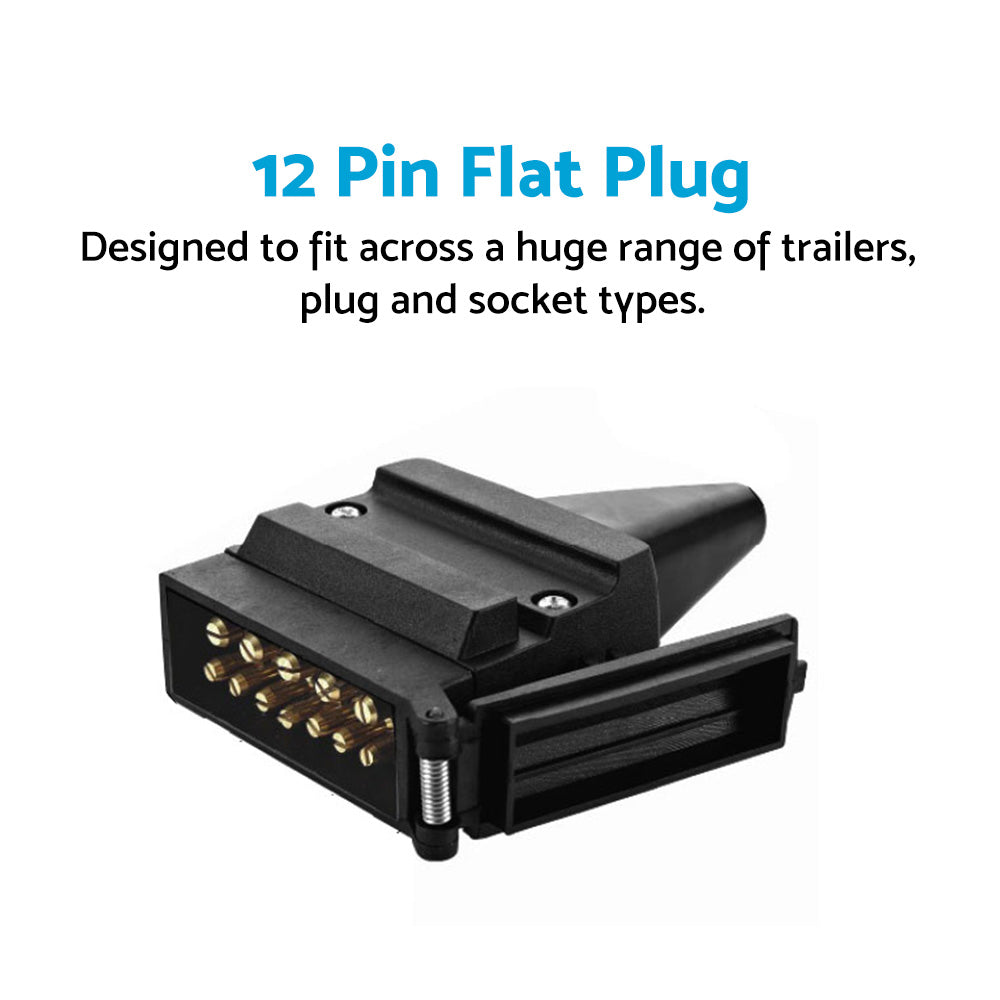

- Designed to fit across a huge range of trailers, plug and socket types
- Premium materials
-Ensuring you have a good connection between your tow vehicle. Trailer lights are paramount for safety, as you can't always see the indications and brake lights of the tow vehicle from behind.
-The 12 Pin Flat Trailer Plug Socket is one way of ensuring that the connection is right and keeping everyone aware of your intentions while towing.
-Perfect for use with boat trailers, caravans, camper trailers, and even horse floats.

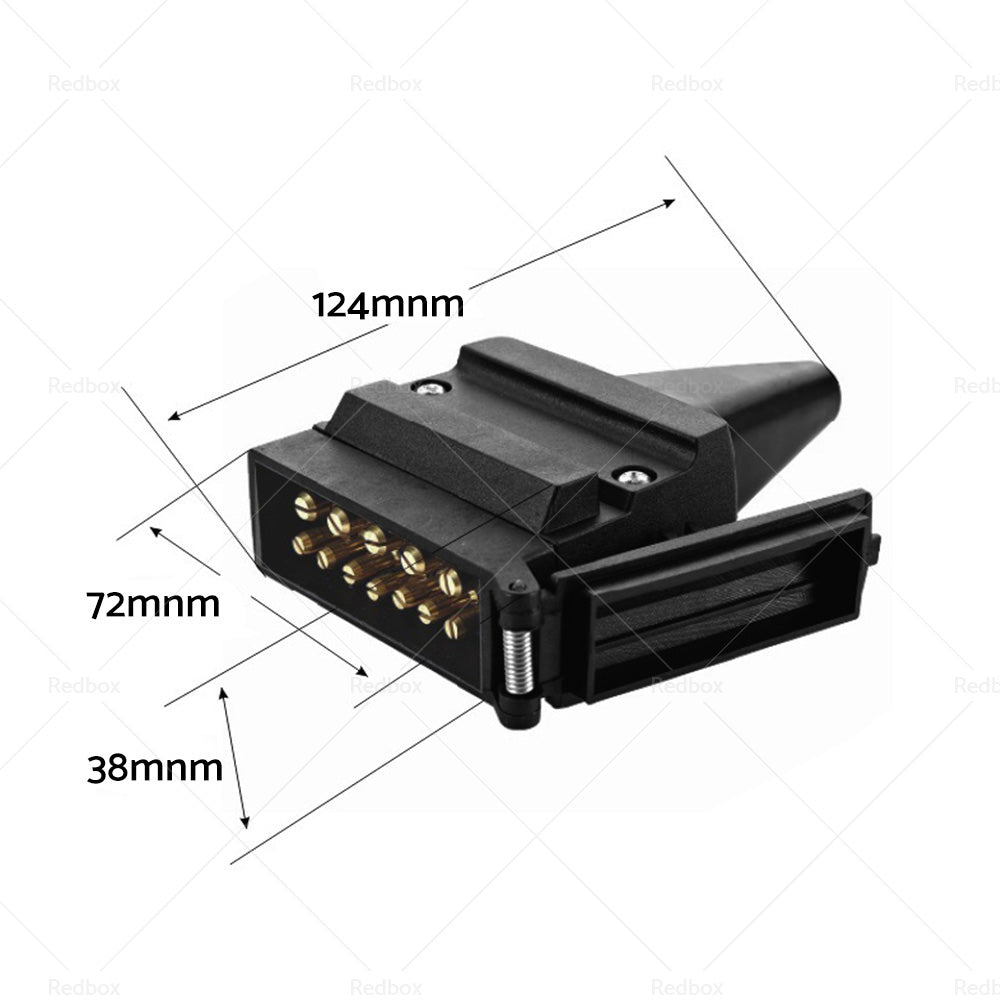

Specification：
Reference Number: Suitable for 82171BL
Pin：12P
Material：Nylon+Copper
Voltage：12V
7 Pole amp rating per pole 15A at 12V
5 Pole amp rating per pole 35A at 12V

Wiring Configuration：
1 Left hand turn-yellow
2 Reverse-black
3 Earth-white
4 Right hand turn-green
5 Electric brakes-blue
6 Stop-red
7 Tail, clearance, side markers-brown
8 Battery supply-orange
9 Auxiliaries-pink
10 Earth-white
11 Rear fog lamp-grey
12 Auxiliaries-violet

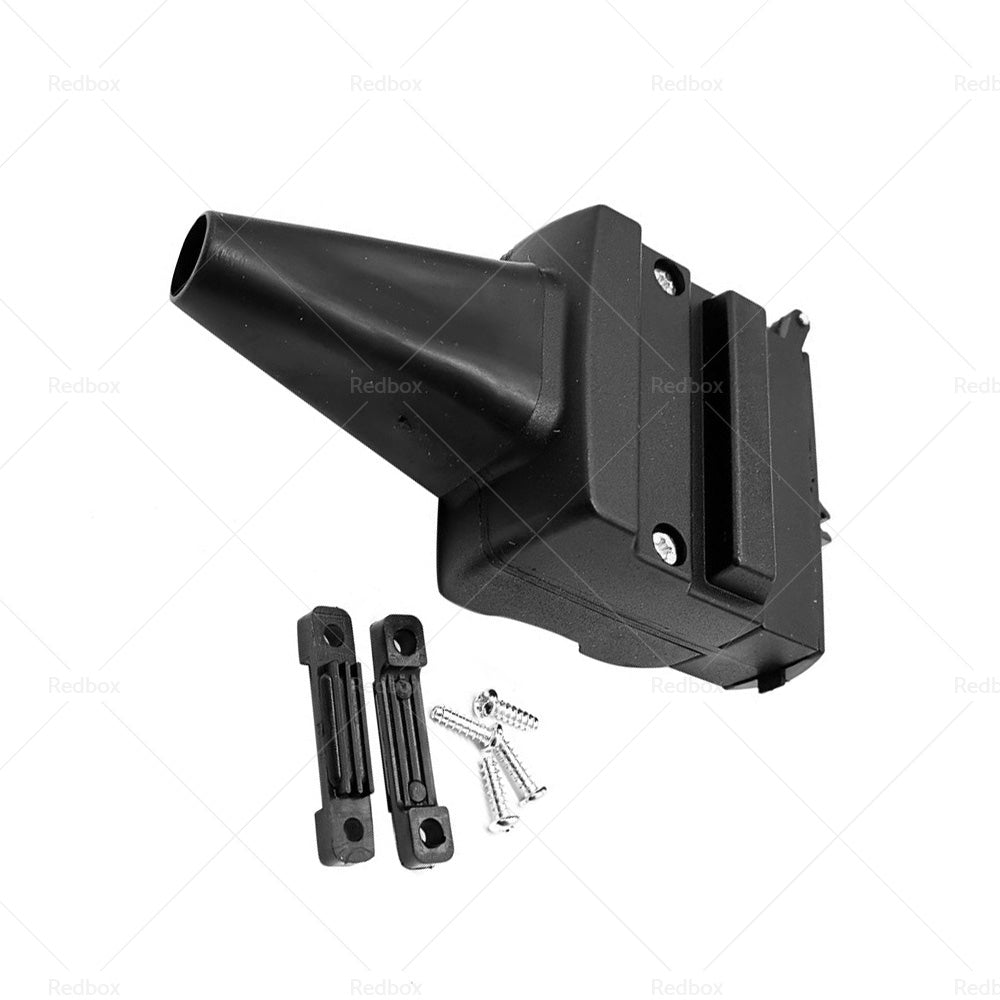

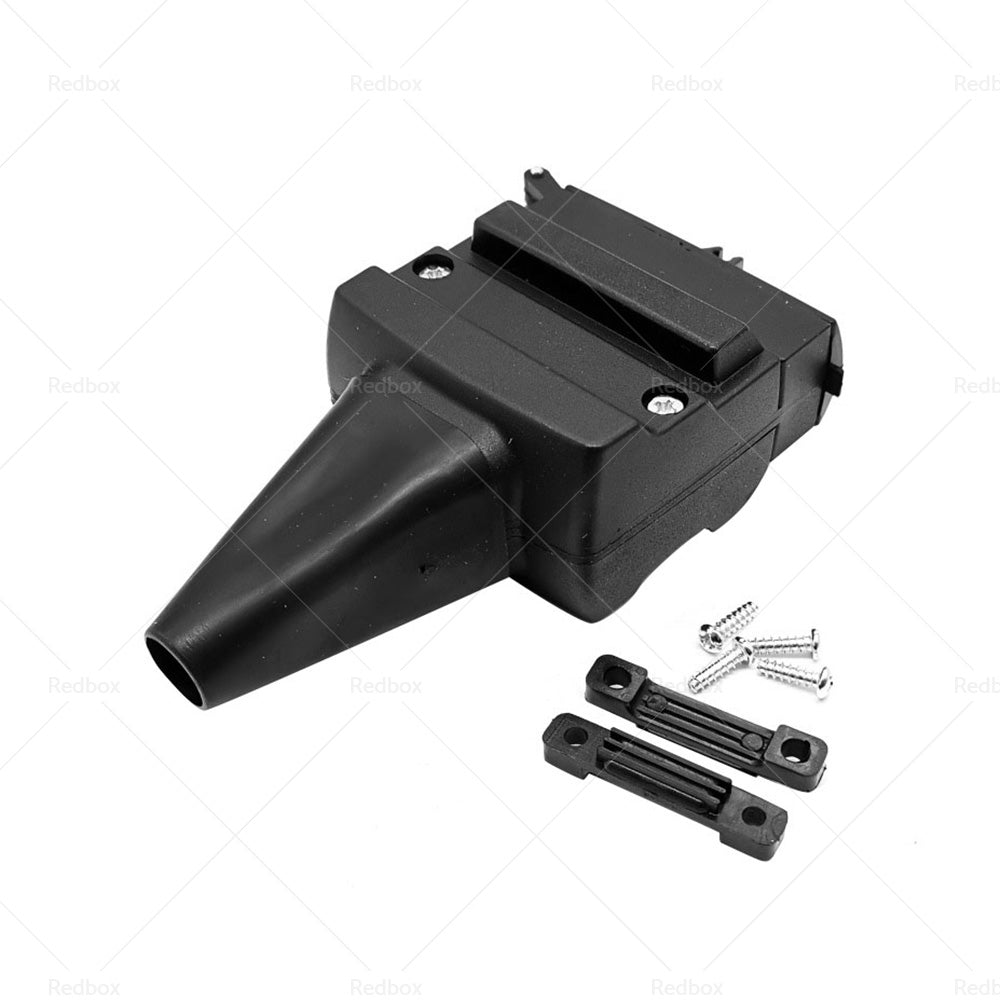

Package Including：
1x 12 Pin Flat Plug
