Description:

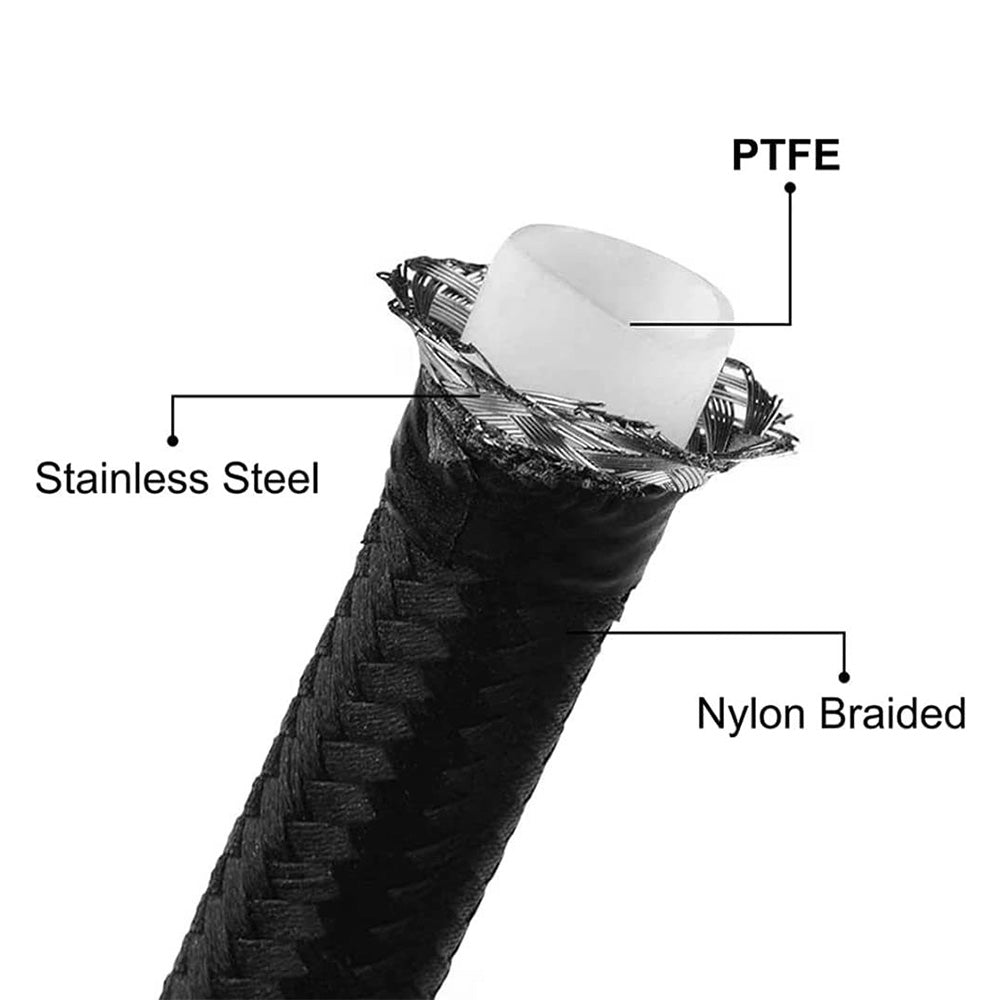

-Nylon stainless steel braided PTFE fuel line can be used as fuel injection hose, turbo oil feed and boost line,
transmission oil cooler line, EFI fuel line, carb fuel line, ls engine swap fuel line, fuel return line, vapor return line,
vacuum line, fuel supply line and other high temperature high pressure applications.
-13/32'' AN-8 nylon and stainless steel braided high pressure PTFE fuel line kit holds up a lot stronger to heat and
extreme circumstances.
-PTFE Lined Hose can be compatible with all automotive fuels, lubricants, and coolant.

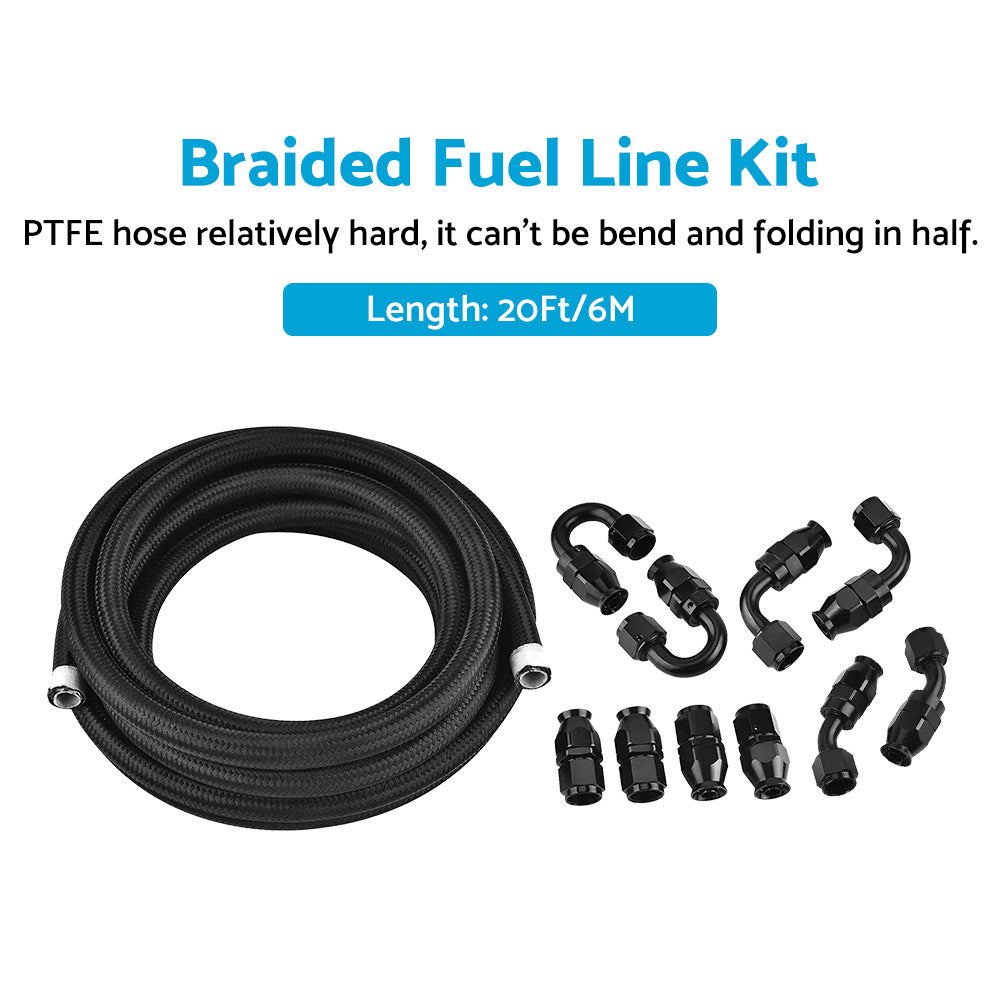

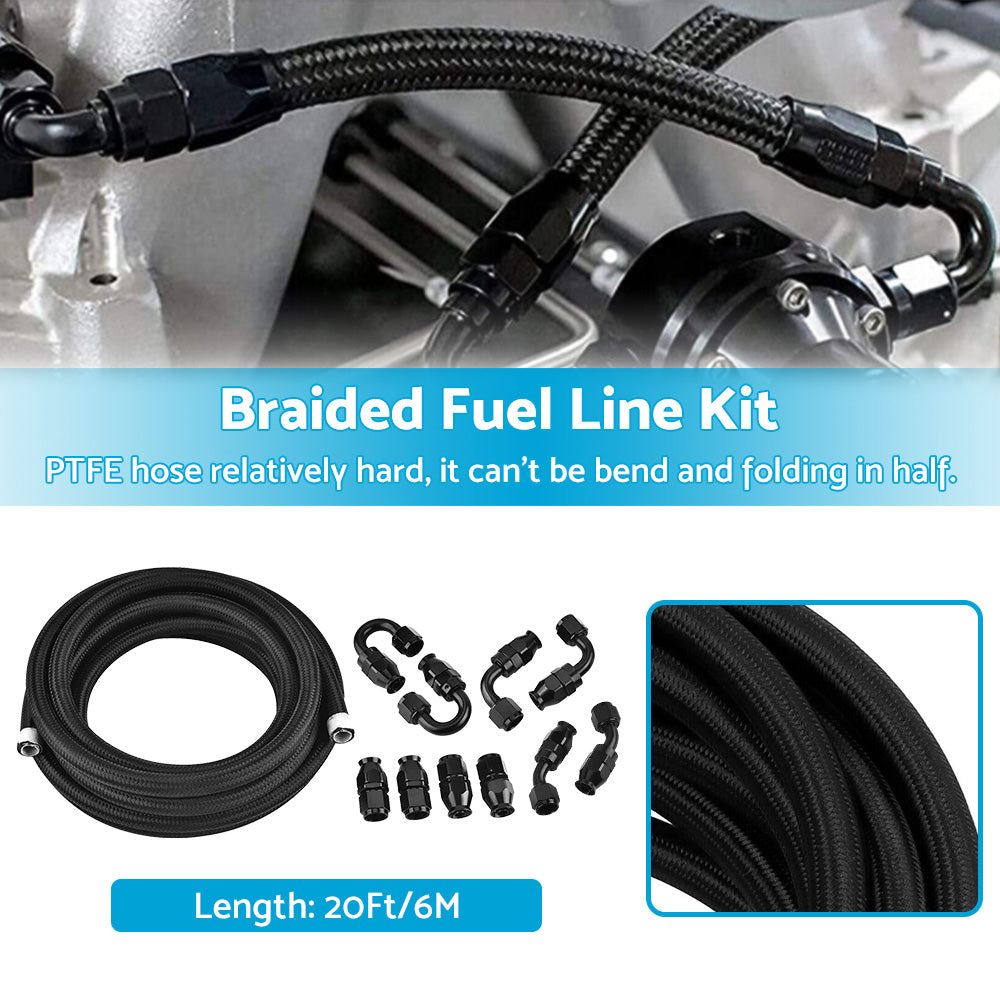

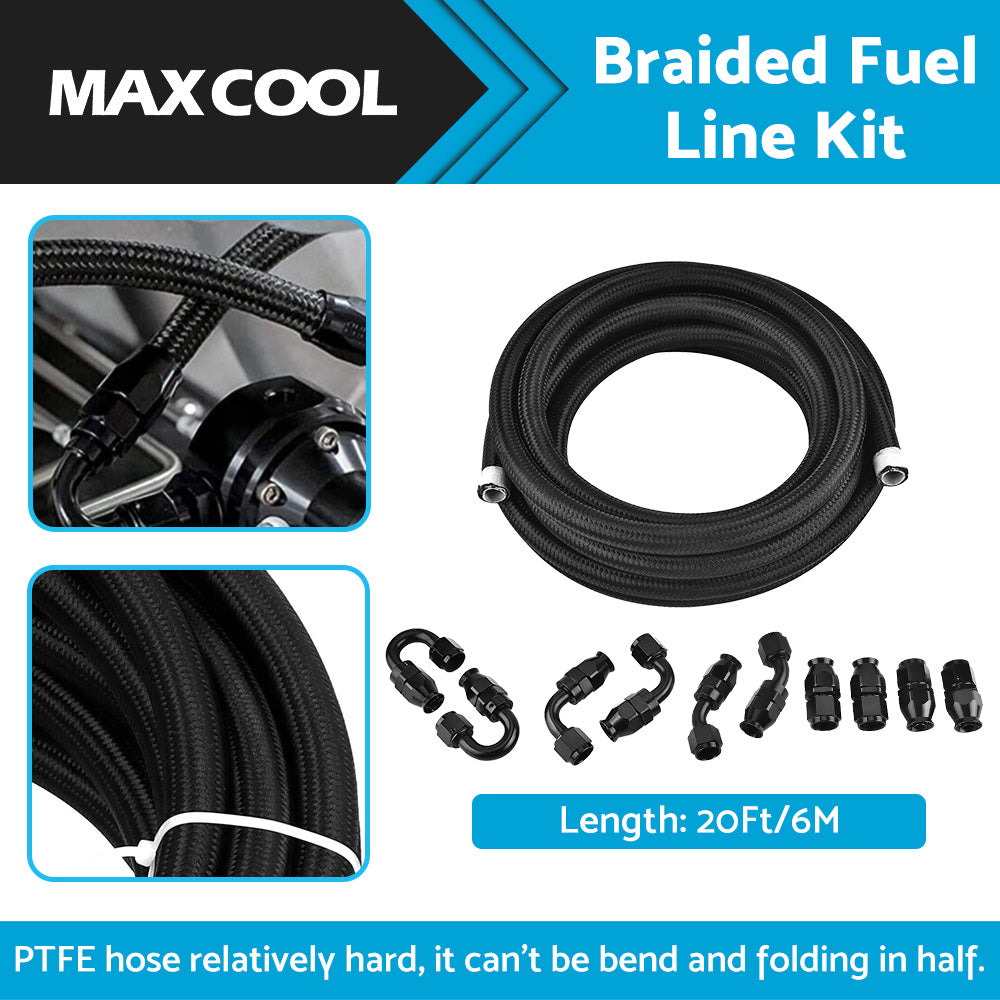

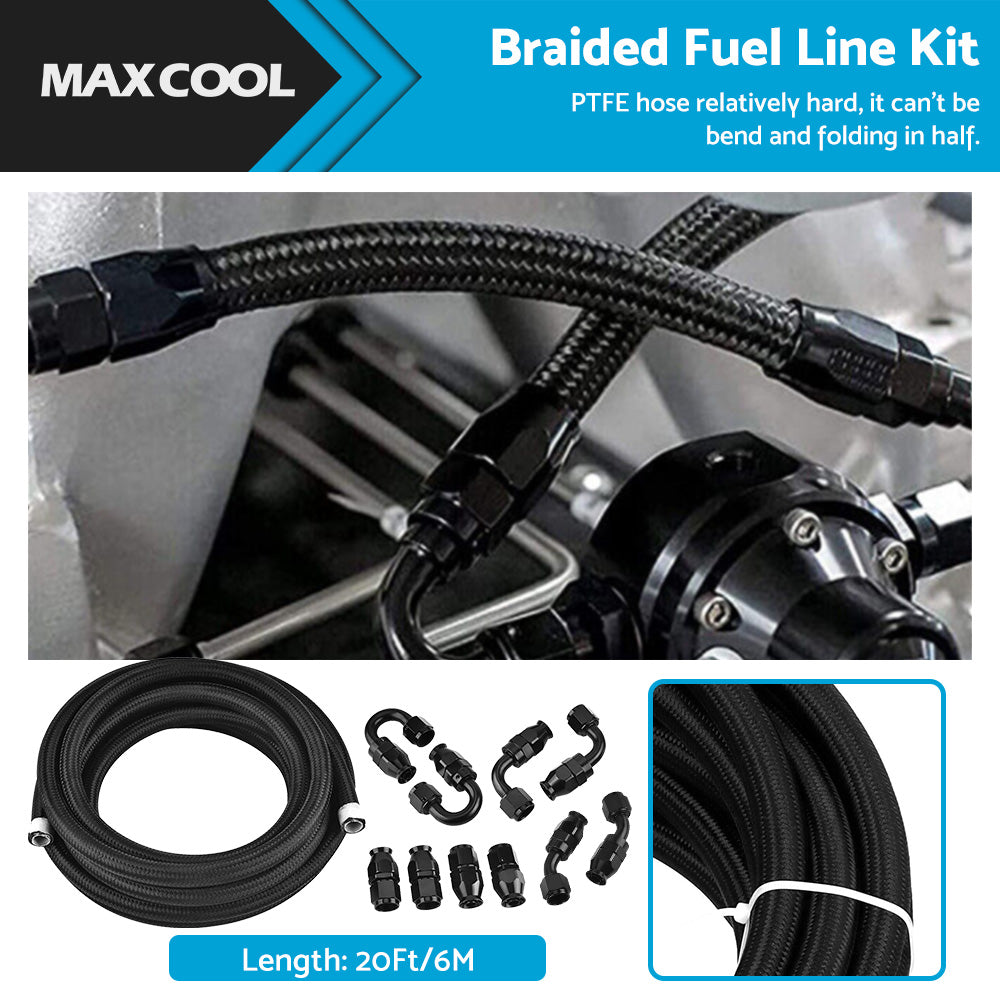

-PTFE hose relatively hard, it can't be bend and folding in half.
Specification：
Working temperature range: -76℉ to 446℉ (-60℃ to 230℃)
Maximum Working Pressure (psi): 2500 psi
Bursting Pressure (psi): 8000psi

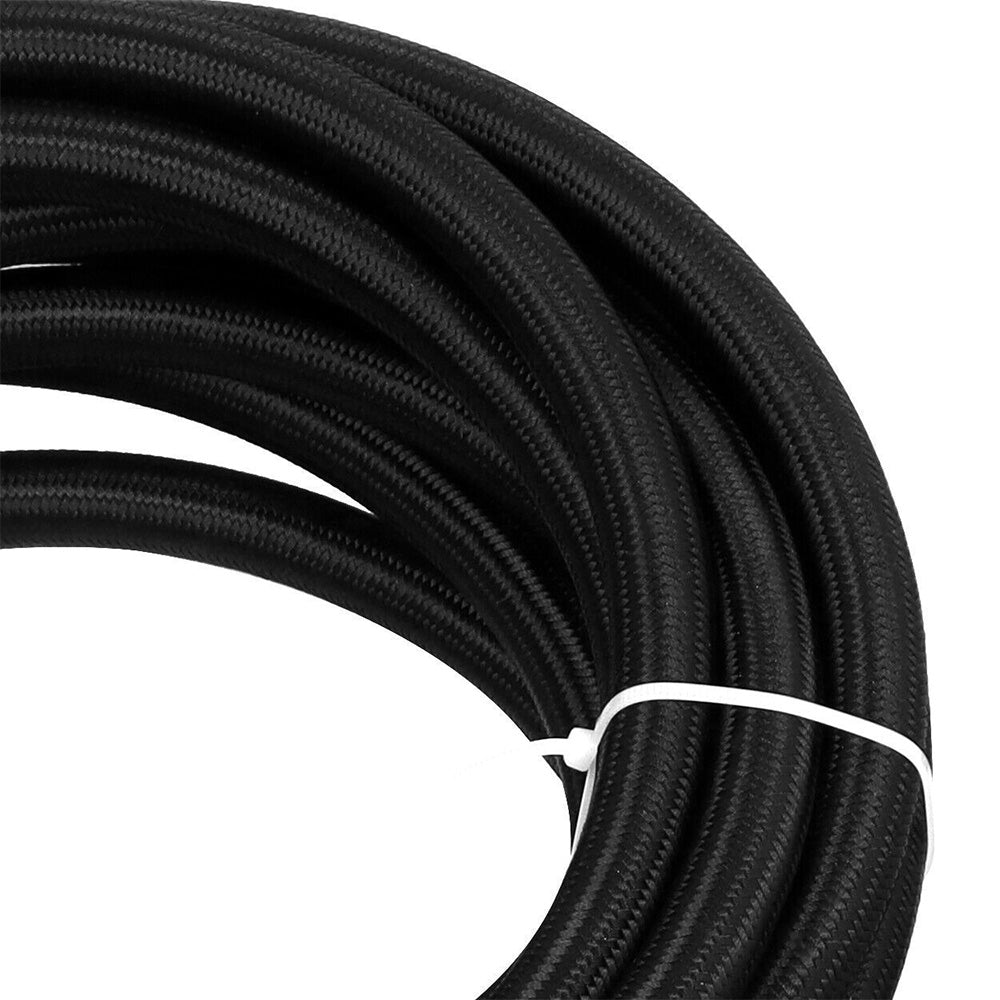

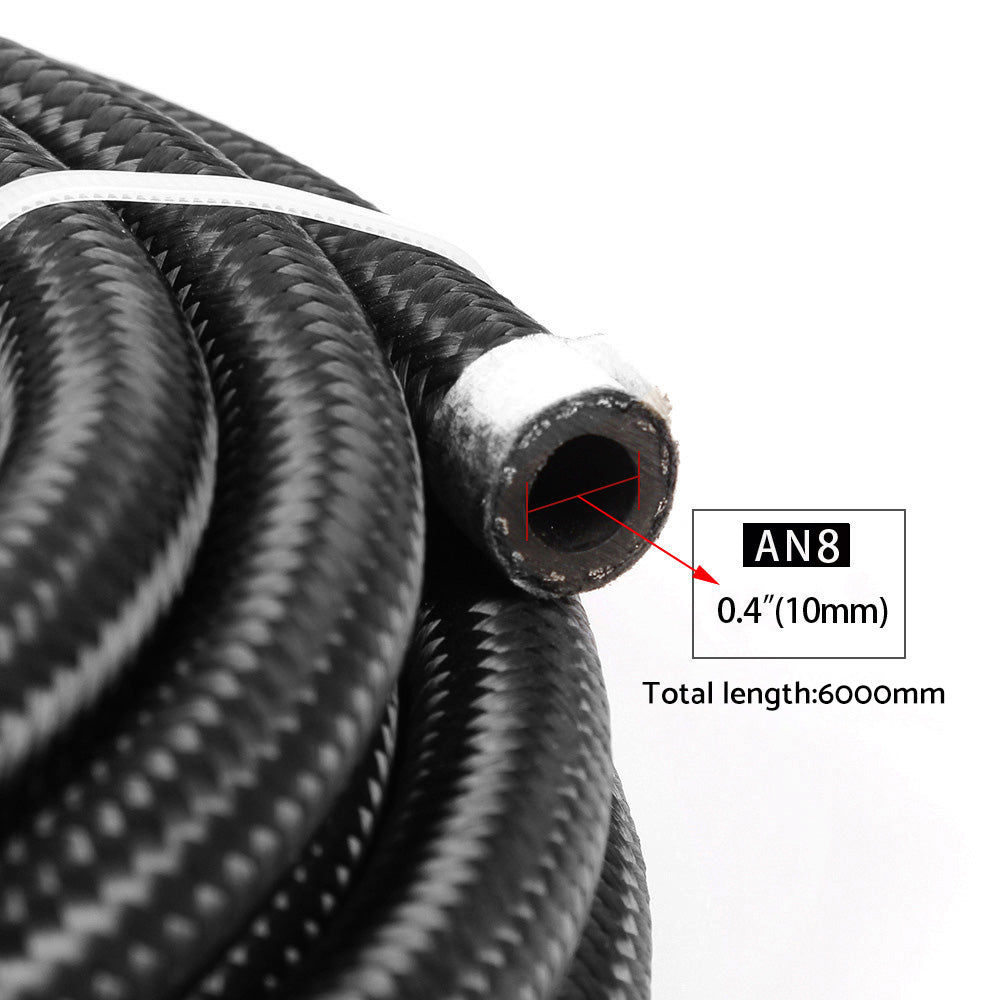

Braided Fuel Hose Inner Diameter: 13/32" (10.4mm)
Braided Fuel Hose Outside Diameter: 0.543in (13.8mm)
Package Including:

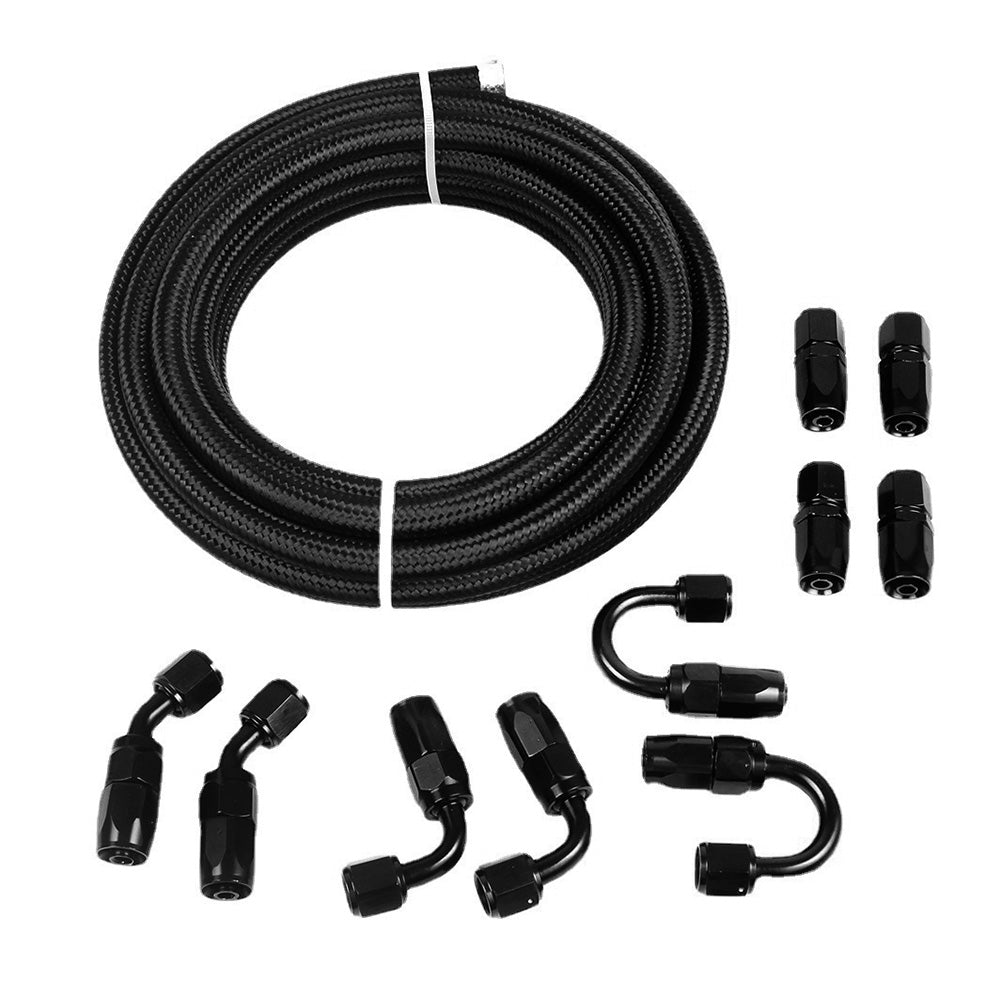

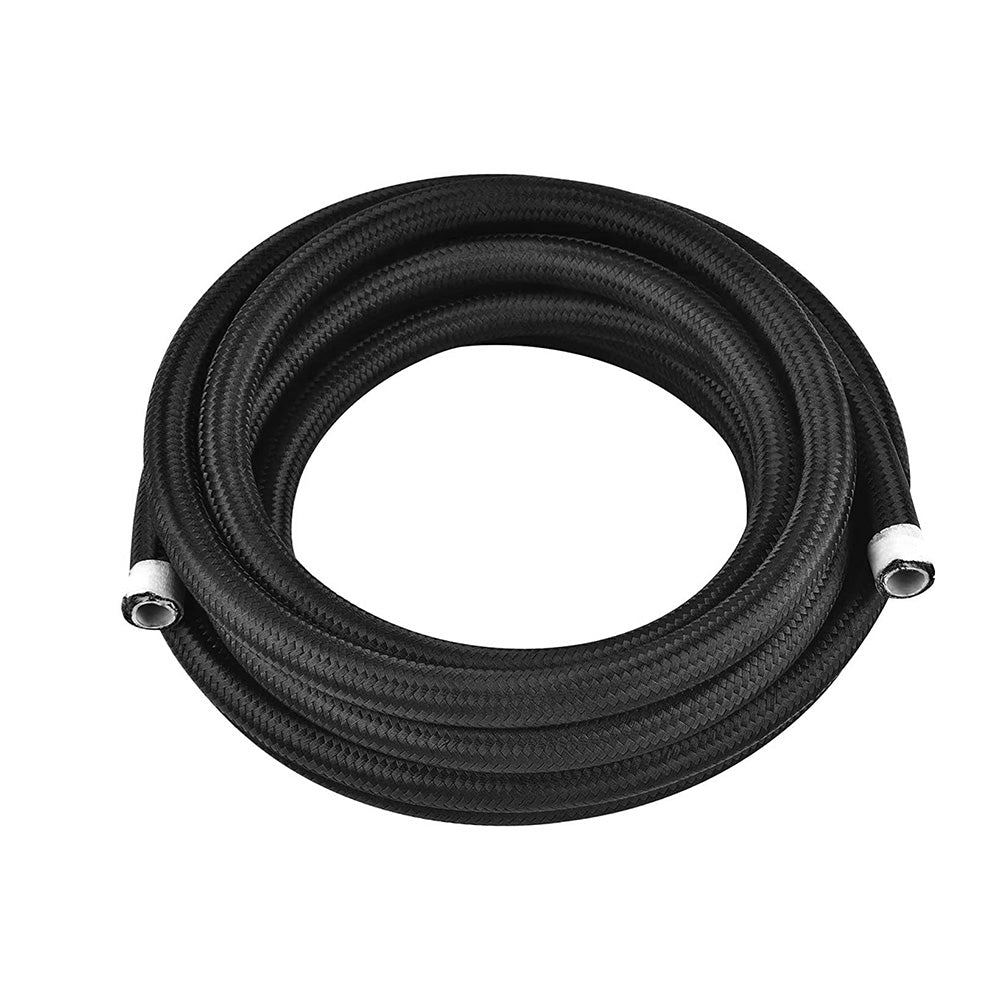

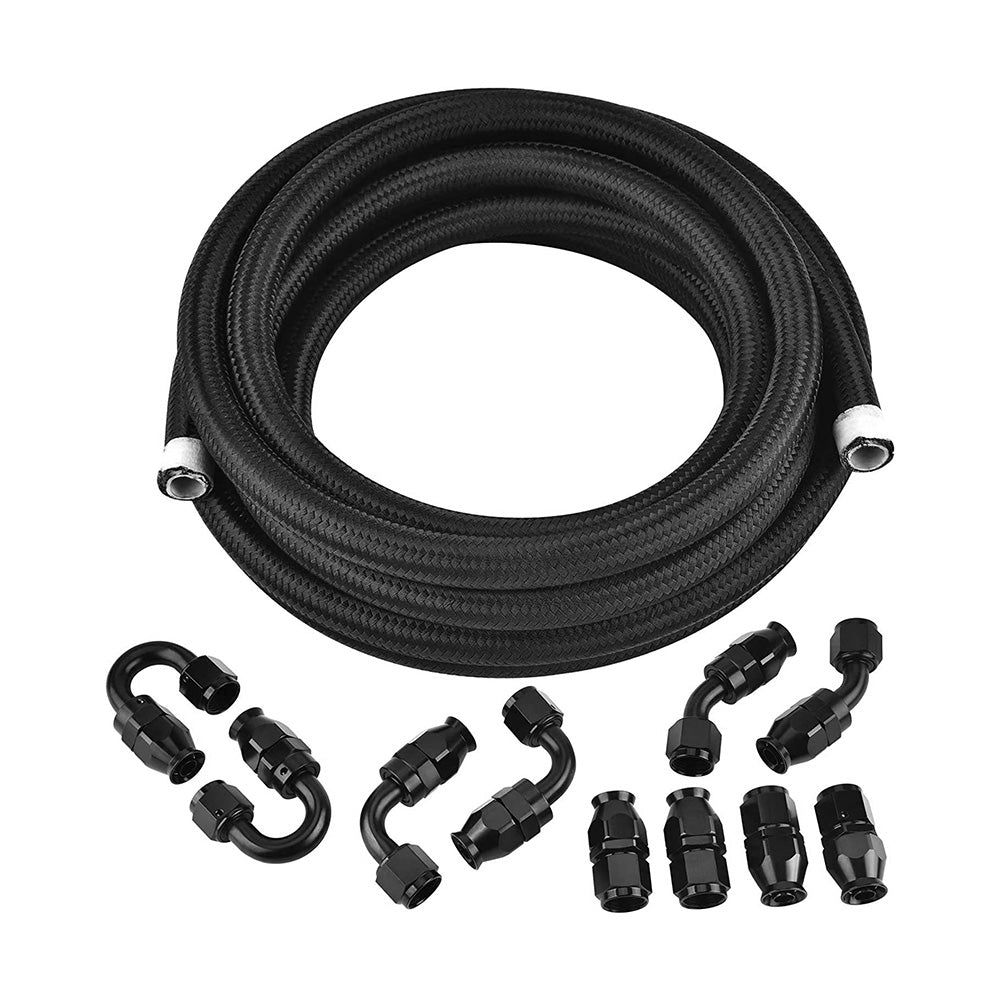

1x AN8 PTFE braided fuel line (Length: 20Feet/6M)

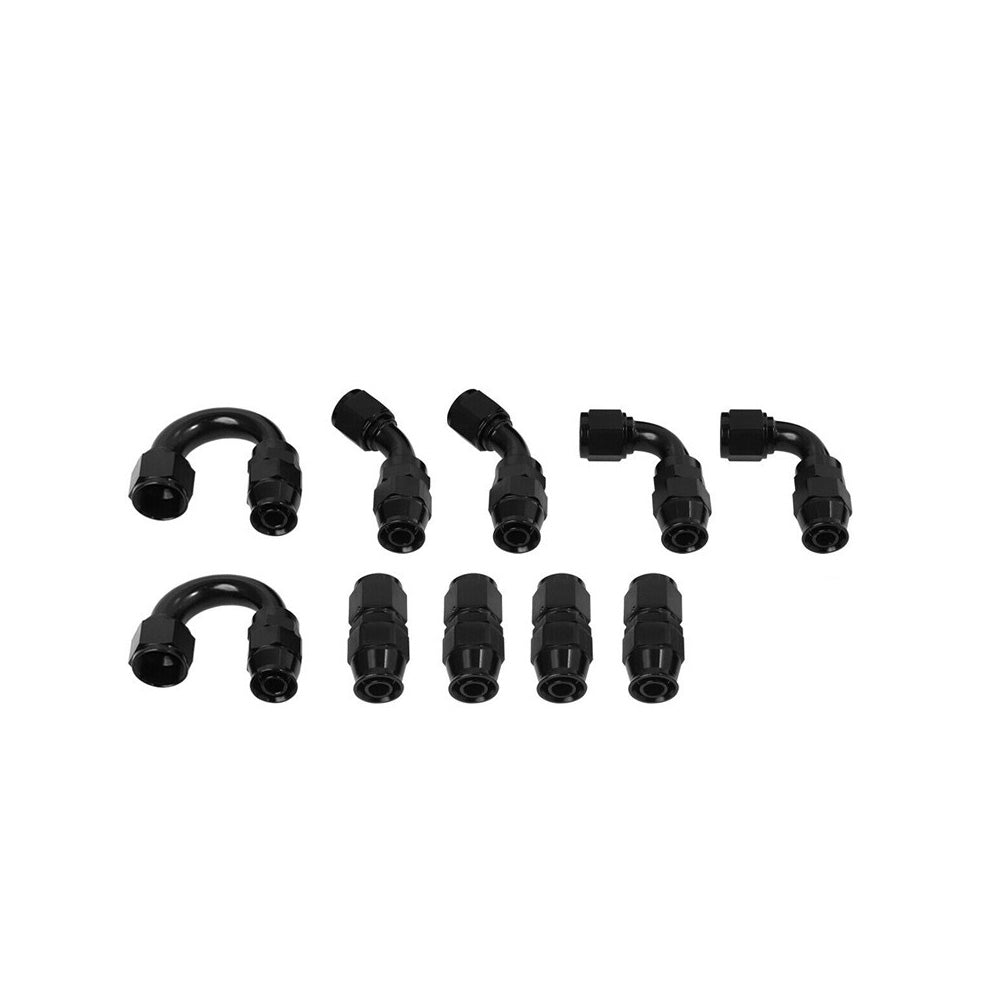

10x 8AN PTFE hose end fittings (4pcs straight, 2pcs 45 degree, 2pcs 90 degree, 2pcs 180 degree)
Note:
-Professional installation is highly recommended.
-Avoid twisting hose when installing.
-Allow some slack in assembly for changes in length that occur underpressure.
-When routing hose line, provide a smooth bend radius.Avoid sharp bends which may cause hose tocollapse and restrict flow
