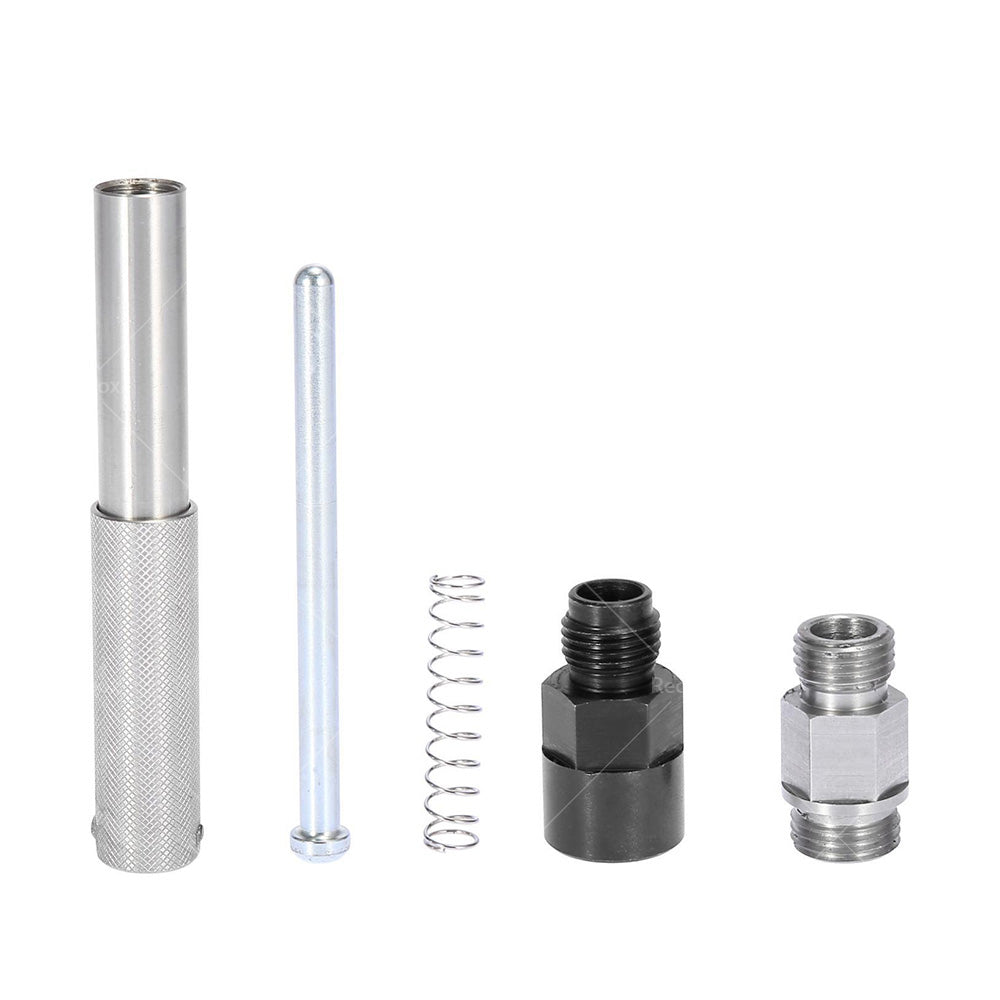

Automatic Engine Timing Pin Fit For Caterpillar 3200 3300 3400 C-7 C-9 J-42083

Compatible with:

Fits for Caterpillar C-7, C-9, C-11, C-13, C-15, C-16, 3179, 3196, 3200, 3300 and 3400.

Features

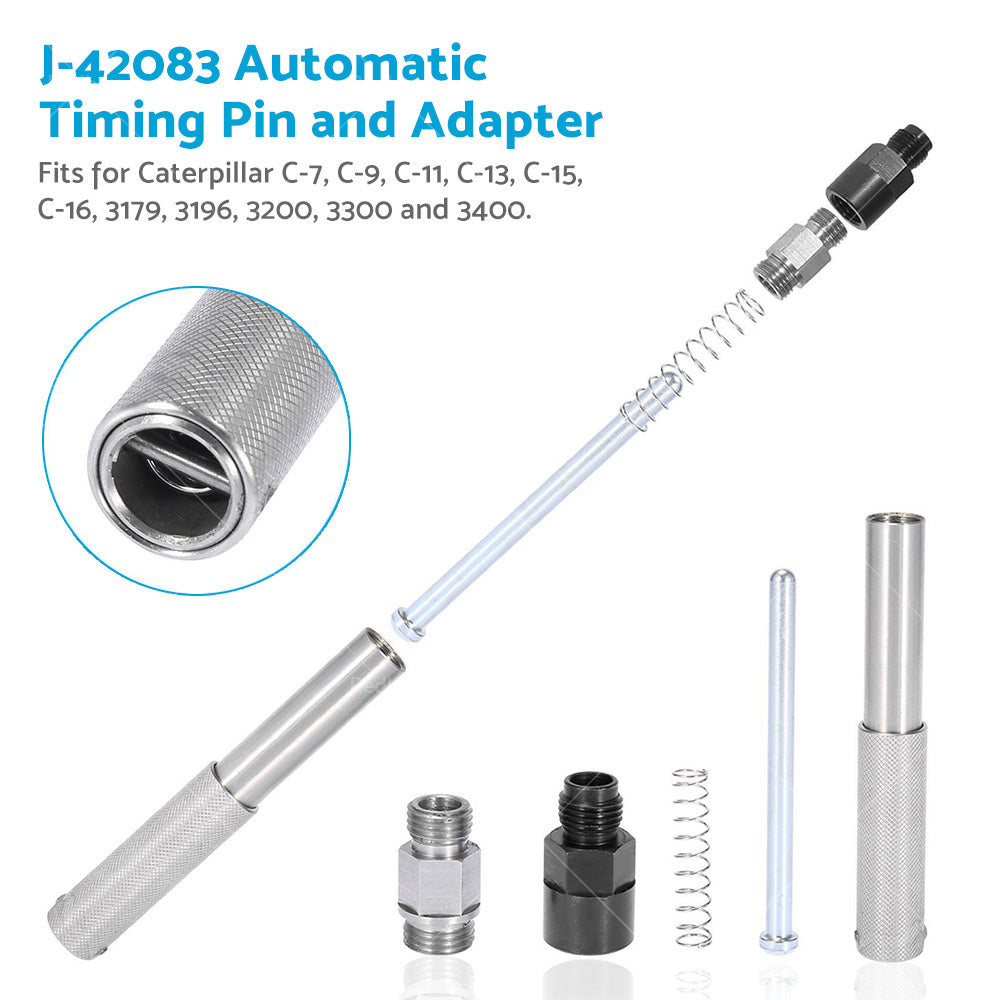

Function: Timing pin and adapater - Make timing easier, acquire TDC and begin valve and fuel injection timing procedures;

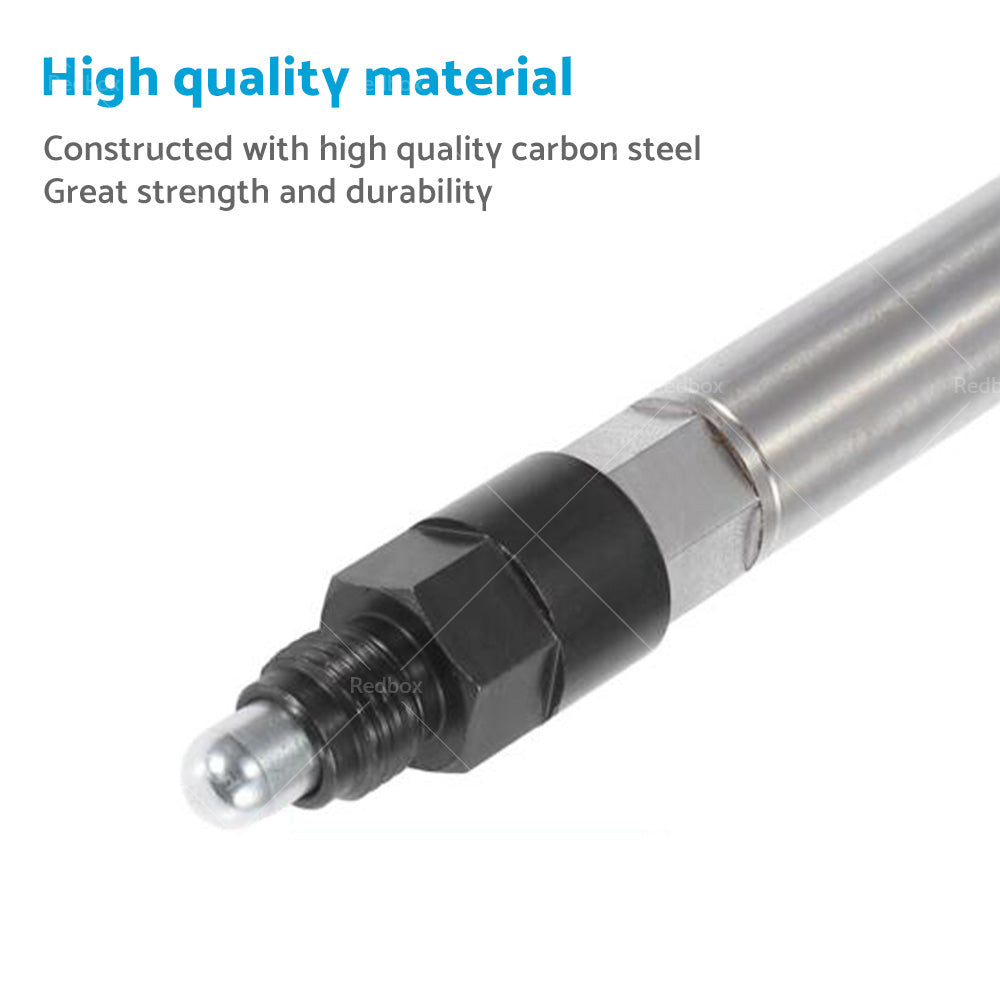

Material: Durable steel for timing pin, use for a long time.

Specifications

Brand: MAXCOOL

Type: Automatic Timing Pin

Warranty:1 year

Material: Steel

Color: Silver Tone

Placement on Vehicle: for Caterpillar Engine

OEM: J-42083

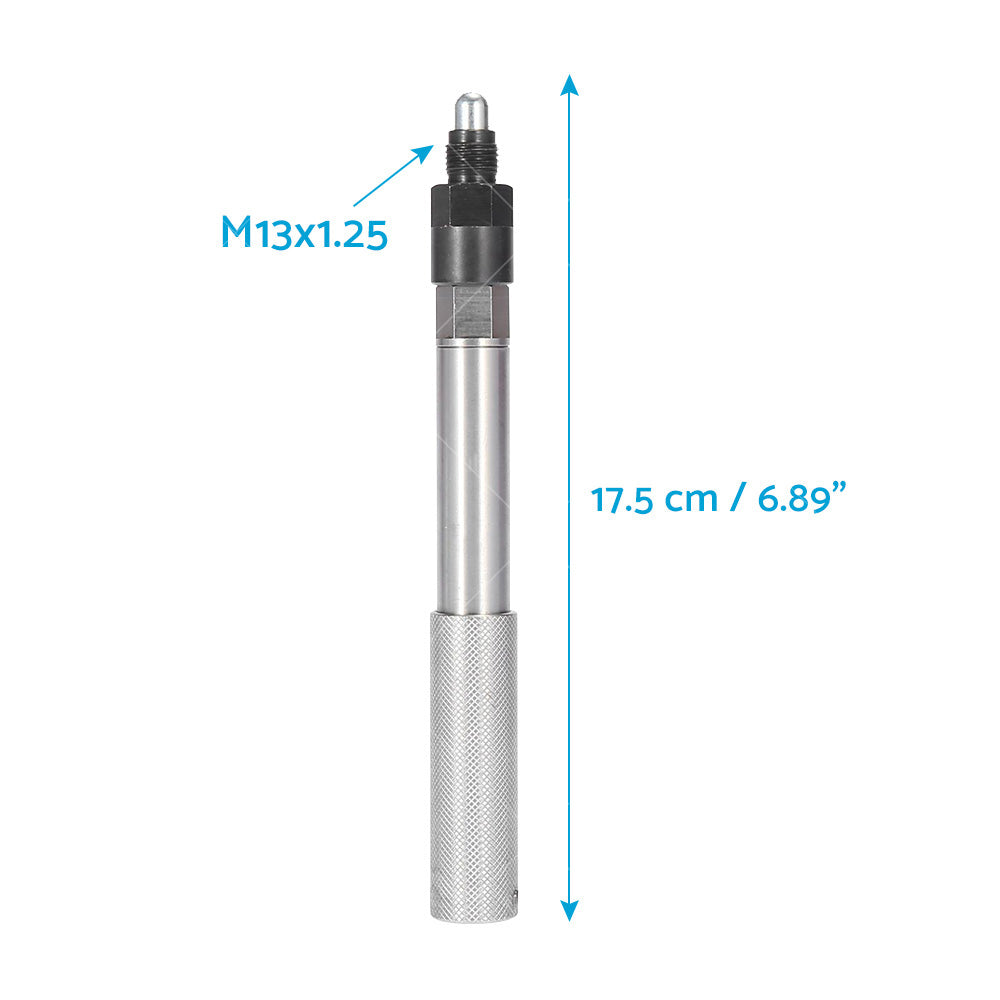

Timing Pin Size: 17.5cm/6.89"(H)

Timing Pin Thread Size: M13x1.25

Package include:

1 x  Automatic Timing Pin

Use Instruction:

1. Remove the plug from either the left or right side timing access holes.

2. To install, hand tighten the J42083 Automatic Timing Pin Lock into the timing access hole.

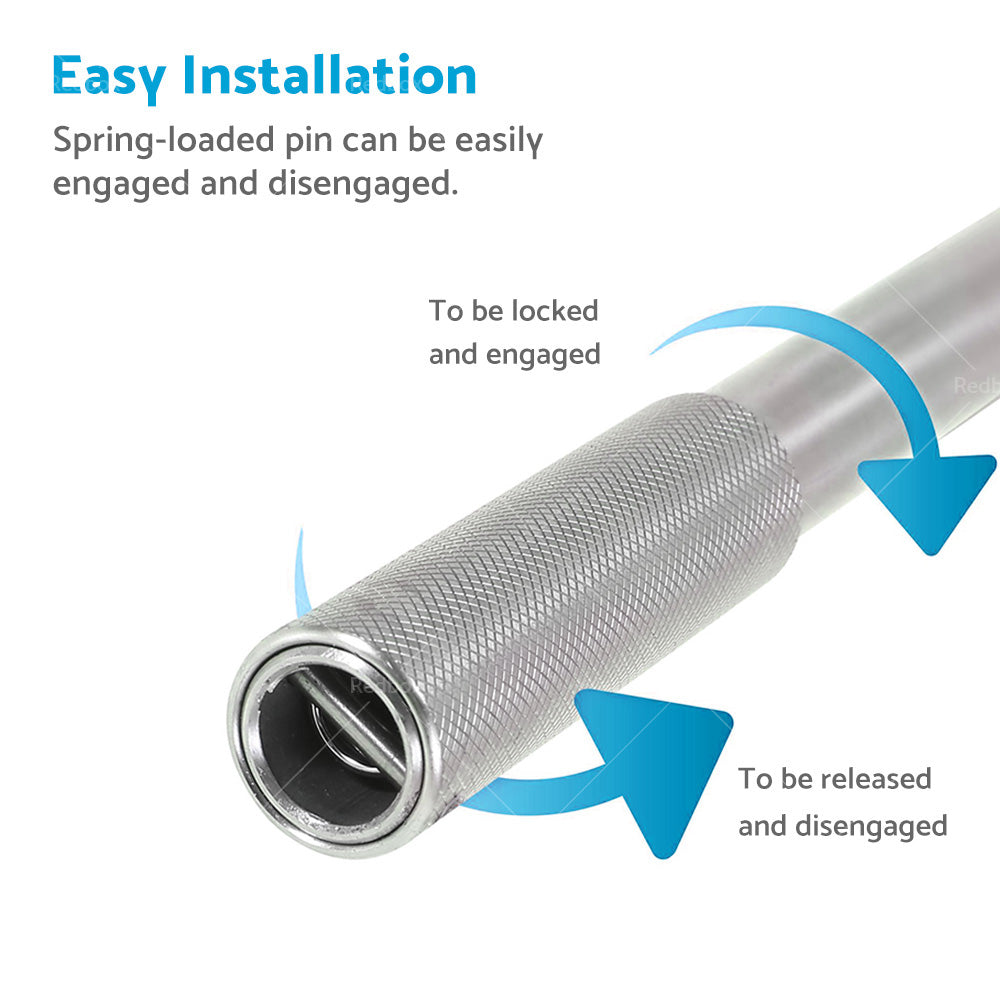

3. Preload the spring on the automatic timing lock by pushing the slide handle forward and turn it clockwise to engage either of the two locking slots.

4. Manually, turn engine in direction of rotation(usually counter clockwise)until a notice “click” sound is heard.

5. The automatic timing pin plunger has now engaged the flywheel timing holes in either the top center compression or exhaust stroke.

6. To remove, turn slide handle counter clockwise to release spring tensile force on the plunger (if plunger doesn't retract from flywheel with light pressure, jog the flywheel back and forth). Unscrew from flywheel housing.
