Compatible with:

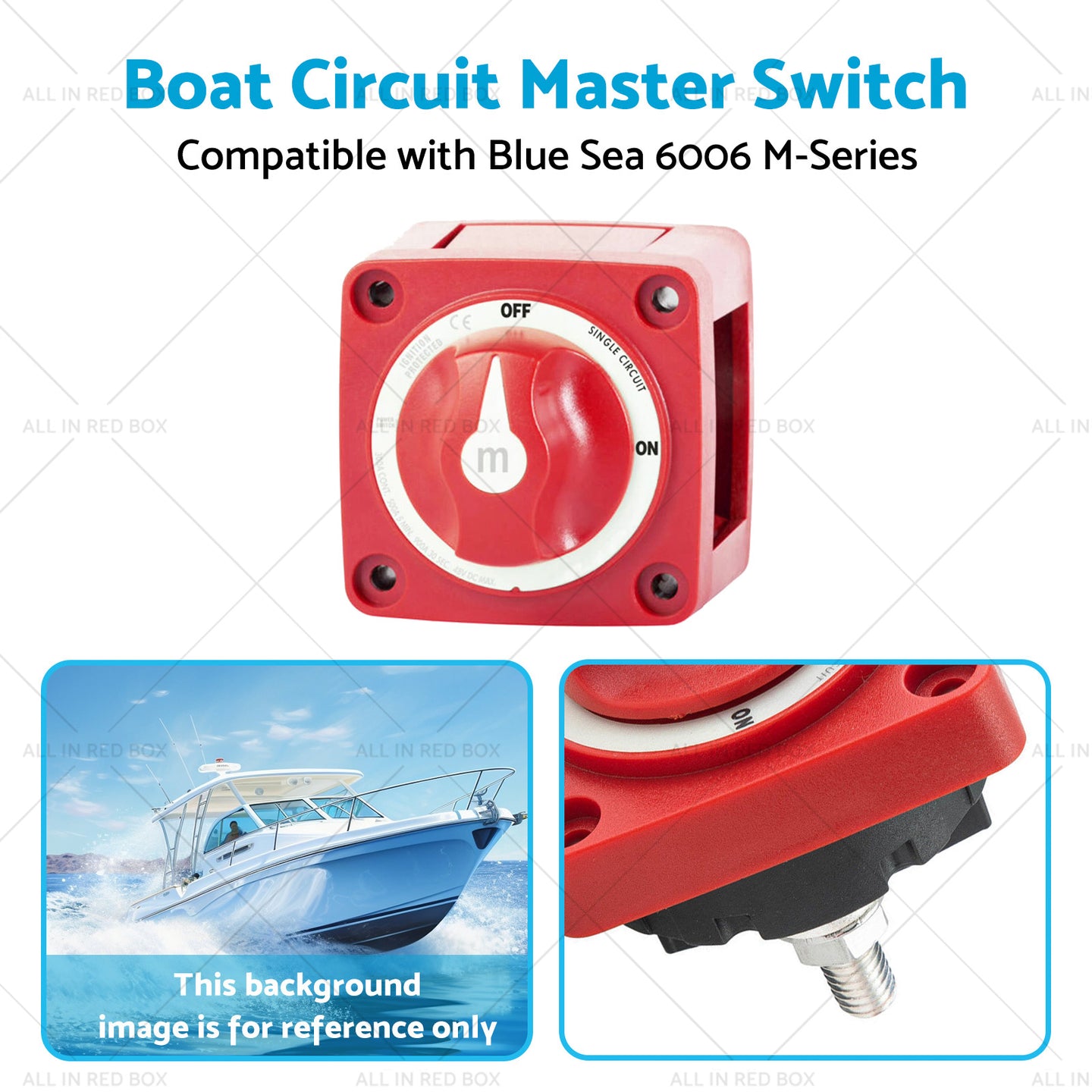

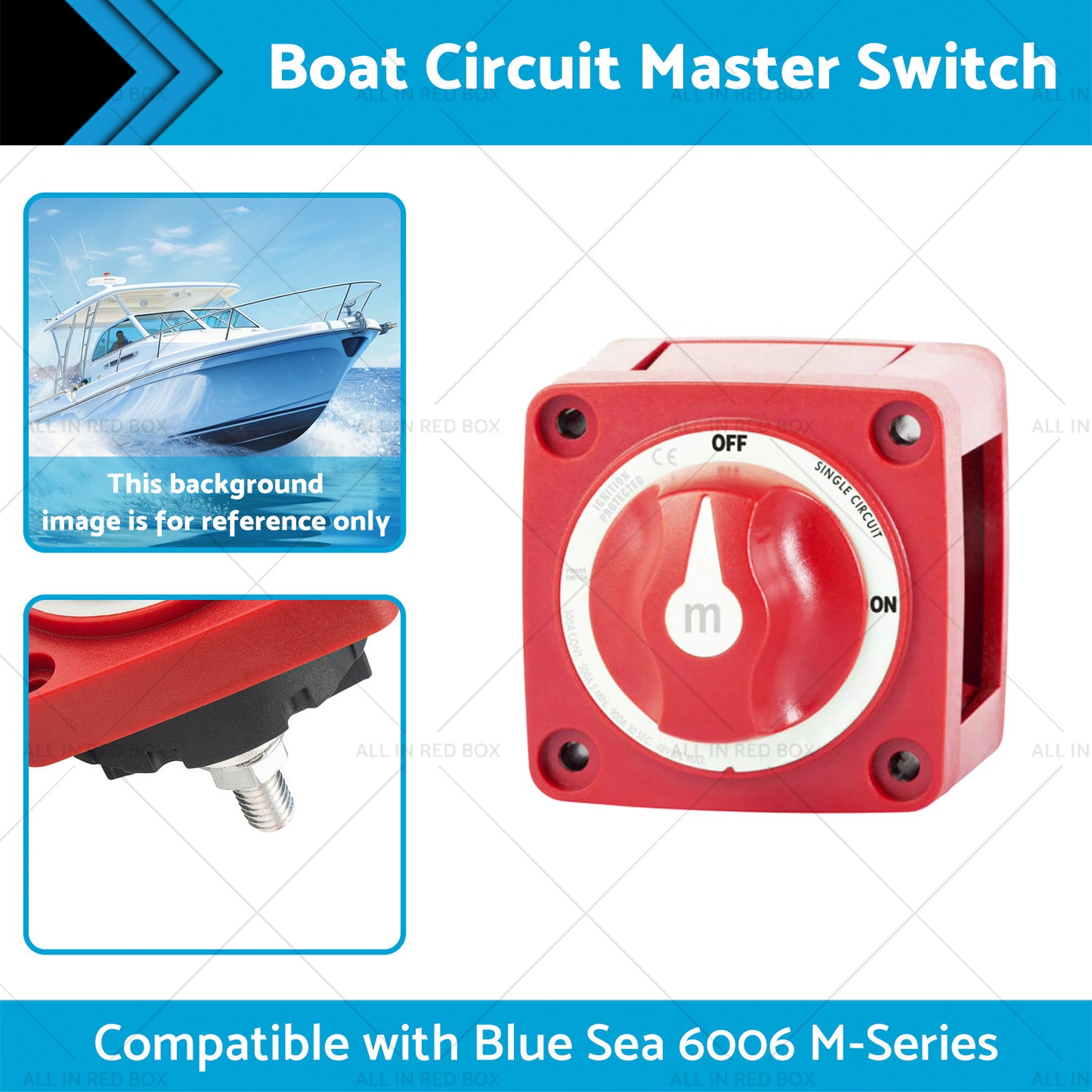

Suitable for Blue Sea 6006 M-Series
Specifications

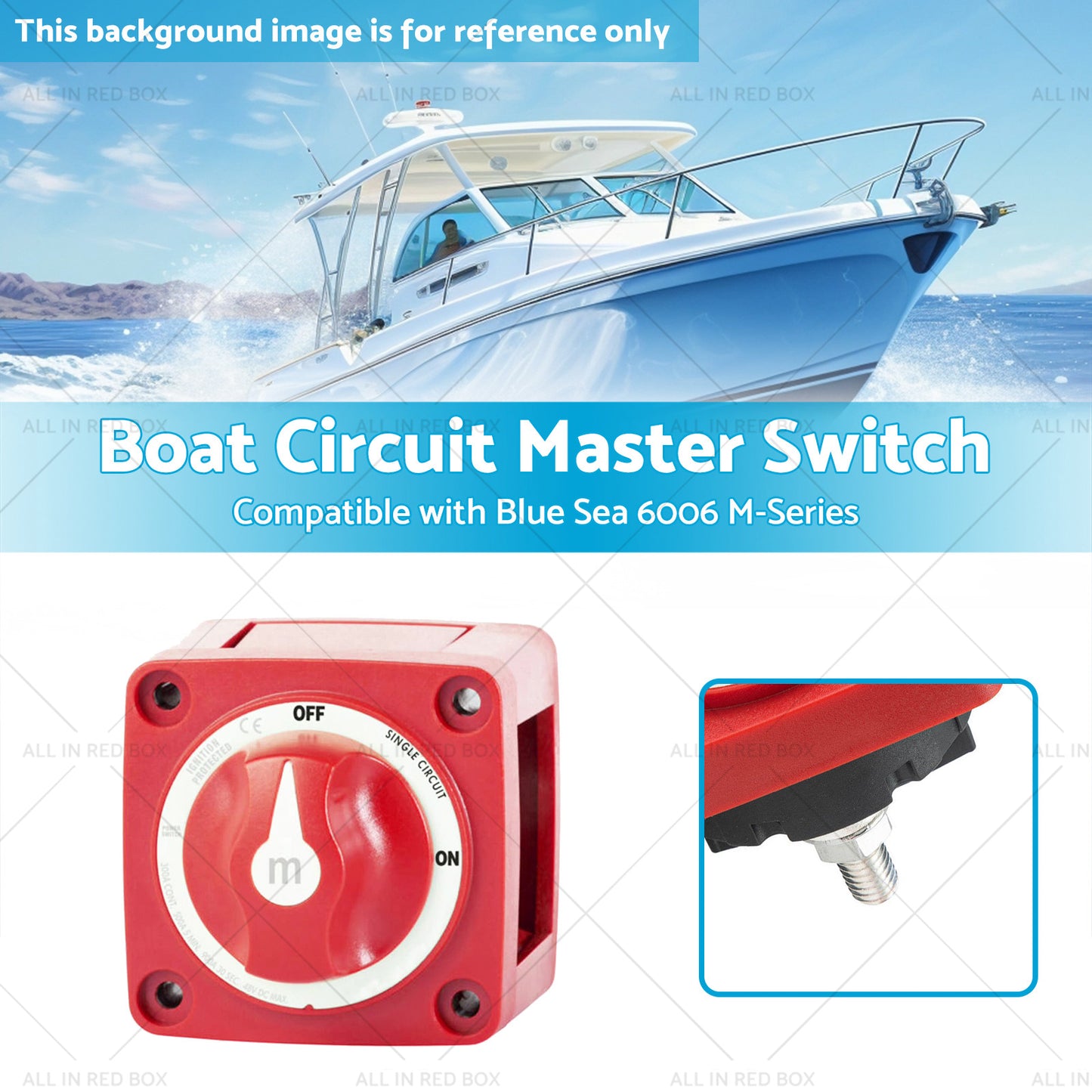

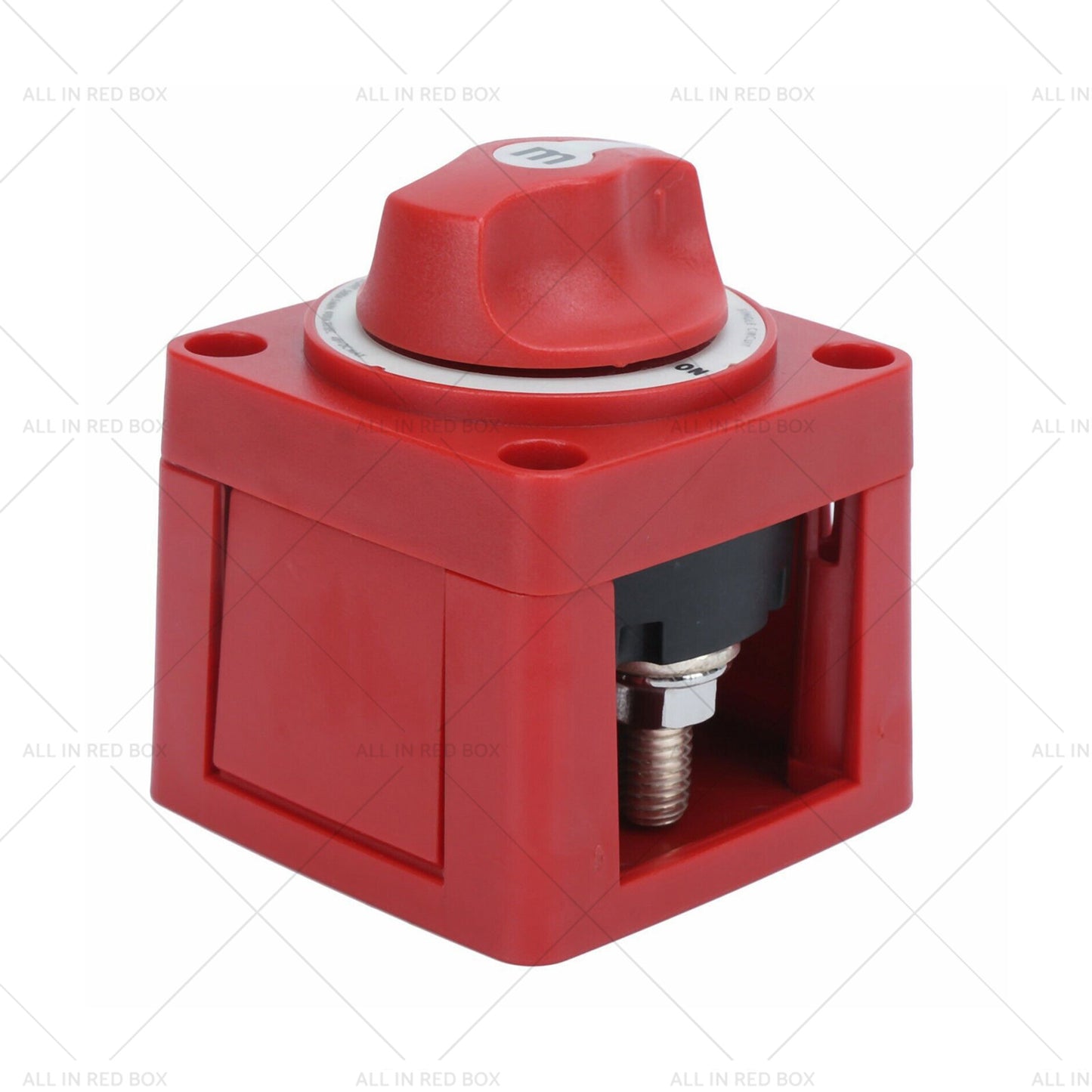

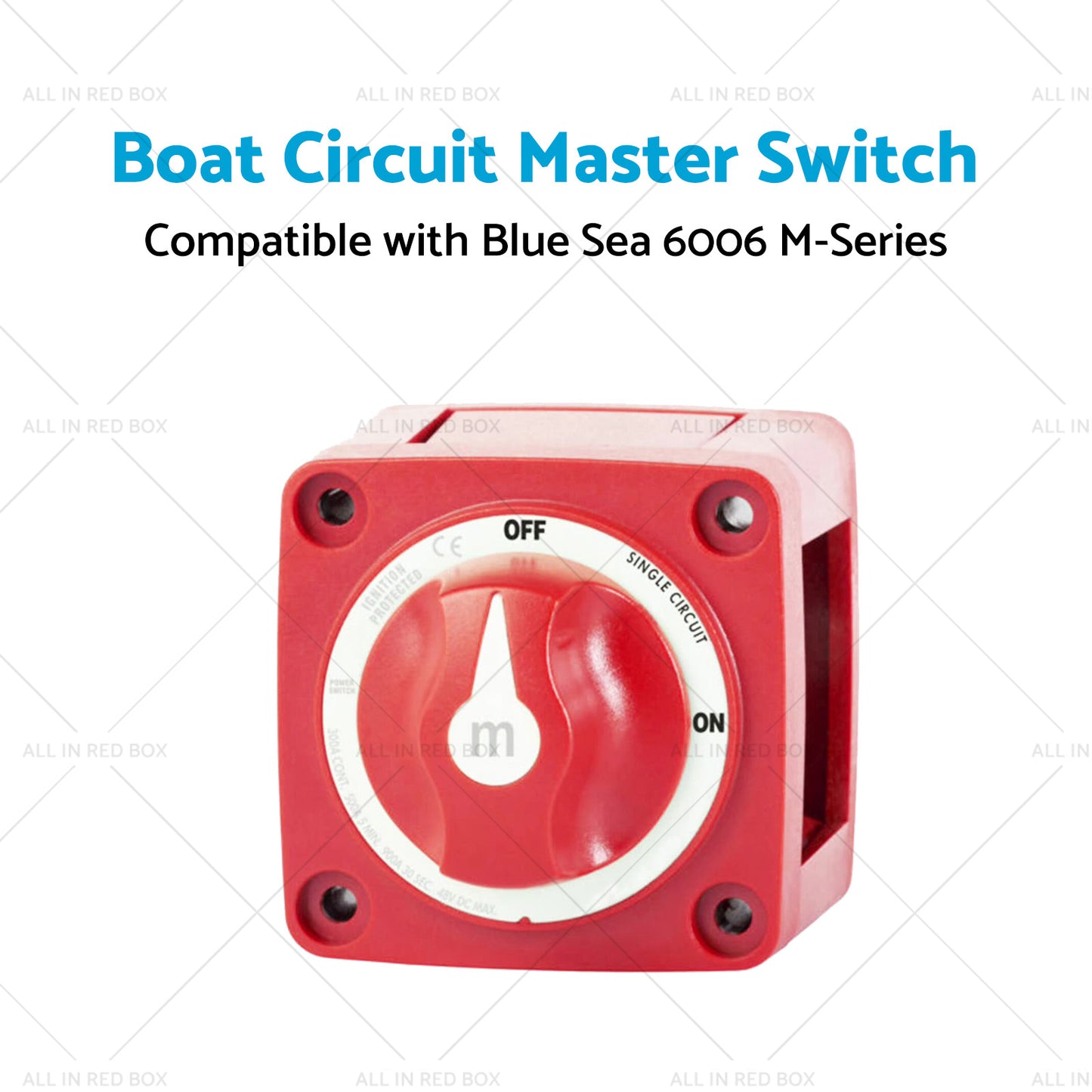

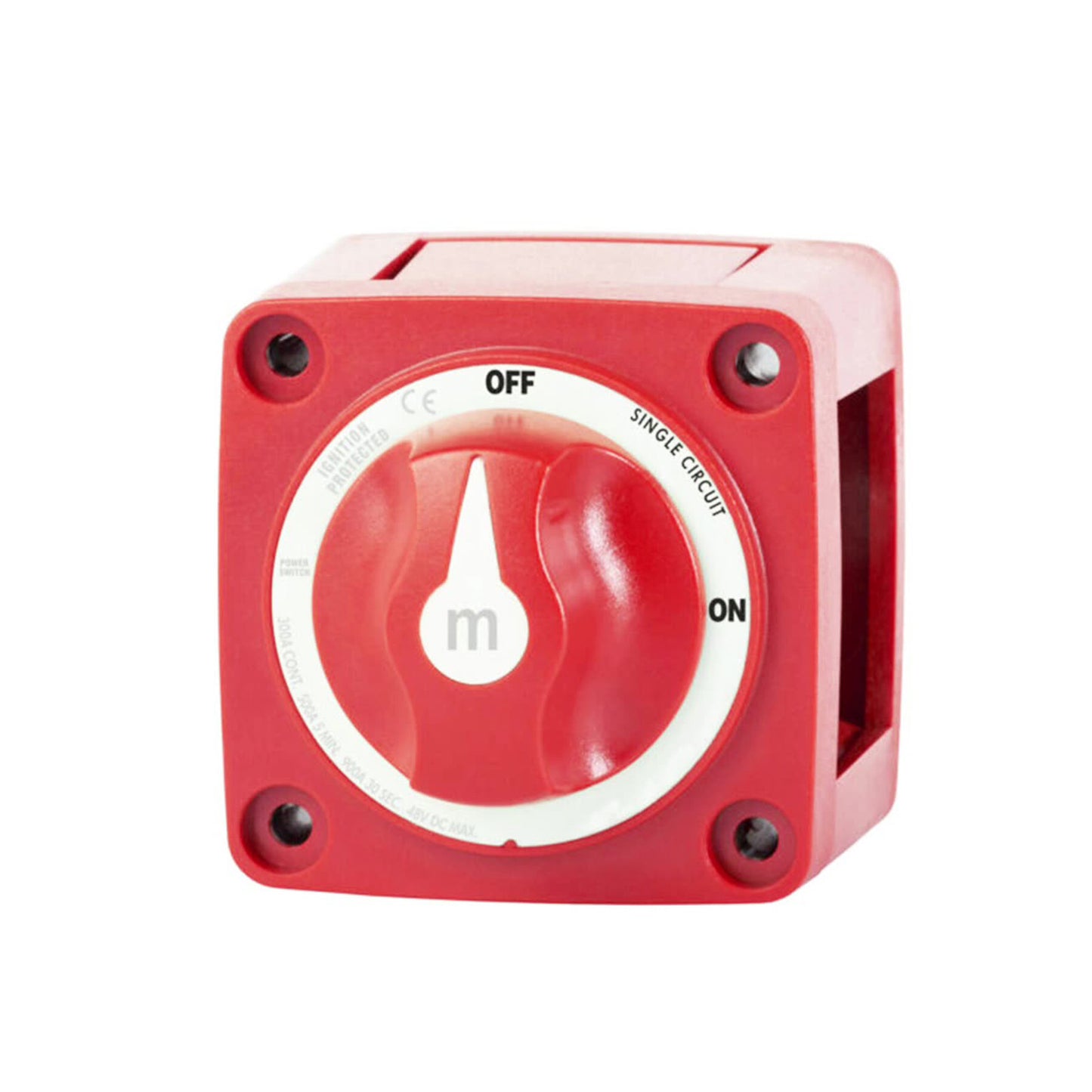

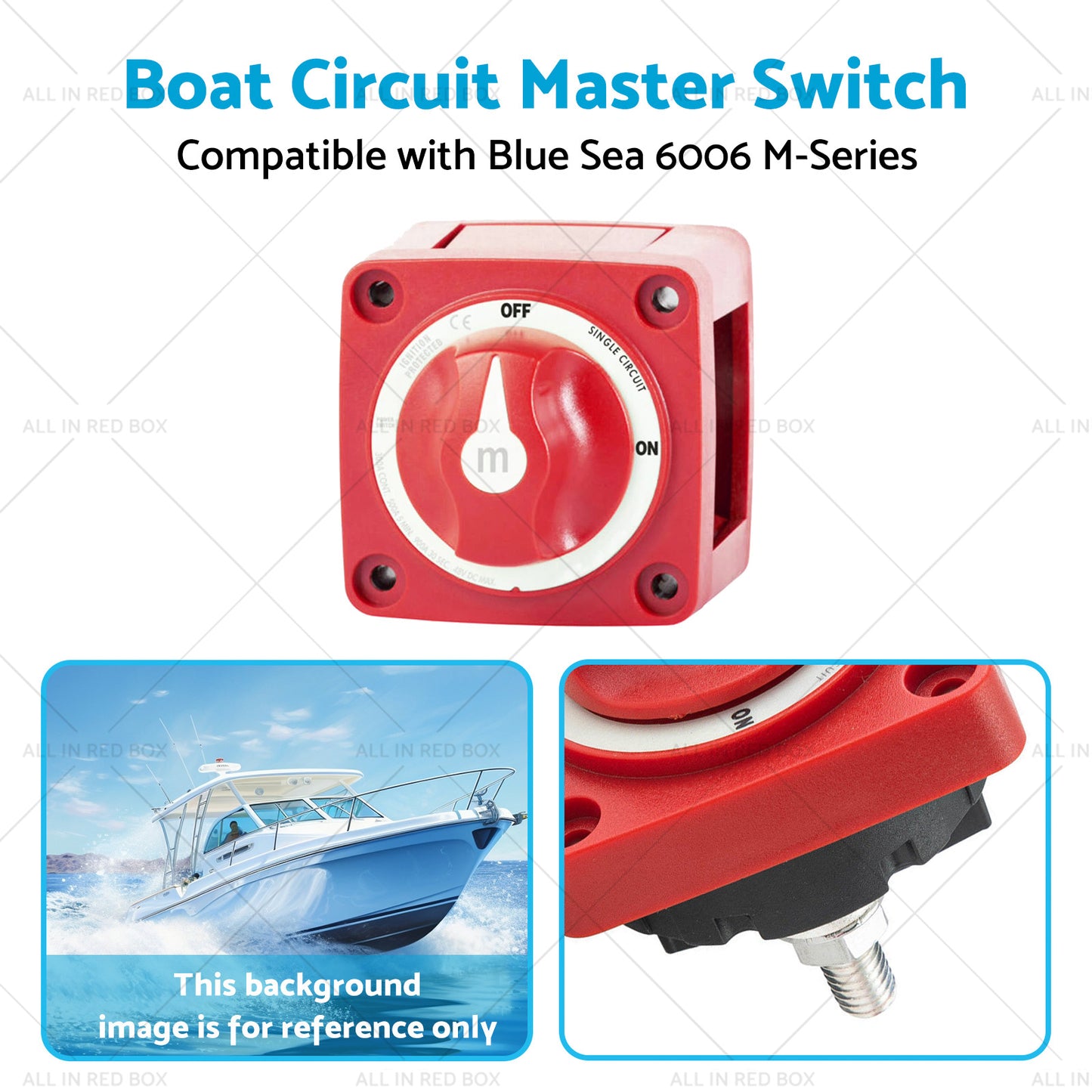

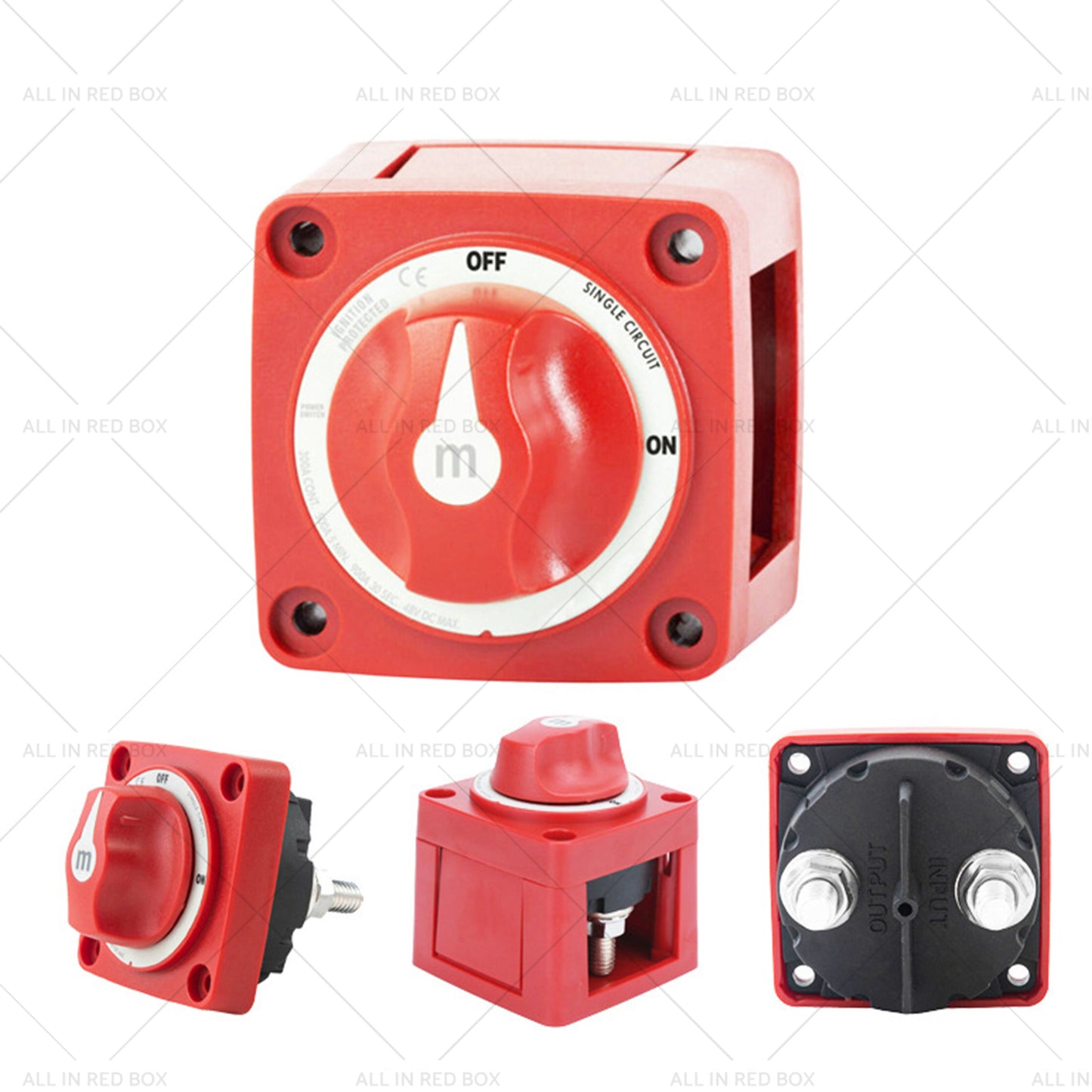

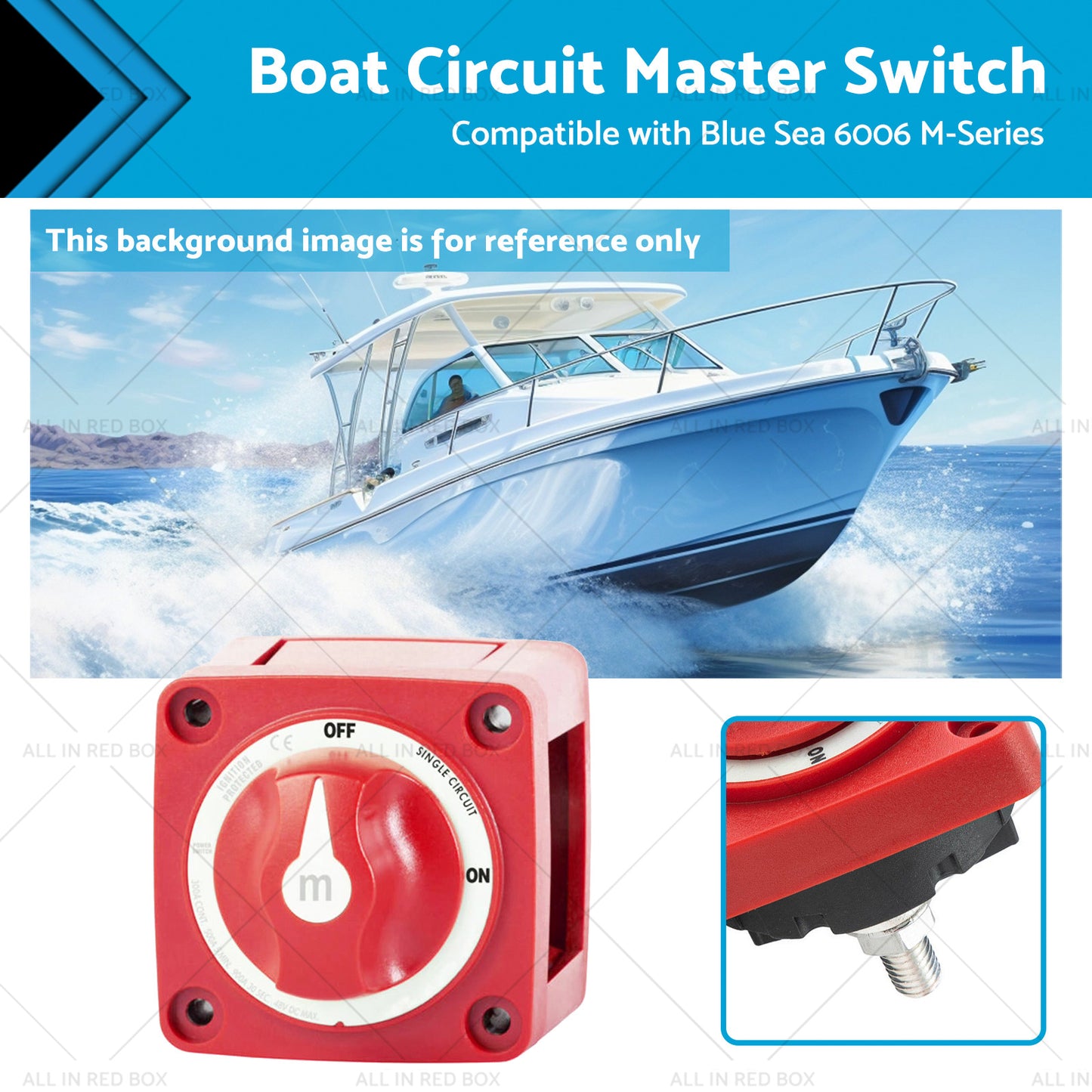

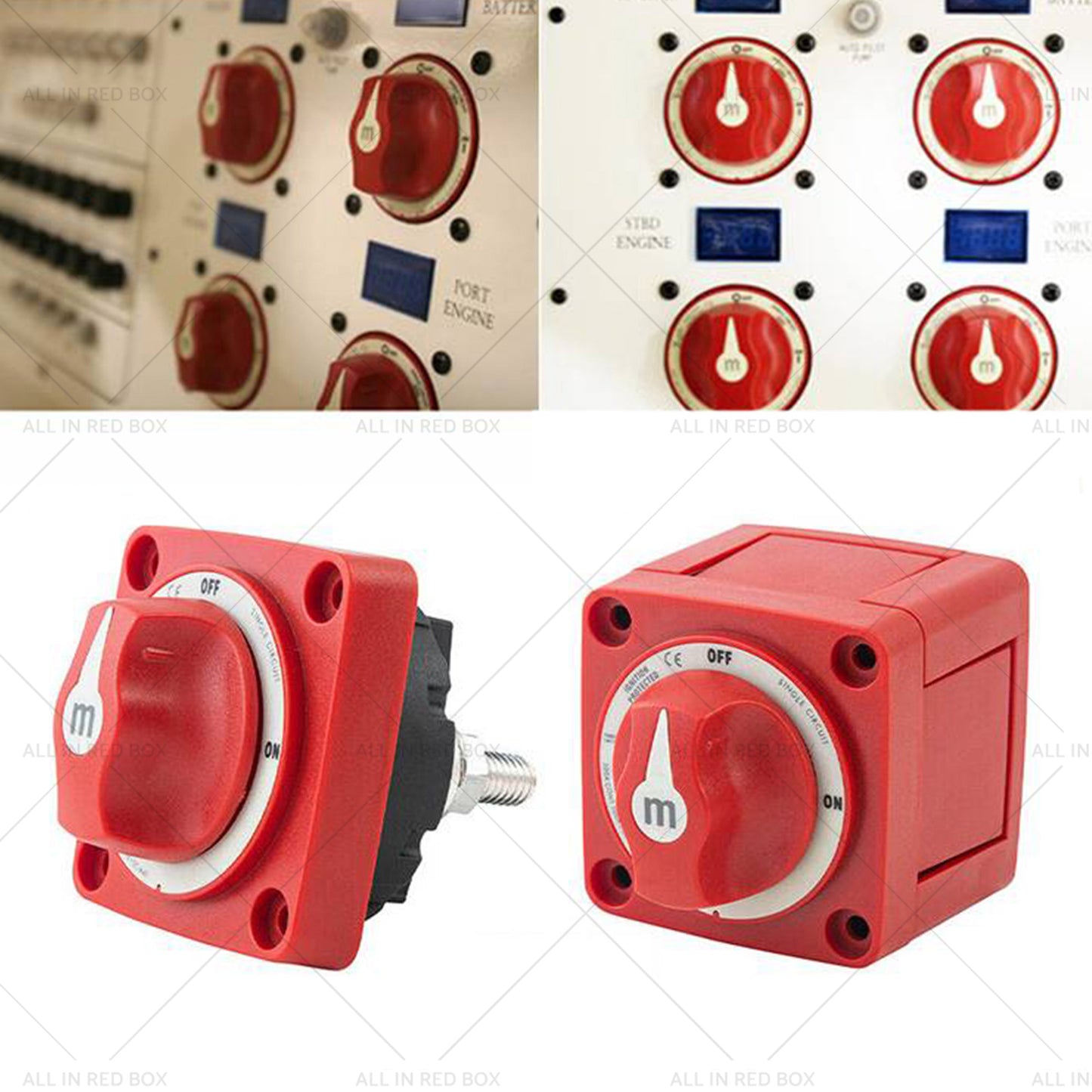

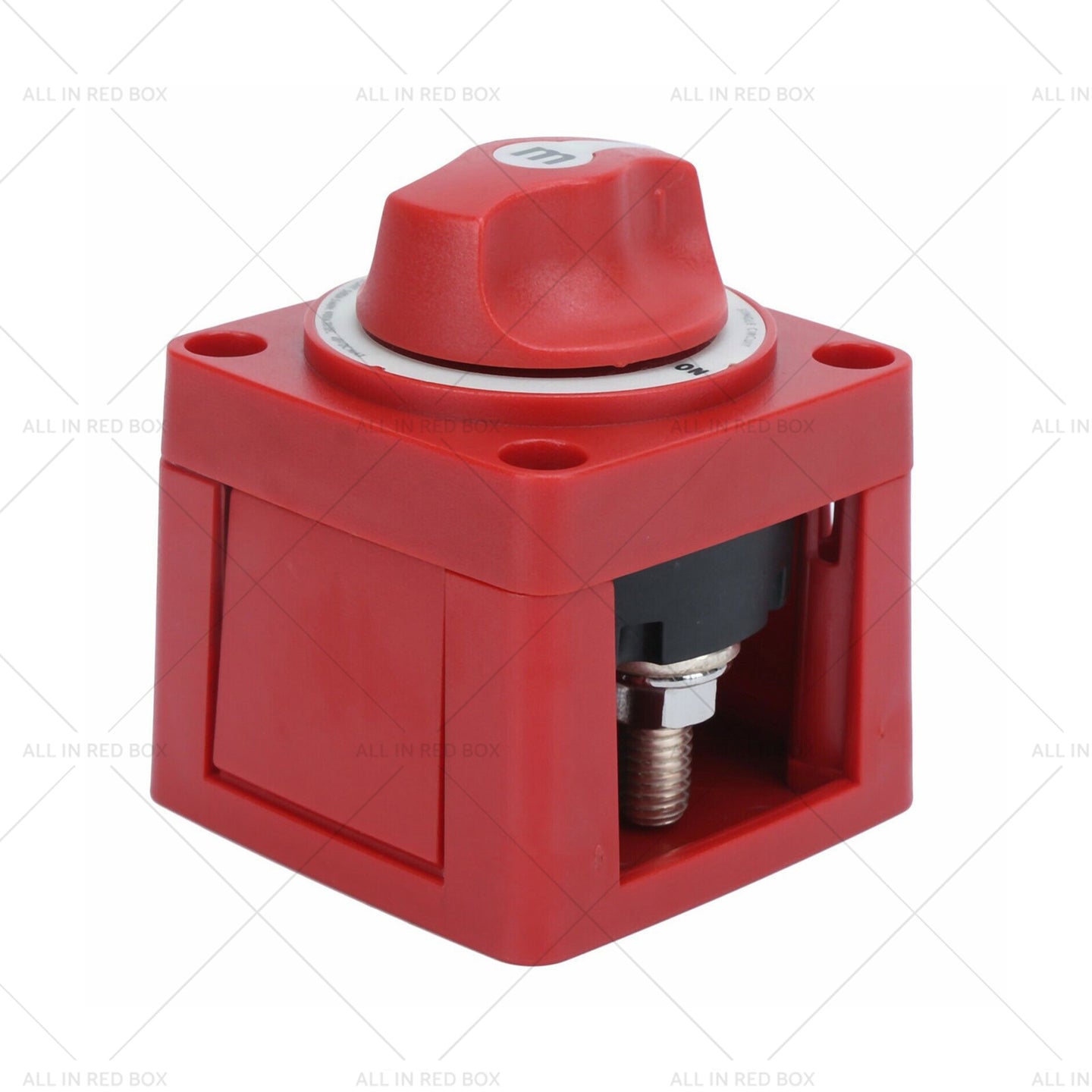

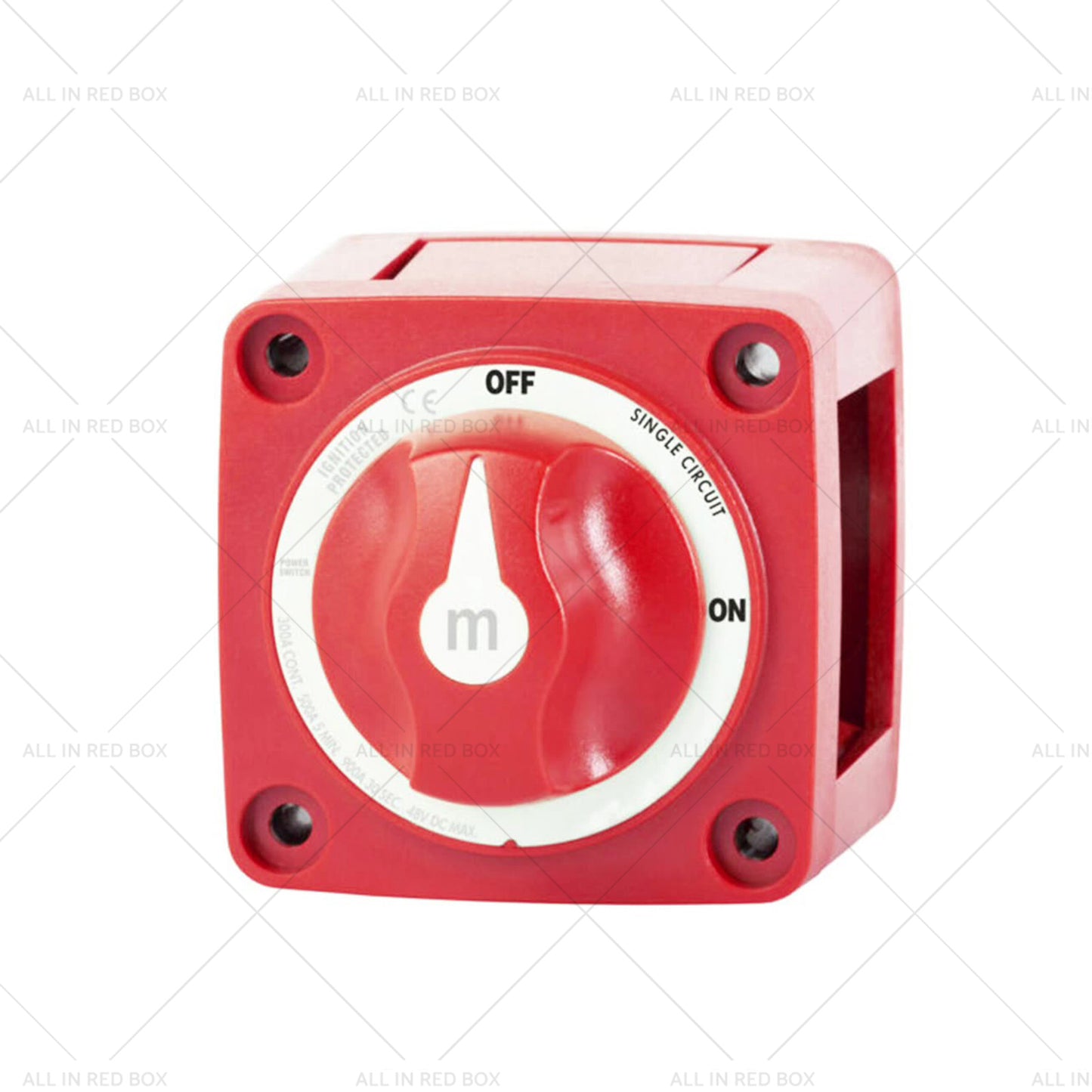

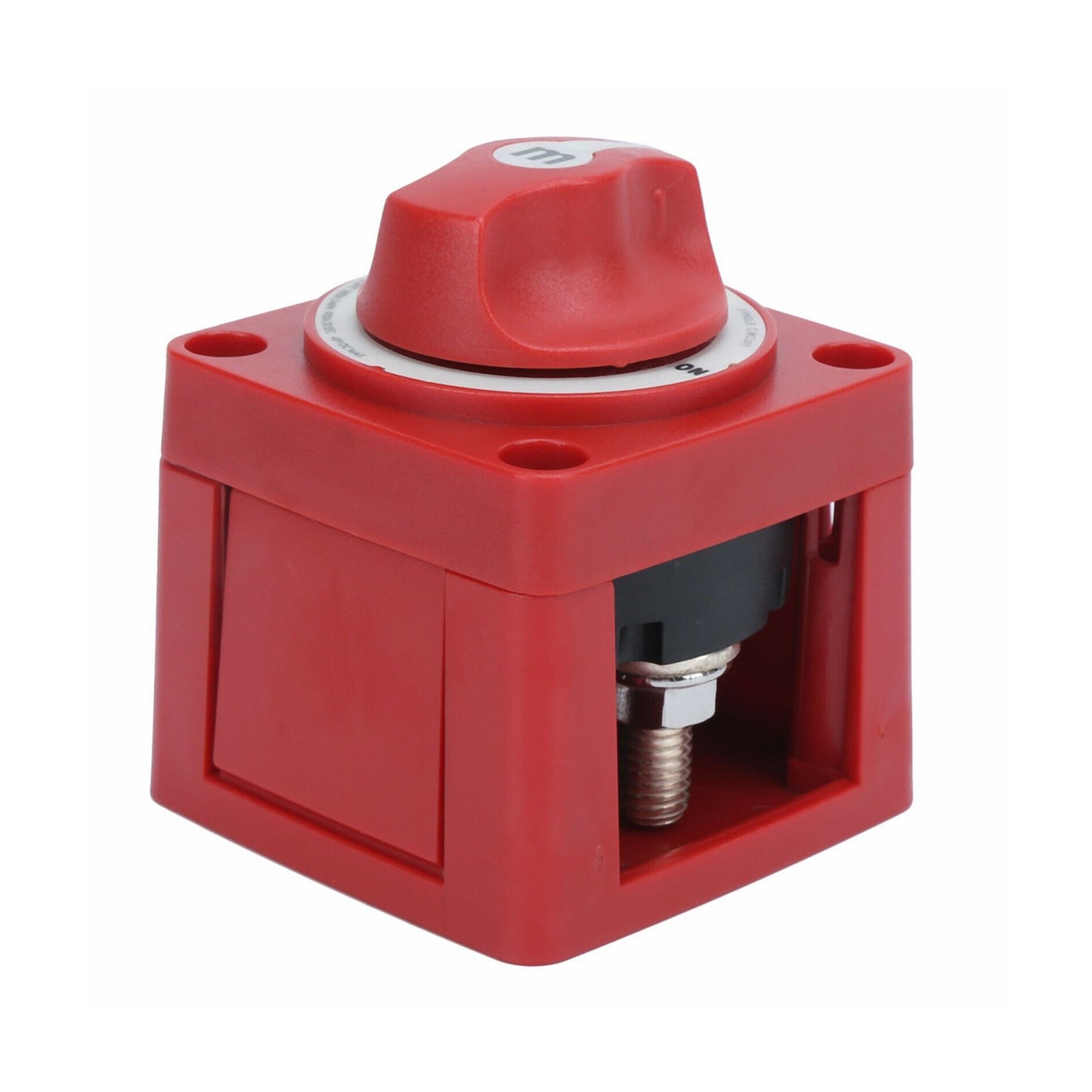

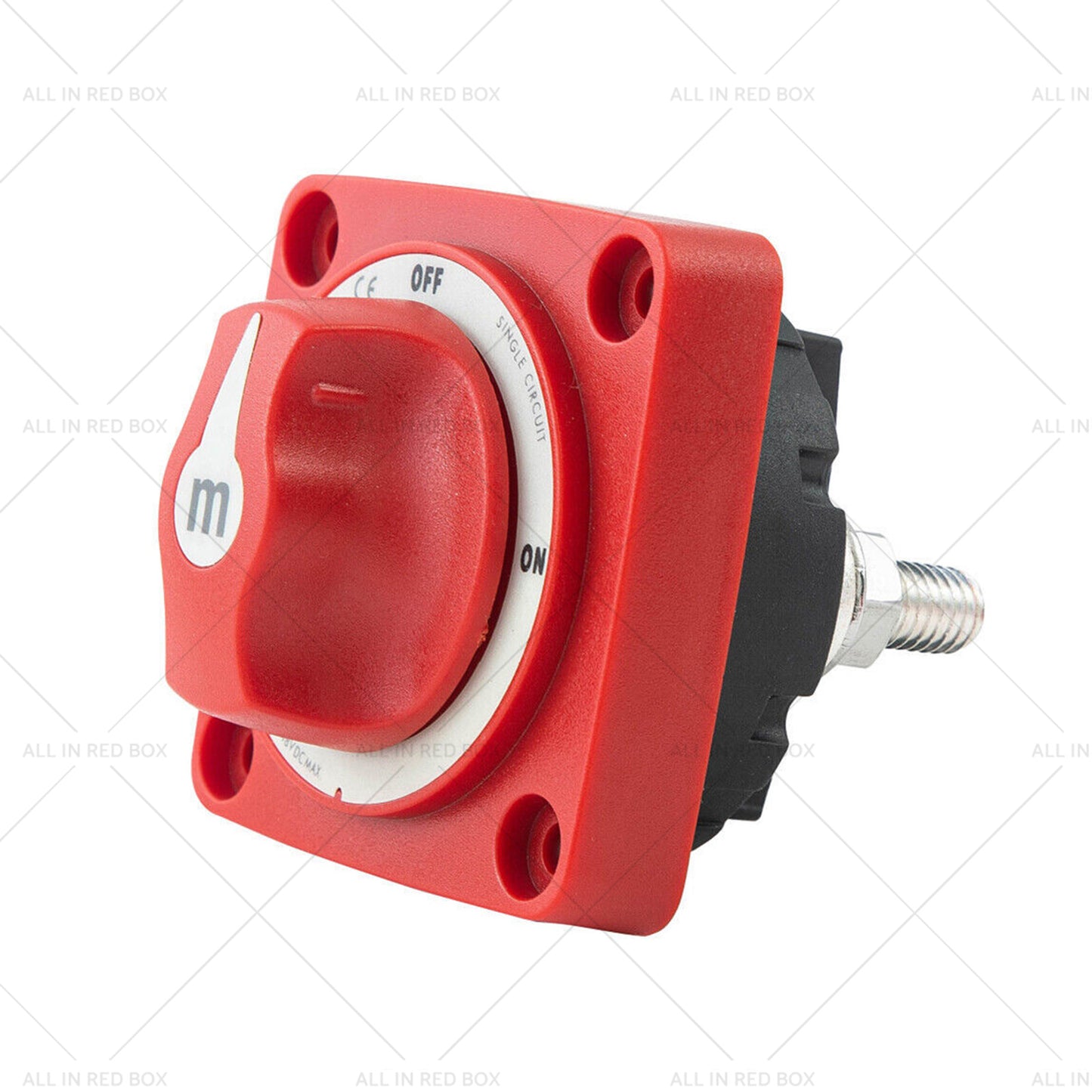

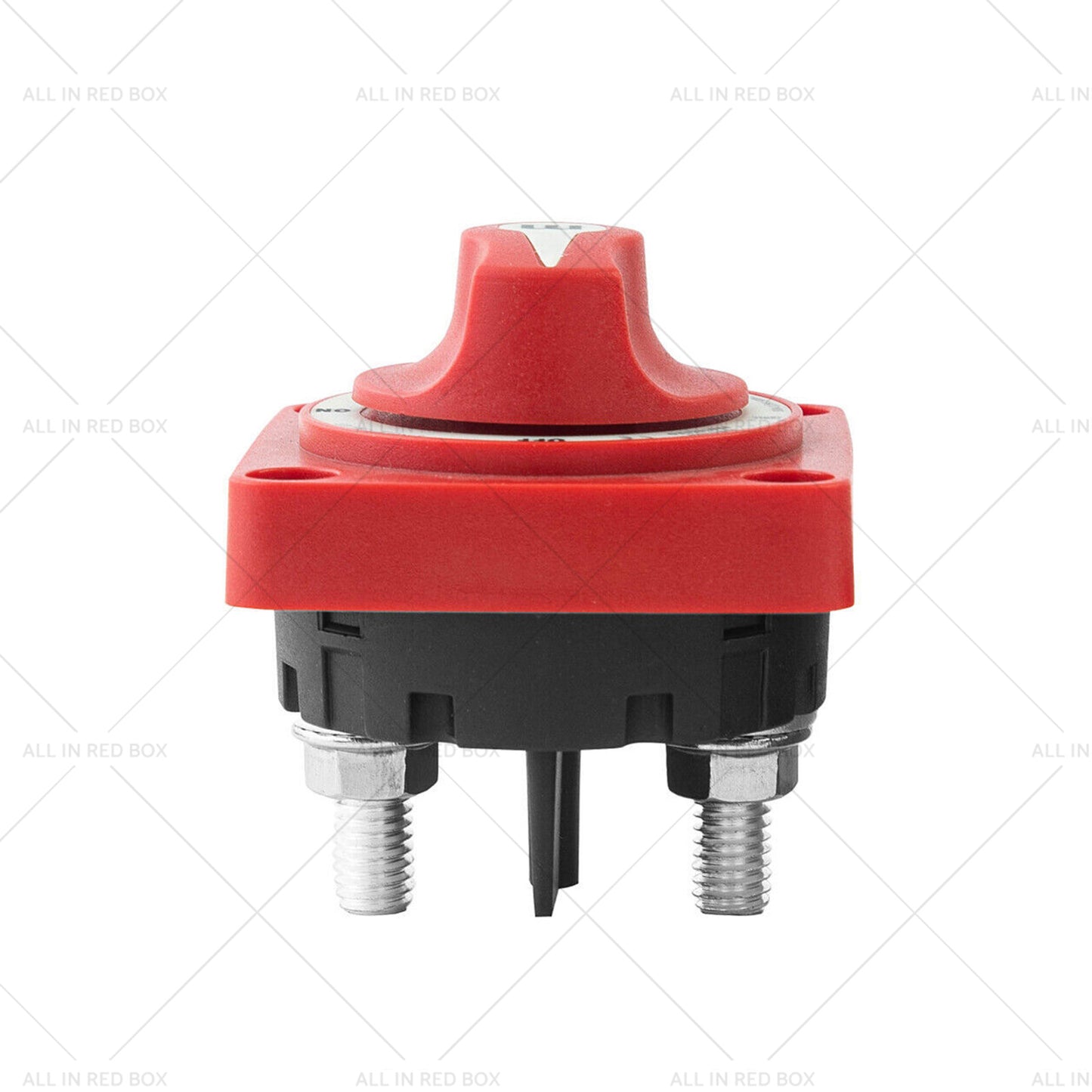

Type: Boat Circuit Master Switch

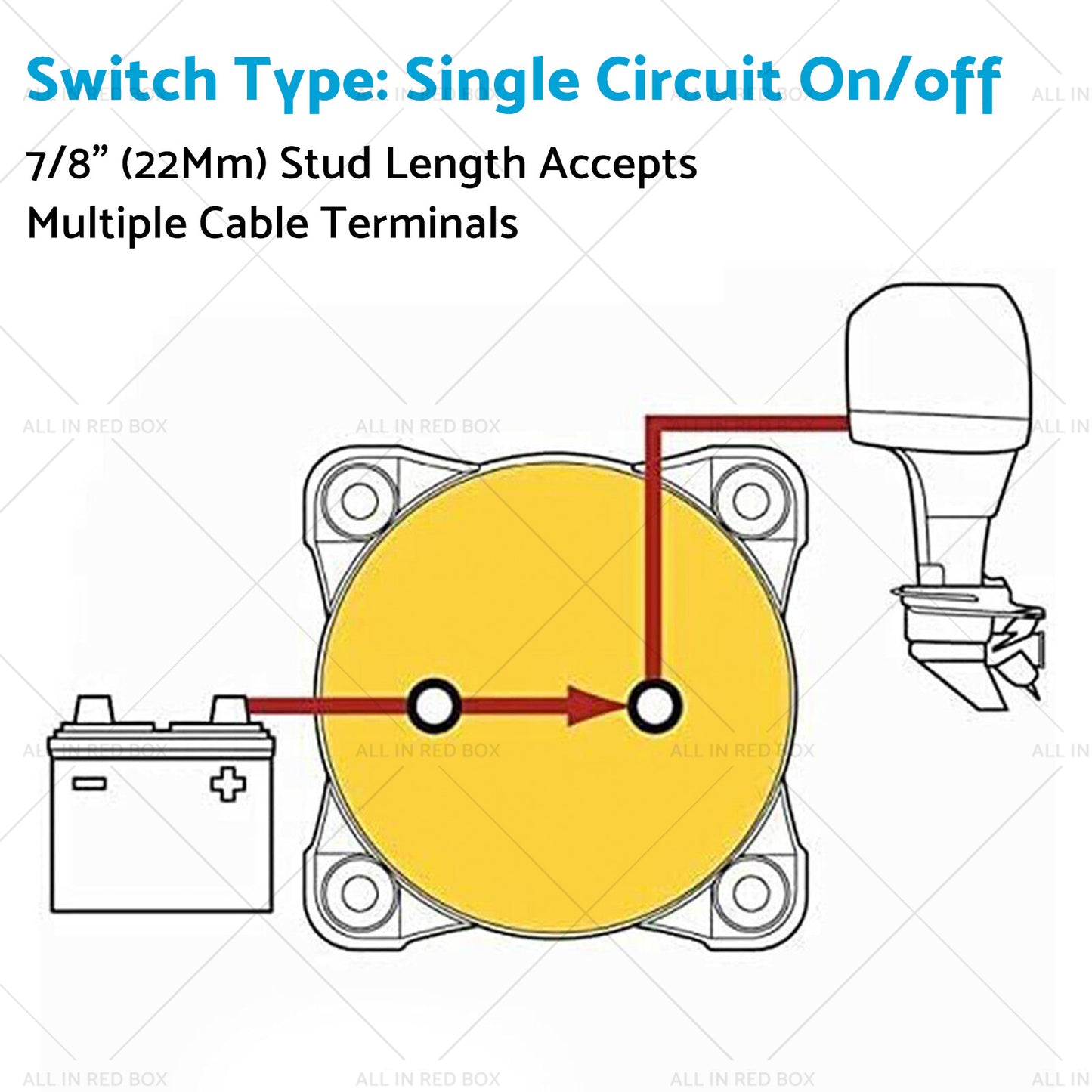

Operation Mode: ON-OFF
Switch position: 2
Battery combination: No
The alternator is disconnected on site: No
Maximum voltage: 48V DC
Terminal torque: 120 inch pounds (13.56 Nm)
Continuous rating: 300A
Intermittent rating: 500A (5 minutes)
Starting rating 10 seconds: 1500A
Starting rating for 1 minute: 775A
Battery input: 1
Cable gap for 4/0 AWG cable: 1.12 inches (28.45 mm)
Compliant cable size: 4/0 AWG (120mm sq)
Mounting hole: accept #10 screw
Terminal size: 3/8 "-16 (M10)
International Protection Rating: IP66
Package include:

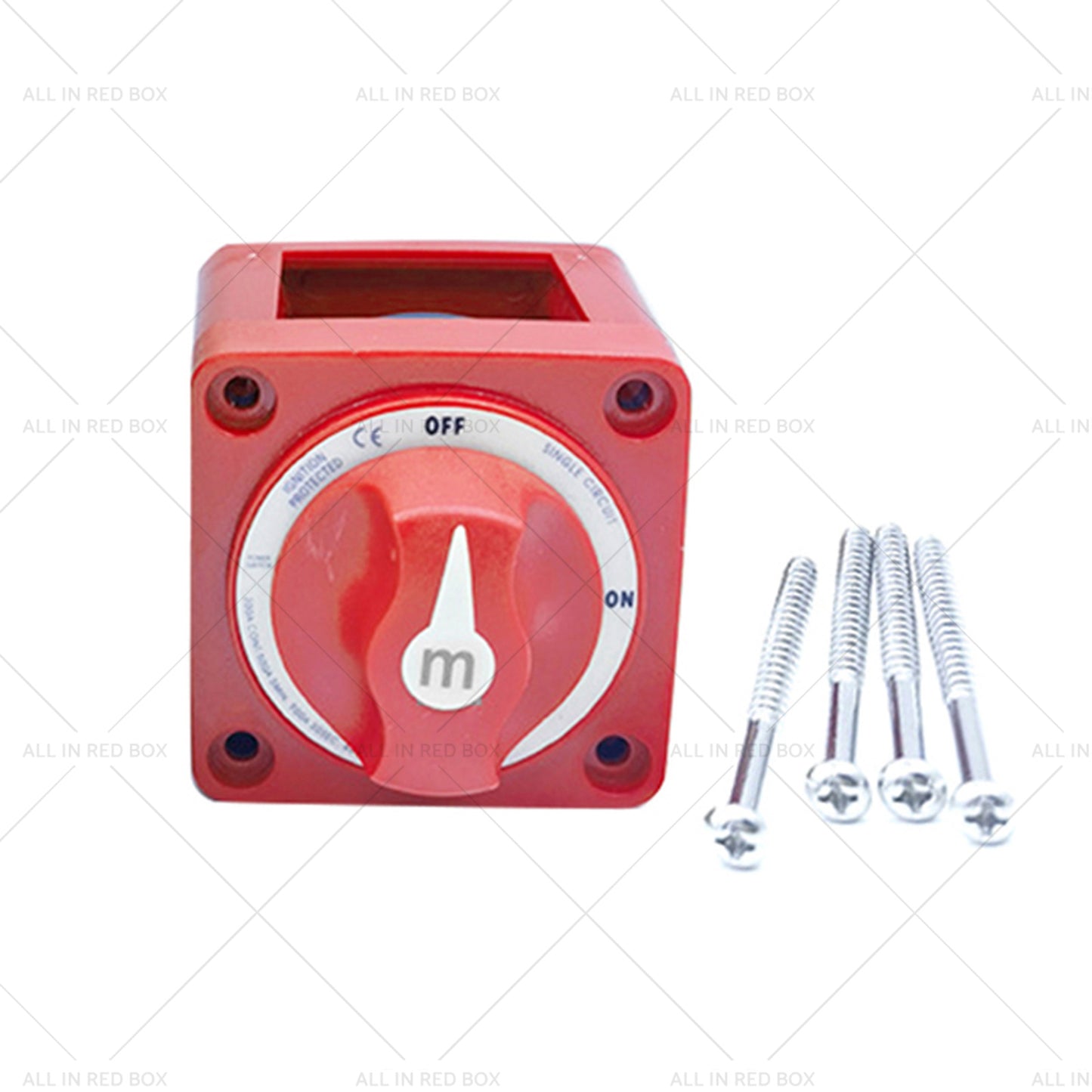

1x Boat Circuit Master Switch
Note:
This switch does not support battery combination or alternator disconnection on-site.
