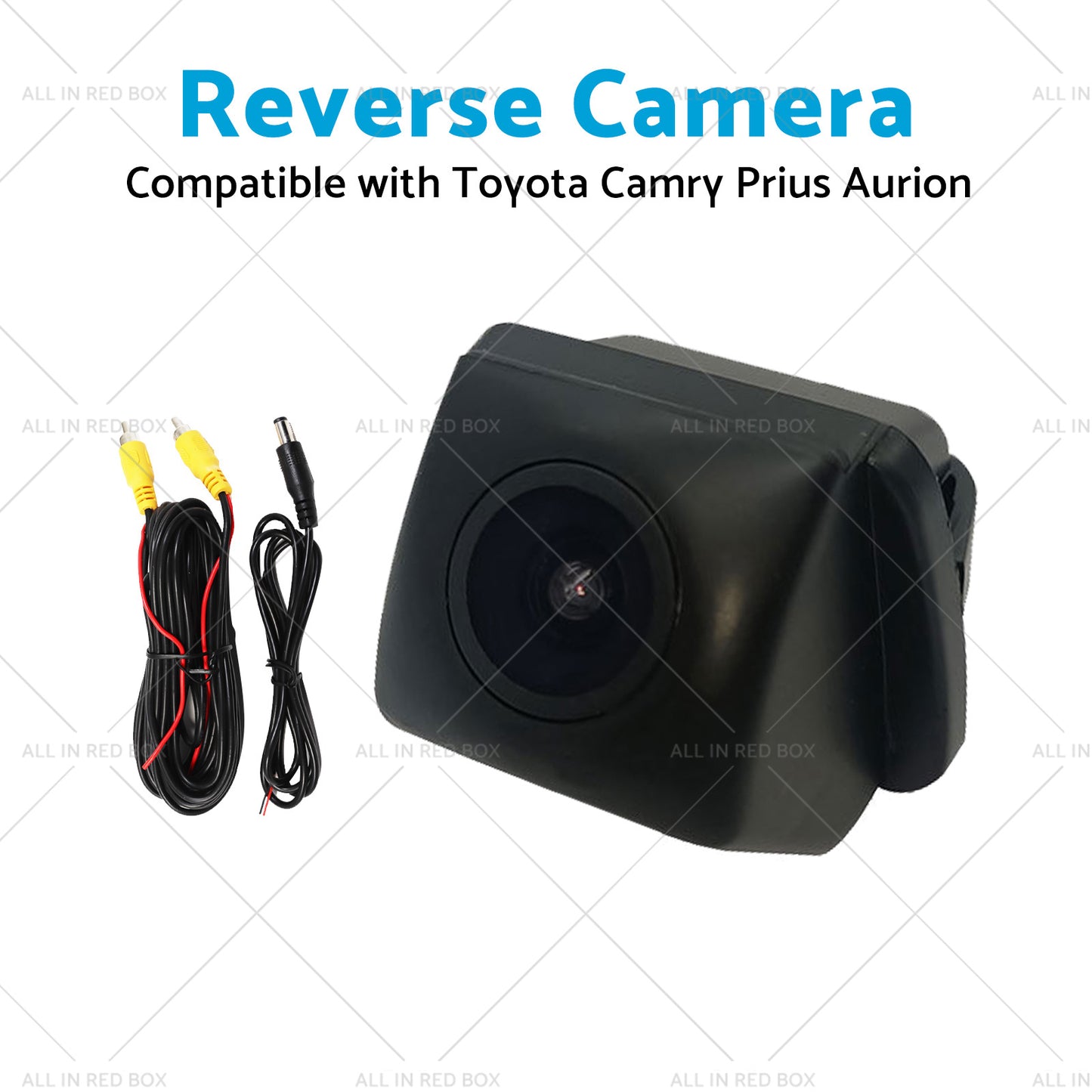

Compatible with:
Suitable for Toyota Camry 2009-2011
Suitable for Toyota Aurion 2009-2011
Features
Adopting imported chips, the image color is high-definition and more realistic

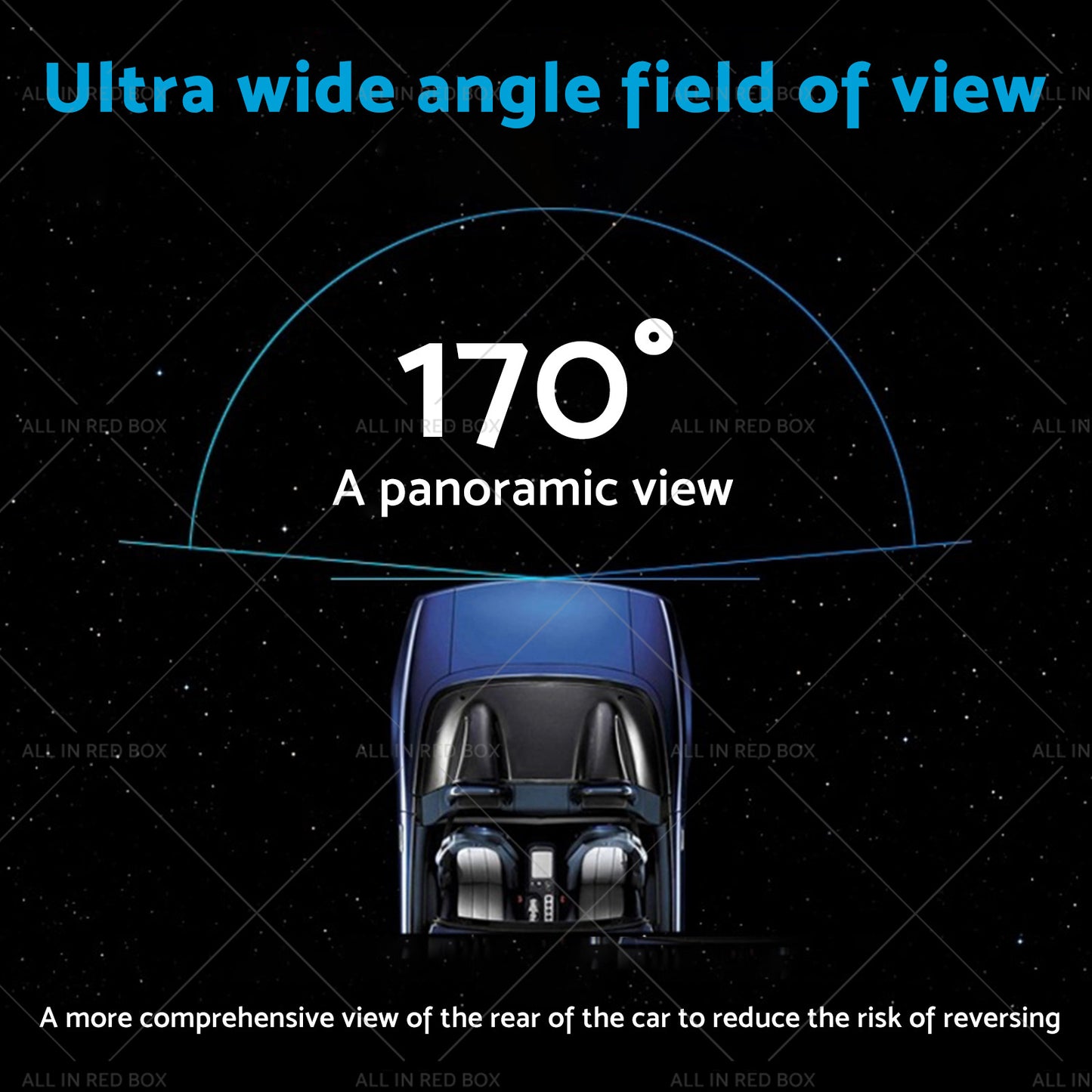

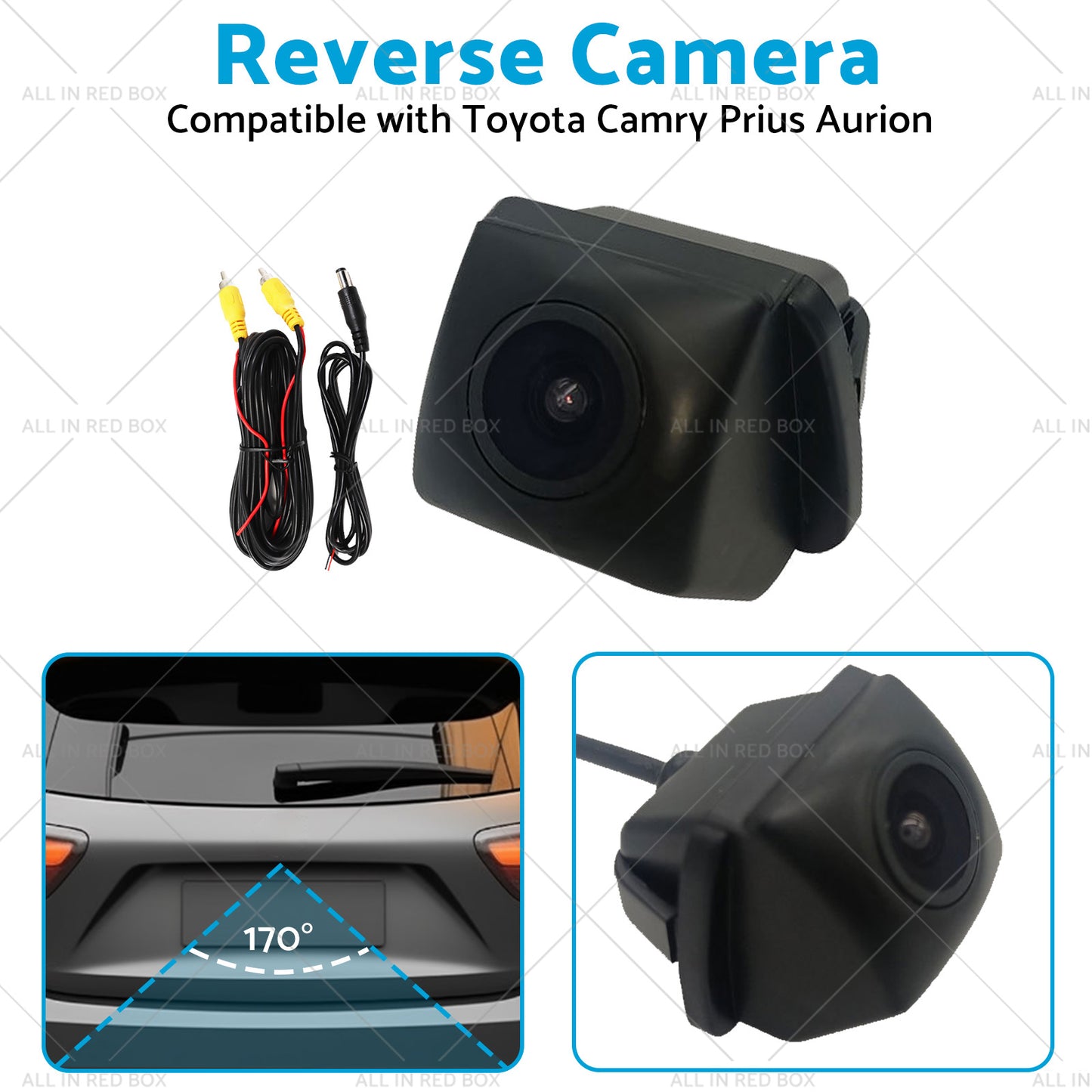

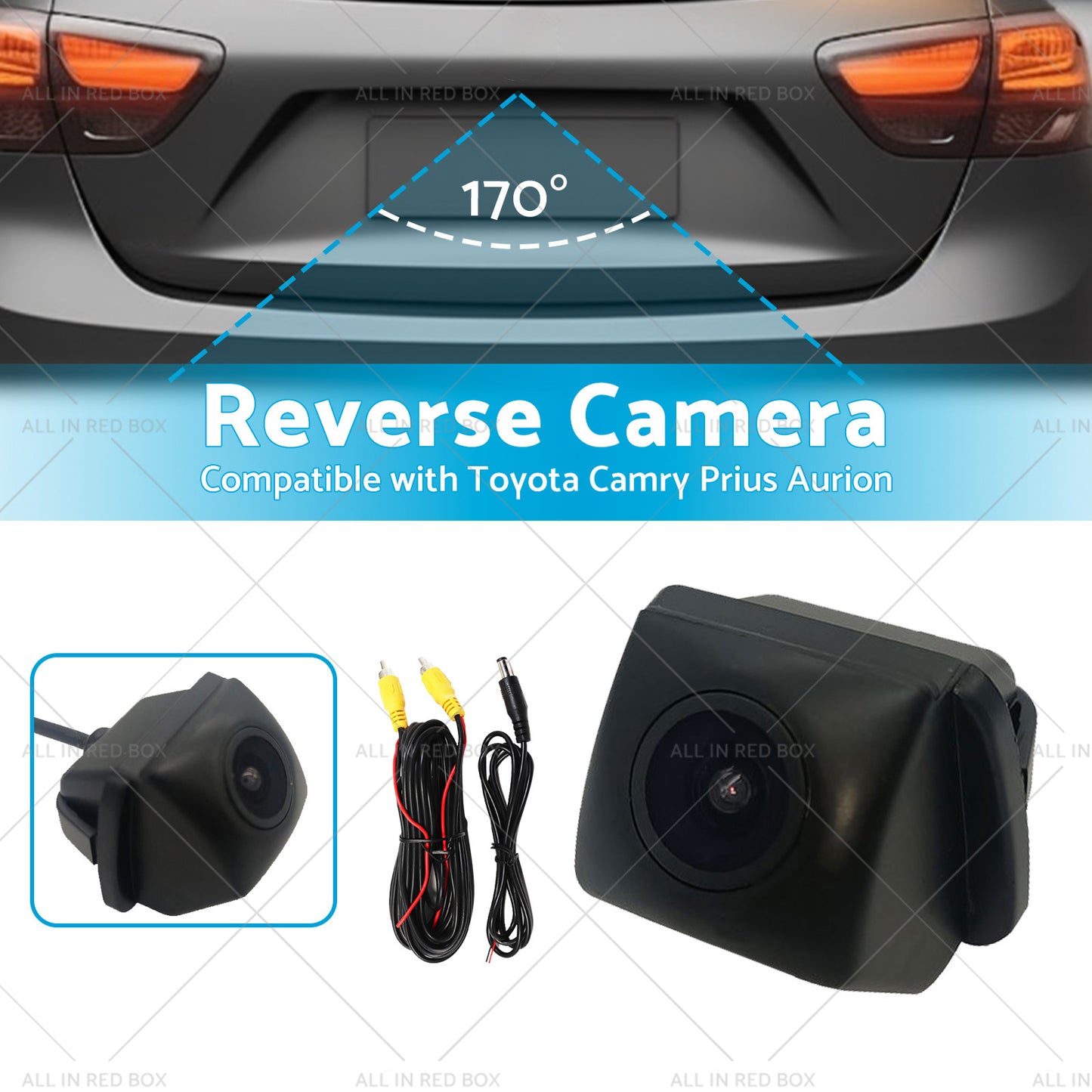

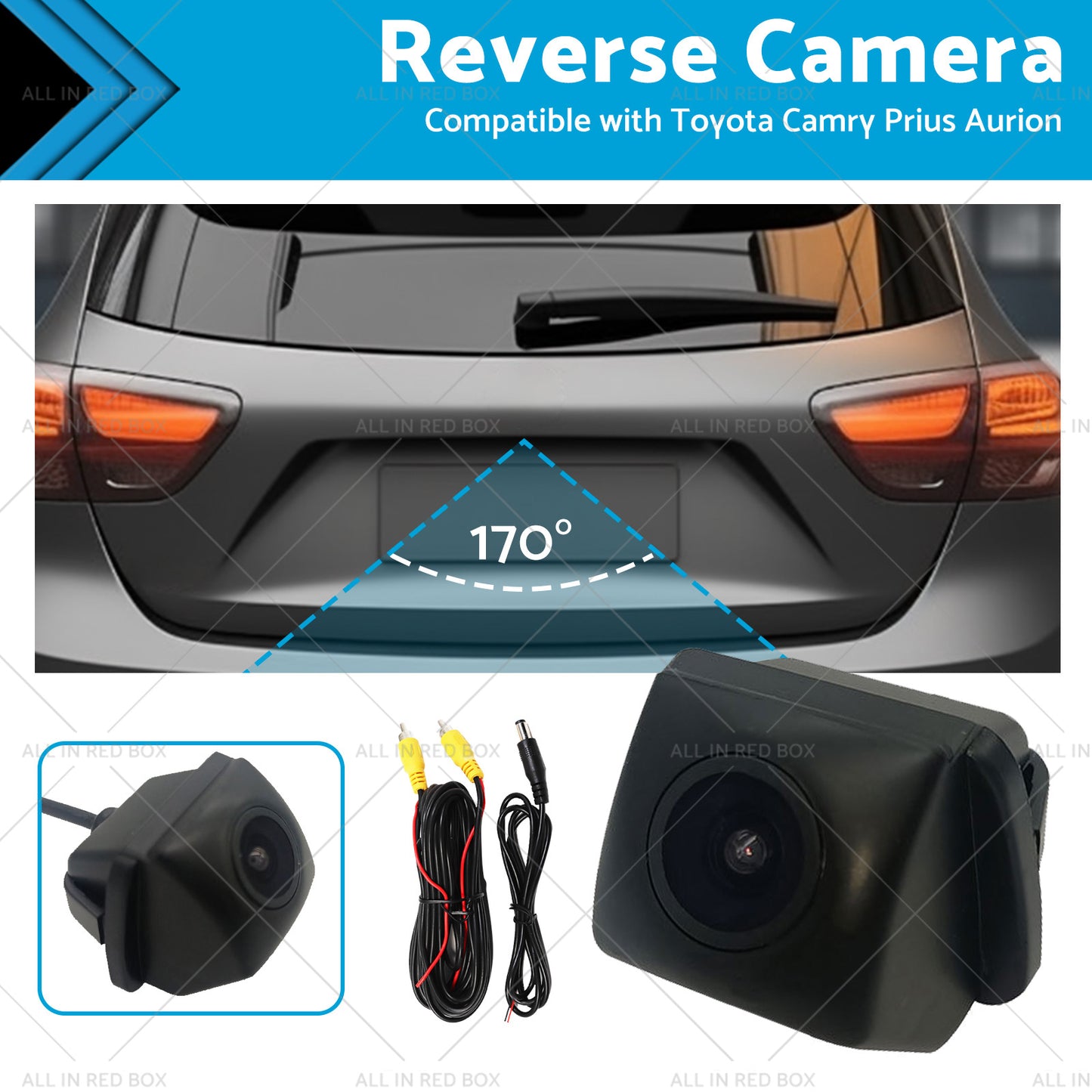

With a 170 ° angle of view and a large visual range, reversing is safer

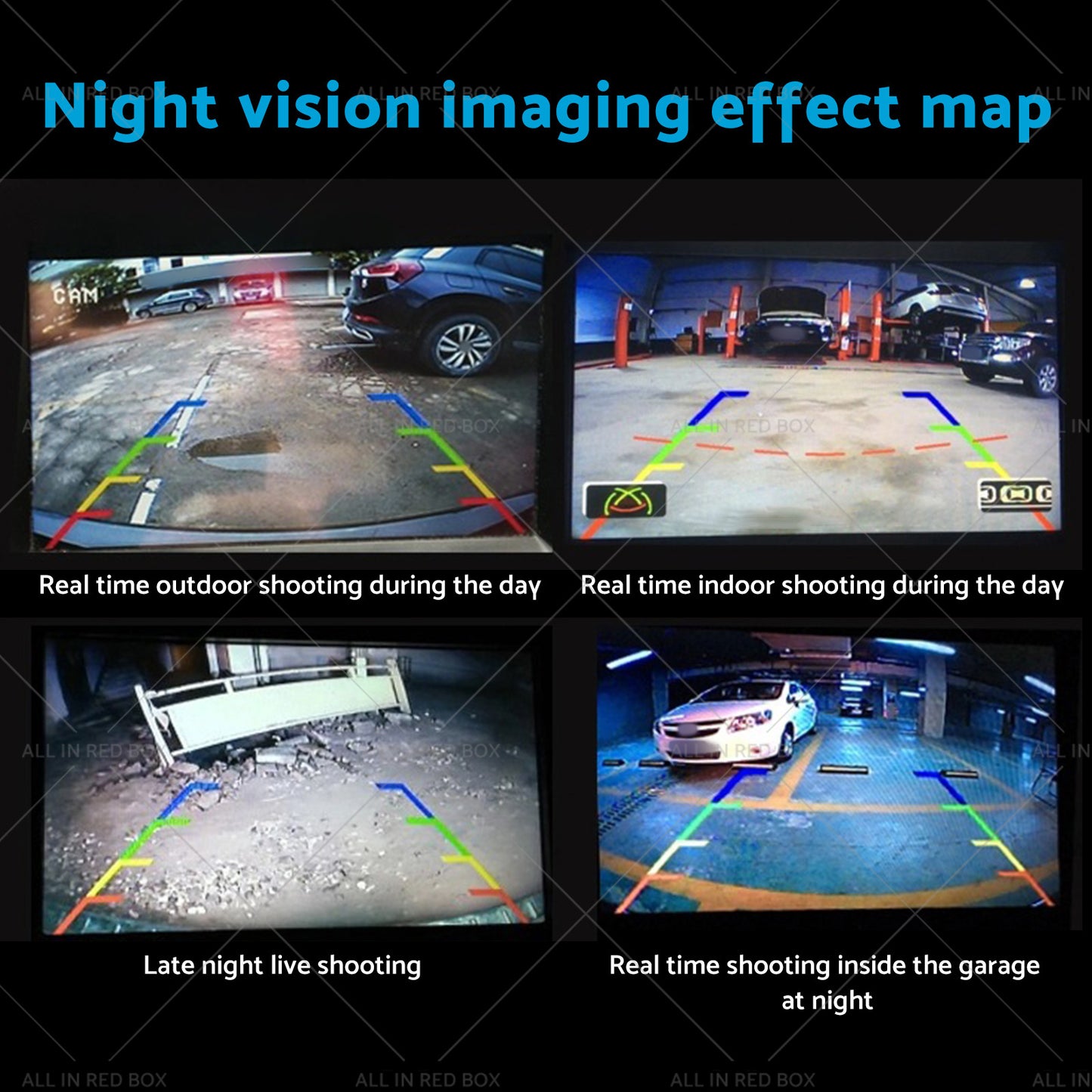

With reverse reference line (electronic ruler line), the distance between obstacles is clear at a glanceDigital photosensitive chip processing, significant night vision effect
Multi layer waterproof design, truly achieving high-pressure flushing and immersion waterproofing
Installed at the license plate, equipped with screws and gaskets
The video cable is connected to the monitor, and the power cable is connected to the power supply of the car's taillights.
When reversing, the reverse monitoring system automatically starts working, and the situation behind the car can be clearly seen
Specifications

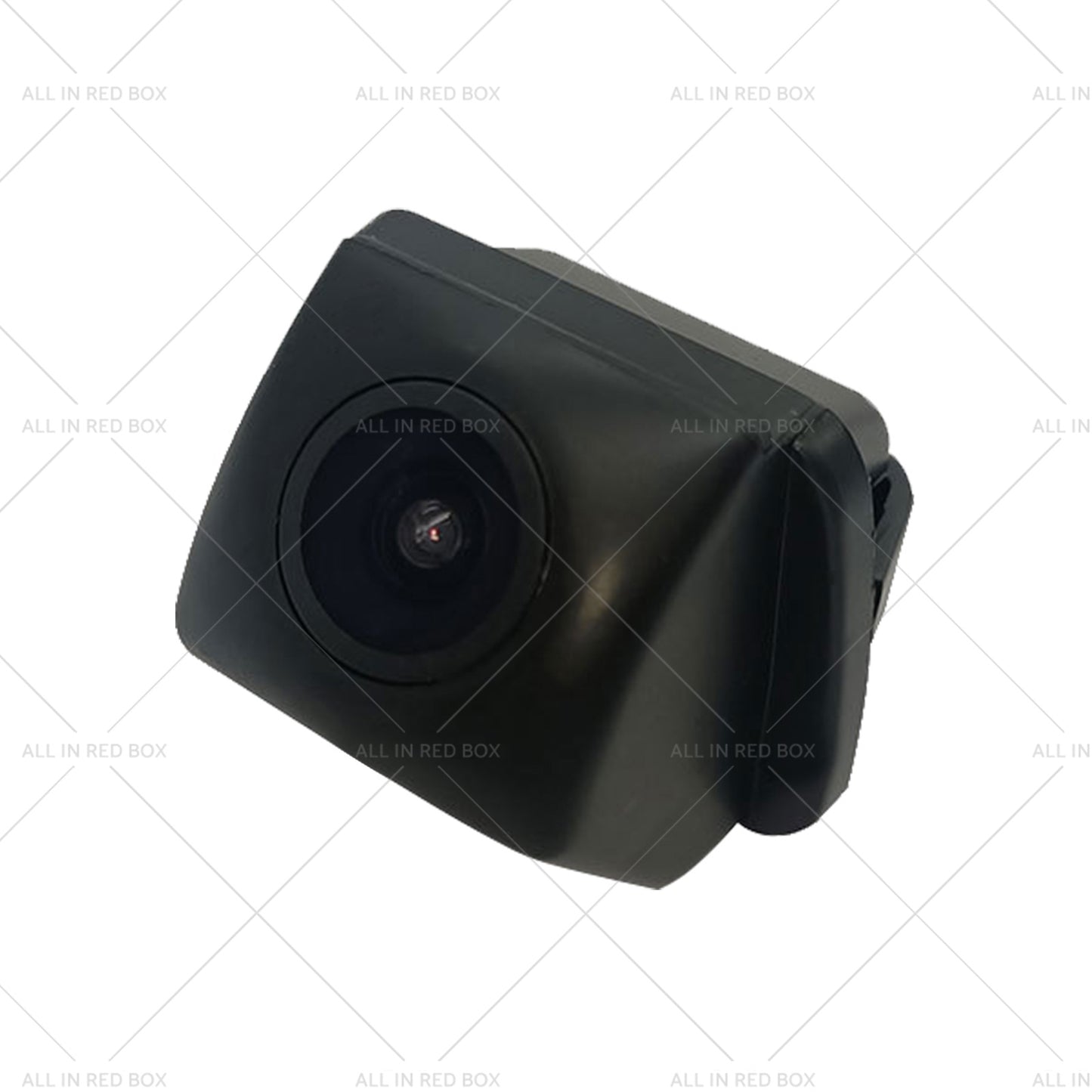

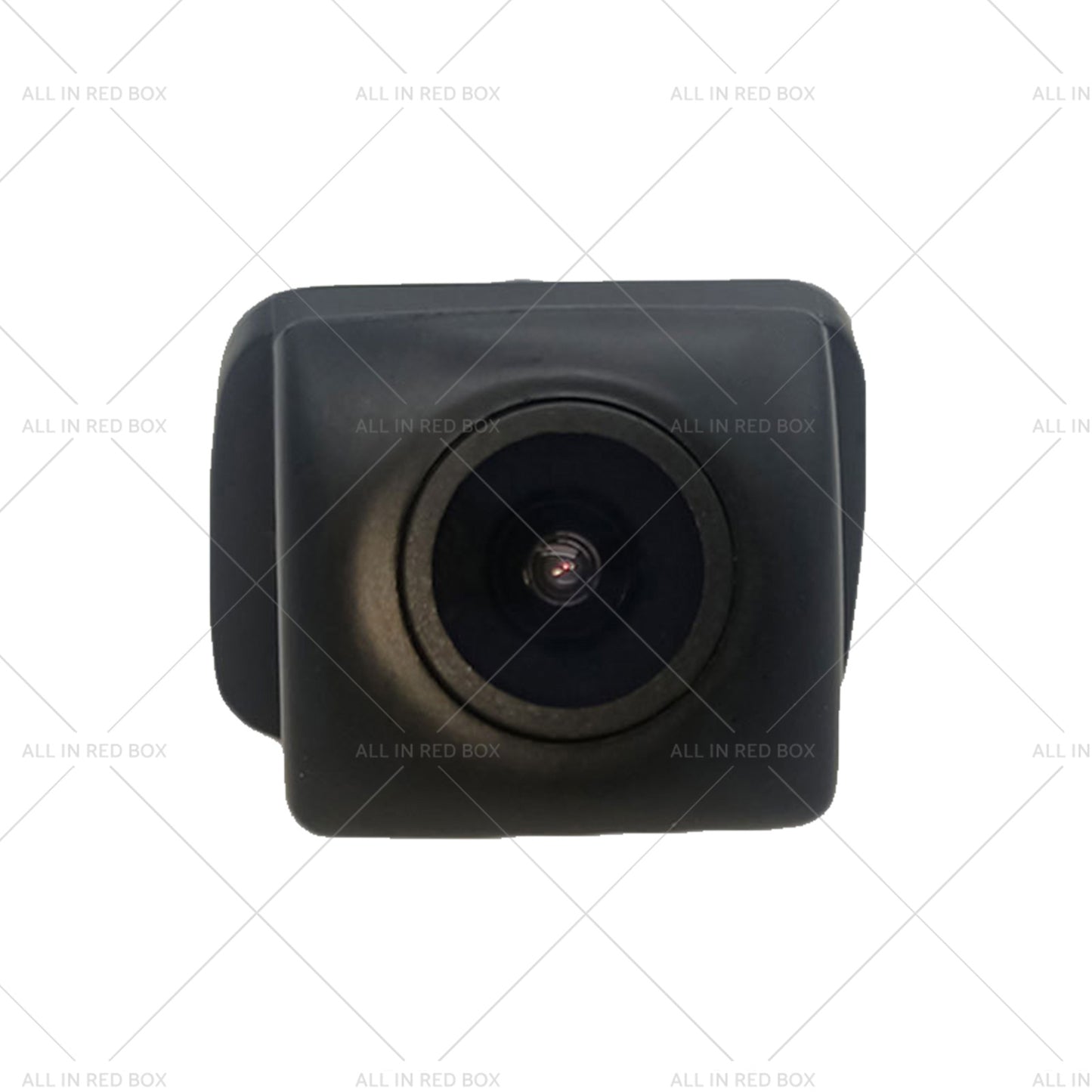

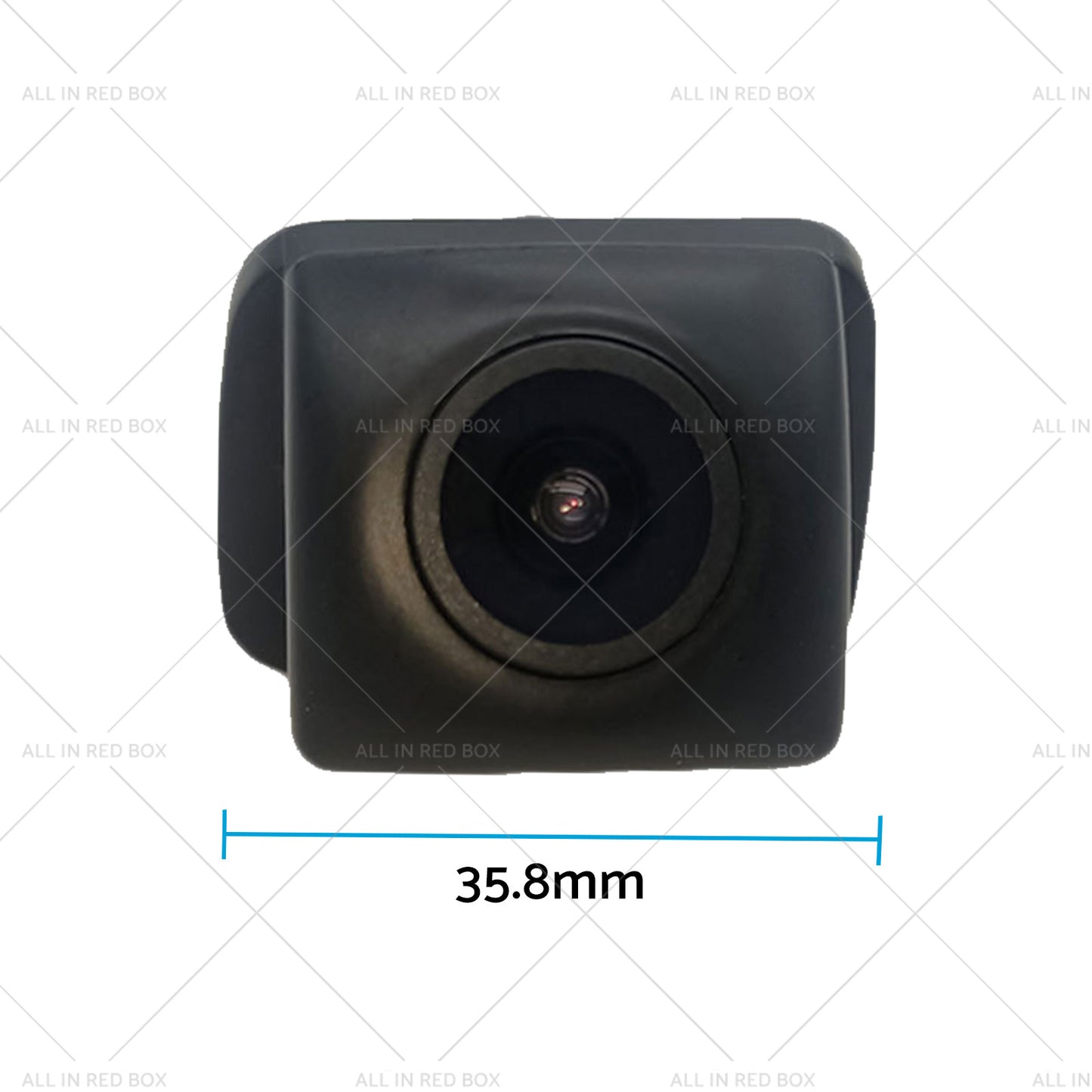

Type: Reverse Camera
Warranty: 1 year
Placement on Vehicle: Rear
Rated voltage: DC12V
Adjustment angle: 170 degrees
IP Rating: IP 66
Image sensor: CMOS
Effective pixels: 512 (H) x582 (V)
Horizontal resolution: 420 TVL
Minimum illumination: 1.0 Lux=1.2 lumens (0 Lux, infrared on)
Synchronization: Internal synchronization
Signal to noise ratio: >48dB
Electronic shutter: Automatic
Video output: RCA interface, 1.0Vp-p, 75Ohm
White balance: Automatic
Backlight compensation: Automatic
Power consumption: 50-60mA, maximum 130mA when infrared is turned on
Working temperature: -20 ℃~+60 ℃, maximum RH95%
Storage temperature: -30 ℃~+80 ℃, maximum RH95%
Video cable length: 6m
Power cable length: 1m

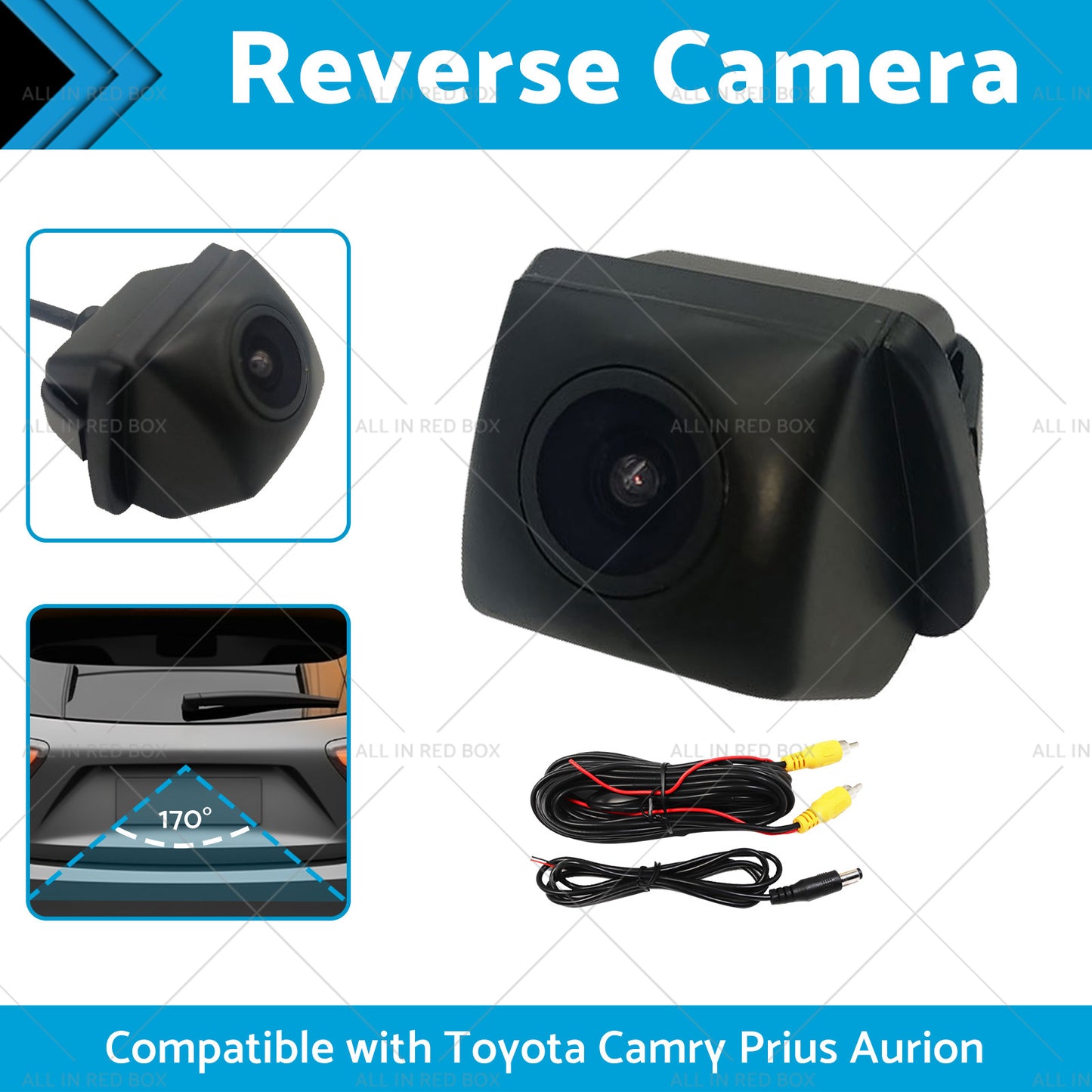

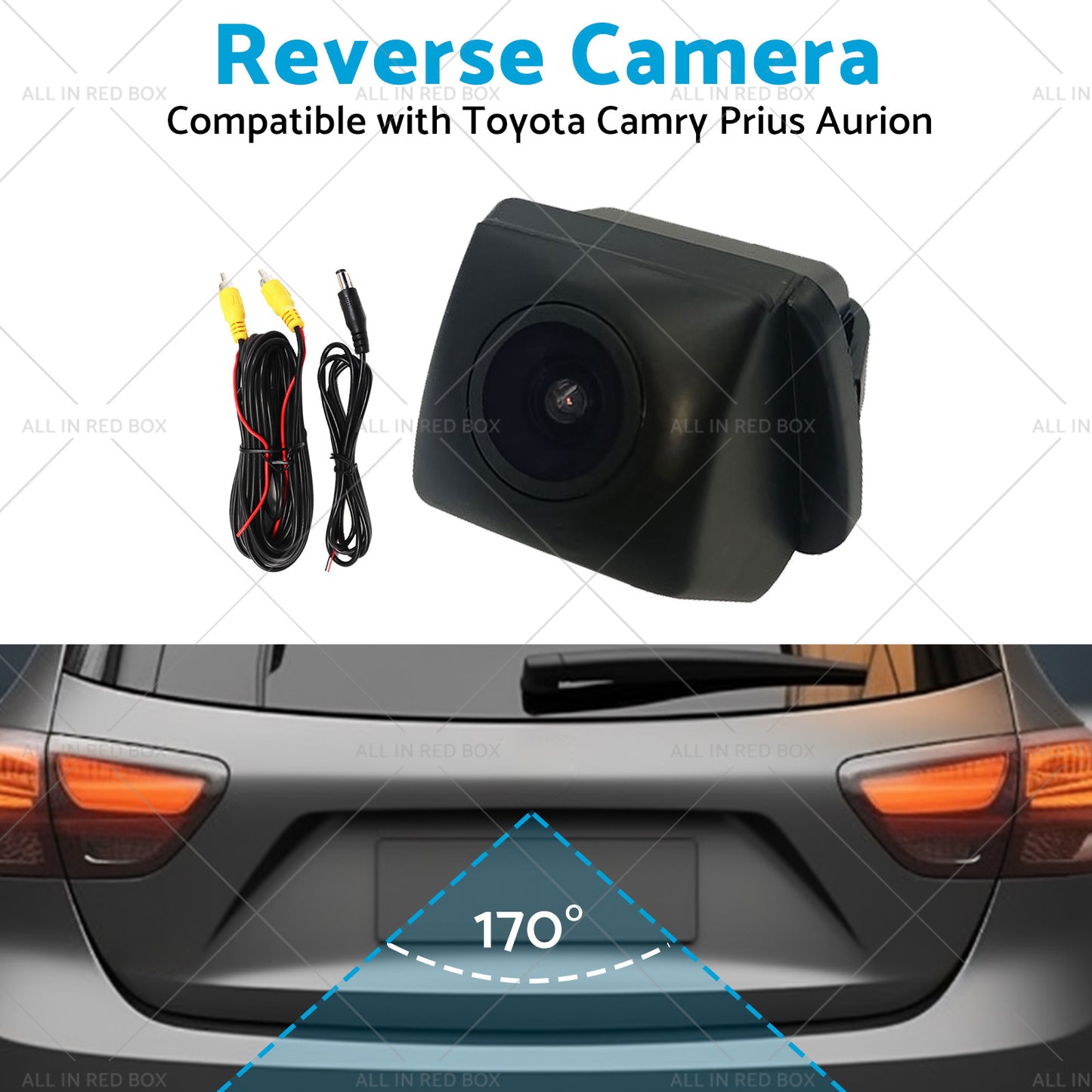

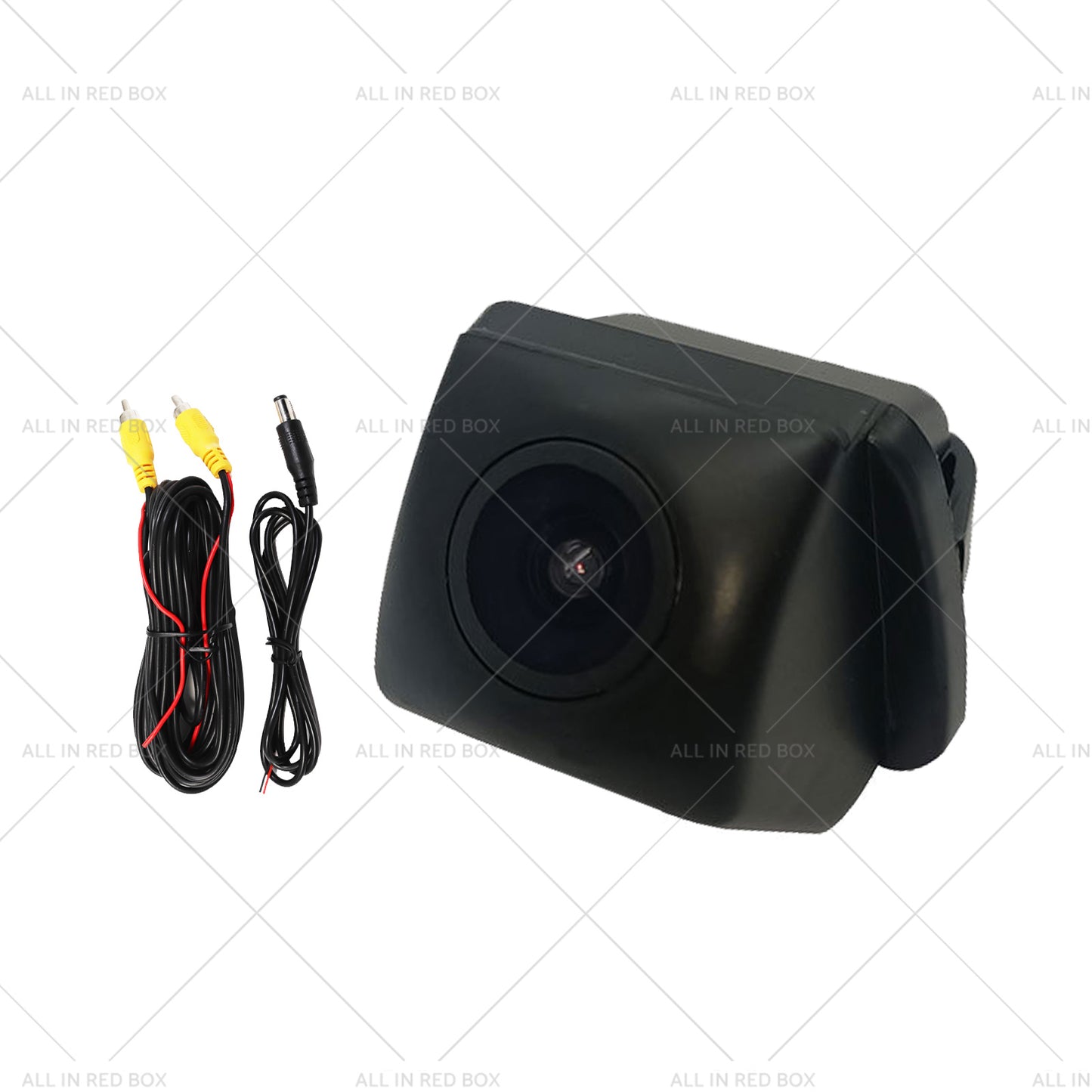

Package include:
1 x Reverse Camera

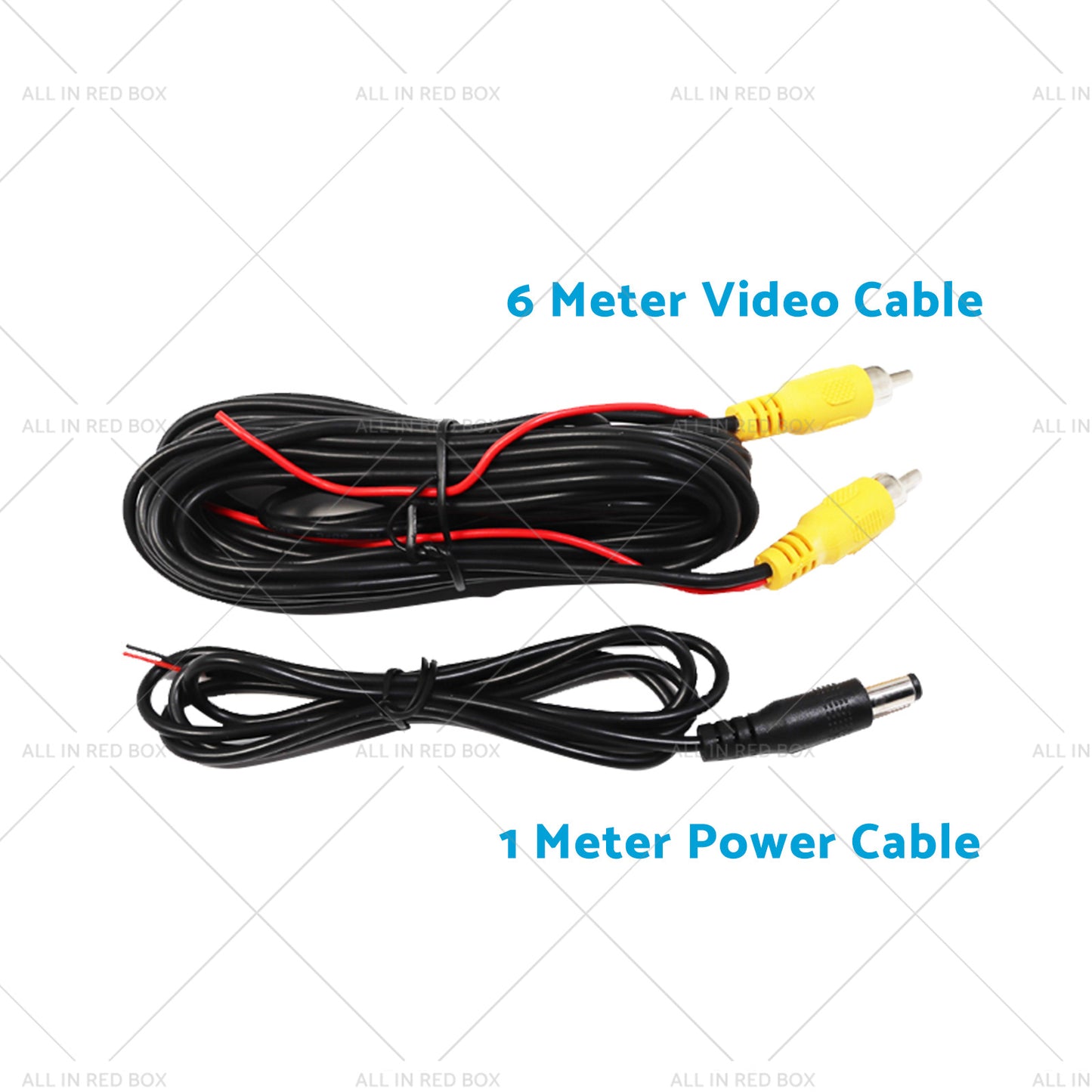

6 Meter Video Cable
1 Meter Power Cable
