Cylinder Piston Gsaket Kit Suitable For Honda CB CBR300R Rebel CMX300 2015-2022

Feature:

-If your cylinder is damaged, experiencing low compression, or even a piston seizure, this kit is the ideal solution.

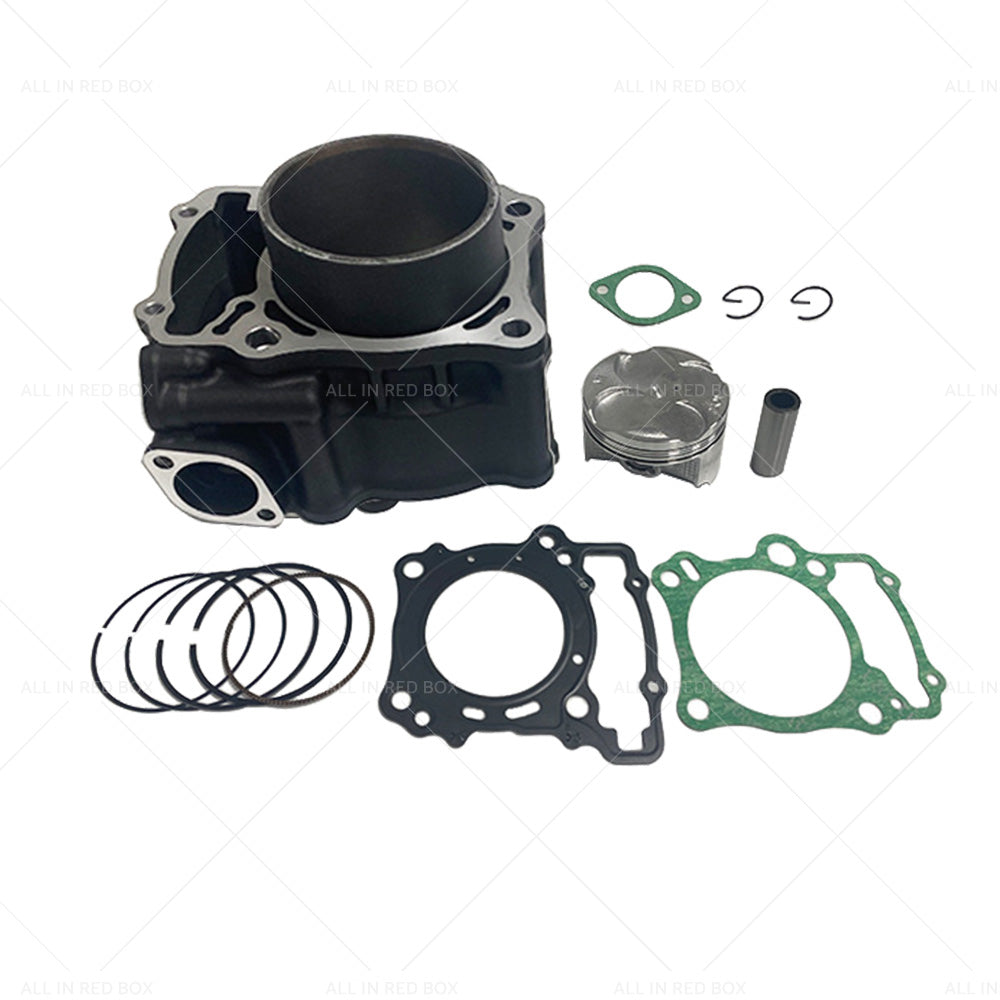

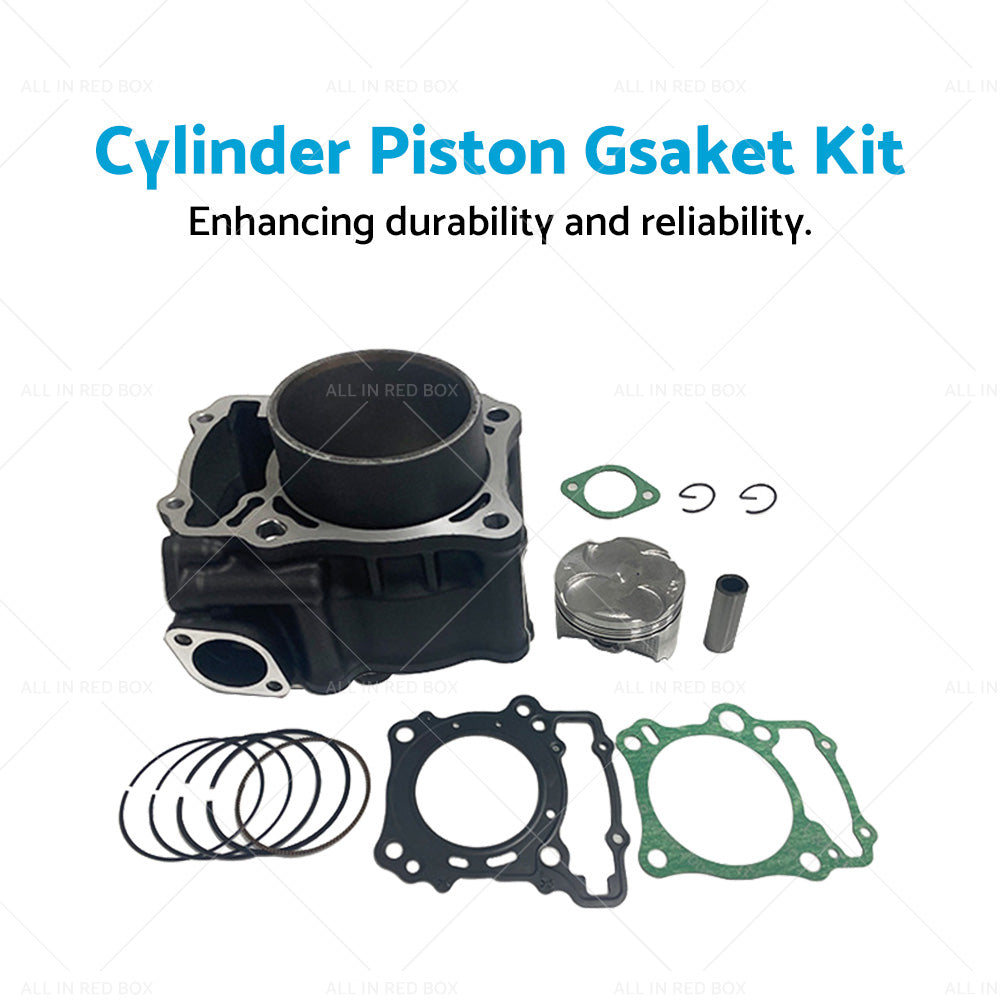

-The kit comprises a cylinder, piston, rings, pin, clips, and a top-end gasket kit, delivering exactly what you see in the picture.
-The piston is anodized, ensuring exceptional heat resistance and a longer lifespan.
-High-performance materials are used for the gaskets, enhancing durability and reliability.
-All the gaskets needed to rebuild the top end are included.

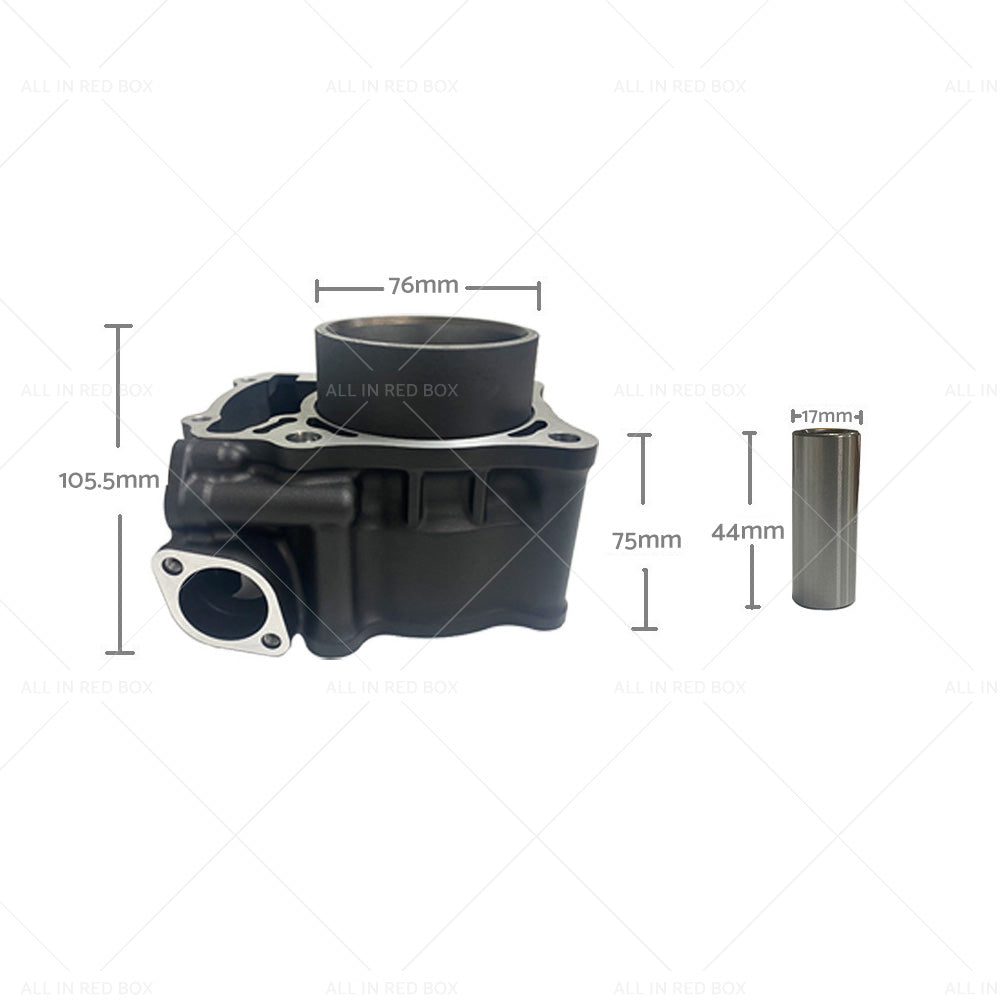

-Designed for standard bore size: 76mm with a 17mm steel piston pin.
-An excellent, cost-effective replacement option for addressing issues with the original cylinder.

Specification:
Type: Top End Rebuild Kit
Material: Aluminum
Displacement: 286cc
Bore Type: Standard Bore
Bore Size: STD 76mm
Stroke: 63mm
Pin Diameter: 17mm
Replacement OEM Number:
Cylinder: 12100-K33-D00
Cylinder Base Gasket: 12191-KYJ-900
Cylinder Head Gasket: 12251-KYJ-901
Piston (Std): 13101-K33-D00
Pin, Piston: 13111-MEL-000
Piston Ring Set (Std): 13010-KYJ-305
Circlips, piston: 13112-K33-D00
Tensioner Gasket: 14560-KGH-900

Fitment:
Compatible with Honda CBR300R 2015-2022
Compatible with  Honda CBR300RA ABS 2015-2022
Compatible with Honda CB300F 2017-2018
Compatible with Honda CB300FA 2017-2018
Compatible with Honda CB300R (CBF300N) 2019-2022
Compatible with Honda CMX300 Rebel 300 2017-2022
Compatible with Honda CMX300A Rebel 300 ABS 2017-2022
(Compatibility Chart is Provided for Reference ONLY!)
(Please Verify Fitment by Comparing with Your Faulty Unit and the Image We Have Provided)

Package Including:

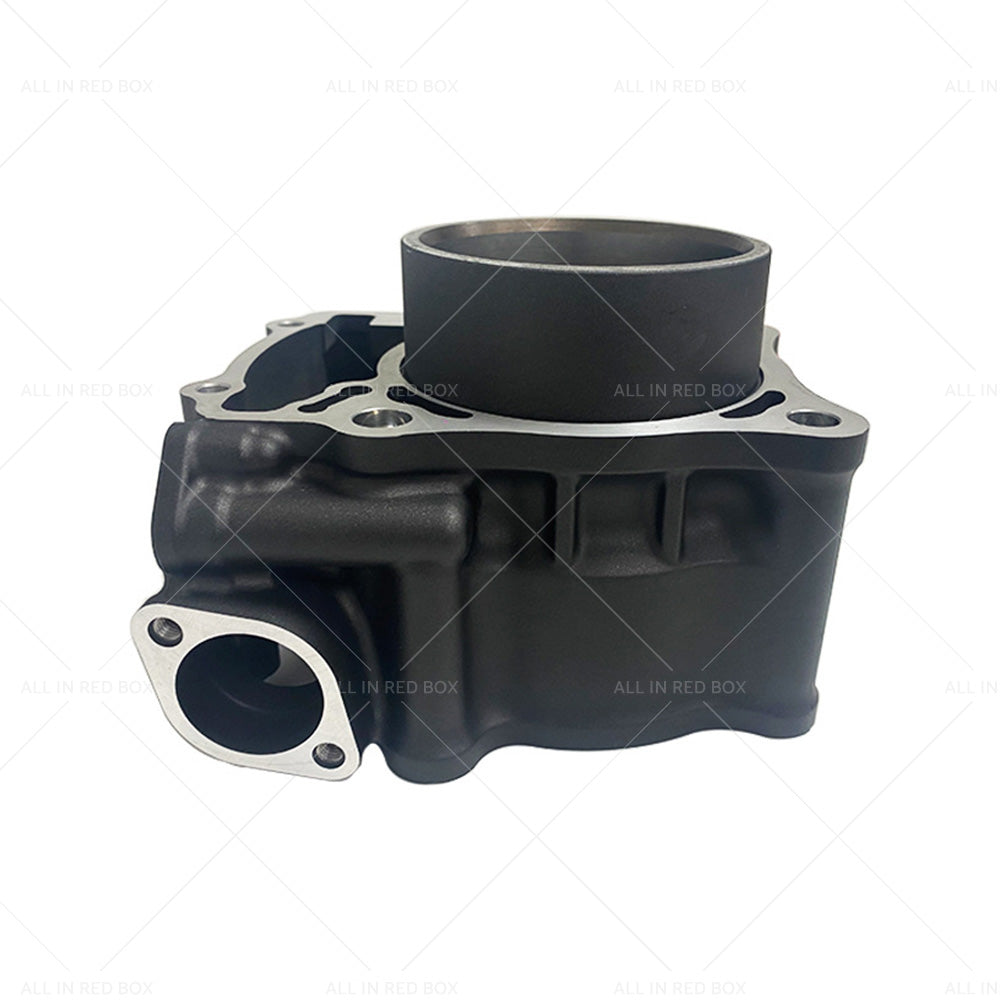

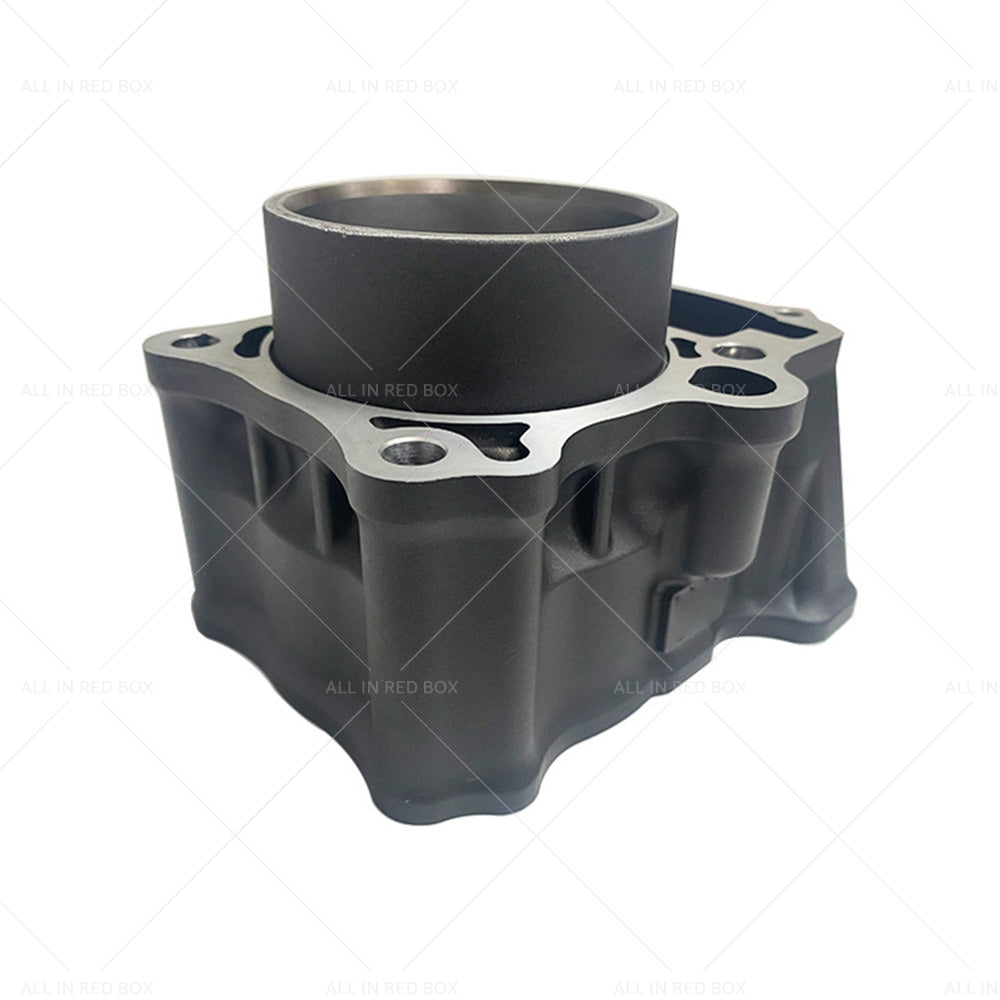

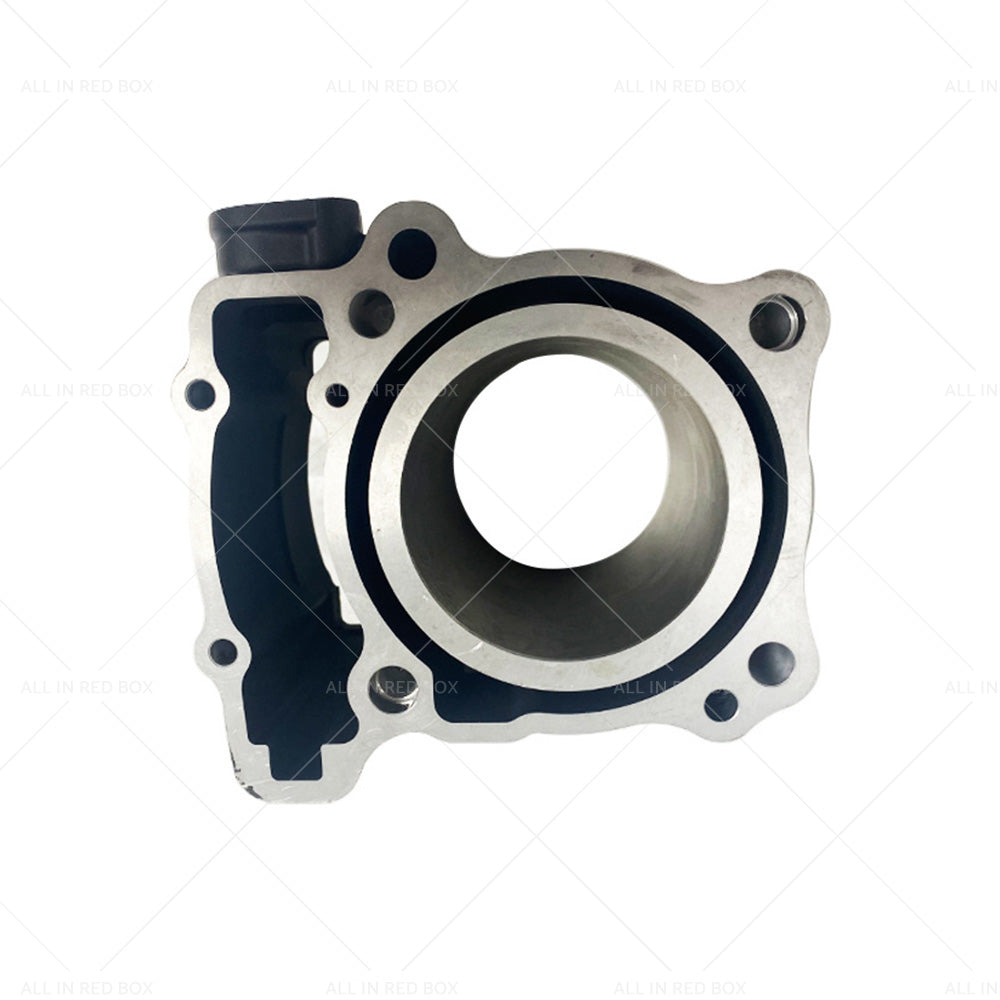

1x Cylinder

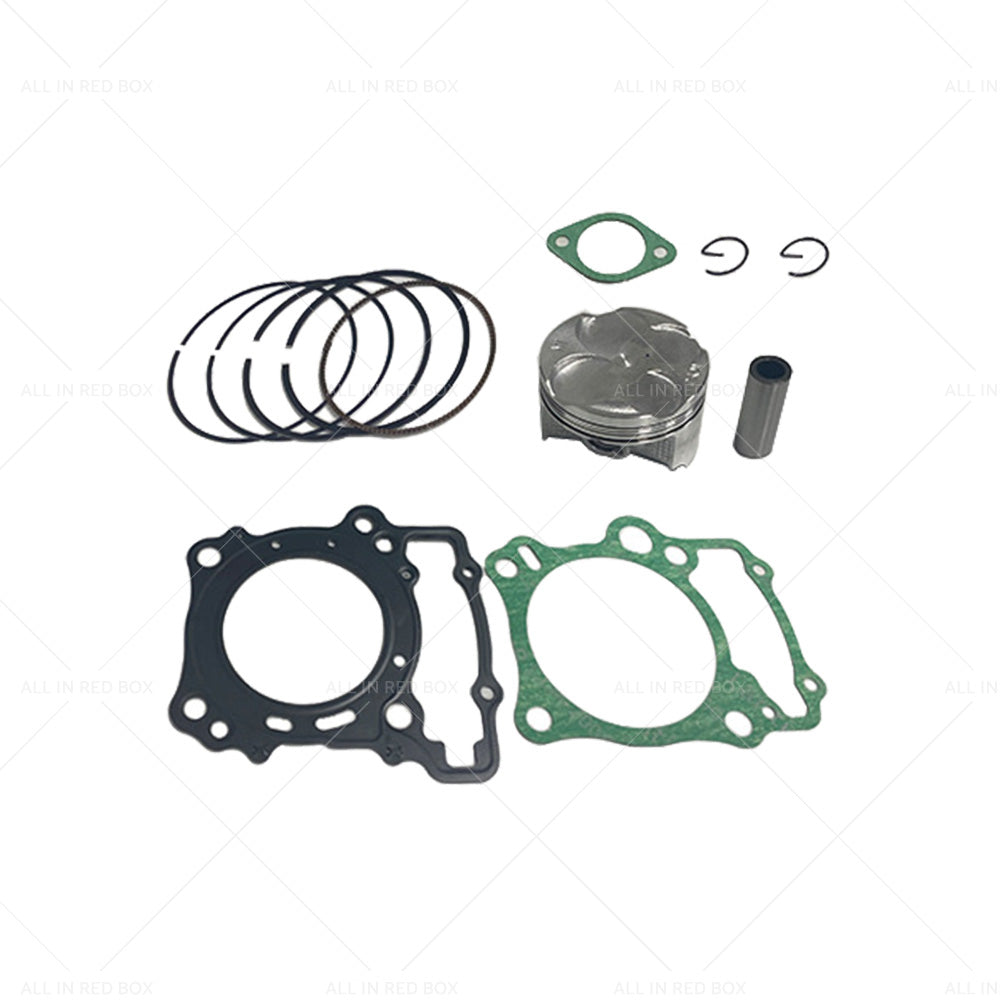

1x Piston(STD)
1 Set Piston Ring
1x Wristpin
2x Circlip
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
