DC 36V 5A 80W Adjustable Regulated Power Supply Buck Boost Converter DC CNC AU
DC 36V 5A 80W Adjustable Regulated Power Supply Buck Boost Converter DC CNC AU
SKU:90UN094
Description
Stable performance

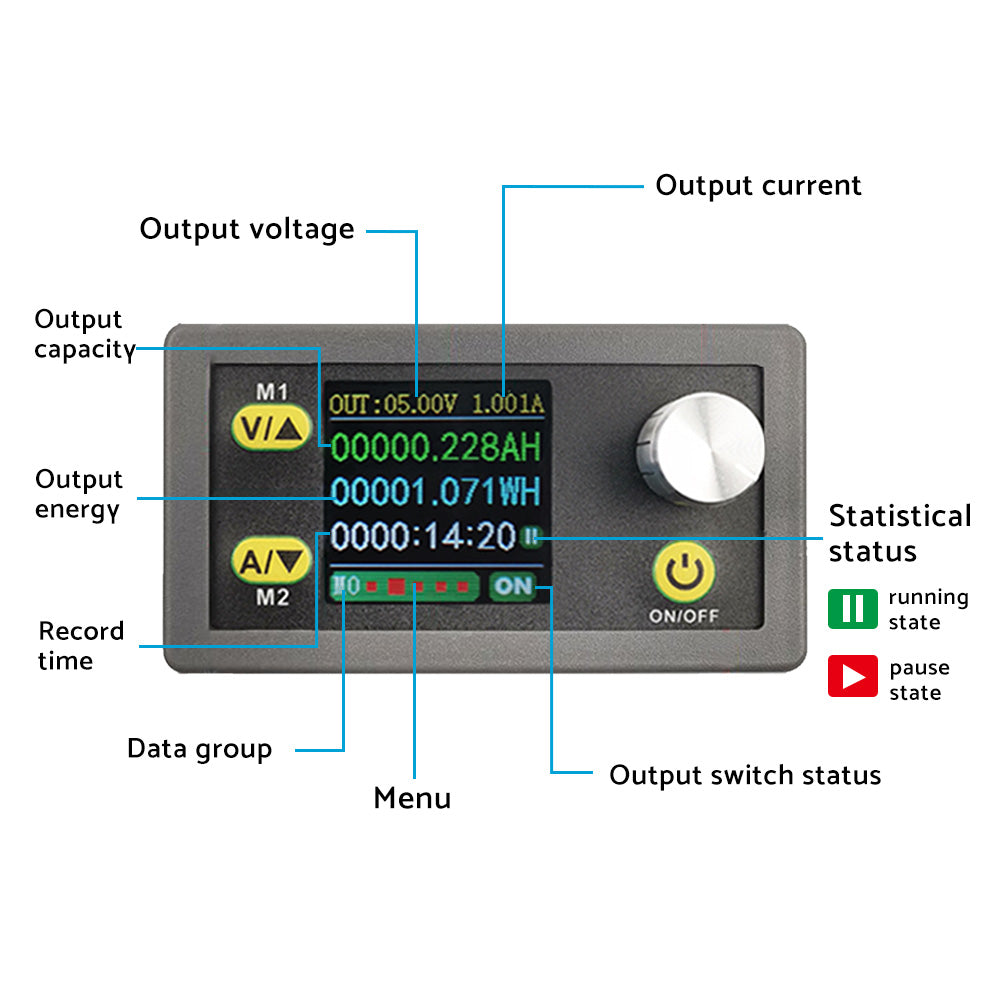

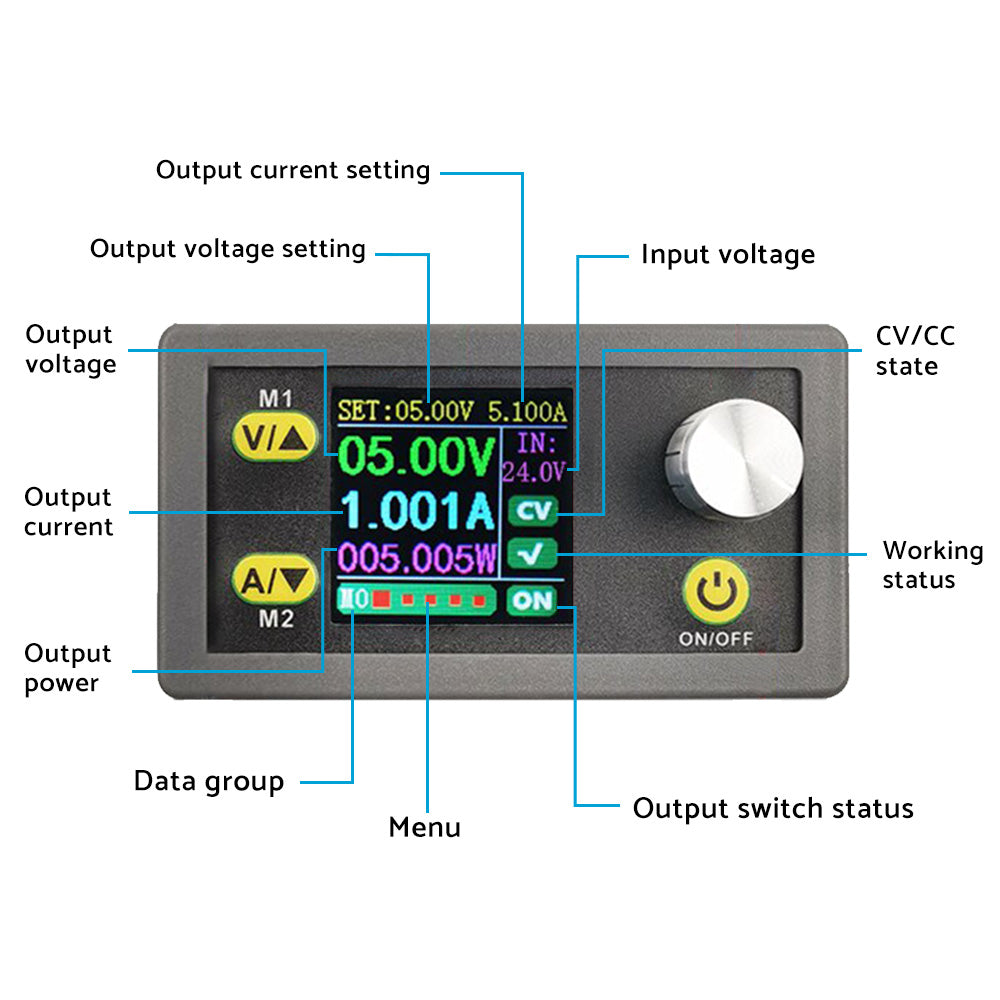

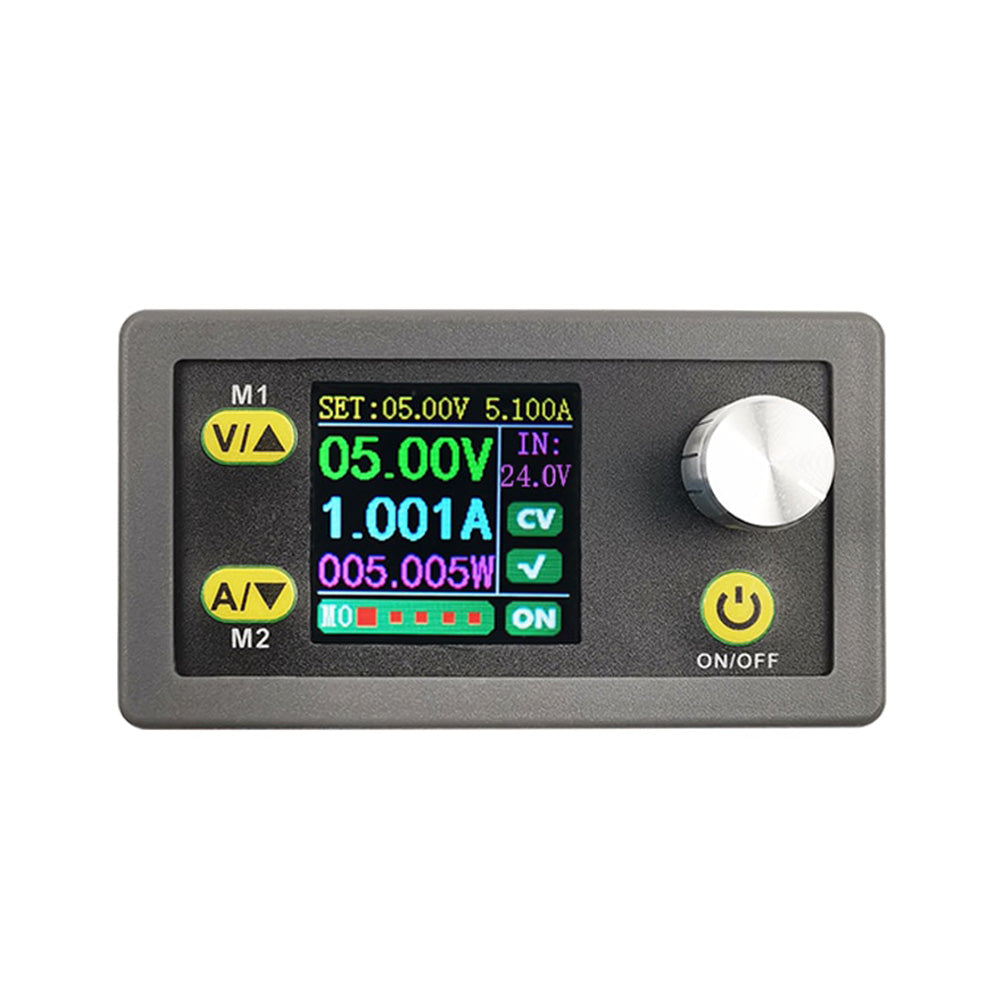

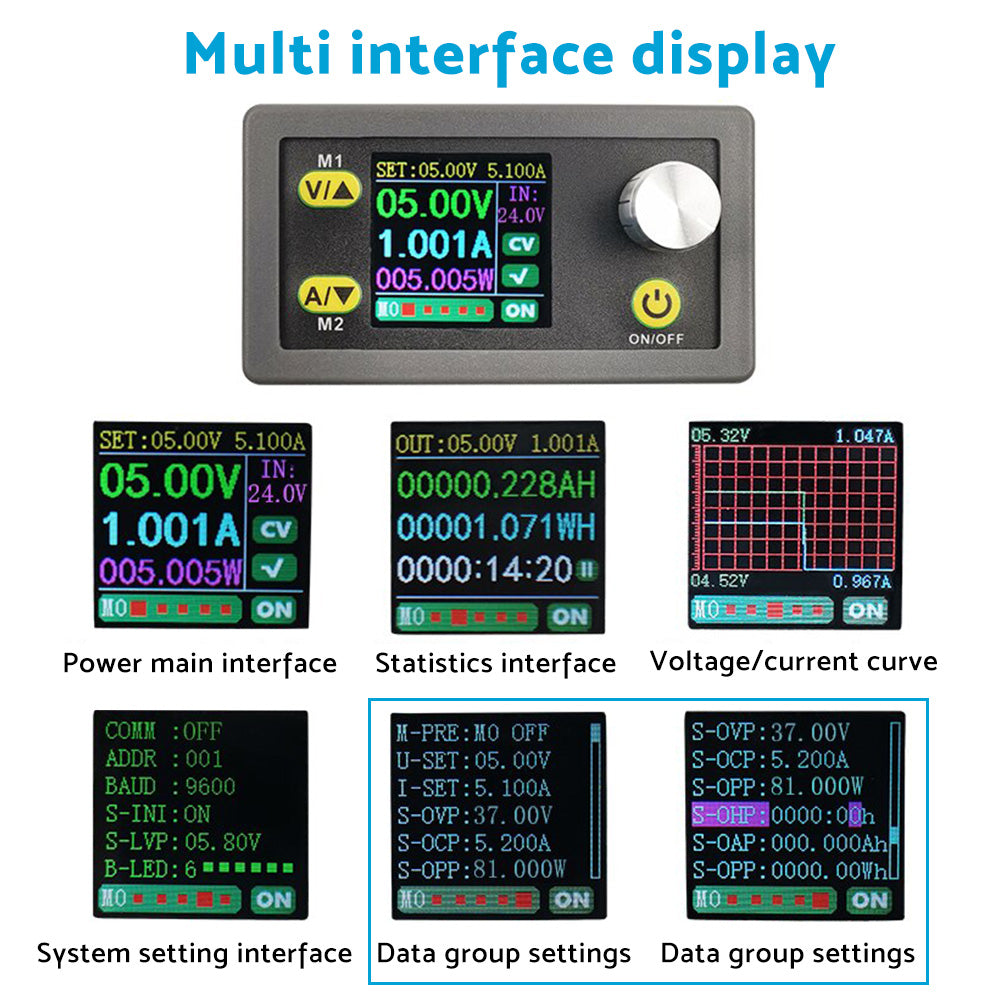

The multi-screen high-definition high-definition color screen display is clear and intuitive, using a 1.44-inch high-definition color screen LCD display,
and the content is displayed on multiple screens. The output voltage is adjustable from 0.6-36.00V, and the output current is adjustable from 0-5.000A. Small size, high precision, widely used.
Easy to operate
Professional equipment calibration and calibration to ensure crystal production accuracy
Output a variety of protections to ensure the safe use of the load
Specifications
Brand: MAXCOOL
Type: Buck Boost Converter

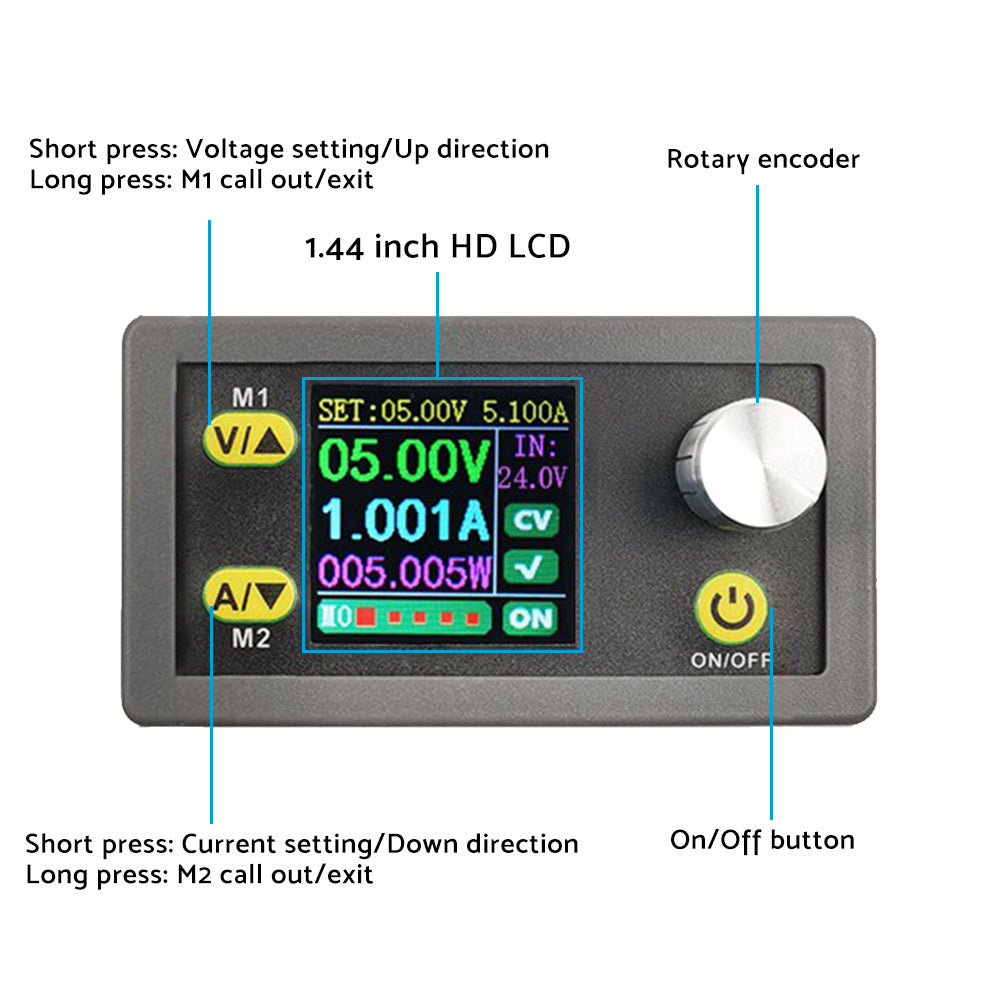

Display: 1.44" color screen
Input voltage range: 6-36V
Input voltage resolution: 0.1V
Output voltage range: 0-36V
Output voltage resolution: 0.01V
Output current range: 0-5A
Output current resolution: 0.001A
Output power range: 0-80W
Input voltage accuracy: ±1%+5 word
Output voltage accuracy: ±0.3%+3 word
Output current accuracy: ±0.5%+5 word
Output ripple: 150mV
Temperature: -10℃-60℃
Time range: 0-10000 hour (Unit: S)
Energy range: 0-99999.999WH
Capacity range: 0-99999.999AH
Capacity energy error: ±2%

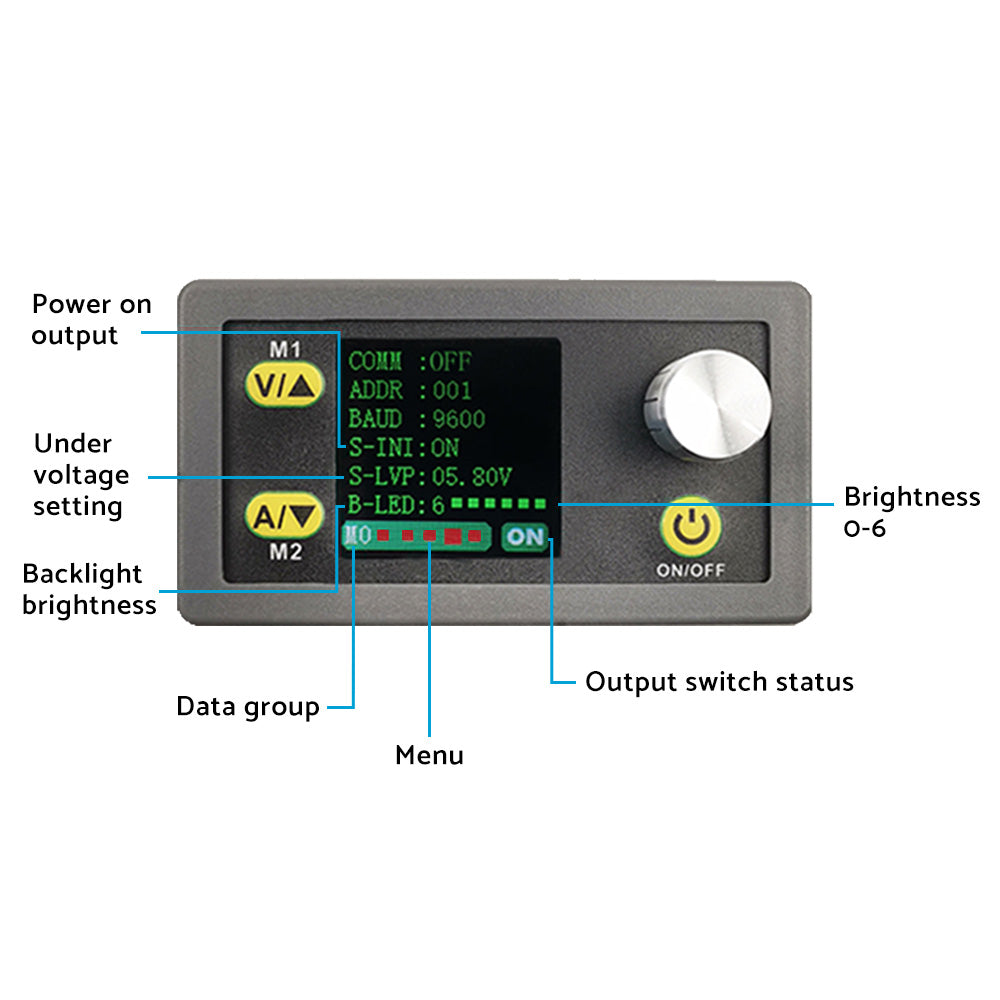

Screen brightness: 0-6, total 7 levels

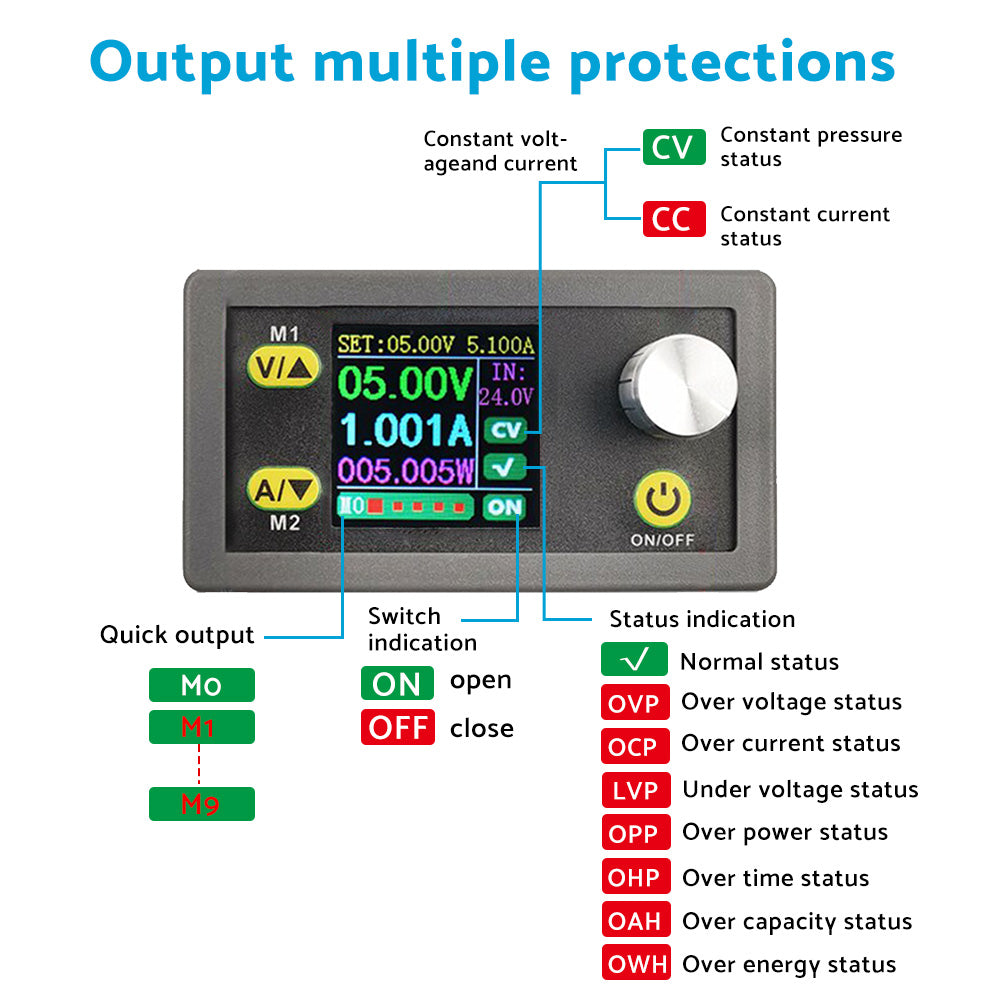

Feature:

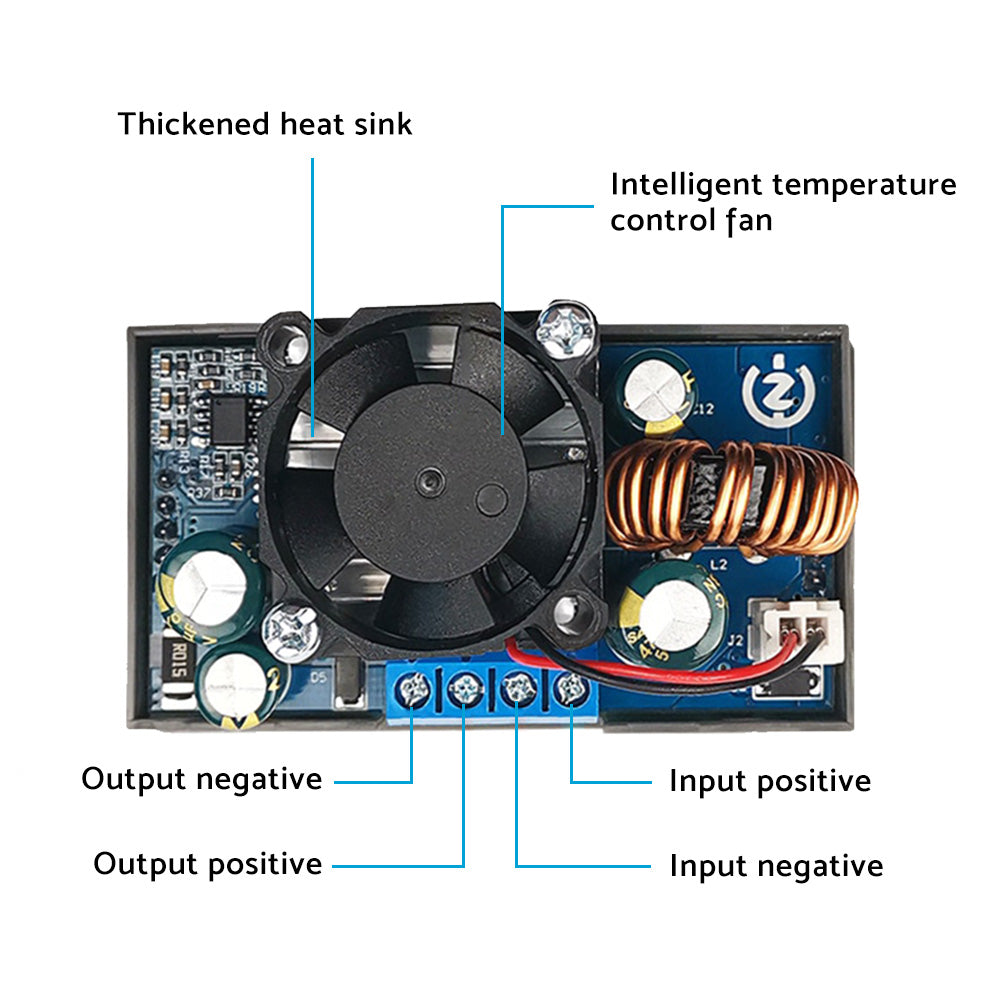

Input reverse connection protection
10 data storage
CV/CC
Over-voltage protection
Over-power protection
Over-current protection
Package include:
1 x Buck Boost Converter
NOTE:
1. If the output is connected to the battery charging, do not connect the positive and negative terminals of the battery, otherwise it will be damaged;
2. If the inductive load is connected, the starting current will be large. Please be sure to set a small protection current and a small protection power first to reduce the risk of instantaneous damage.
Please pay special attention to the use of instantaneous high current inductive load, please leave an absolute margin to avoid damage. The input can only use standard DC power supply, which requires complete rectification and filtering;
3. When the product is working, please ensure that the input power must be absolutely greater than the output power. For example, when the input 12V and output 24V 3A are used in booster work, the input current must be ensured to be more than 7A, otherwise
it cannot reach 80W;
4. Note that the full load output power supply requirements: The input power supply can be 15V-35V, with a power of more than 100W. The lower the input voltage, the smaller the output power;
5. Please be sure to consider and abide by the law of conservation of energy. Output power is limited by product parameters and input power. Final output power = input power * conversion efficiency (around 0.8-0.9)
6. There is no communication version of this product
7. This product is adjustable power supply of DC voltage rise and fall.Please read the instructions before use.Do not connect AC or exceed the allowable input voltage range
Note:
*Sourced From Professional Aftermarket Manufacturer, QUALITY GUARANTEED.*
