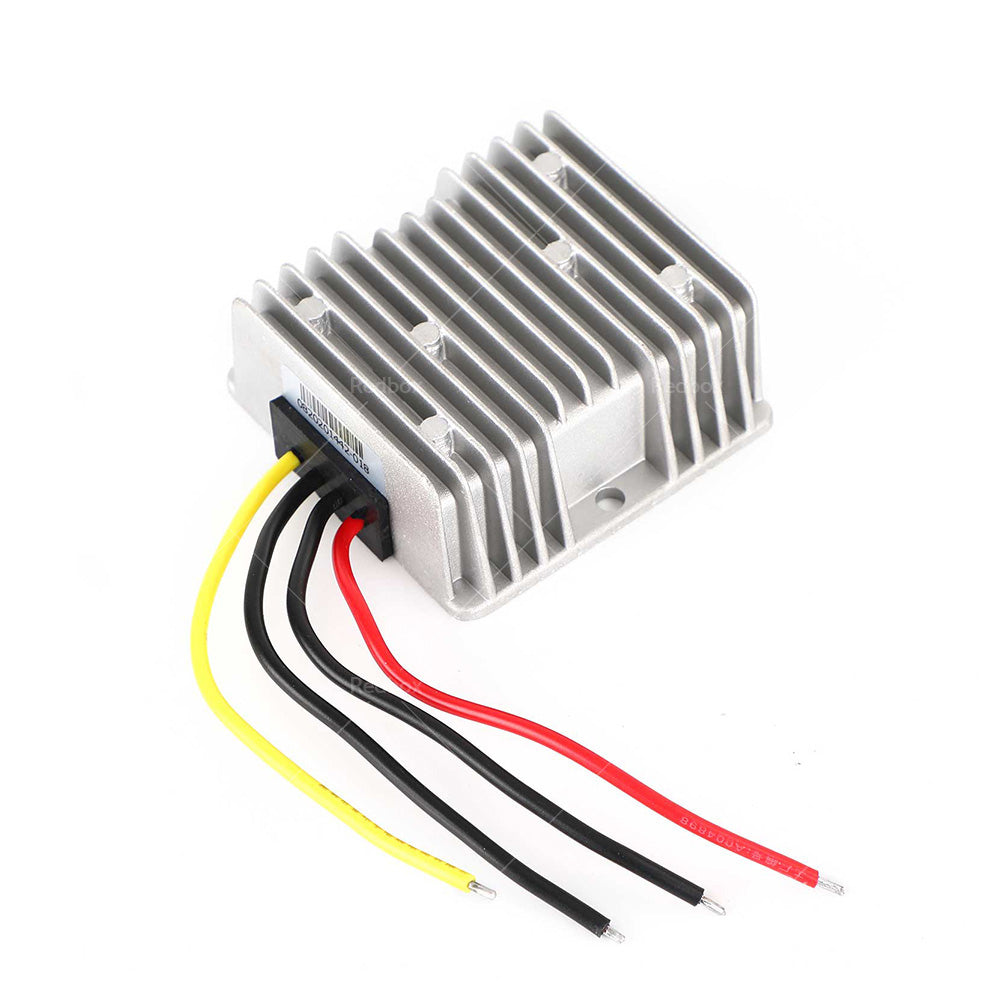

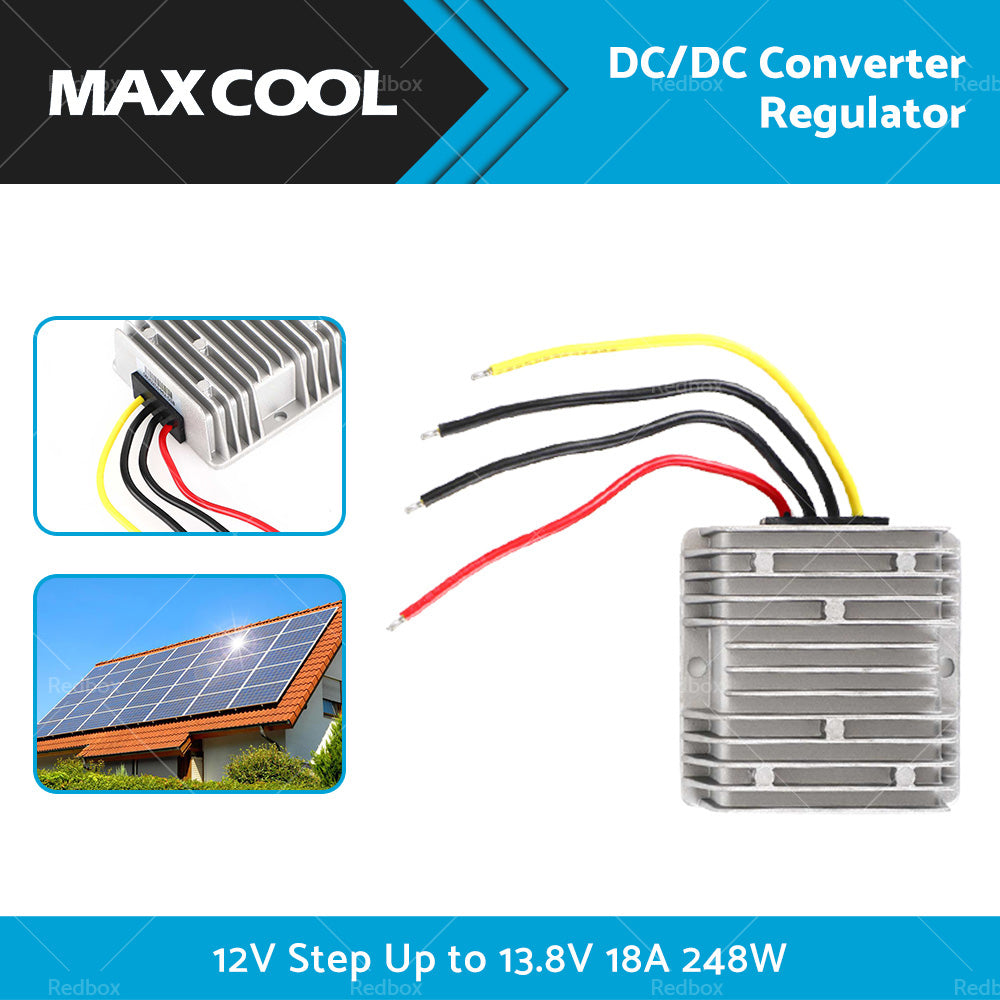

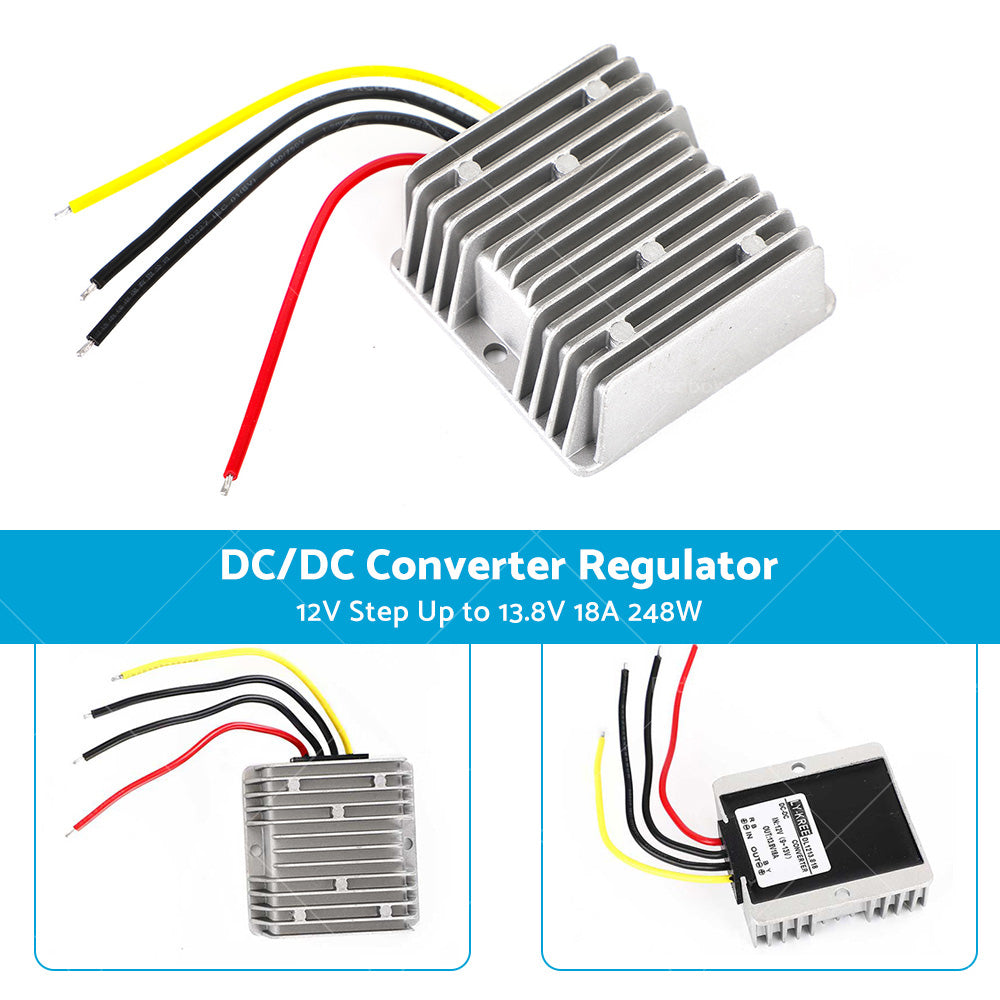

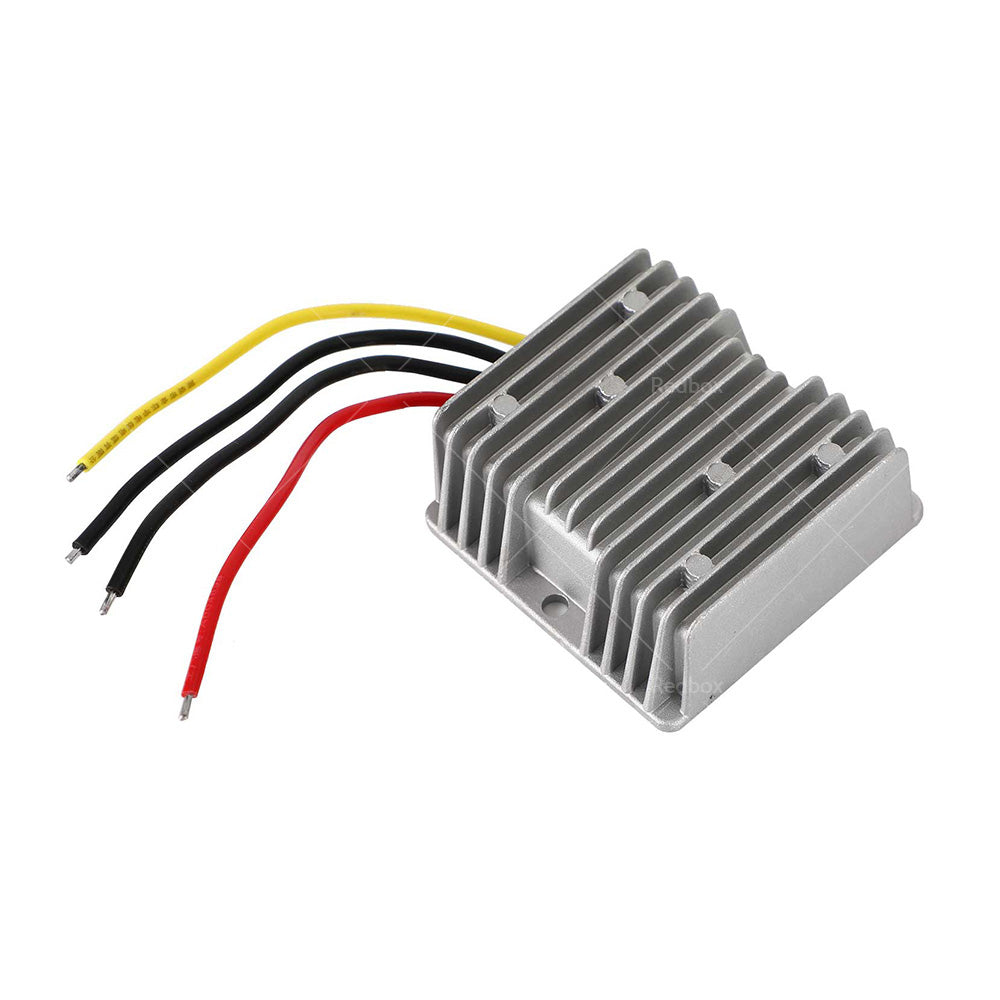

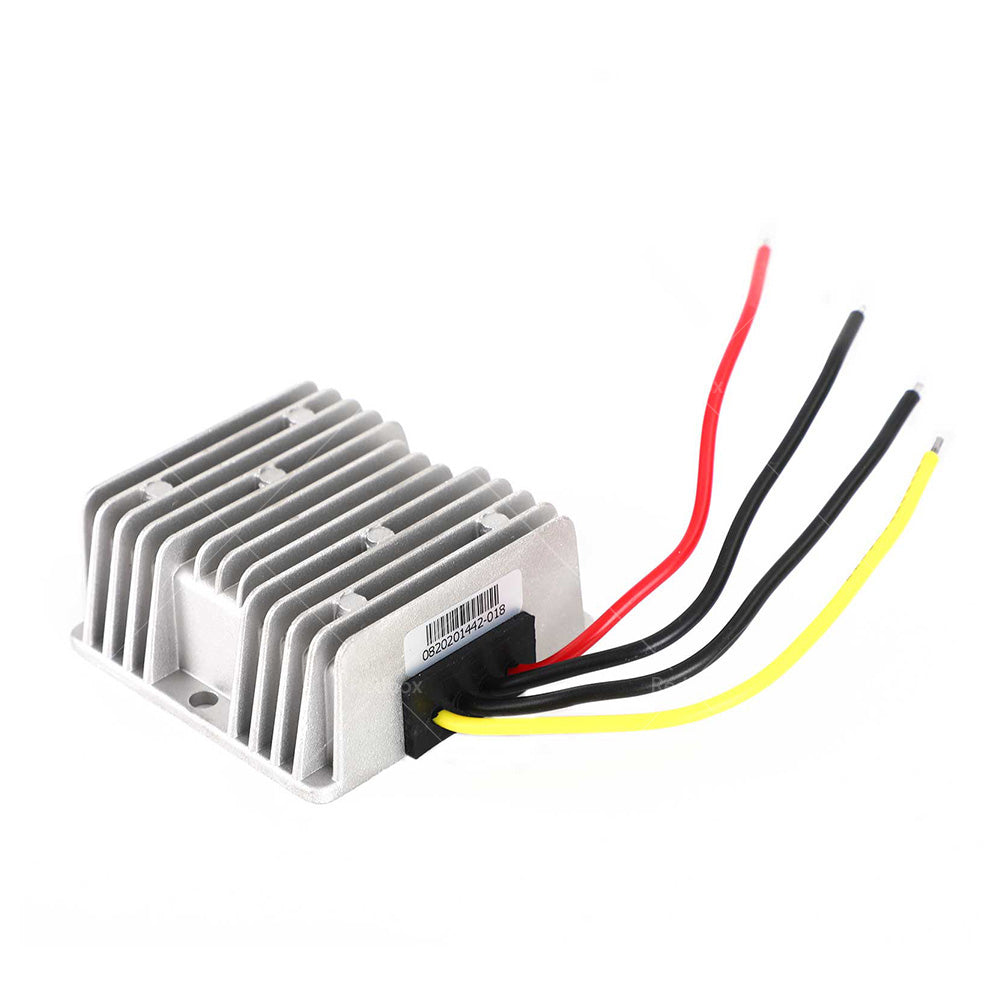

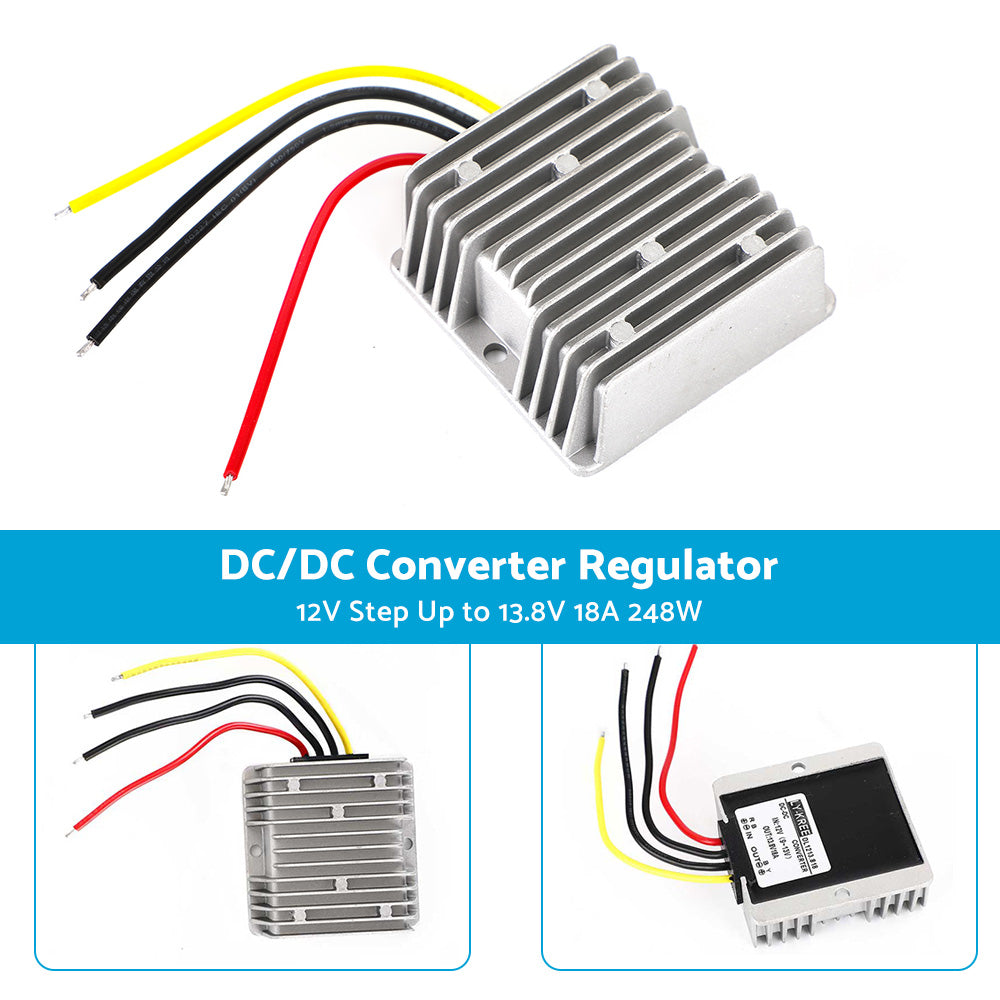

DC or DC Power Supply Converter Regulator 12V Step Up to 13.8V 18A 248W Waterproof

Description

Widely used: car alarms, radio, intercom, electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans,solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, and industrial electrical equipment, etc.

Features

High quality thermal silica potting, waterproof, dust-proof, shockproof effect

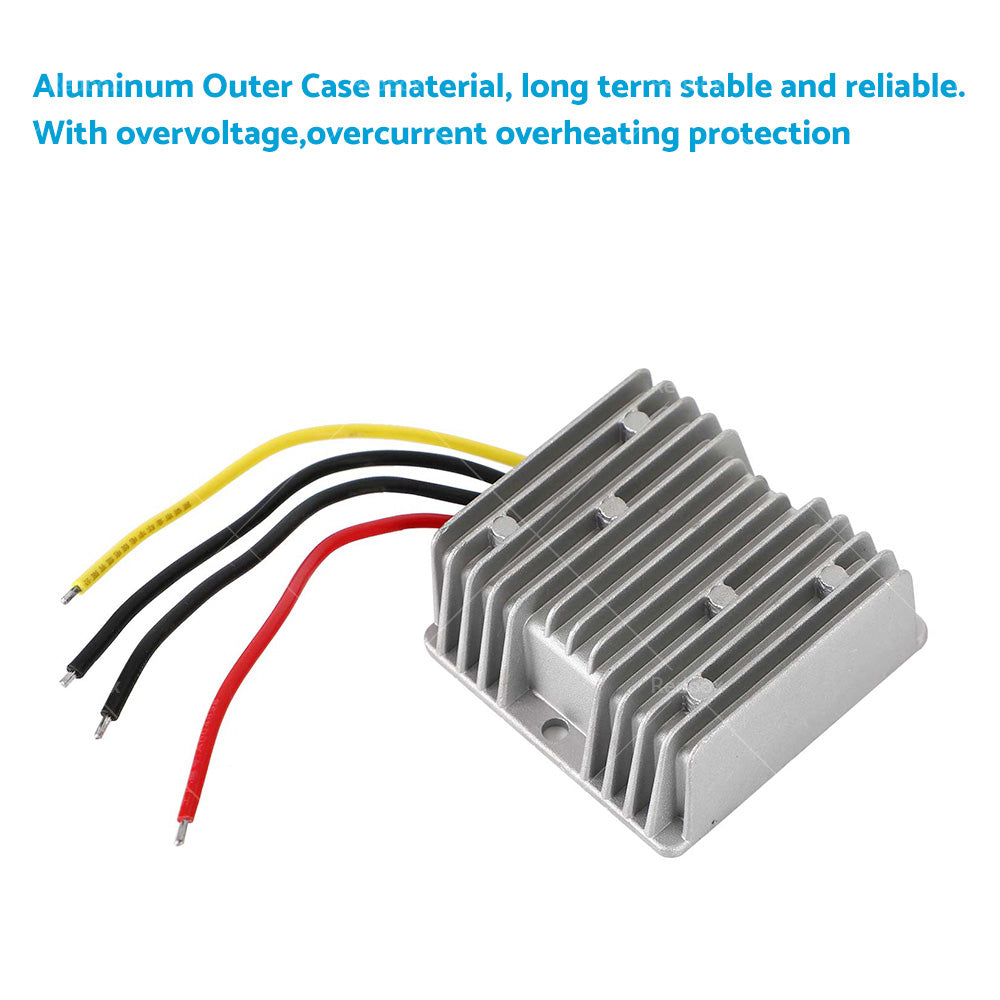

Aluminum Outer Case material, long term stable and reliable.

With overvoltage,overcurrent overheating protection

Waterproof, Shockproof Design.

Specifications

Brand: MAXCOOL

Type: DC/DC Converter Regulator

Condition: 100% Brand New

Shell Material: Die-cast aluminum alloy

Input voltage: 12V DC

Input voltage range: 9 ~ 13V DC

Output voltage: 13.8V DC

Output current: 18A (max), 248W

Operating temperature: -40°C ~ +85°C

Output ripple noise: 80mv

Warranty: 1 year

Installation method: mounting hole

Efficient conversion: More than 92%

Waterproof Rating: Ip68

Wire lengths: 130mm / 5.12inches

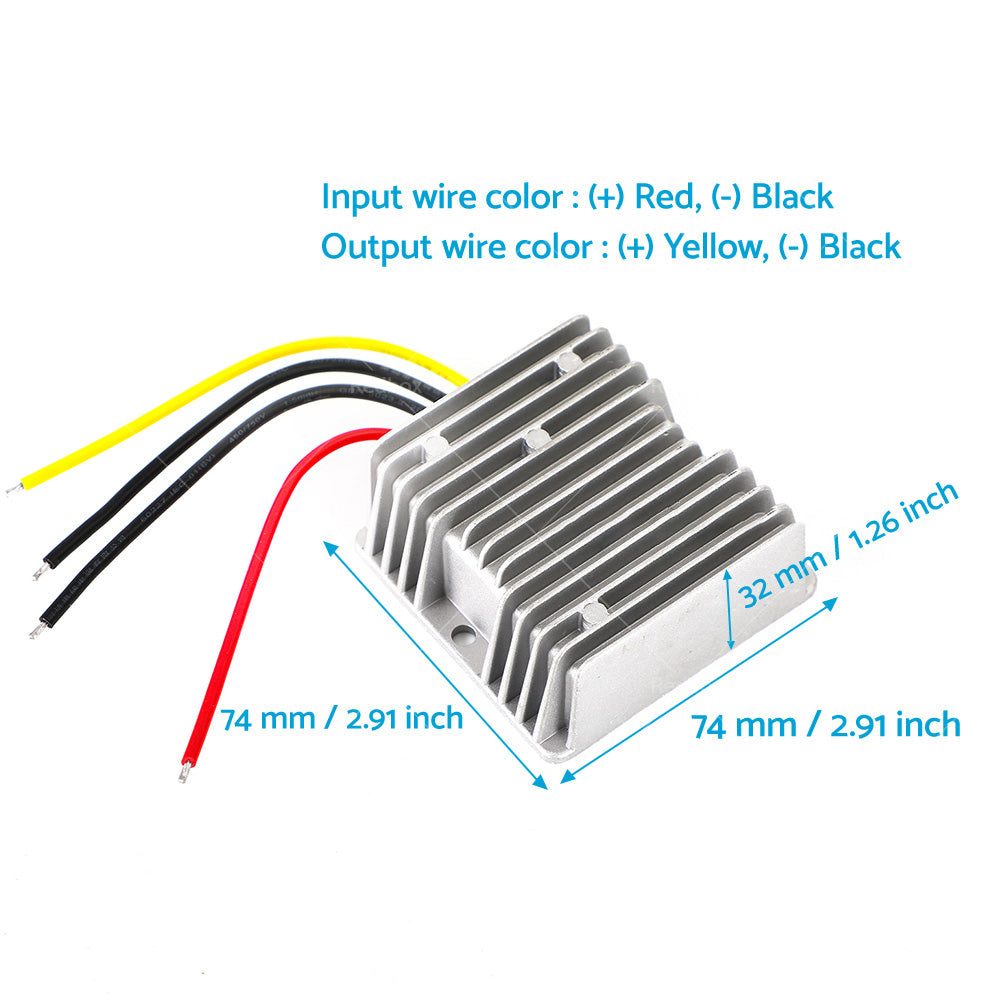

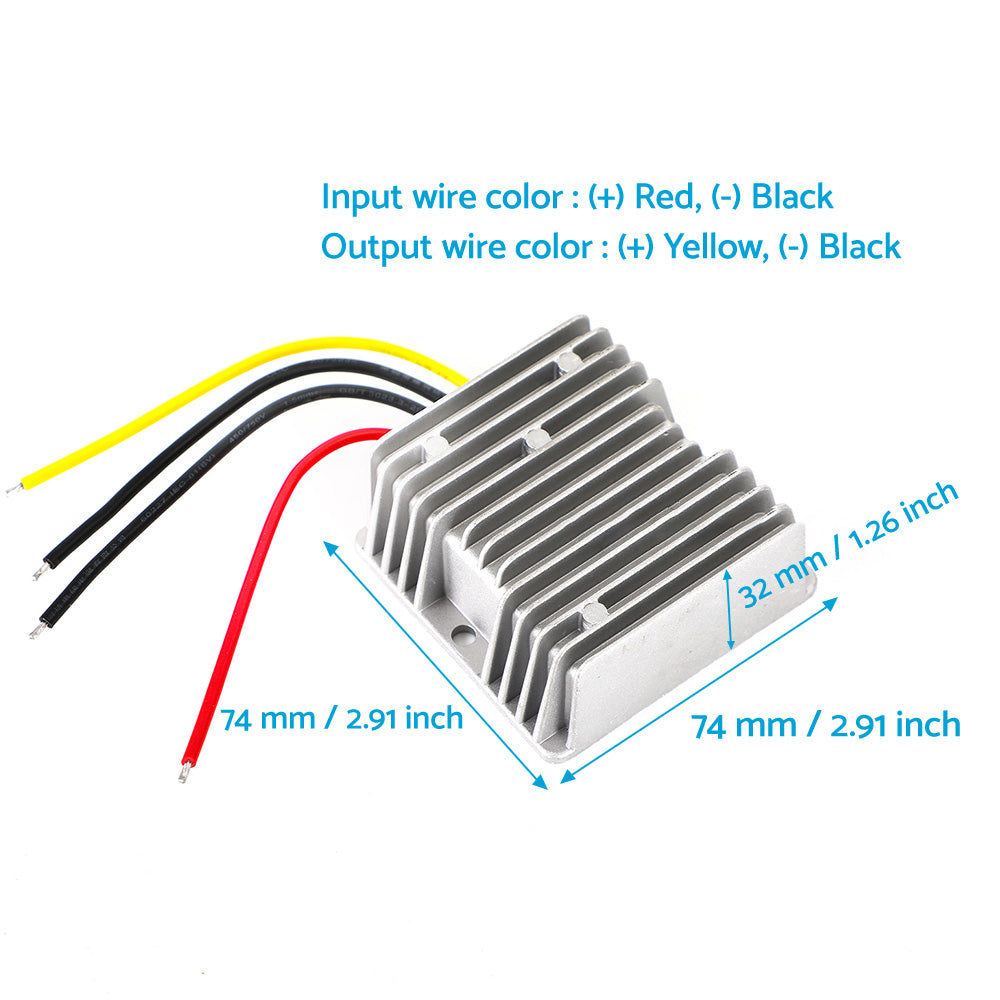

Size: 74 x 74 x 32 mm / 2.91 x 2.91 x 1.26 inch

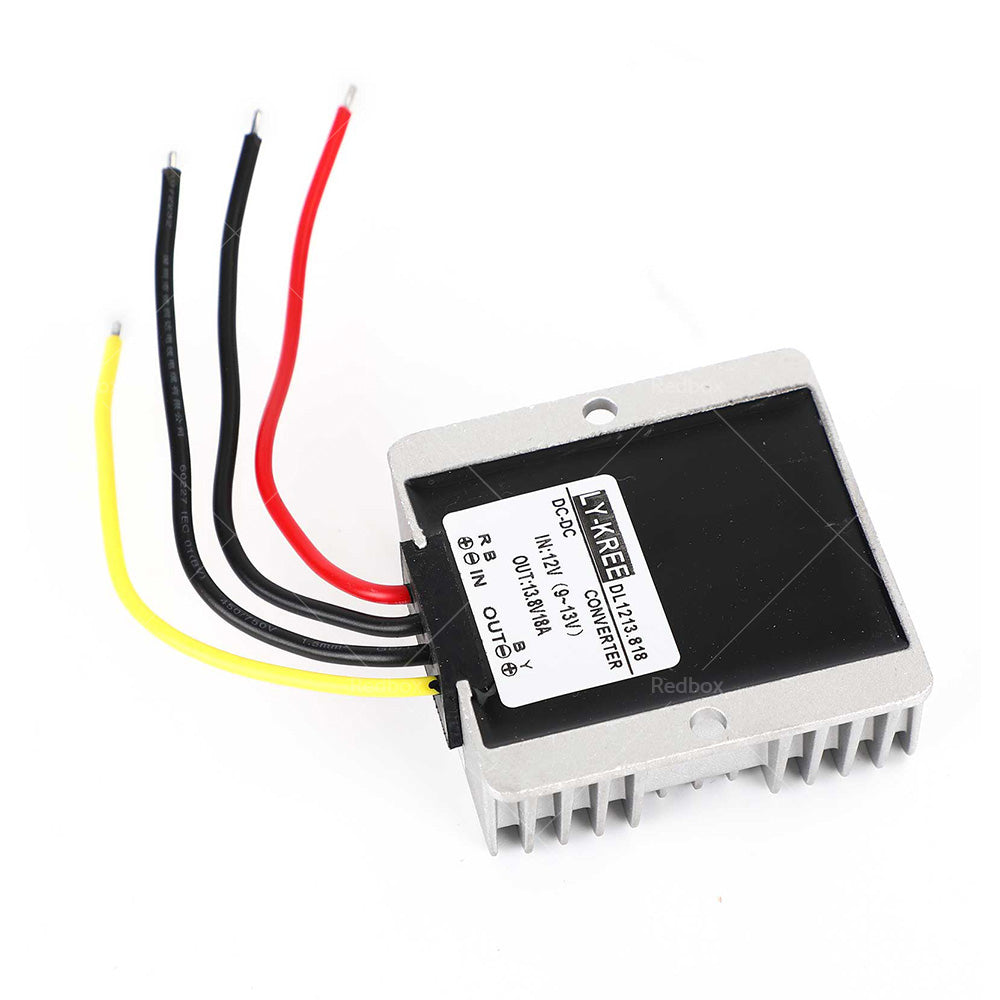

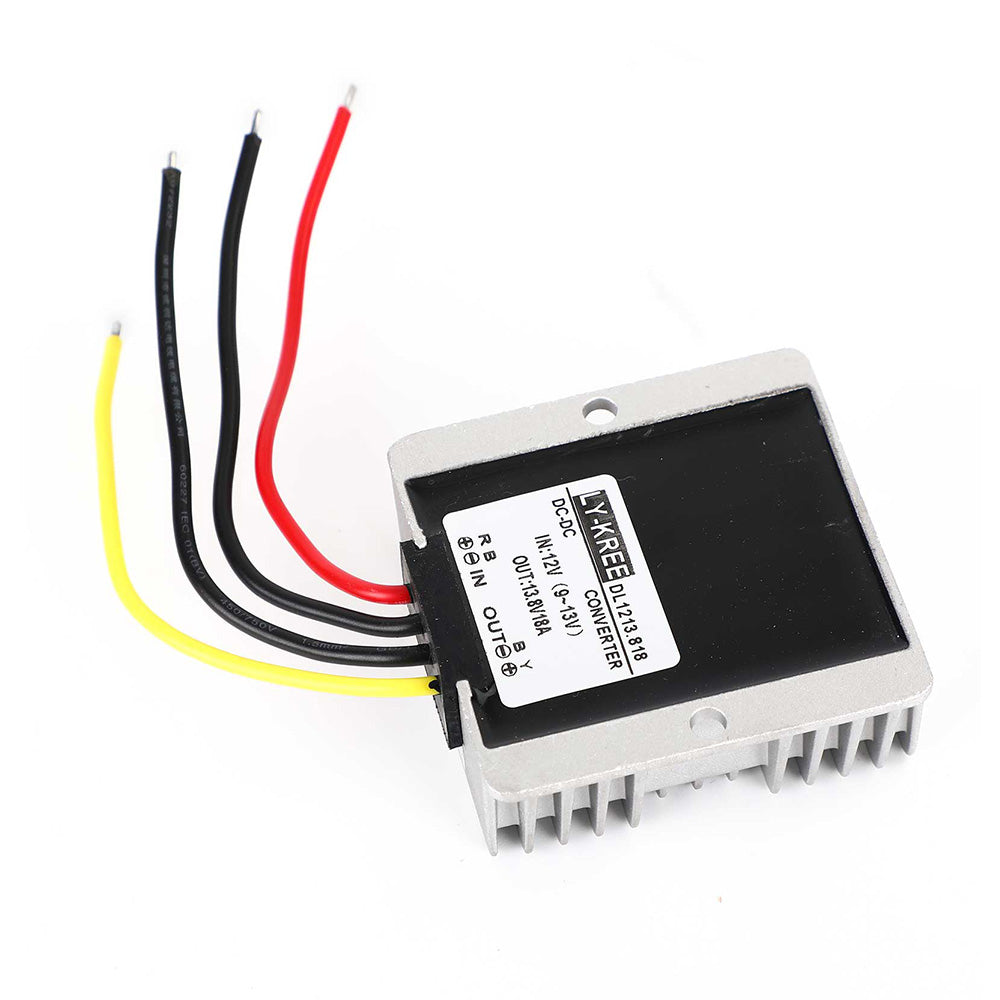

Input wire color : (+) Red, (-) Black

Output wire color : (+) Yellow, (-) Black

Voltage regulation rate: 96%

Working efficiency: 96%

Output voltage accuracy: 96%

Load adjustment rate: 96%

Package include:

1 x DC/DC Converter Regulator

Note:

1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.

2.Please take with an average load, do not merge,if there are multiple output cables in the output port.

3.You need to pay attention to make the power module cool,if output is up to the maximum current value.

4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
