Dual Electric Fan Relay Sensor Kit with 12V Thermostat Switch 175°-185° 40Amp

Product Description: Electric Fan Relay Kit

Compatible With
This kit is suitable for 10", 12", 14", and 16" fans, including dual fan configurations. We recommend using a separate relay wiring kit for each fan.

Specifications

• Condition: New
• Wire Length: 50cm (approximately 19.68 inches)
• Material: Metal and Plastic
• Please allow a measurement error of about 2-3cm

• This is a non-OEM product, accessory only

• Type: Thermo Fan Kit
• Fitment Type: Direct Replacement
• Mounting Hardware Included: Yes
• Product Name: Electric Fan Relay Kit
• Shell Color: Black
• Placement on Vehicle: Front
• Material: Metal
• Dimension: 50cm
• Package Content: 2 Set Electric Fan Relay Kit
• Net Weight: 450g

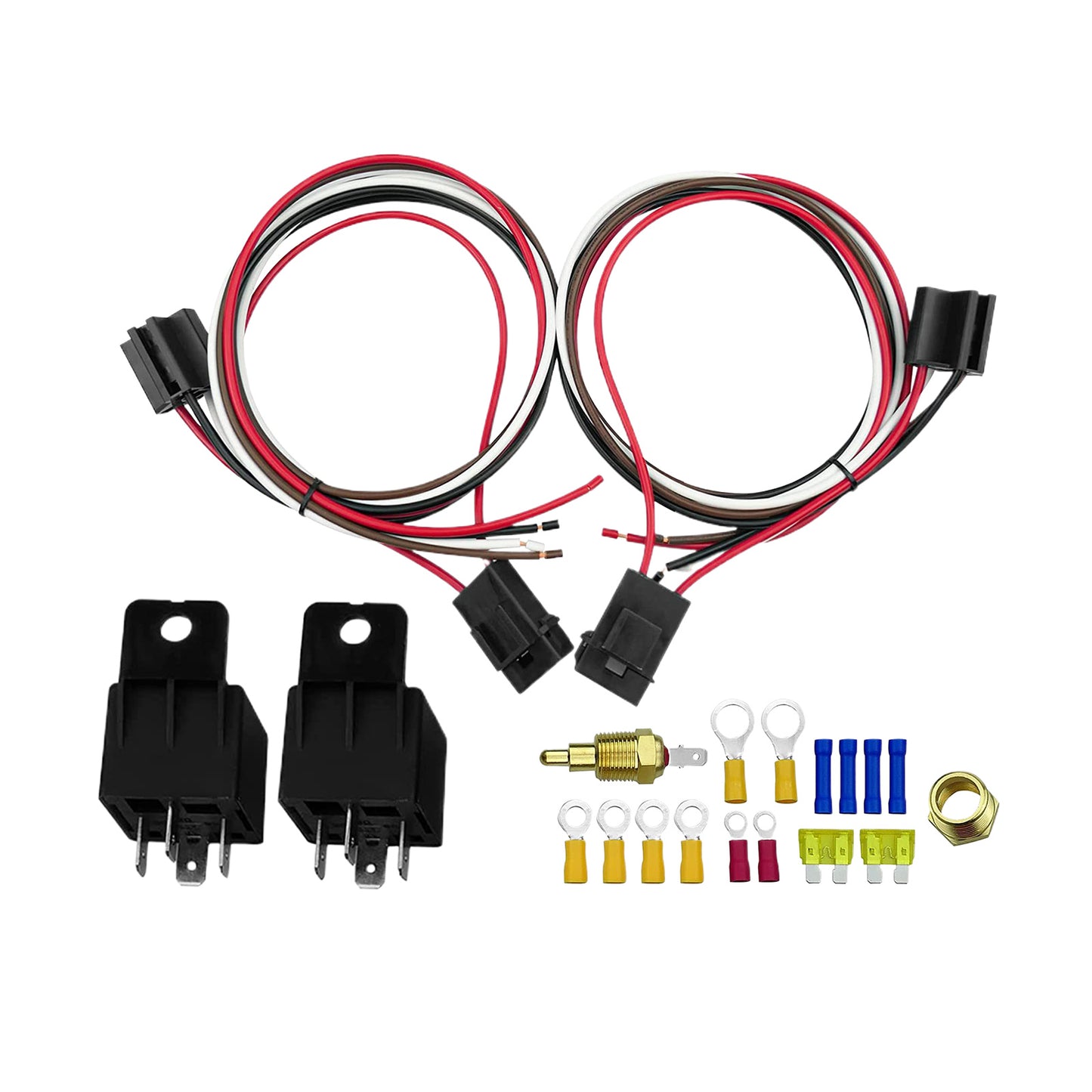

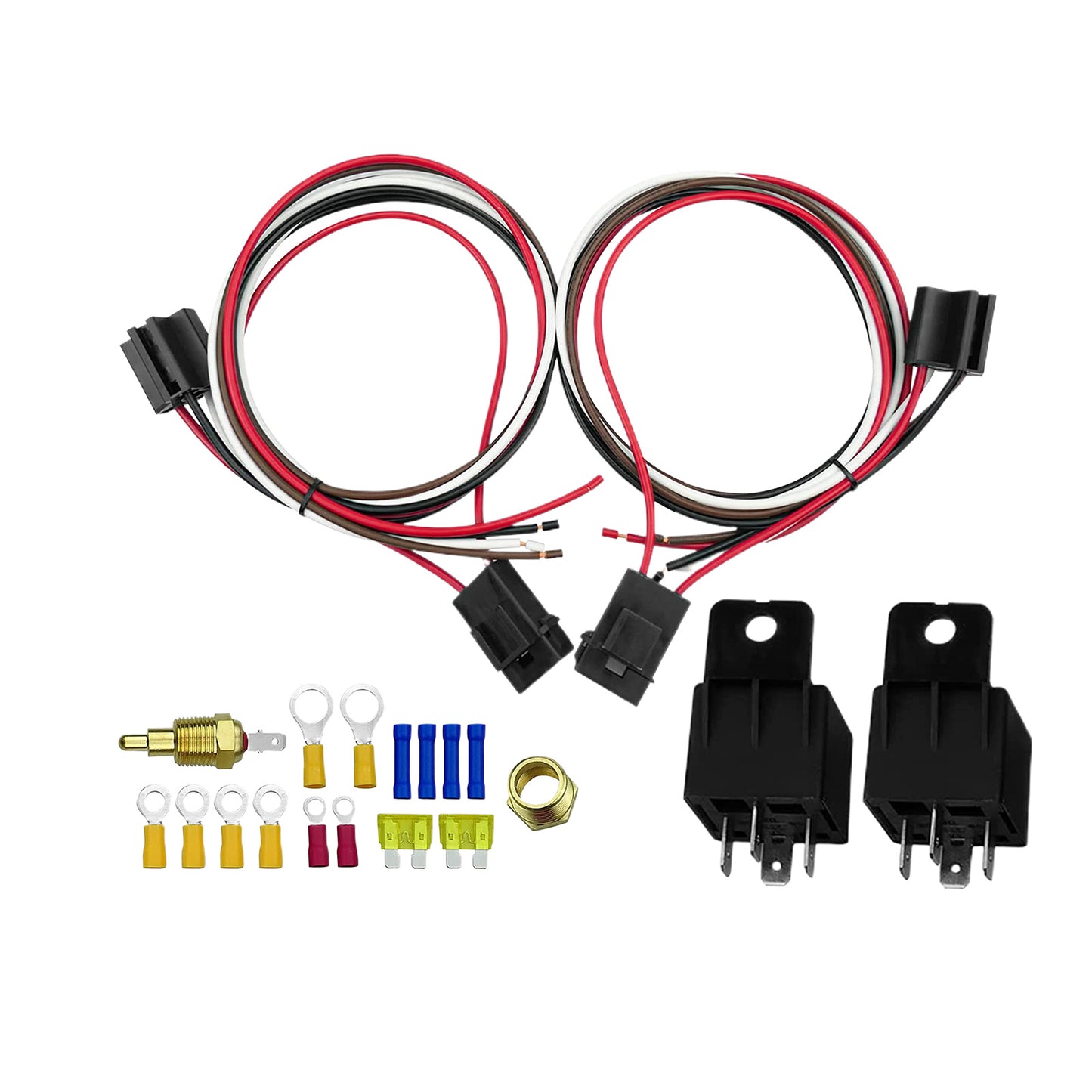

Package included

• 1 Wiring diagram
• 2 x 40A relays with wiring harness
• 1 x 185°F on - 175°F off temperature switch
• 1 x 3/8" Thread-In Probe
• 1 x 3/8" to 1/2" adapter
• 2 x Inline fuse holders
• 2 x 20 amp fuses
• 8 x Ring terminals
• 4 x Fan pigtail connectors

How to Use
Connect the color-coded wires according to the wiring diagram included:

• Red to +12VDC
• Brown to Fan Positive
• Black to Ignition
• Gray to Sending Unit

If you want to install air conditioning in your hot rod or operate the thermostatic switch when the AC is on, choose this Electric Fan Relay Kit. It takes only a few minutes to install, and your cooling fans will activate when the engine reaches the preset temperature of the thermostatic switch mounted in the engine head or when the AC is turned on.

The cable length is 50cm (please allow a measurement error of about 2-3cm), making it suitable for installation near or far from the engine.

Notice

• Please check product pictures before purchase, and search for "Fan Relay Installation" videos if you have installation doubts.
• Ensure the inlet voltage is 12V or lower to avoid blowing fuses or damaging cables.
• The thermostat supplied with this kit is OE style, intended to mount in the cylinder head of the engine or any water jacket.
• Do not use tape on the sensor as it may cause poor electrical contact or incorrect temperature readings.
• You can crimp larger wires to it if you intend to mount high-profile cooling fans:
  • 12 Gauge - 20 Amps
  • 10 Gauge - 30 Amps
  • 8 Gauge - 40 Amps
