Description

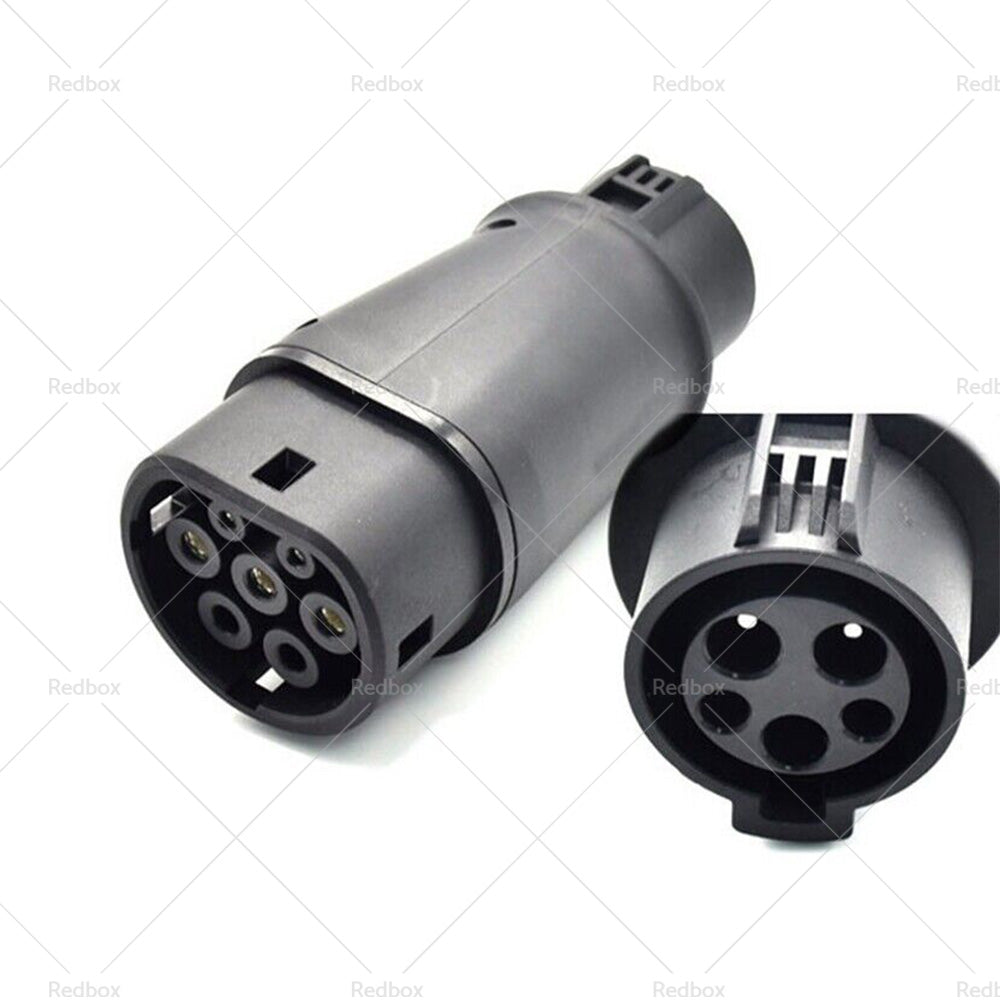

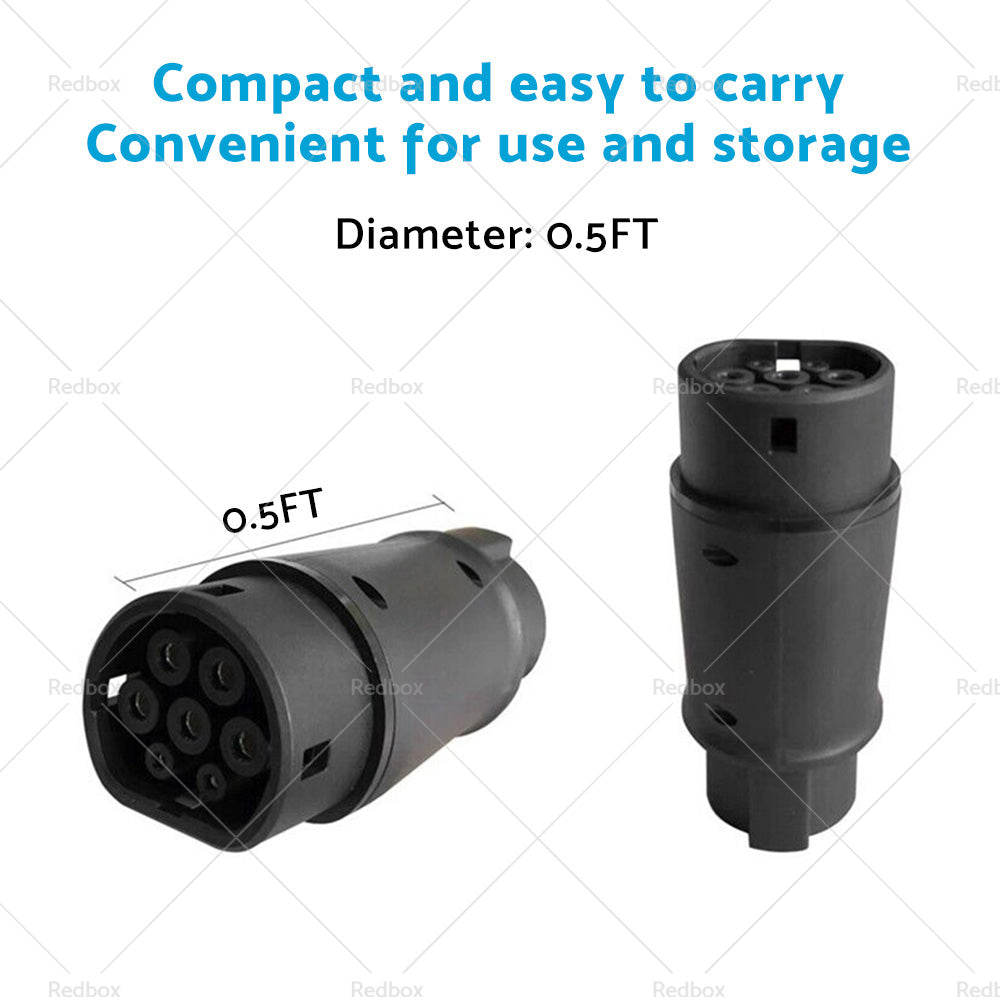

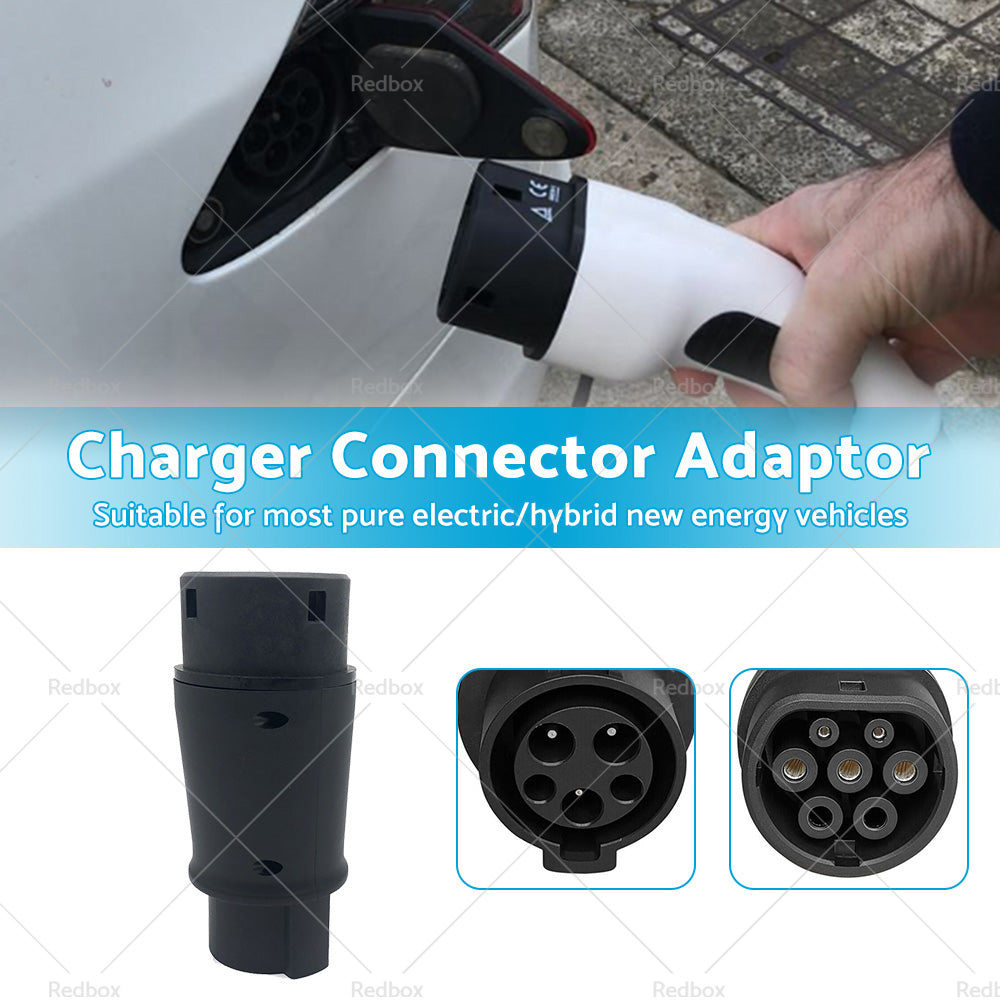

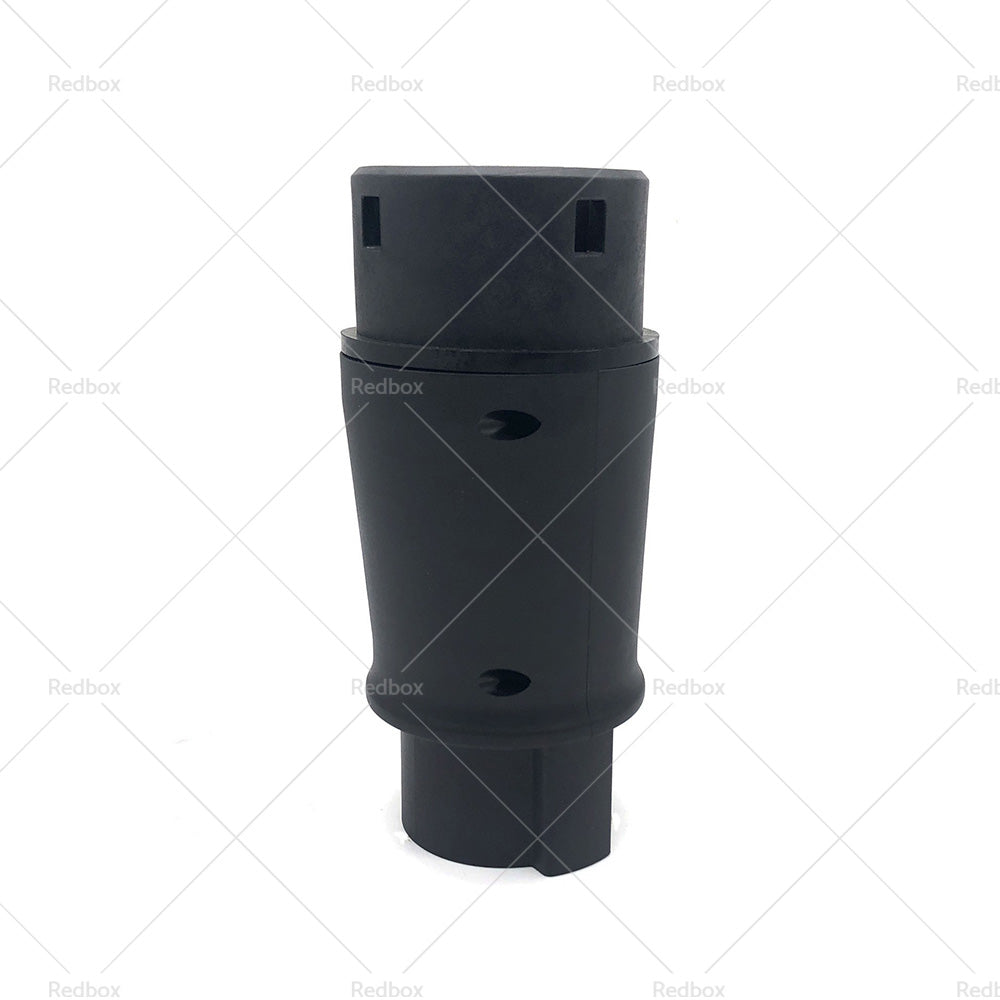

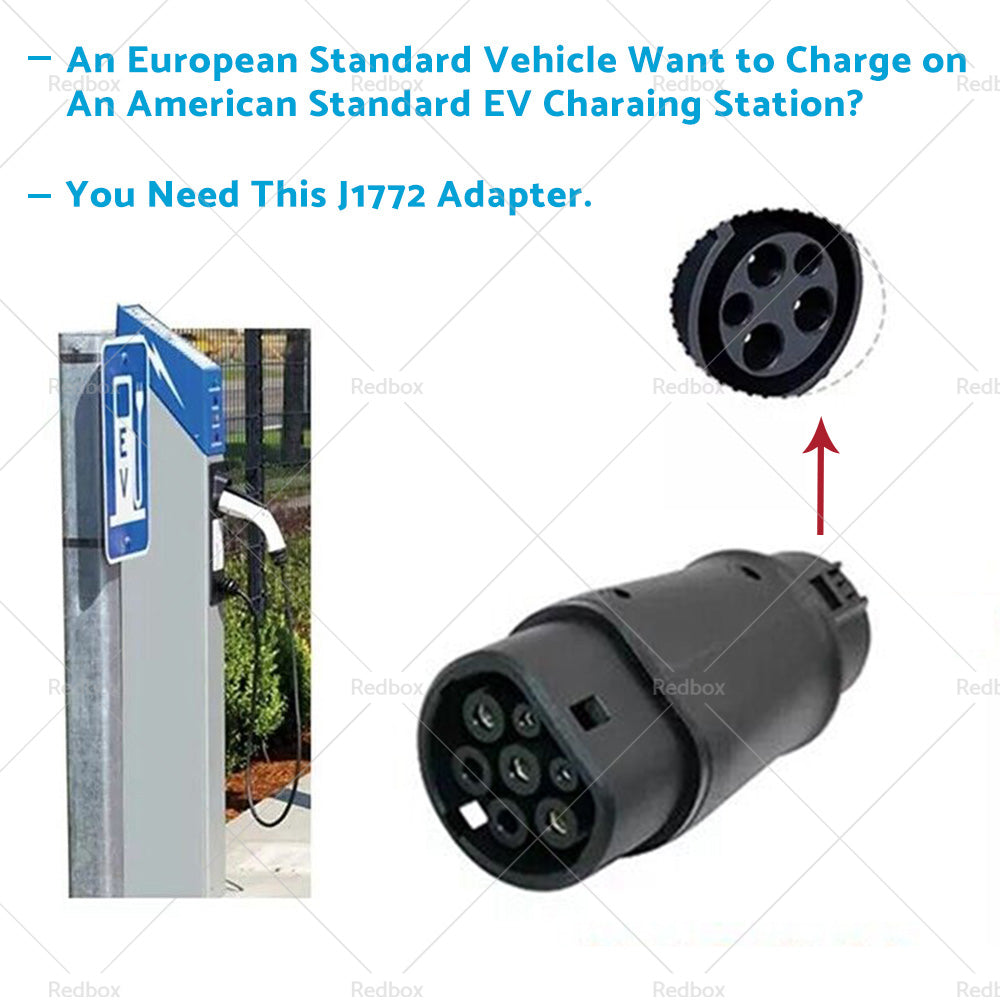

Adapter of electric vehicle converts your charger from American standard to European standard
It is very suitable for families with 2 electric vehicles or plug-in hybrid vehicles with different connector types.
Comply with SAE J1772 standard
Beautiful appearance, with protective cover, support front installation
The pin head is designed with safety insulation to prevent accidental direct contact with human hands
Excellent protection , the protection level reaches IP54
We recommend to use the following steps:

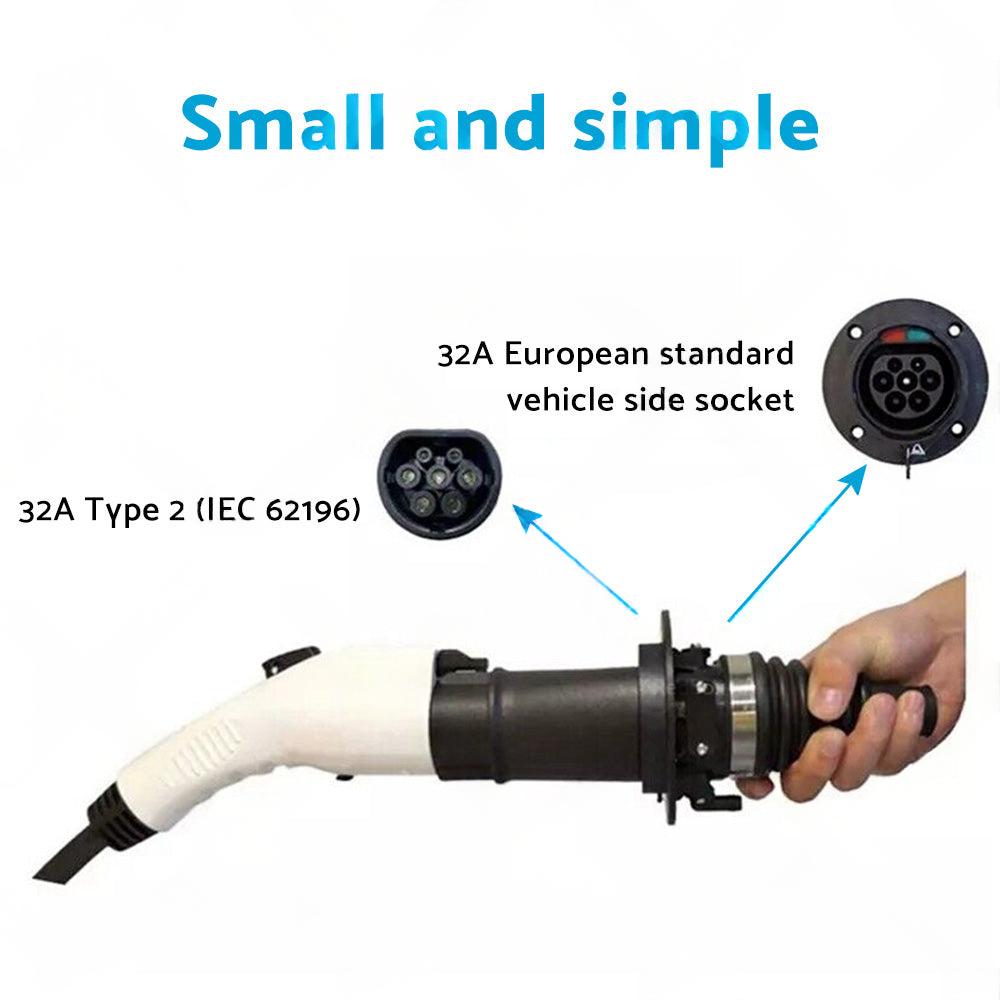

1.Plug in the Type 1 end of the adapter to the charging cable
2.Plug in the Type 2 end of the adapter to the car's charging socket
3.After the adapter has clicked in place you are ready for the charge
Don't forget to activate the charging station
When you finish with the charge, disconnect the vehicle side first and then the charging station side. Remove the adapter from the charging station when in use.
Specifications

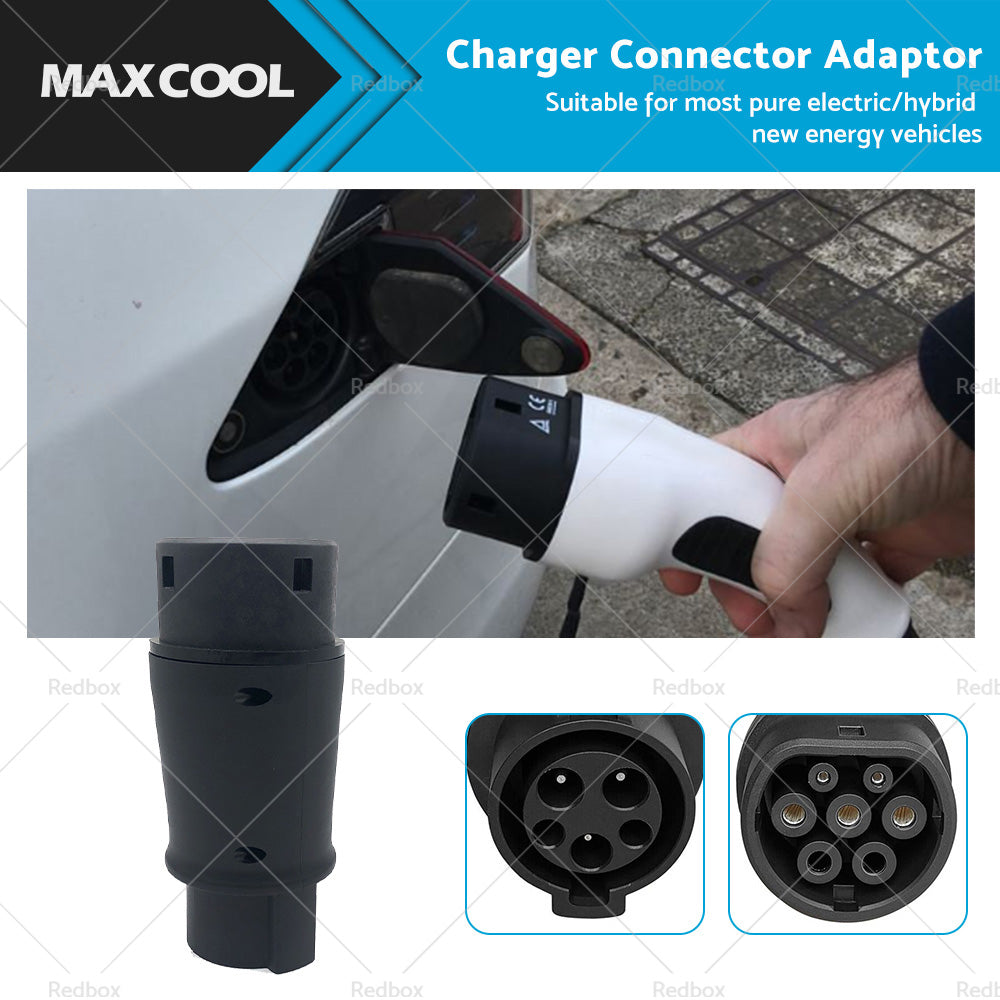

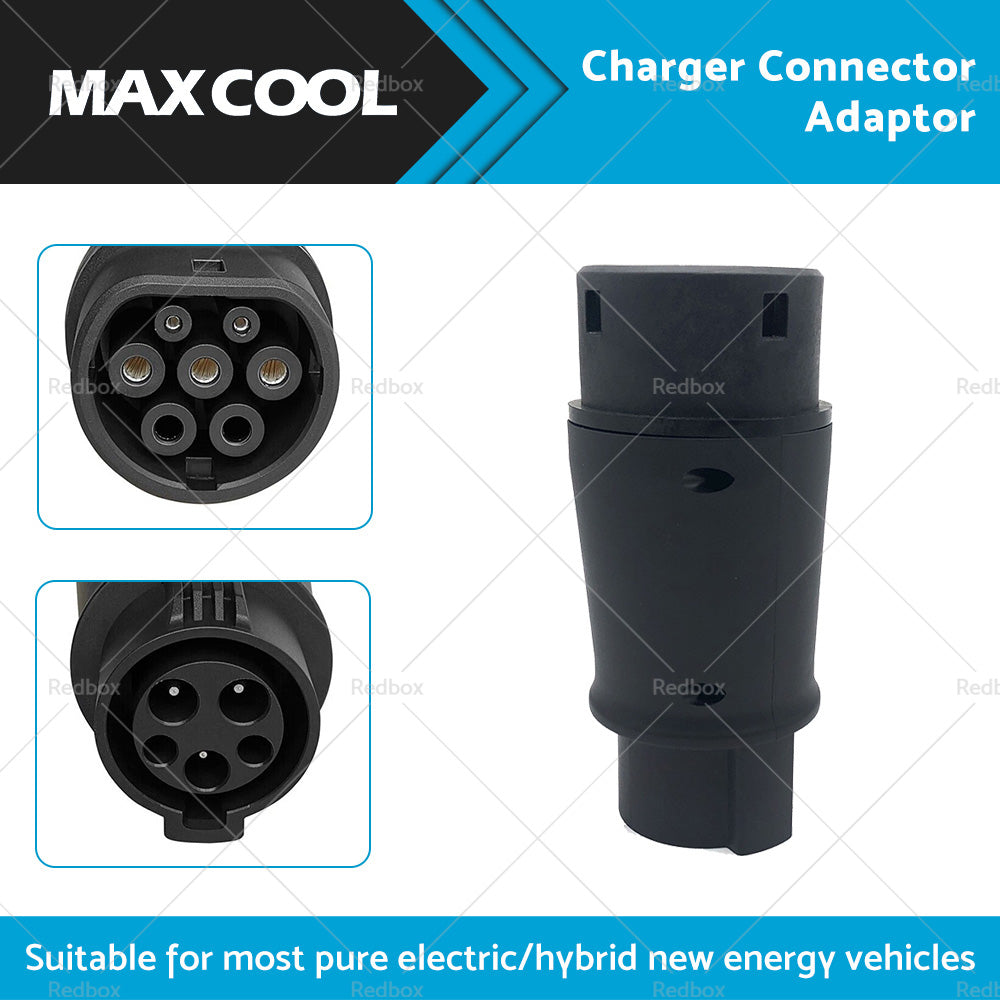

Brand: MAXCOOL
Type: American change European Adaptor
Warranty: 1 year
Protection grade: IP 54
Shell material: thermoplastic
Current: 32A/7.2KW/single-phase
Working temperature: - 30 ℃~+50 ℃
Rated voltage: 250V AC
Fire rating of plastic enclosure: UL94 V - 0
Product insertion force: 80 N

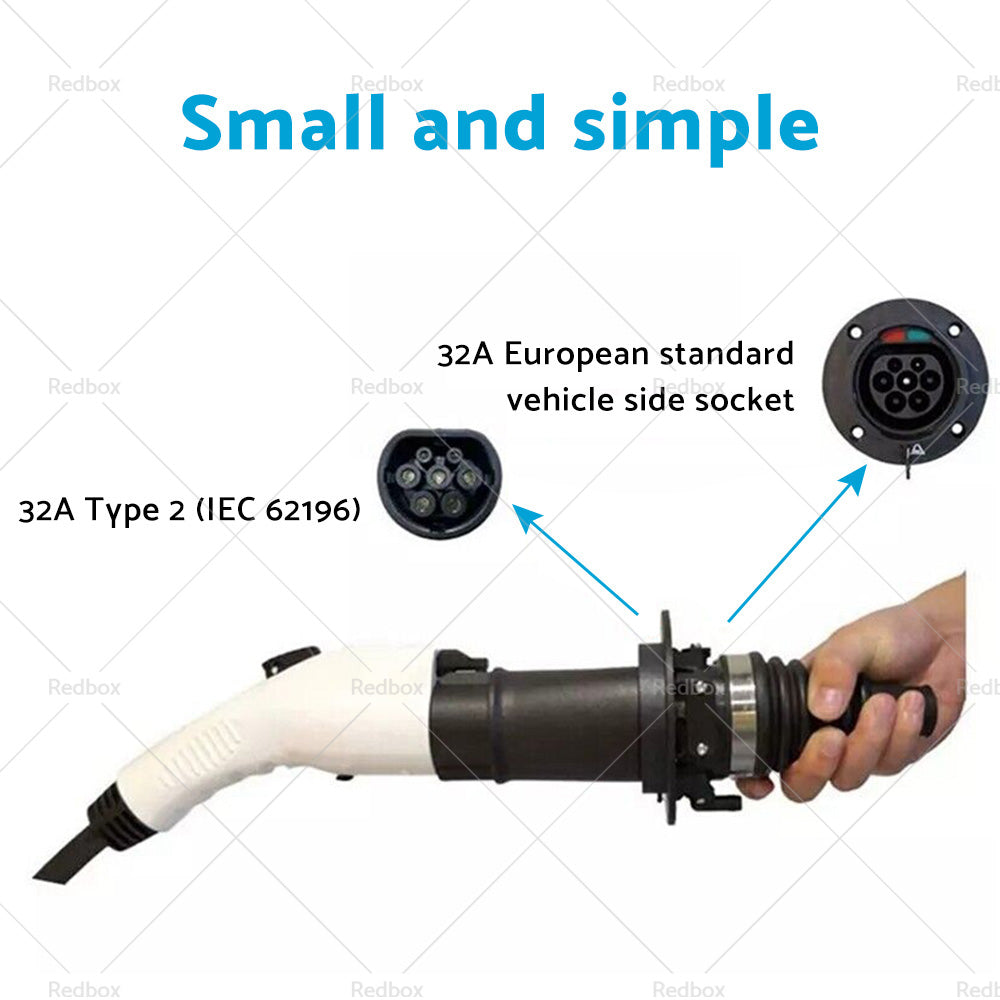

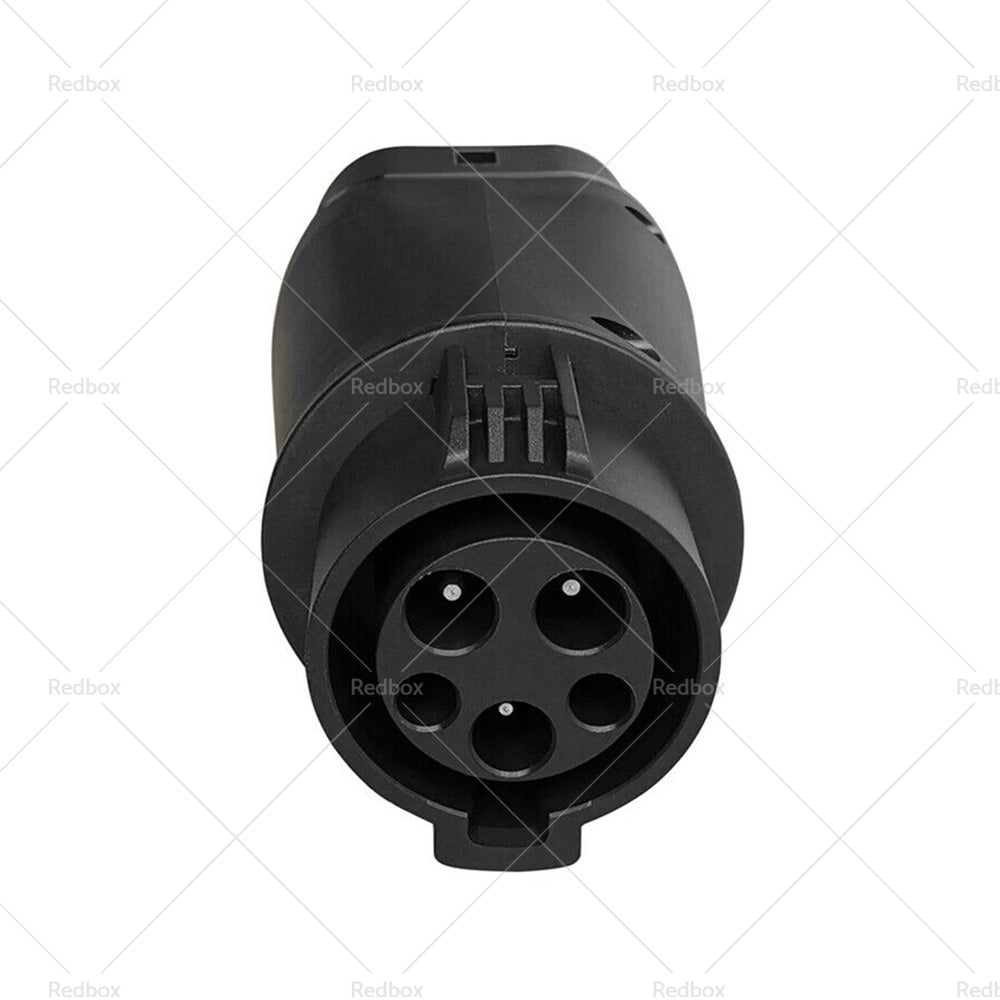

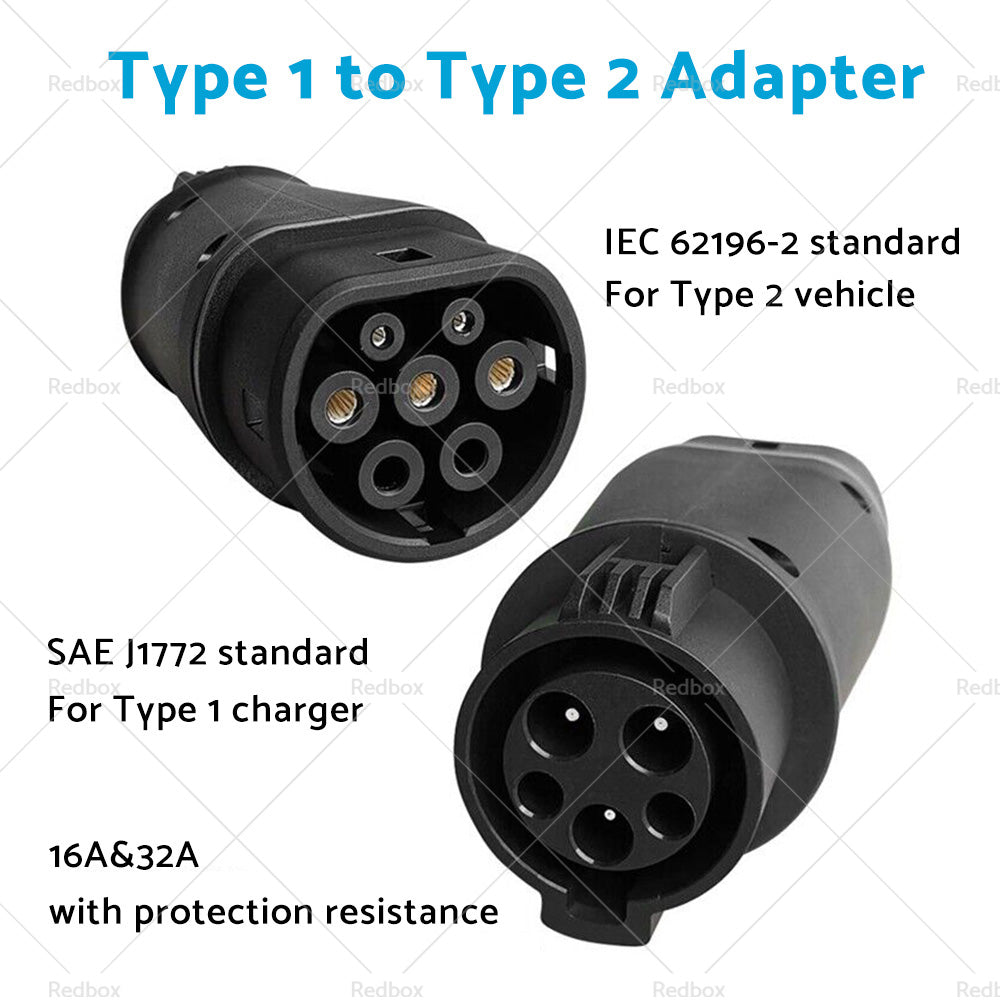

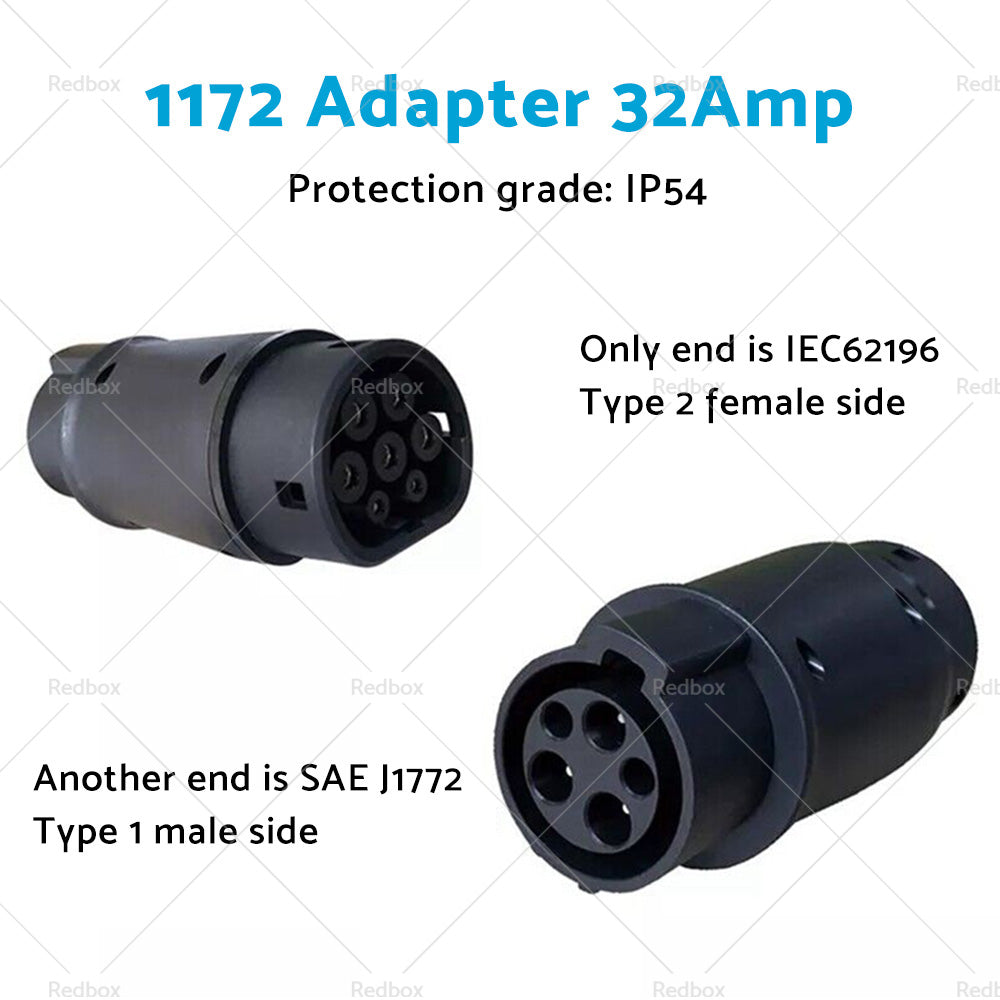

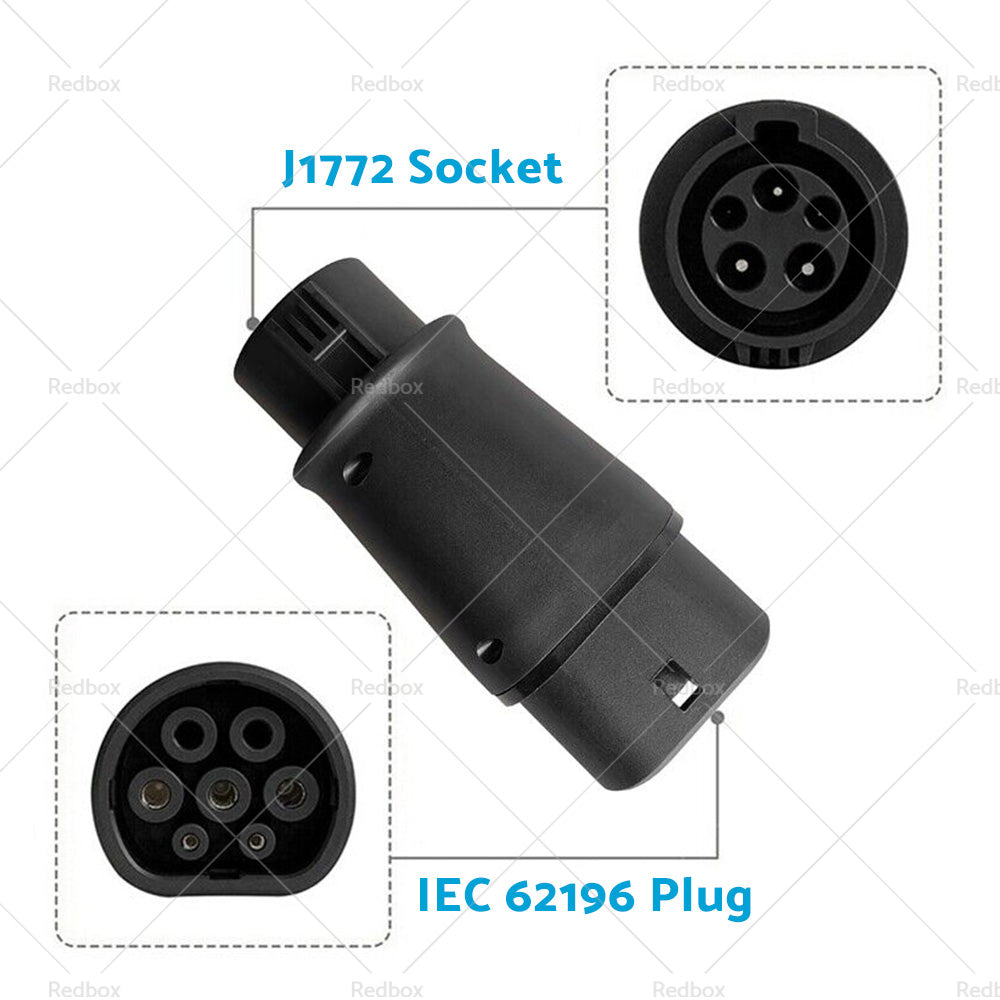

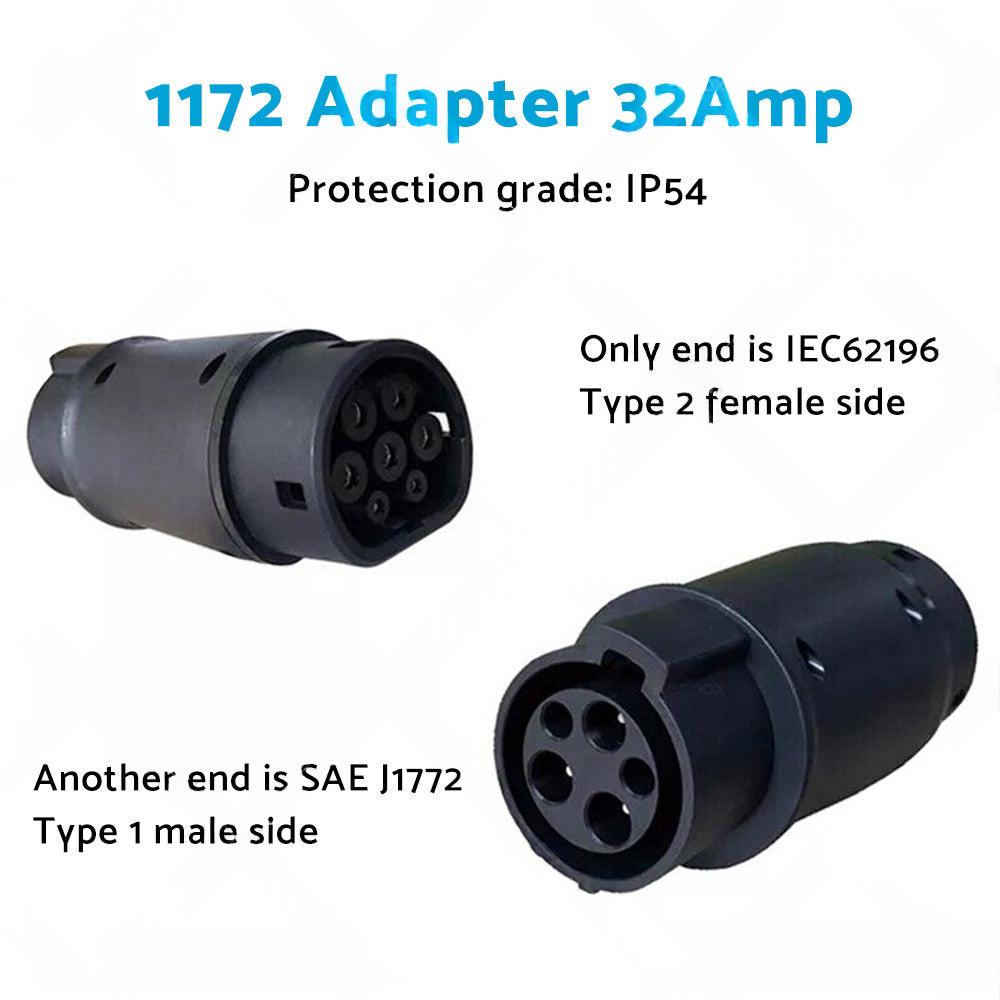

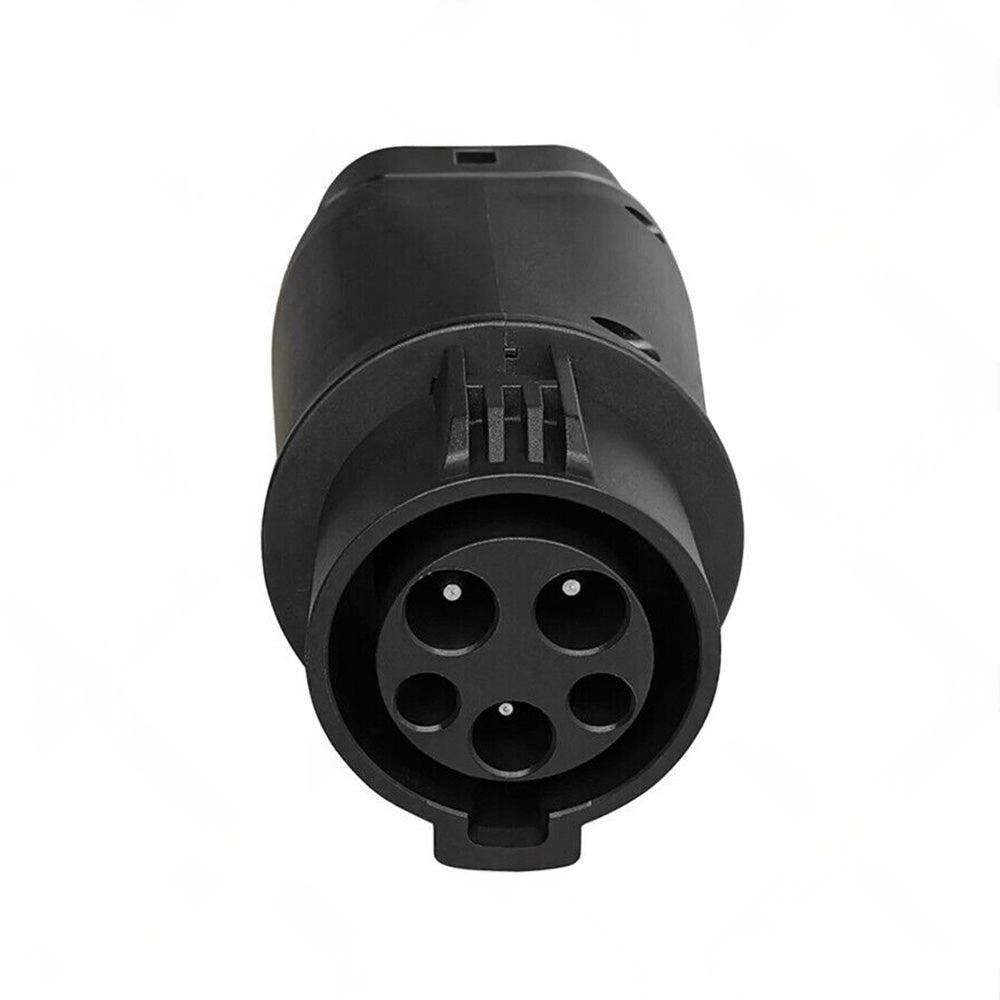

Charger Side Connection: SAE J1772 Type 1 Socket

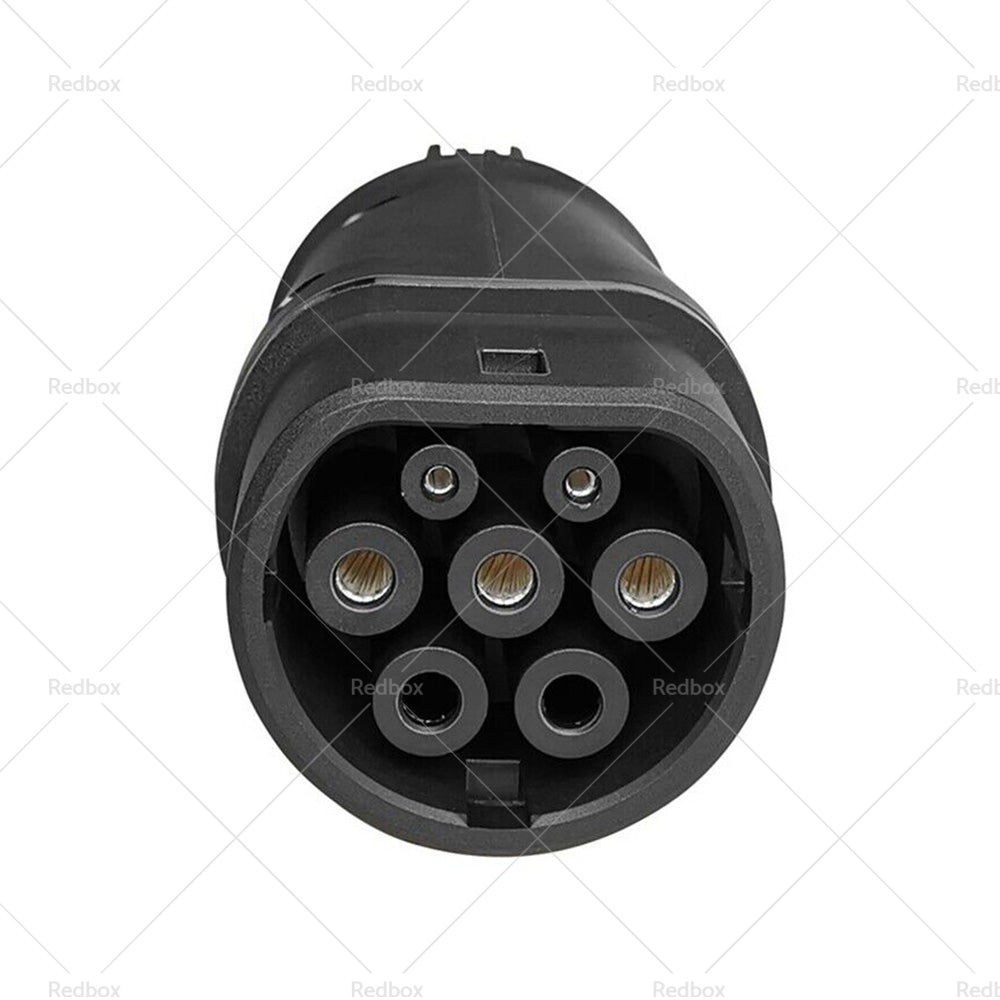

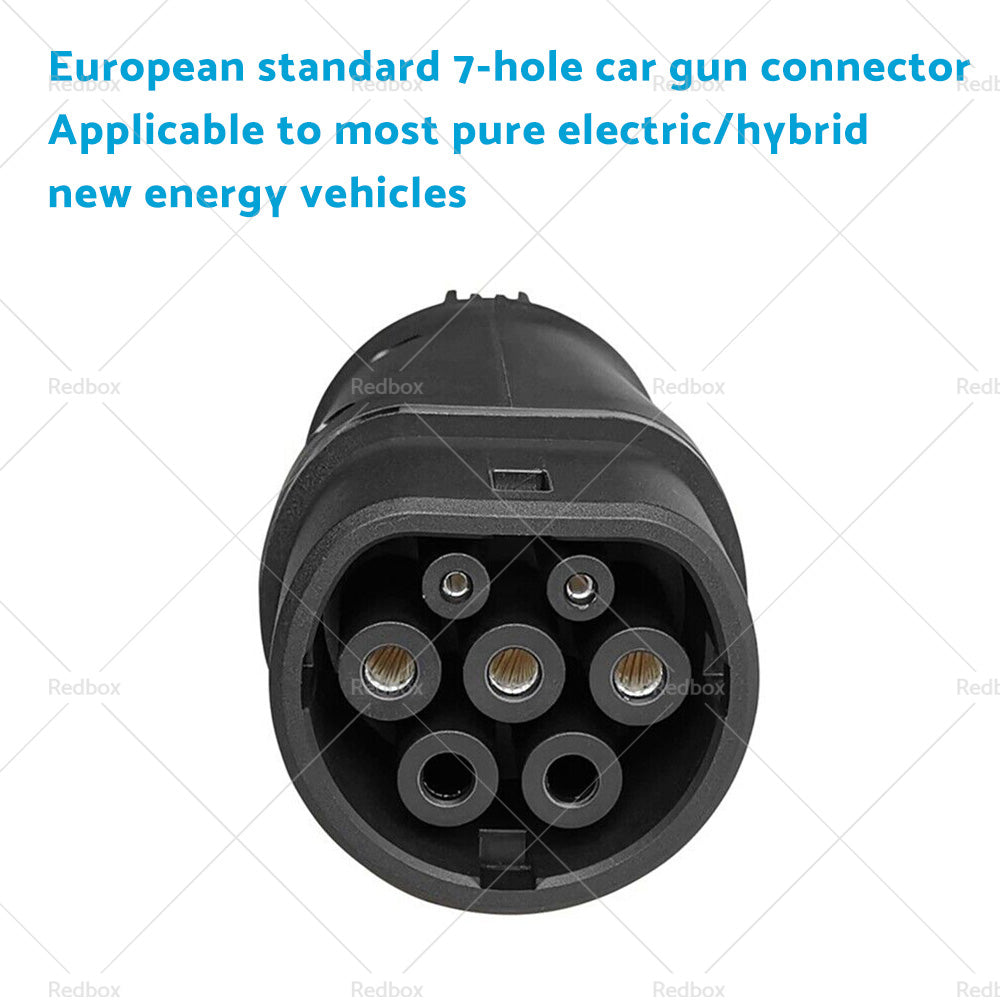

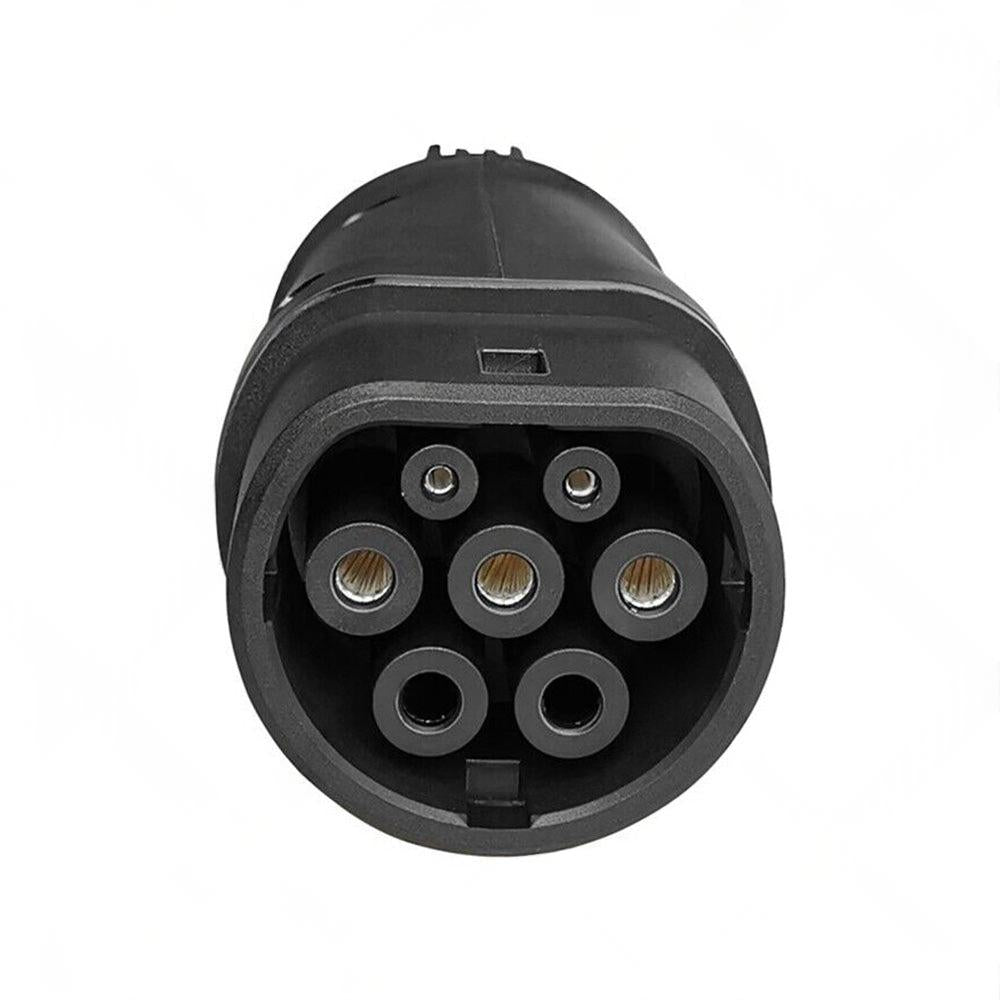

Vehicle Side Connection: IEC-62196-2 Type 2 Female Plug
Package include:
1 x American change European Adaptor
