Front Mount Intercooler Kit Suitable For Ford Ranger PX PX2 Mazda BT-50 3.2L Turbo 2011+

Front Mount Intercooler Kit Suitable For Ford Ranger PX PX2 Mazda BT-50 3.2L Turbo 2011+

SKU:17FD220-PA40+12FD204-FA76-B-2

Regular price $314.73 AUD
Sale price $314.73 AUD Regular price $711.48 AUD
Shipping calculated at checkout.

Compatible with:
Suitable For FORD RANGER PX/PX2 MAZDA BT50 3.2L 2011 ON
Please note that there is boost gauge barb hole, need a block off bolt if your model doesn't have the boost gauge.
It's common for the standard rubber pipes fitted to these vehicles to expand under boost pressure causing lag, not only that but they are prone to fatigue and split over time. The ATI hard pipe upgrade completely replaces the factory rubber hoses with alloy piping and reinforced silicone joiners that wont fatigue or expand.

Specification:

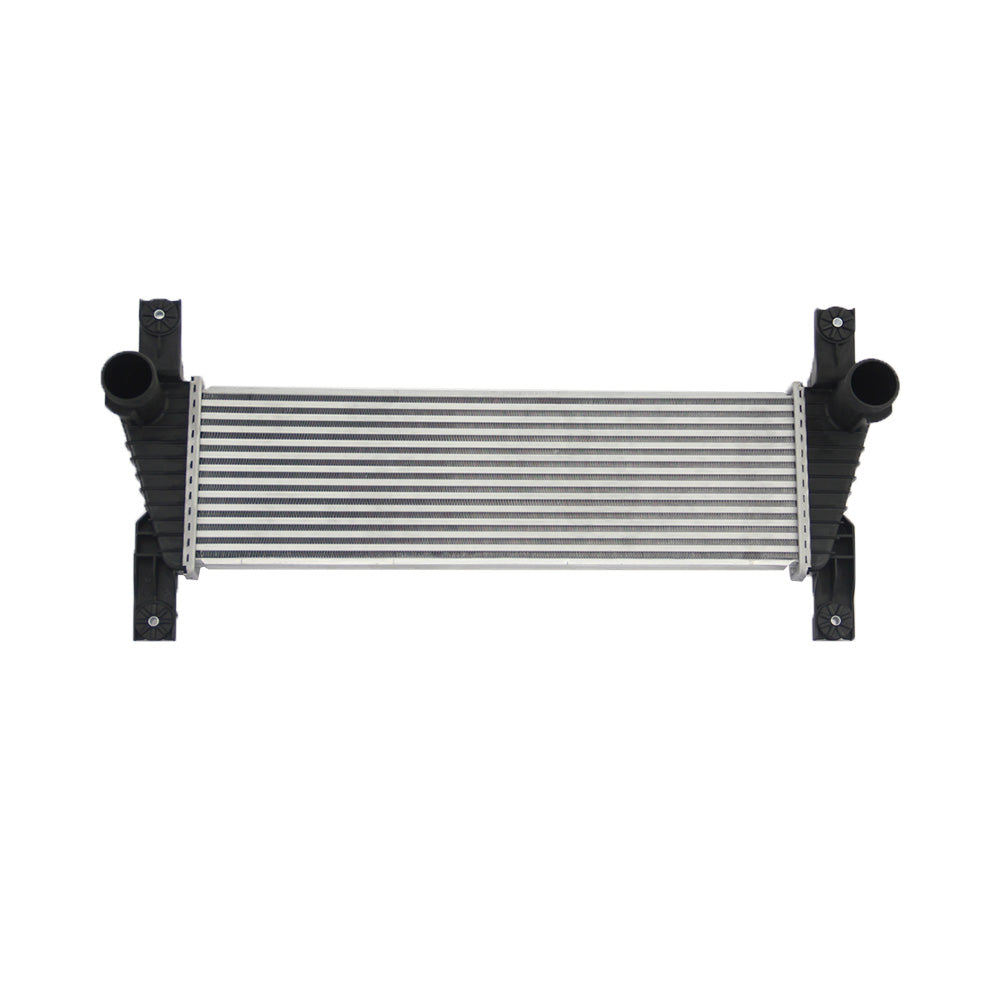

Material: Plastic Tank & Alloy Core
Core Size: 670*187*40MM
Inlet/Outlet: 56MM

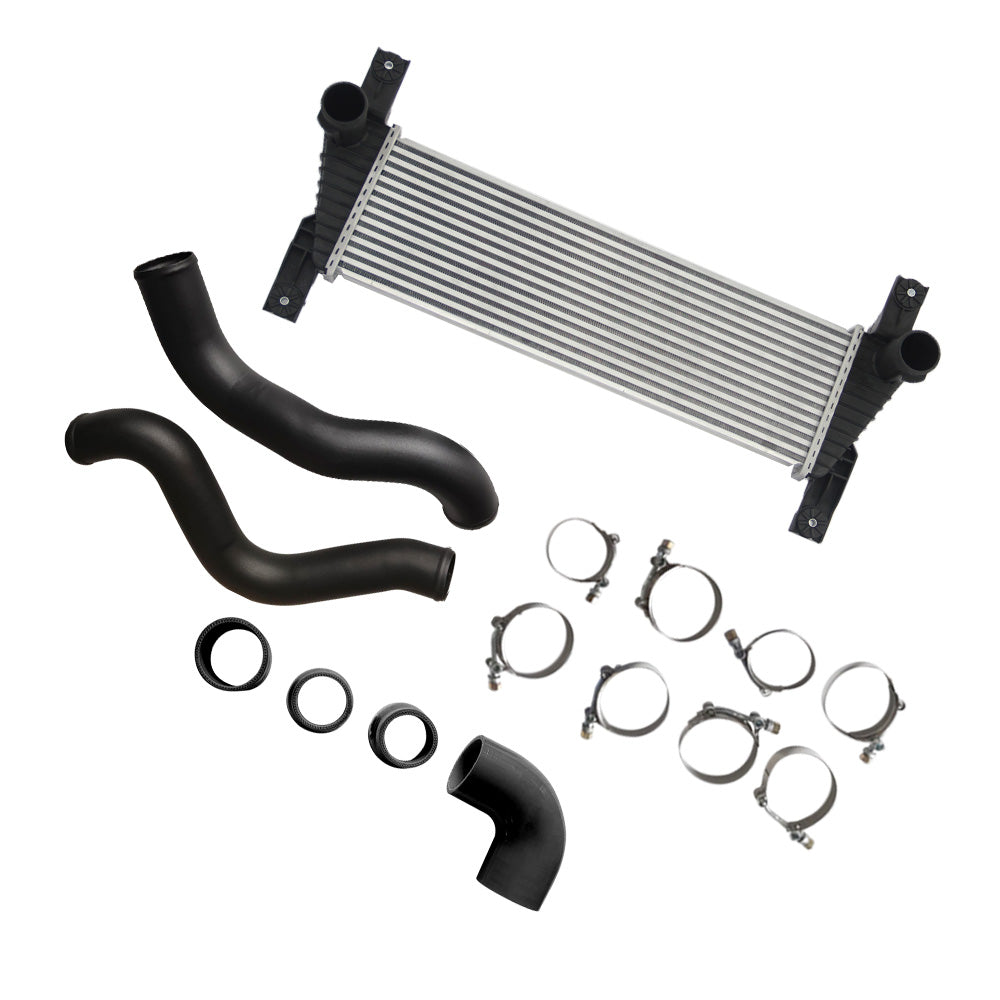

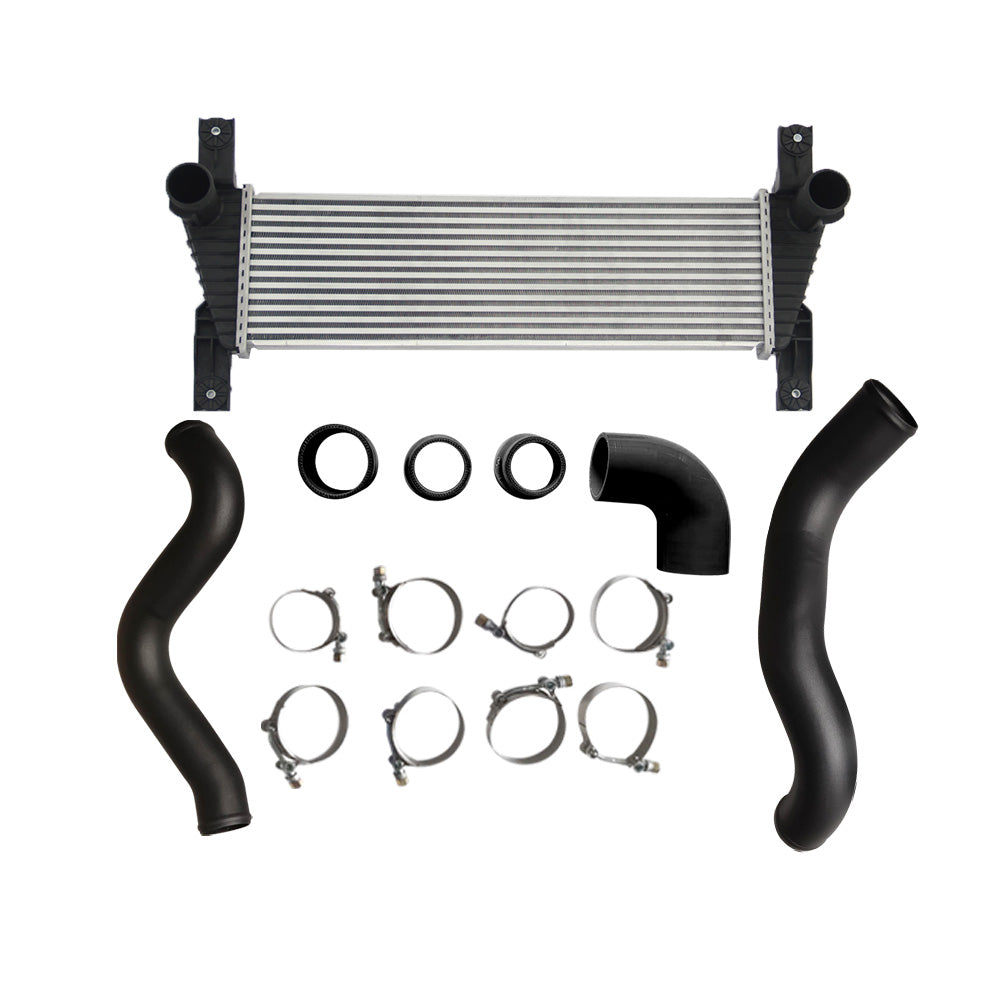

Package Including:
1x Intercooler
1x Black alloy drivers side intercooler pipe
1x Black alloy passengers side intercooler pipe

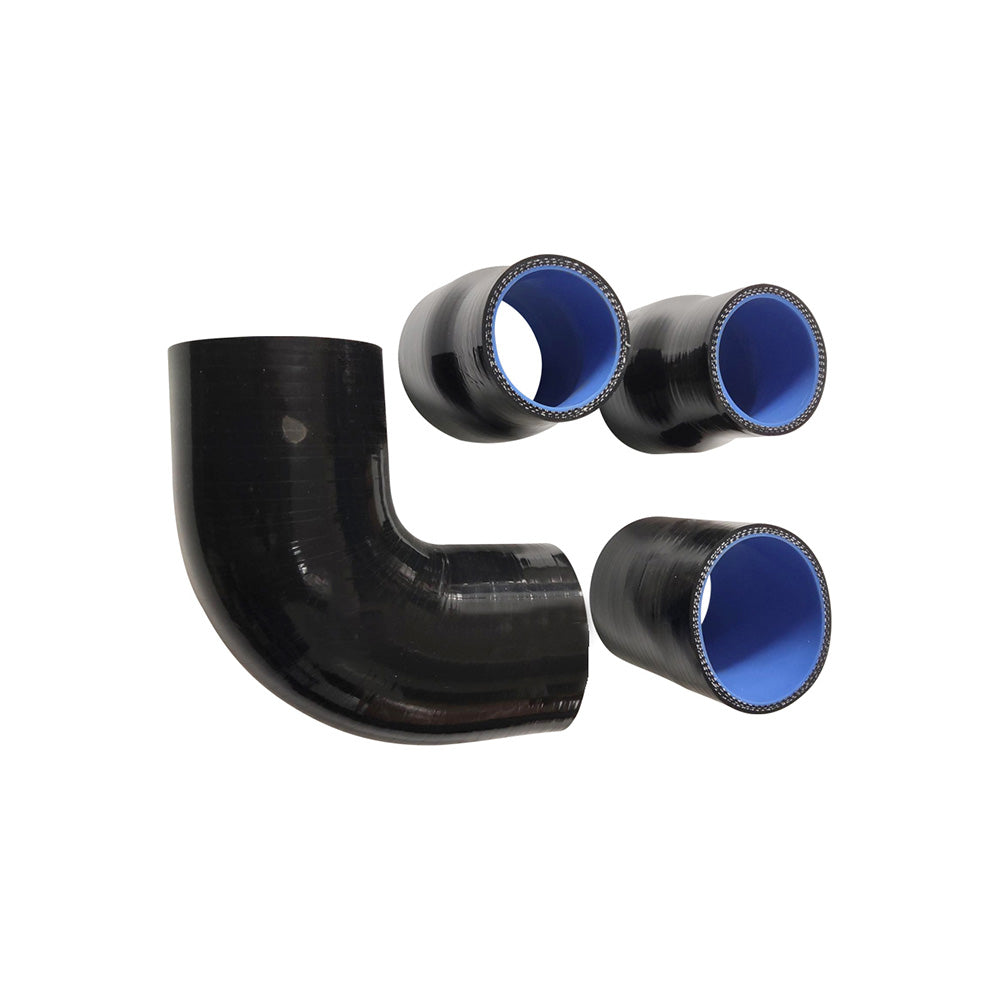

4x Reinforced silicone joiners, size shown as follows:
1x 63mm straight hose
2x 63mm-51mm hose reducer
1x 51mm with 90 degree
8x All necessary heavy duty stainless hose clamps
Note:
- Some models require different silicone joiners, kindly check the size of the hoses we provided.
- If you need other ones, we are able to provide you some extra hoses at factory price.
