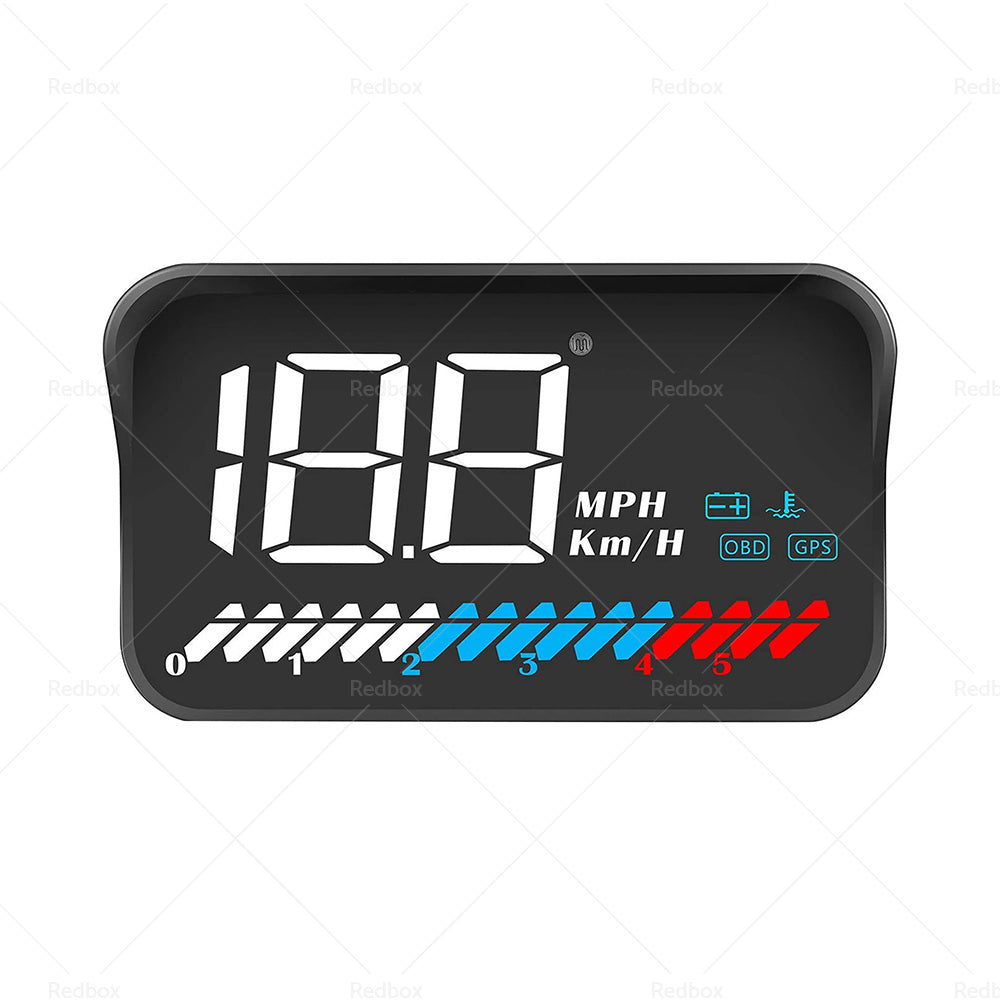

Head Up Display Car Universal OBD GPS Dual System 3. 5inch HUD Speed Alarm Voltage

Feature:

1. Head Up Display

    It displays driving data on the front windshield, such as speed, water temperature, voltage, etc, avoiding the danger of the driver looking down at the dashboard.

2. Installation

    The installation is simple and convenient, plug and play, and it won't damage your car at all.

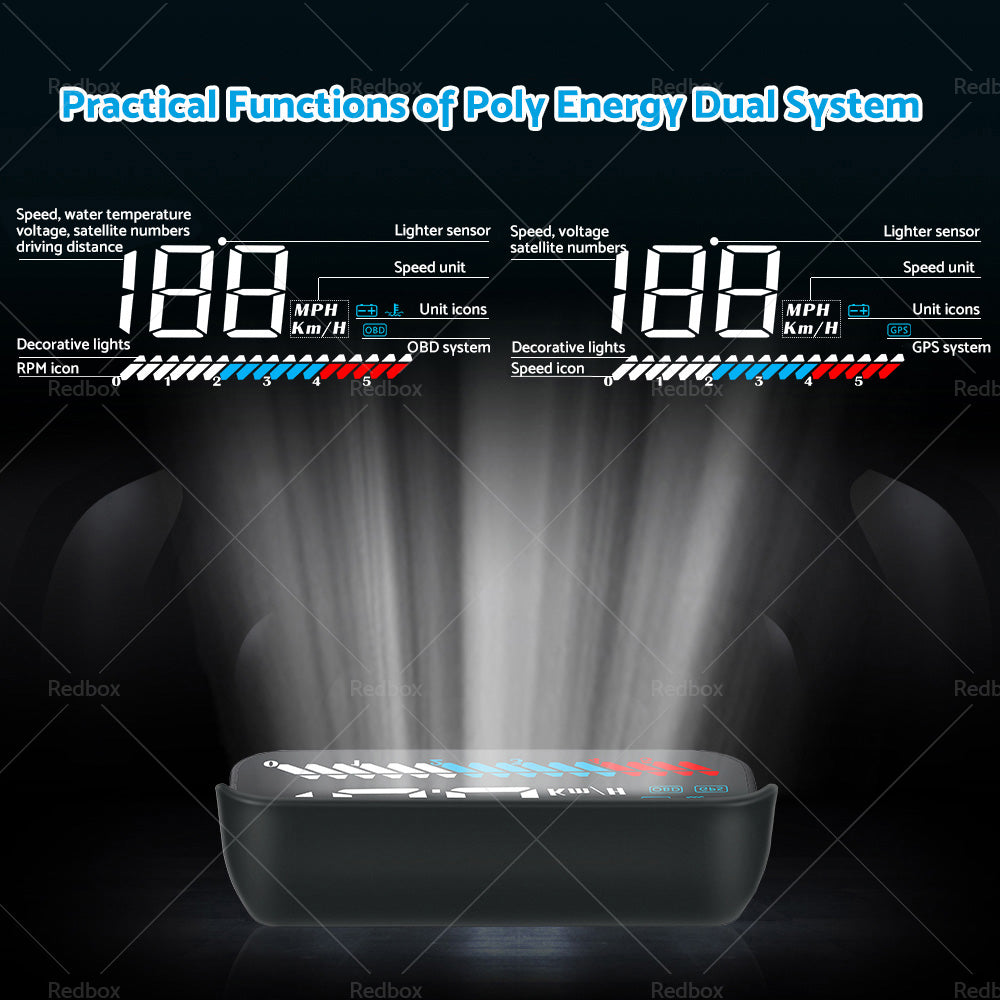

3. Multi function

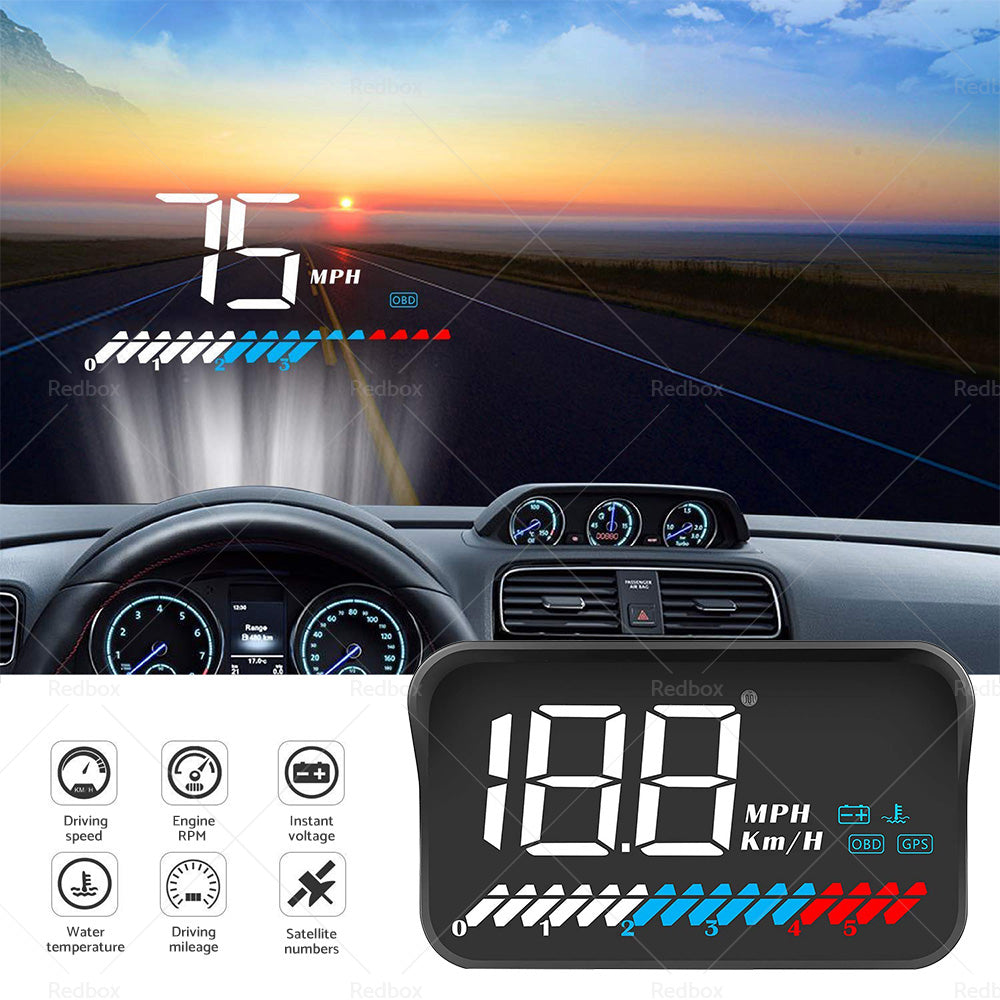

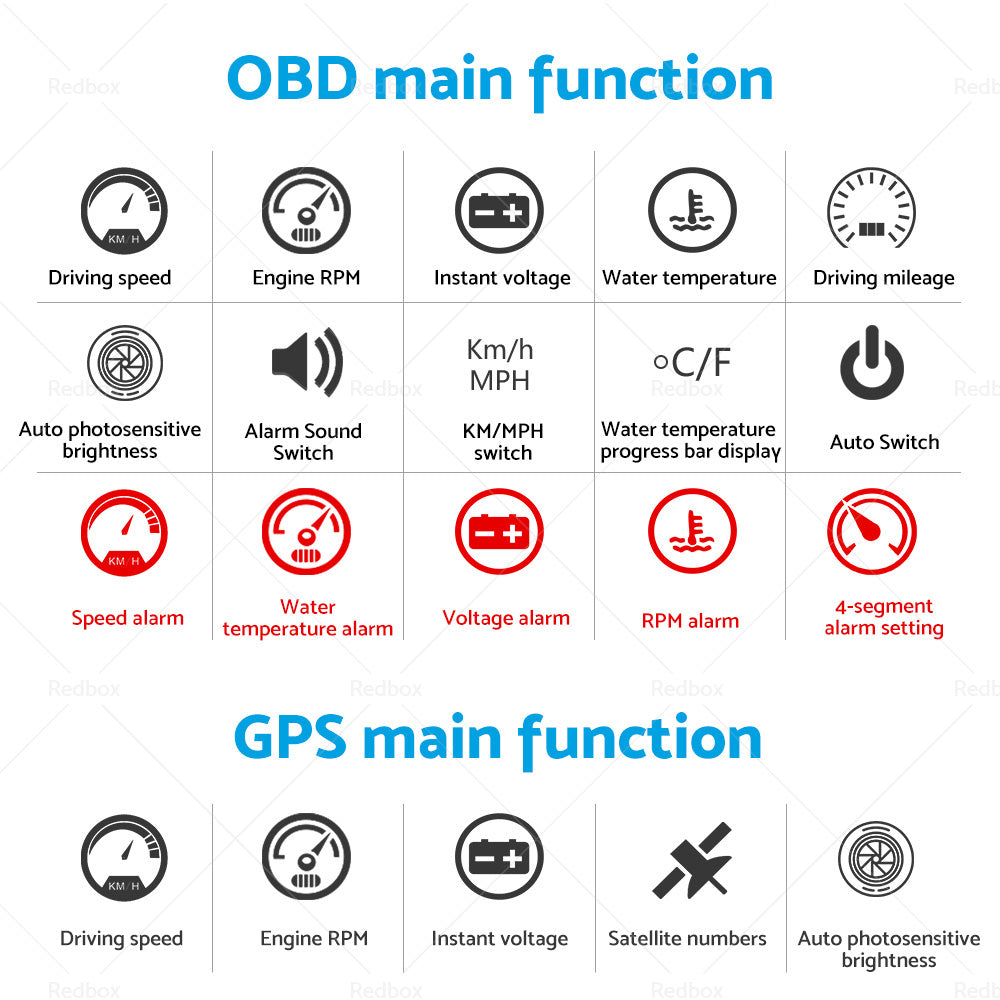

    In the OBD mode, it can display: speed, water temperature, voltage, driving distance, with the functions of speed alarm, water temperature alarm, voltage alarm, etc.

    GPS mode can display: speed, voltage, driving distance, with speed alarm , voltage alarm function.

    HUD can automatically adjust the brightness according to the environment.

4. Compatibility

    OBD2 is only applicable to vehicles manufactured after 2008.

    GPS mode is applicable to all vehicles（If your car is not compatible with OBD mode, please select GPS mode.)

    Dual system. OBD2 is not compatible with electric vehicle, diesel vehicle, pickup truck, RV and computer modified vehicle, so GPS mode is recommended.

Installation Steps:

1. Insert the product into the OBD socket connector or cigarette lighter connector.

2. The wire rod is inserted into column sealing strip.

3. Connect the OBD interface to the HUD and place the HUD to the right place.

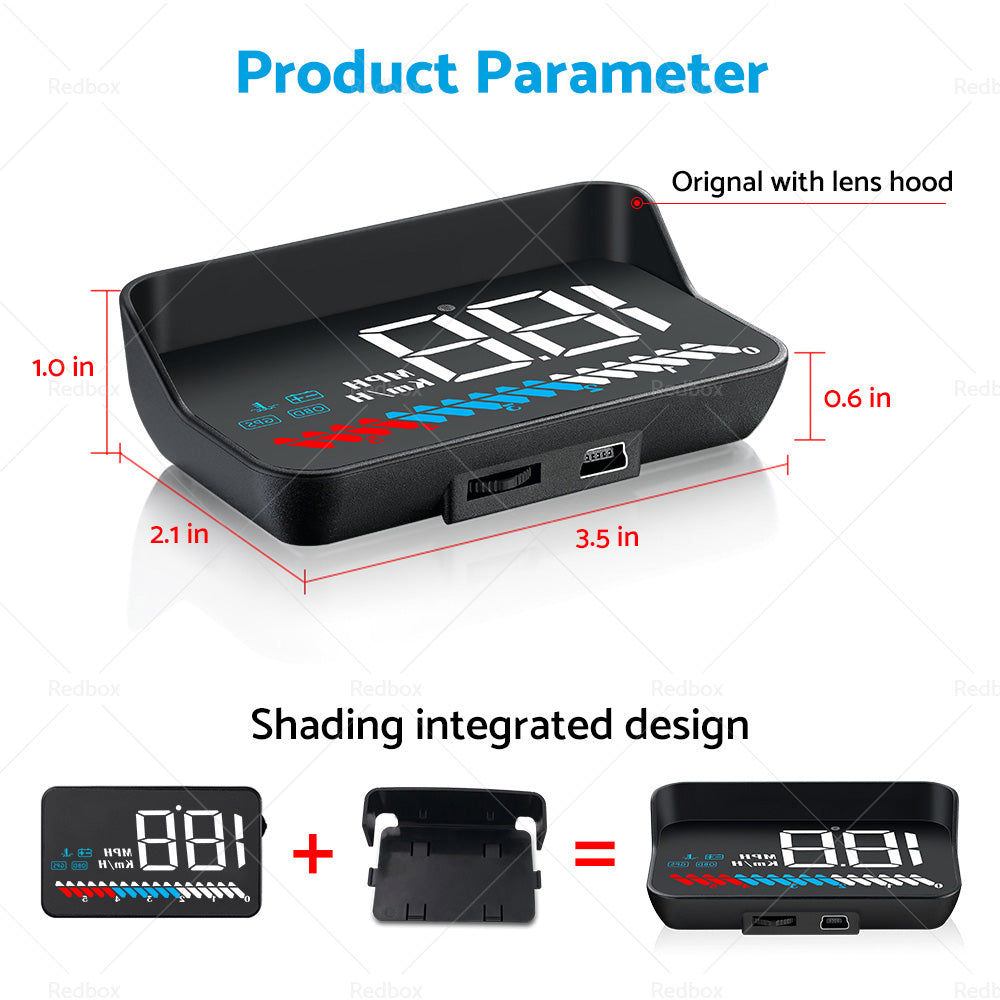

Technical Parameters

1. Terms of Use:

Environment temperature: -40C- +80C

Barometric press: 86-106KPa

Relative humidity: 10%-95% Environment voice: <=60dB

2. Work voltage: 11V~18Vdc(12Vdc/200mA)

3. Standby current: <=20mA

Package Include:

1 x M7 Head Up Display

1 x USB cable

1 x OBD cable

1 x User manual

1 x Non-slip mat

1 x Reflective film
