Features:

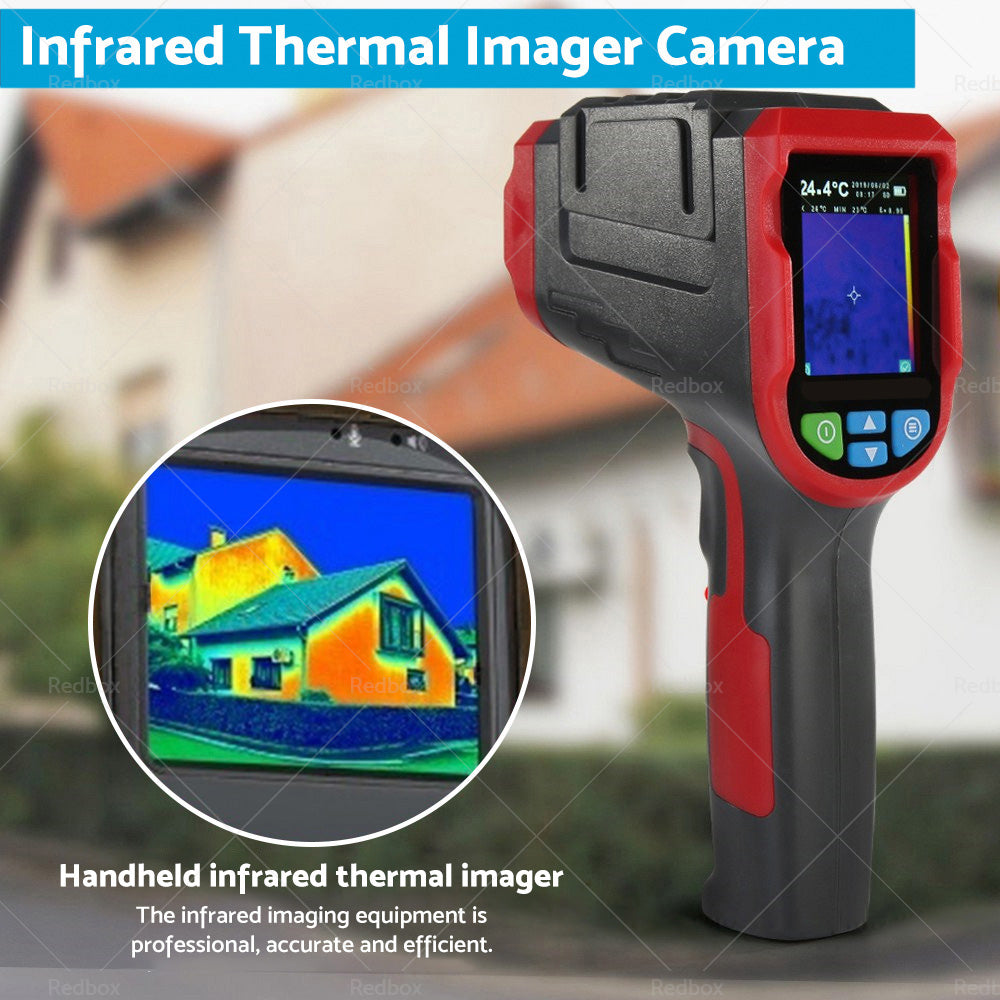

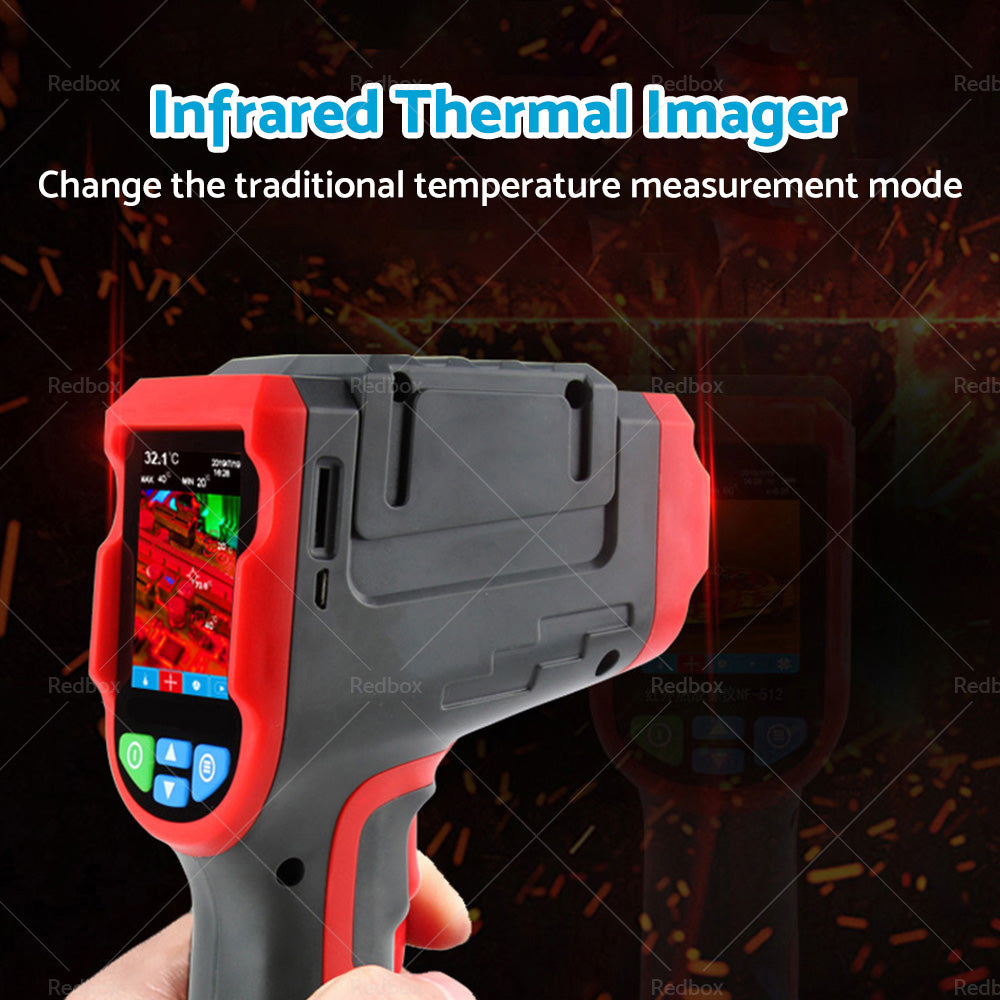

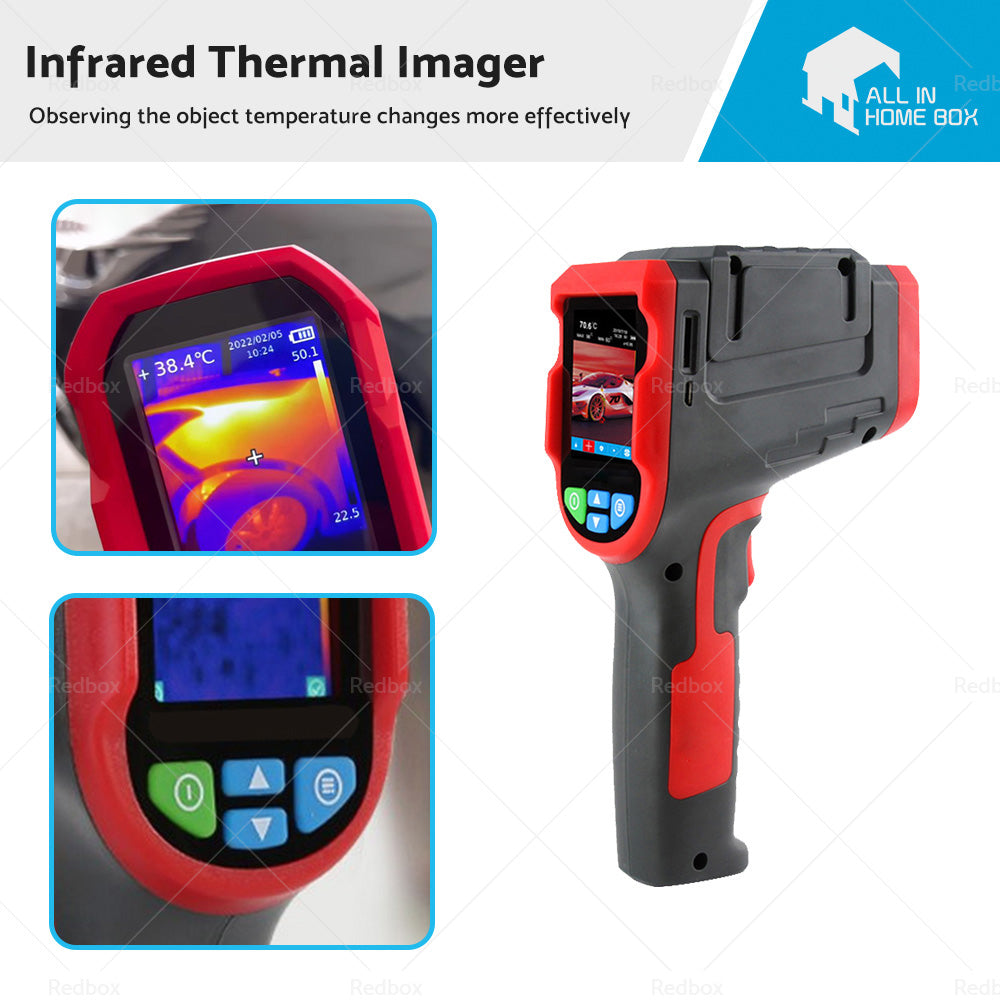

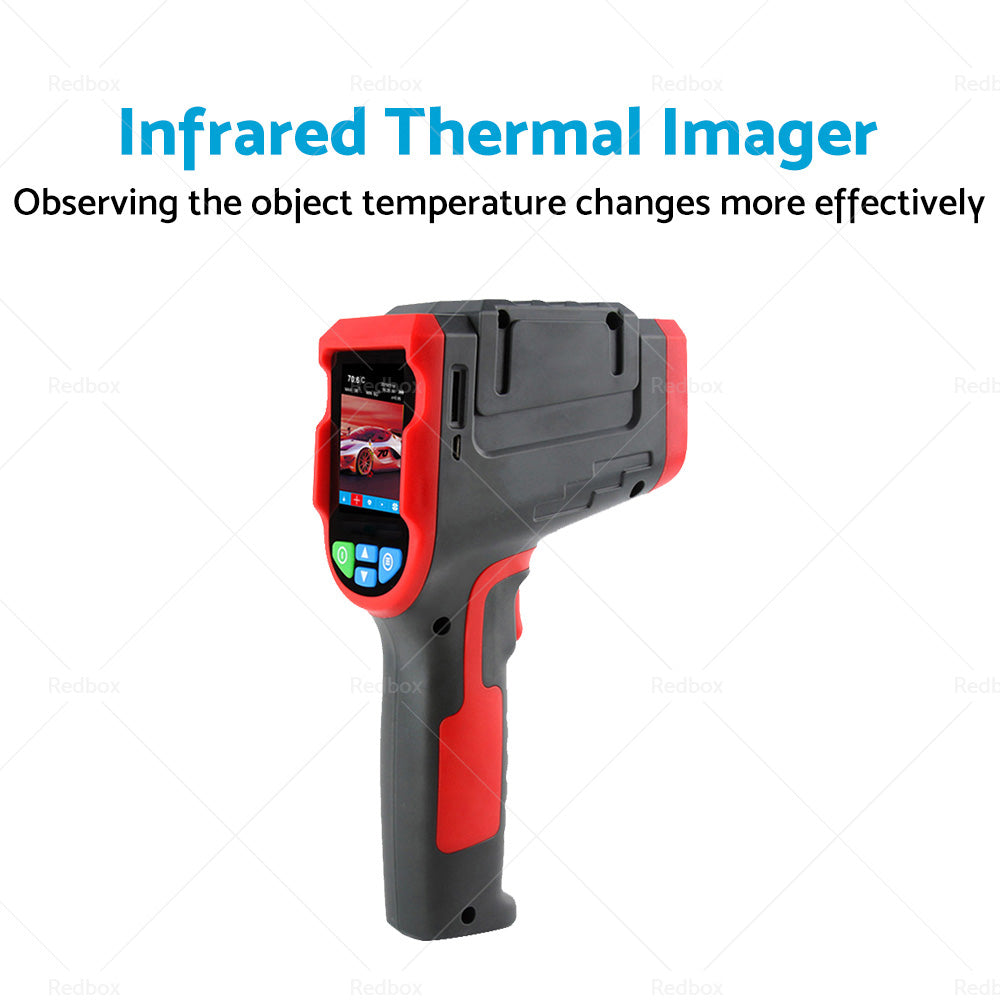

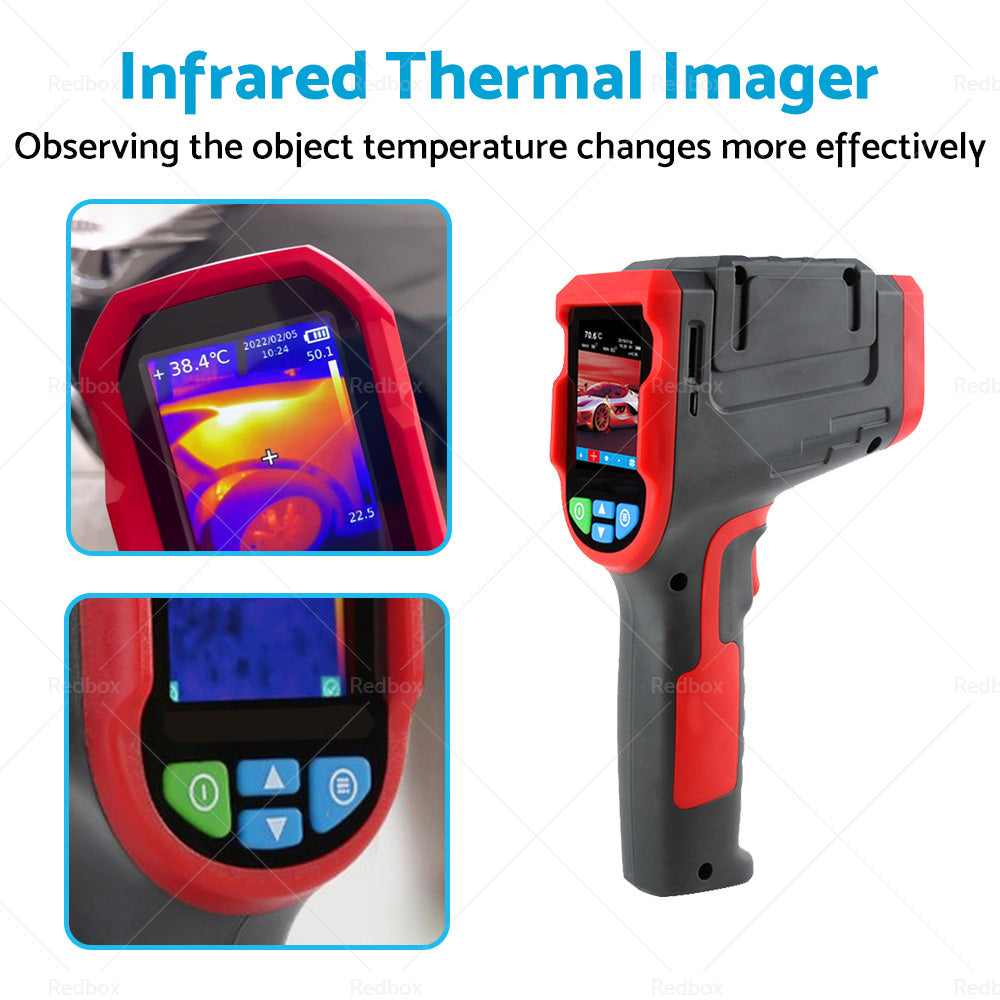

This Product has thermal imaging function and can display hot and cold spots on the screen, enabling users to oberve the object temperature changes more effectively.
It helpls you to quickly lock the target area.

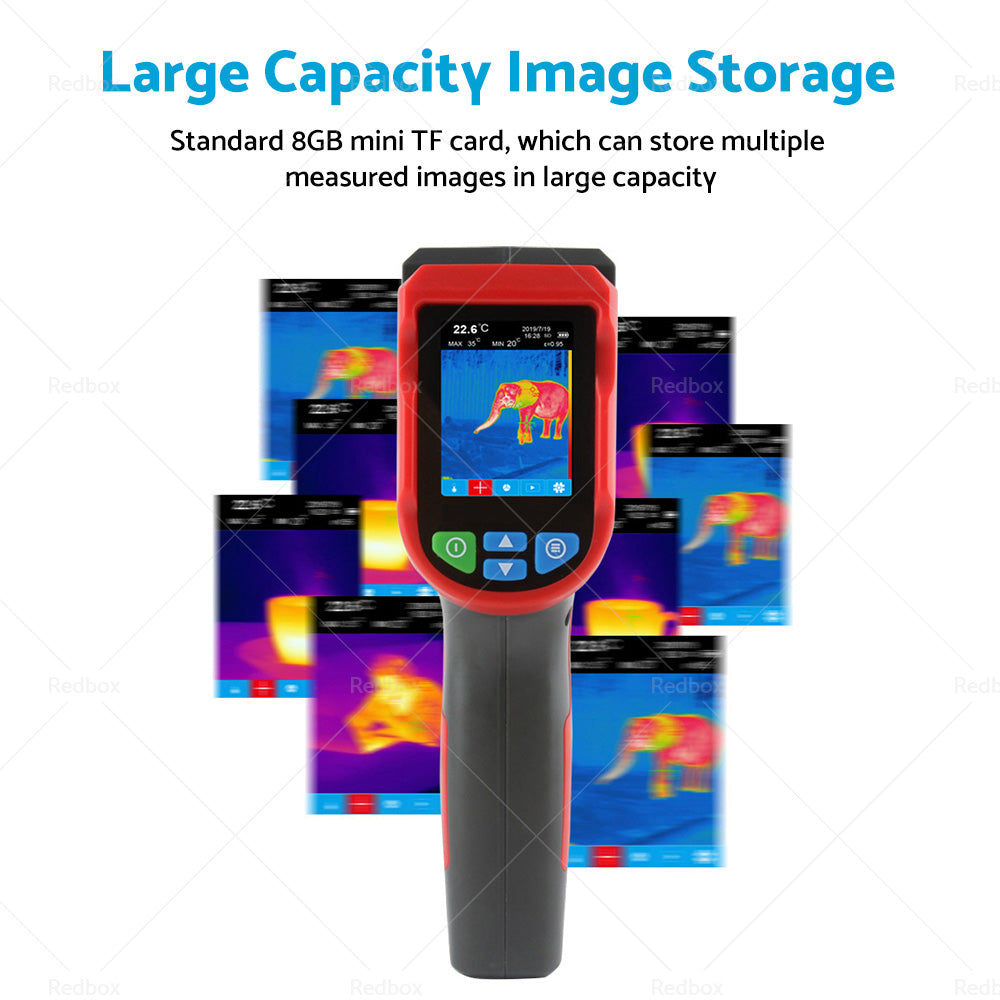

The standard 8GB memory card can save a large number of images and data and generate high-quality infrared images, which is a useful tool for fault maintenance.
Main function:
1. 2-megapixel white lens
2. 2.4 TFT LCD Display
3. Temperature testing range: -10°C ~ 400°C
4. 32×32 pixel resolution, 33° Field of View

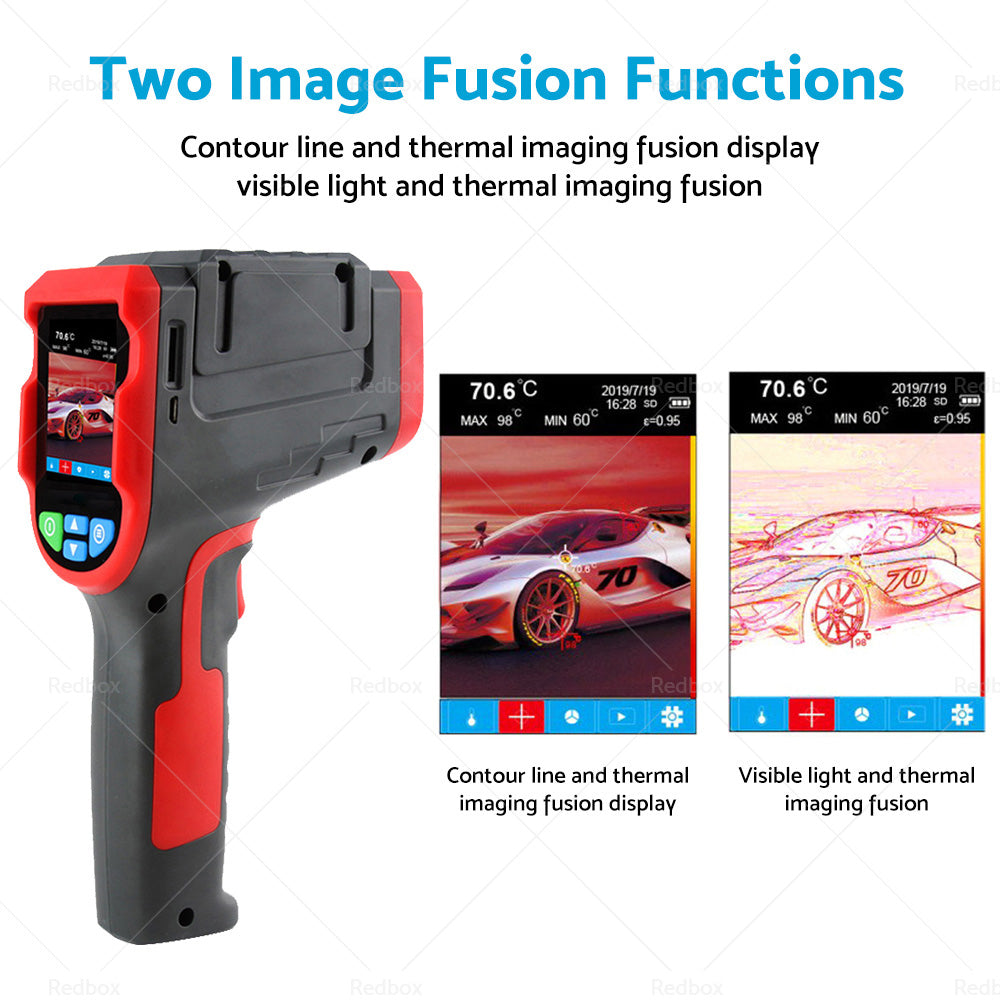

5. Merging visible and infrared image display
6. Chargeable Li-ion battery (charge by micro USB interface)
Specification:

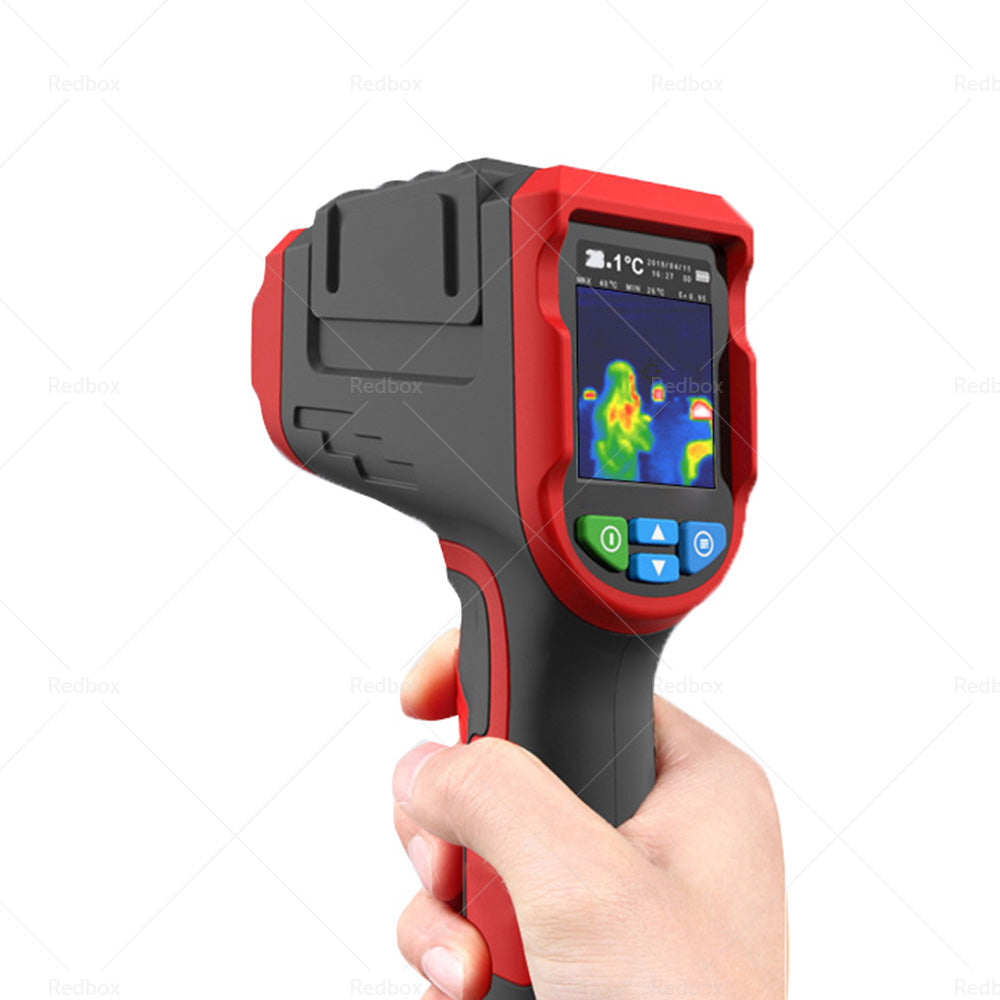

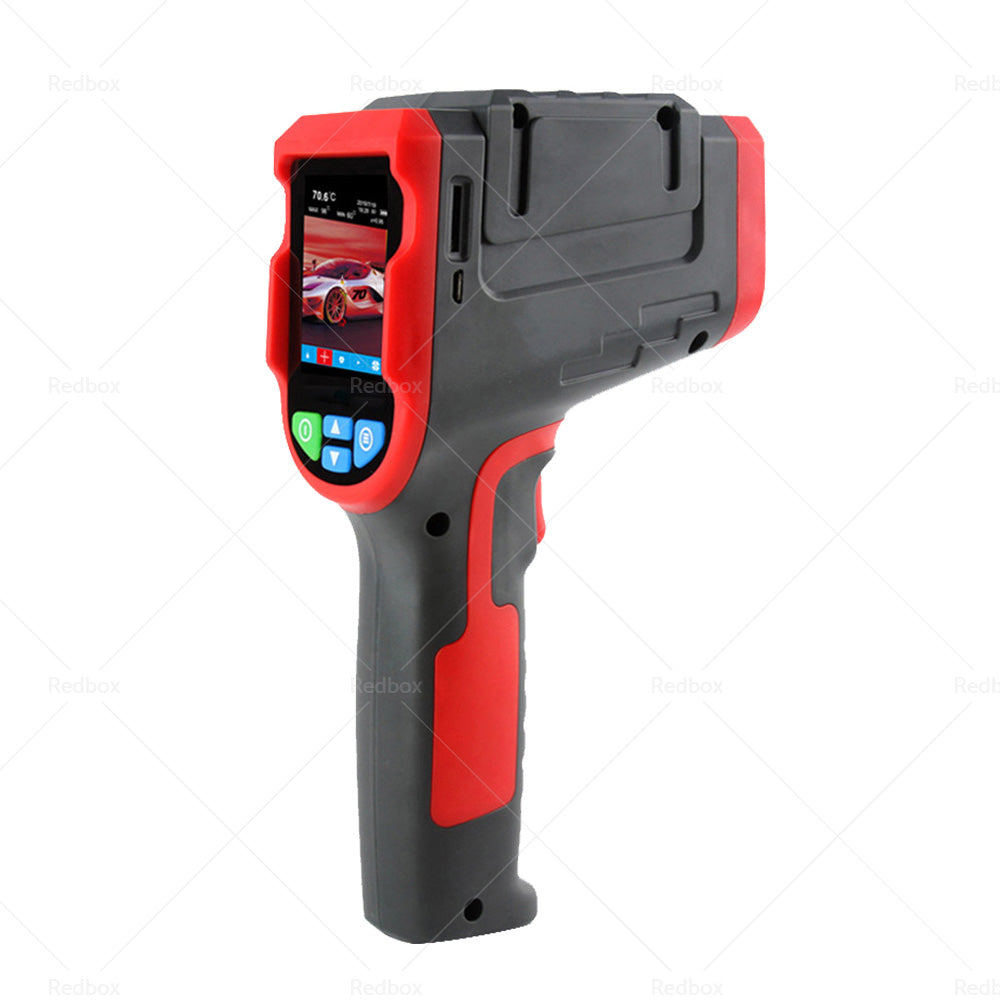

Type: Thermal Imaging Camera

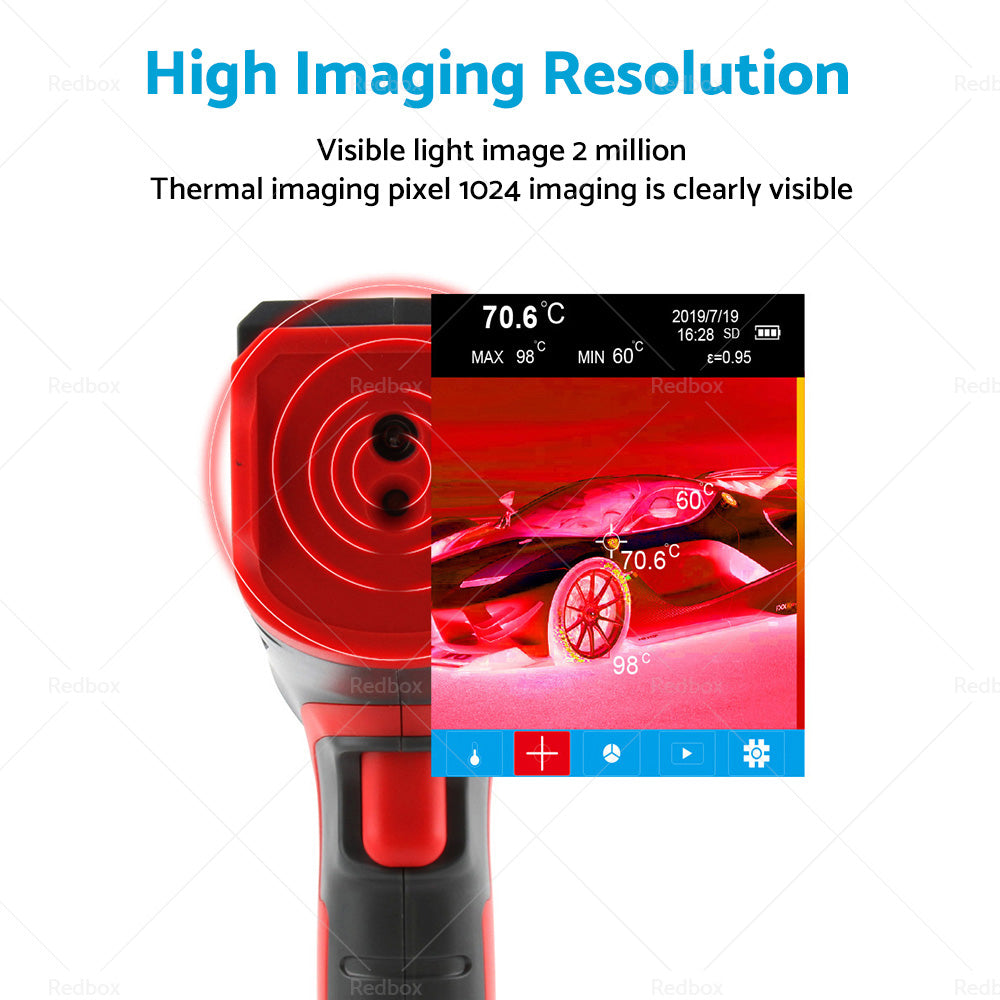

Thermal imaging resolution: 1024 pixels (32*32)
Visible light camera: 2 million pixels

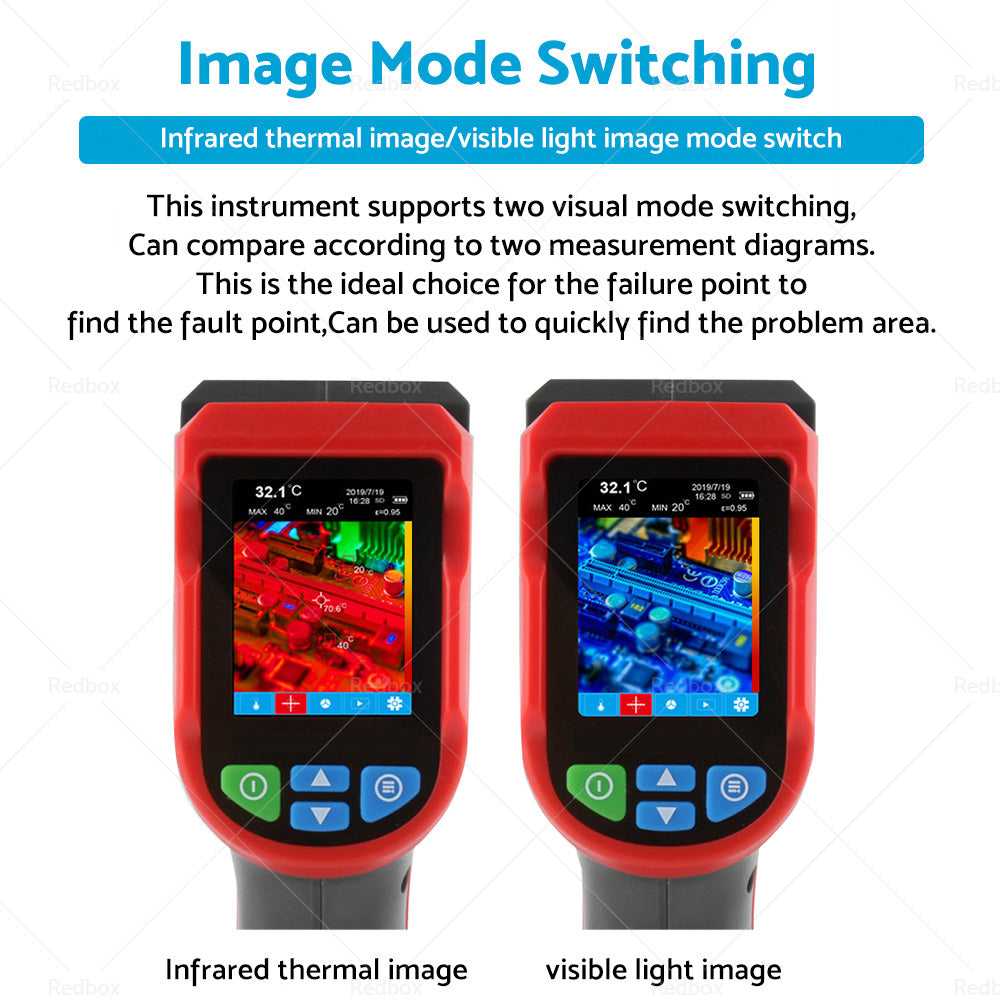

Display Mode: Thermal Imaging, Thermal Hybrid, Digital Camera

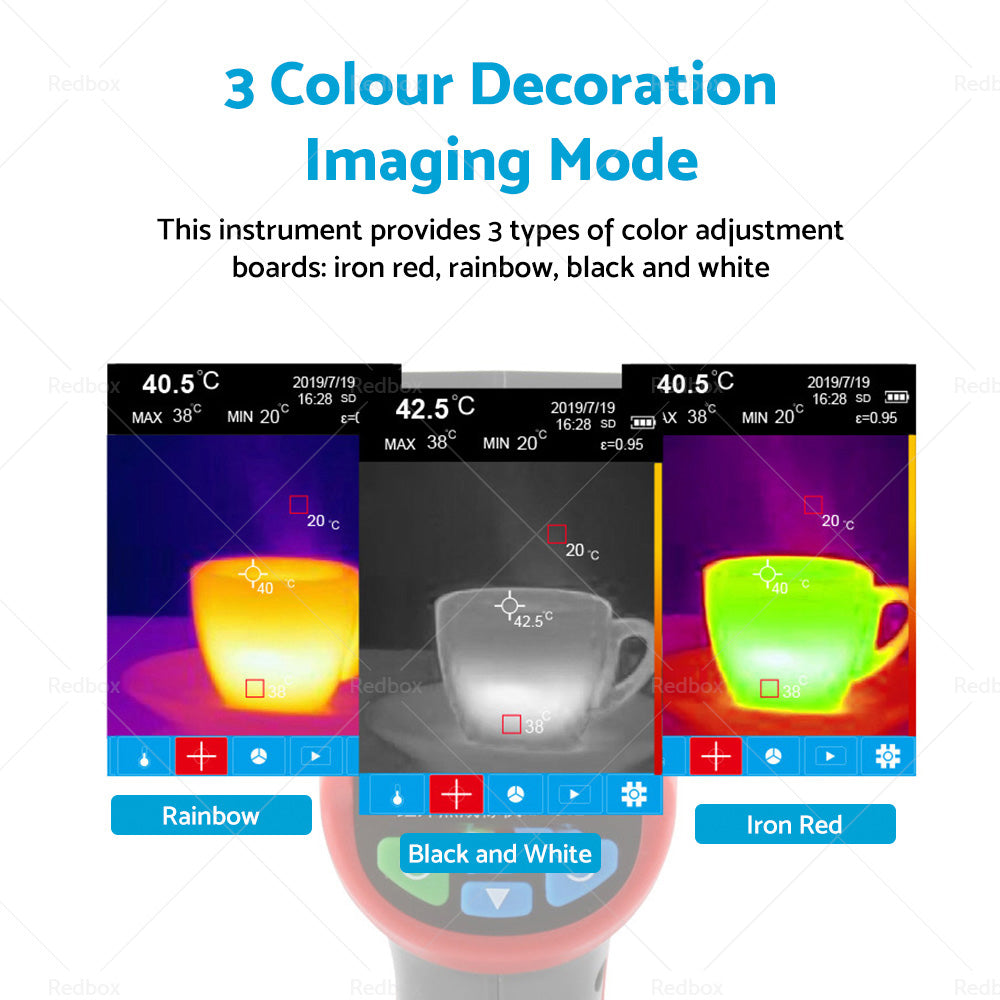

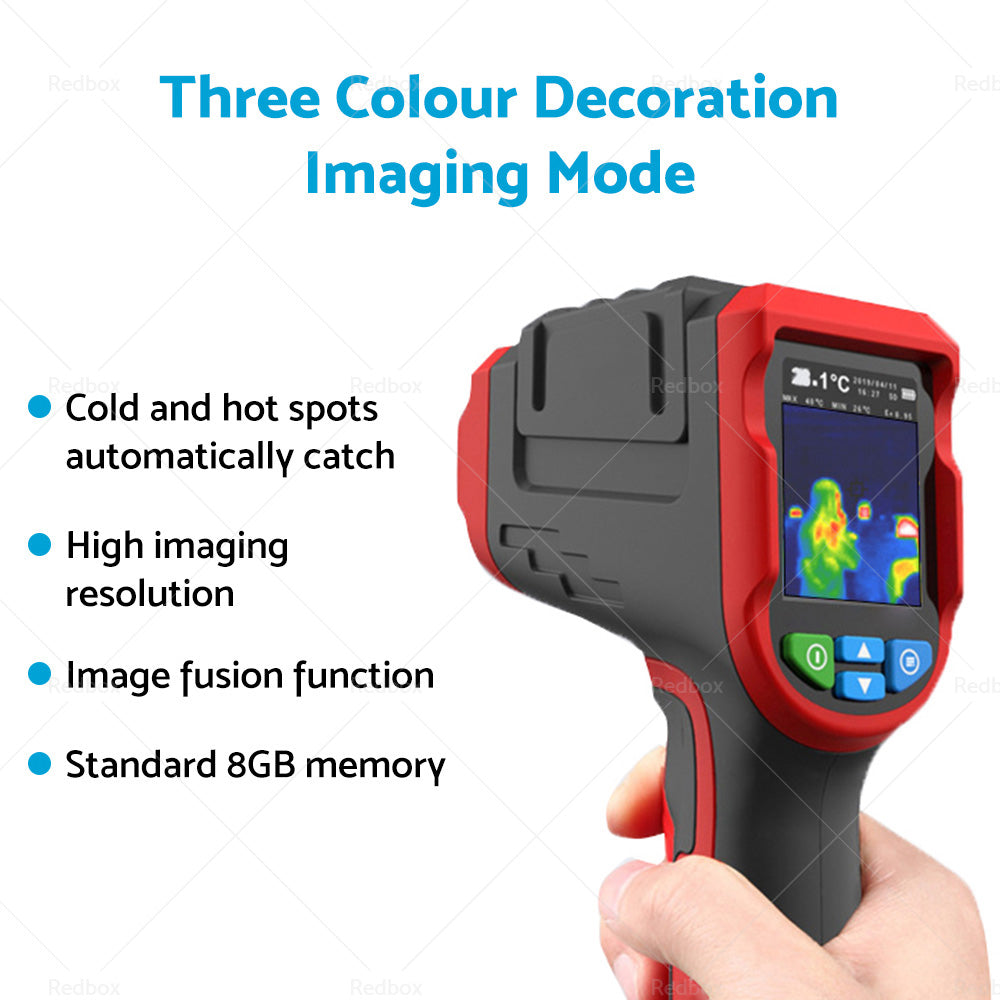

Color Palette: Iron Red, Rainbow, Black & White
Wavelength range: 8~14um
Field of View (FOV): 33°horizontal
Instantaneous Field of View (IFOV): 18mrad
Thermal imaging sensitivity: 150mk
Frame rate: ≤9Hz
Save Image Format: Bitmap (BMP) Image
Measuring temperature range: -20°C to 400°C
Basic Accuracy:
o°°C to 400°C accuracy: ±1.8% or ±1.8°C, whichever is greater,
-20 to -0.9℃ Accuracy: ±3℃ test condition,
Emissivity: 0.95 Ambient temperature: 25±2℃

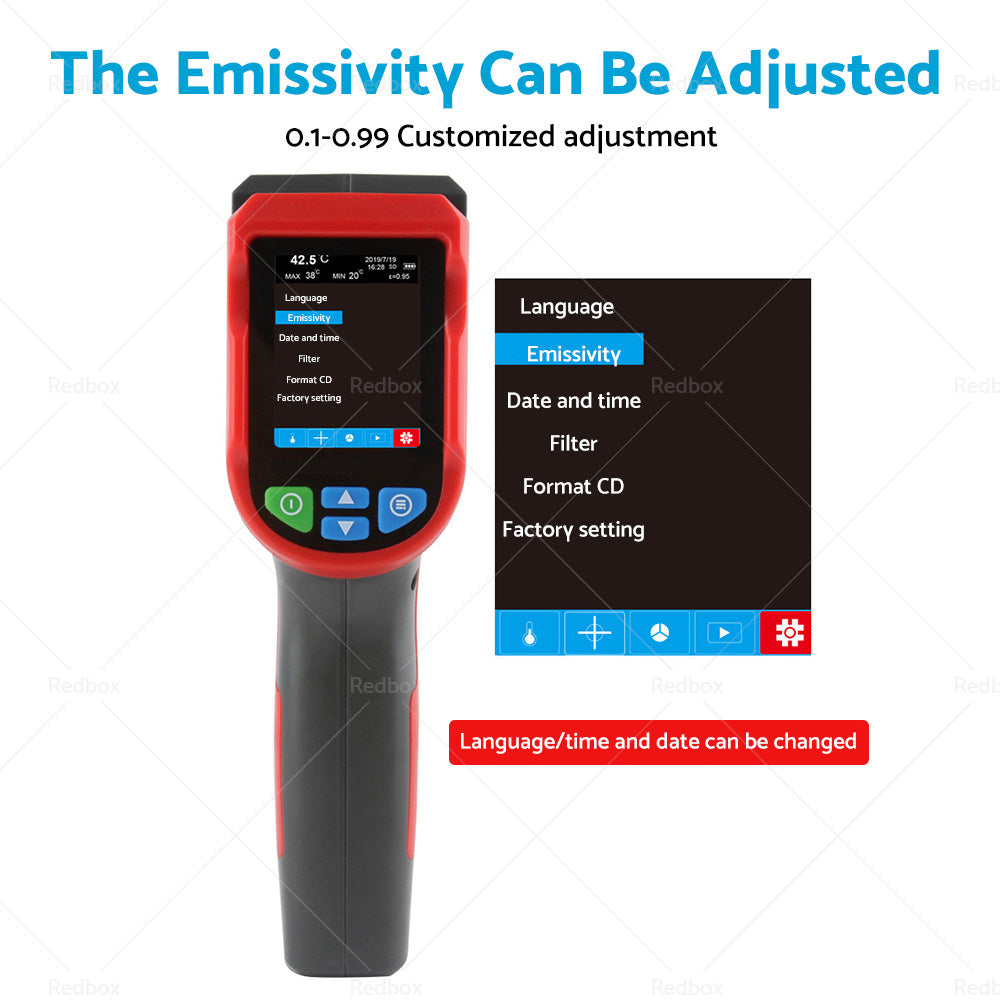

Emissivity: 0.10-0.99 custom adjustment
Measurement resolution: 0.1°℃/F
Response time: 150ms
Wavelength range: 8~14um
Equipment size: 60*120*210mm
Display Type: 2.4"TFTLCD
Display resolution: 320*240 pixels
Battery: 3.7V/2600mAh
Automatic shutdown function: yes
Operating Temperature: -10°C to 45°C, 14°F to 113°F
Package Included:
1 x Thermal Imaging Camera
1 x 8GB Mini TF Card
1 x USB Cable
1 x Storage bag
1 x Instruction
Note:
lease allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
