Stage 2 Cam Lifters Kit Suitable For LS2 V-8 6.0 05-09 LS3 V-8 6.3 08-13
Stage 2 Cam Lifters Kit Suitable For LS2 V-8 6.0 05-09 LS3 V-8 6.3 08-13
SKU:74LS250606S03
Compatible With:
Suitable for Trucks/SUVs 4.8L V-8 VIN-V,C,A 1999-2012
Suitable for Trucks/SUVs 5.3L V-8 VIN-T,Z,B 1999-2007
Suitable for LS1 V-8 5.7L 1997-2004
Suitable for LS6 V-8 5.7L 2001-2005
Suitable for Trucks/SUVs 6.0L V-8 VIN-U,K 1999-2010
Suitable for LS2 V-8 6.0L 2005-2009
Suitable for LS3 V-8; without AFM 6.2L 2008-2013
Suitable for LS7 V-8 7.0L 2006-2013
Also Suitable for Factory Roller LT1 93-97, and 305-350 Chevy Engines.
4 Putters
5/16" Diameter - 7.400" Length - .080 Wall Thickness

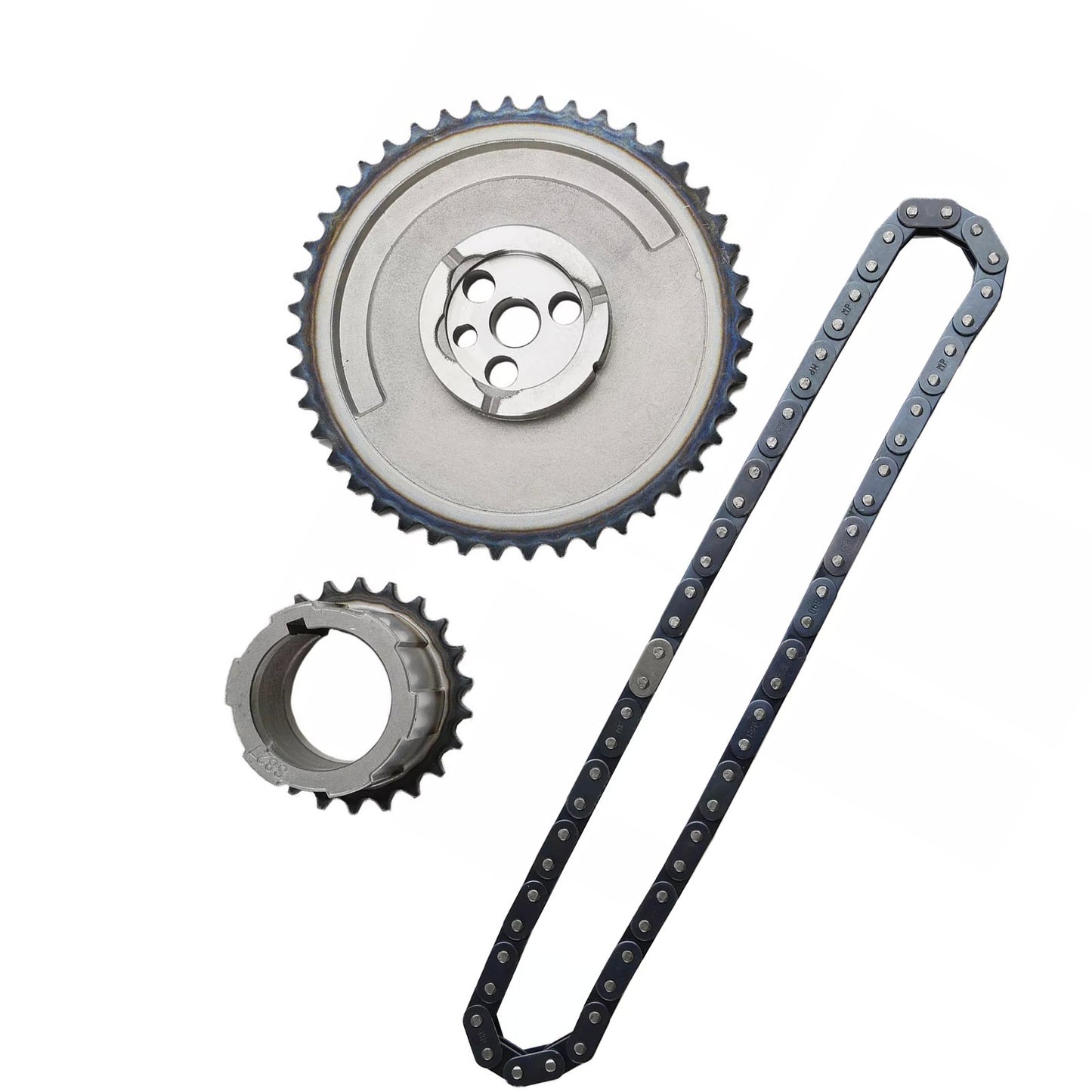

5 M295 (Suitable for 12586665) Oil Pump Timing Chain
Features:
Powerful Performance: The Sloppy Stage 2 Camshaft provides a lopey idle and strong power output.
Perfect for Daily Drivers: Suitable for cars, trucks, SUVs, street rods, and LS swaps.
Muscle Car Sound: Delivers a noticeable muscle car tone.
Best with Automatic Transmissions: Best paired with a 2,600-2,800 Stall Converter for optimal performance.
Specifications:
Type: Cam Lifters Kit
Warranty: 1 Year

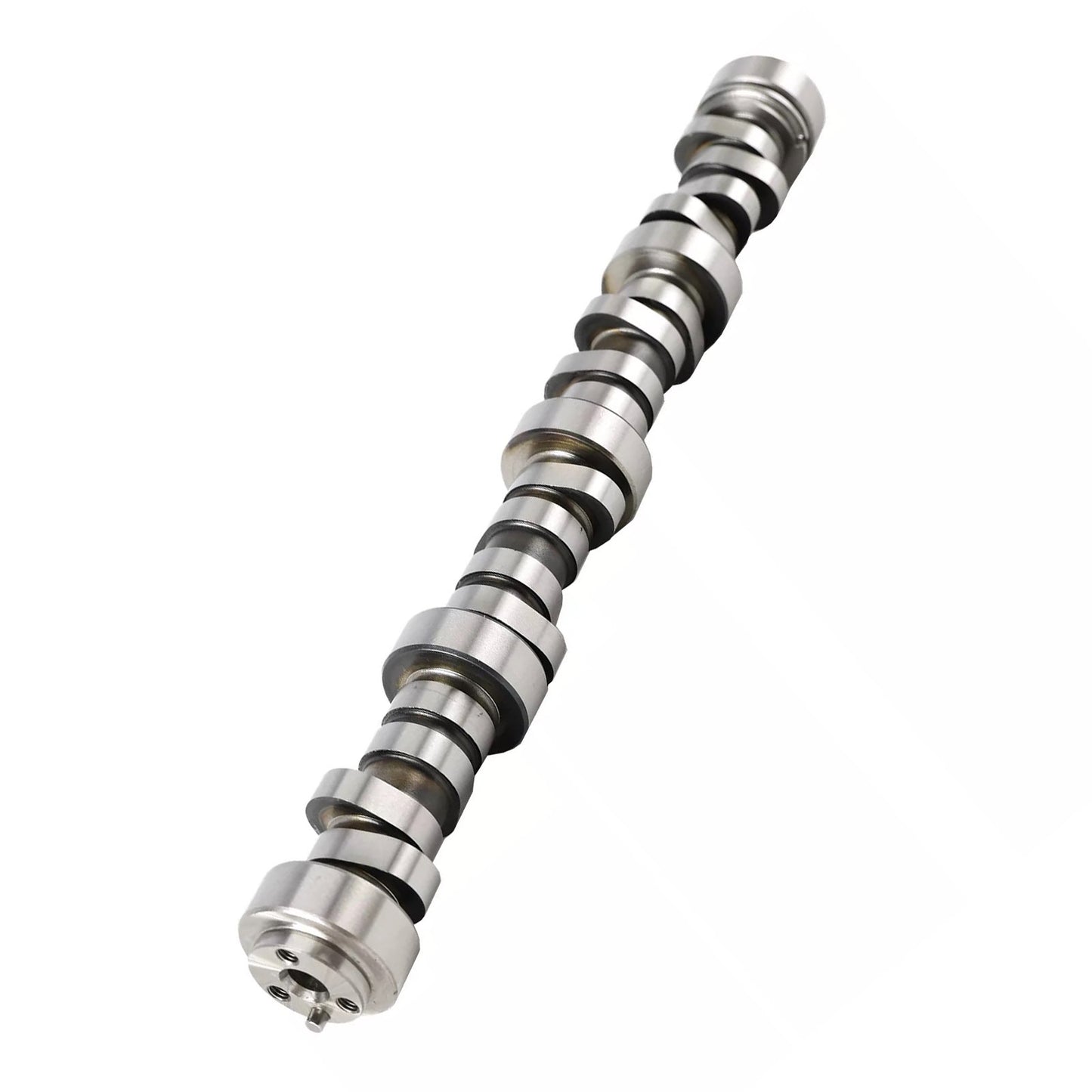

Camshaft Compatibility: Suitable for Chevy LS-Series Engine 1997-Up
Not for use with AFM/DOD
Camshaft RPM Range: 2200 to 5400 RPM
Camshaft Intake Valve Lift: .585"
Camshaft Exhaust Valve Lift: .585"
Camshaft Advertised Intake Duration: 283°
Camshaft Advertised Exhaust Duration: 286°
Camshaft Intake Duration at .050": 228°
Camshaft Exhaust Duration at .050": 230°
Camshaft Lobe Separation: 112°
Camshaft Intake Centerline: 108°
Camshaft Cam Gear Attachment: 3-Bolt

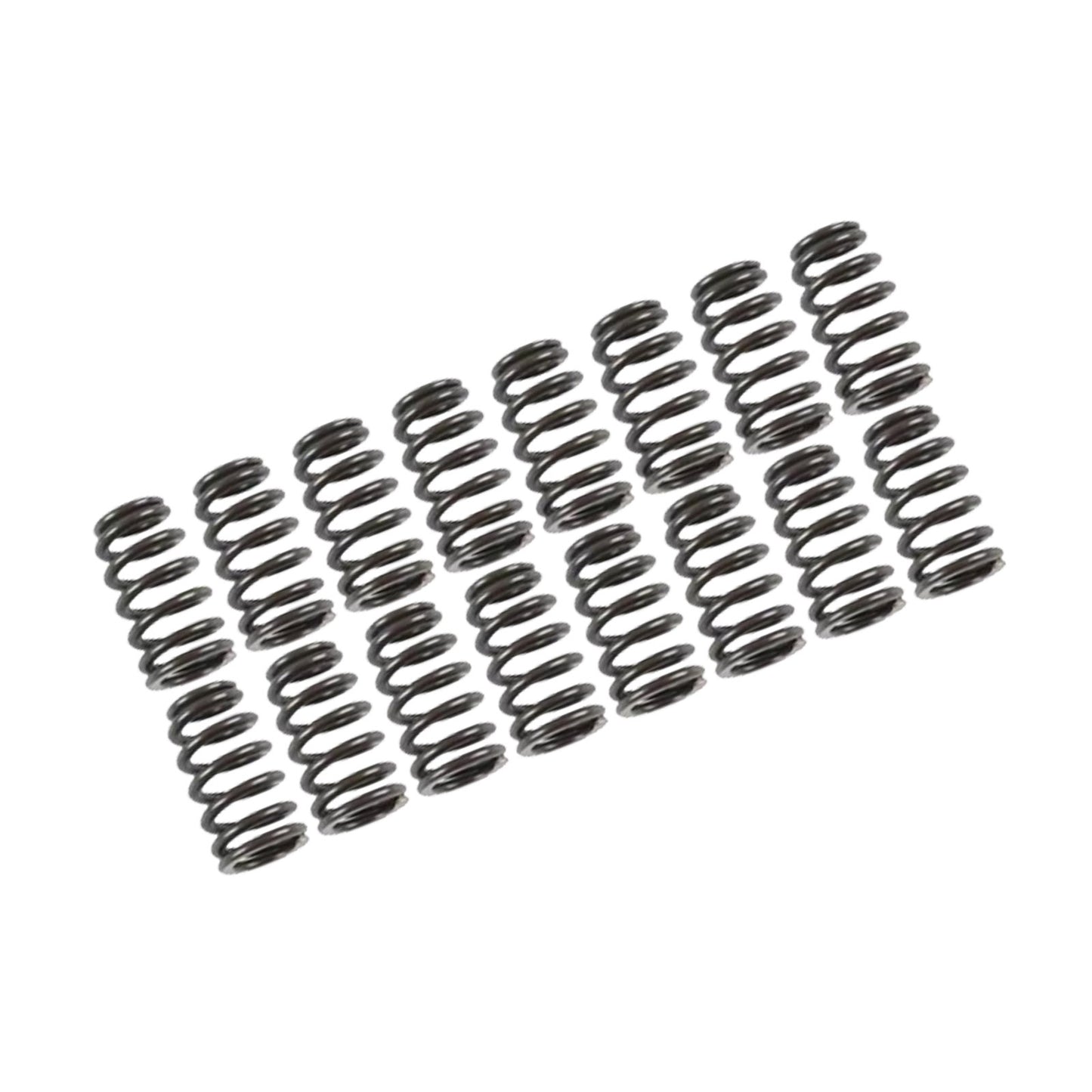

Number of Springs Per Valve: Single
Outside Diameter of Outer Spring (in): 1.290 in.
Spring Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Spring Install Load: 130 lbs
Spring Install Height: 1.800"
Spring Open Height: 1.175"
Spring Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs/in
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive

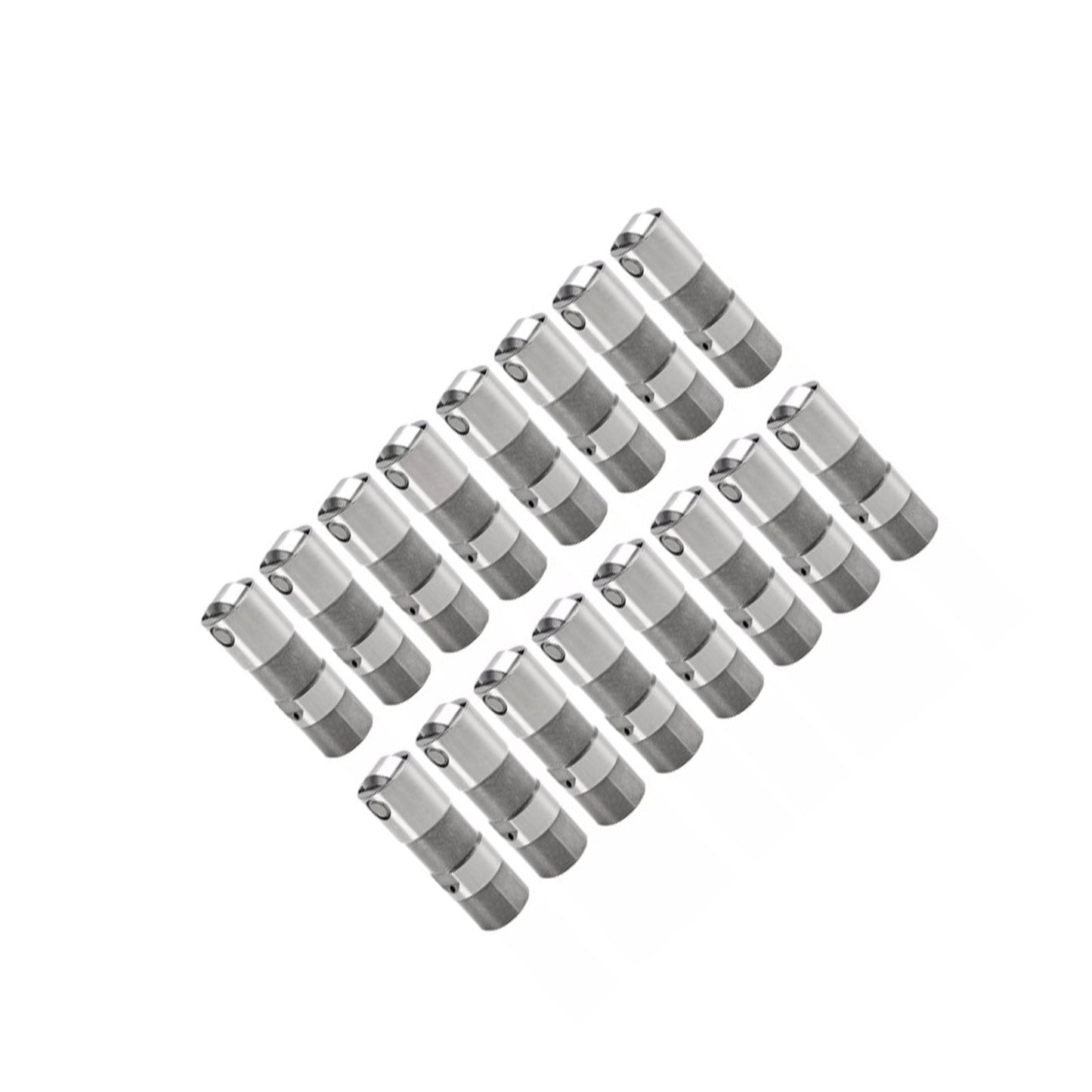

Set of 16 Elgin Roller Lifters Suitable for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.

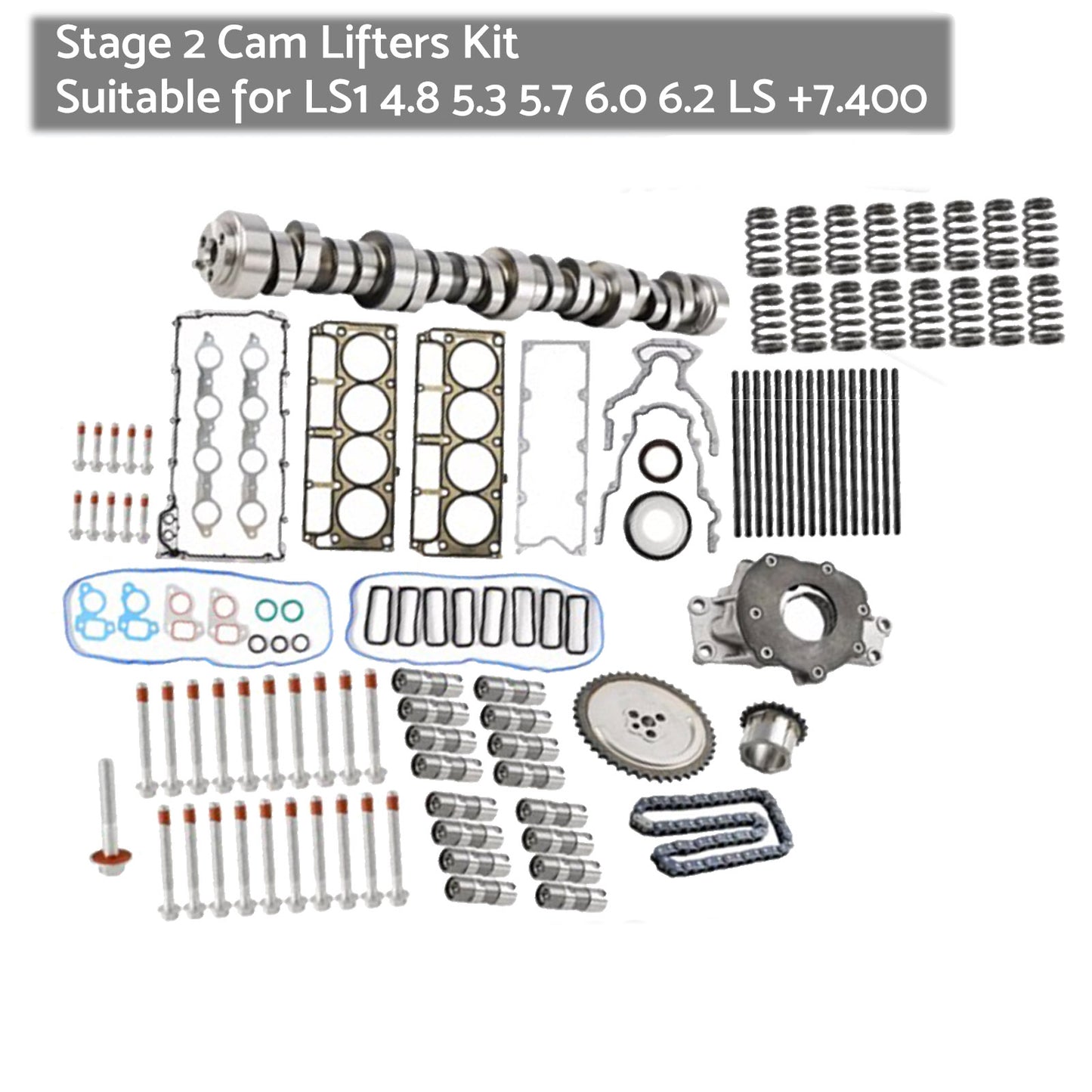

Package Includes:

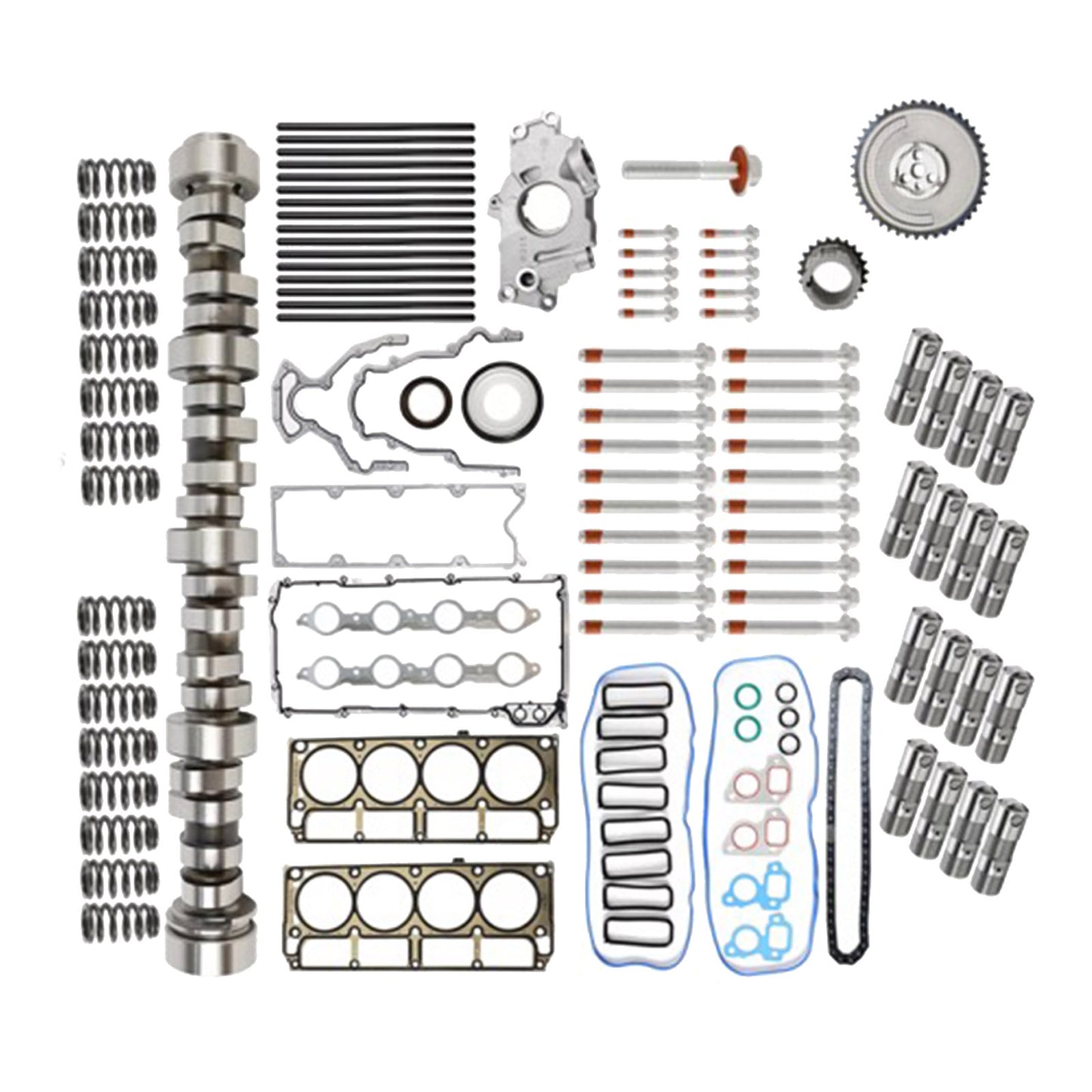

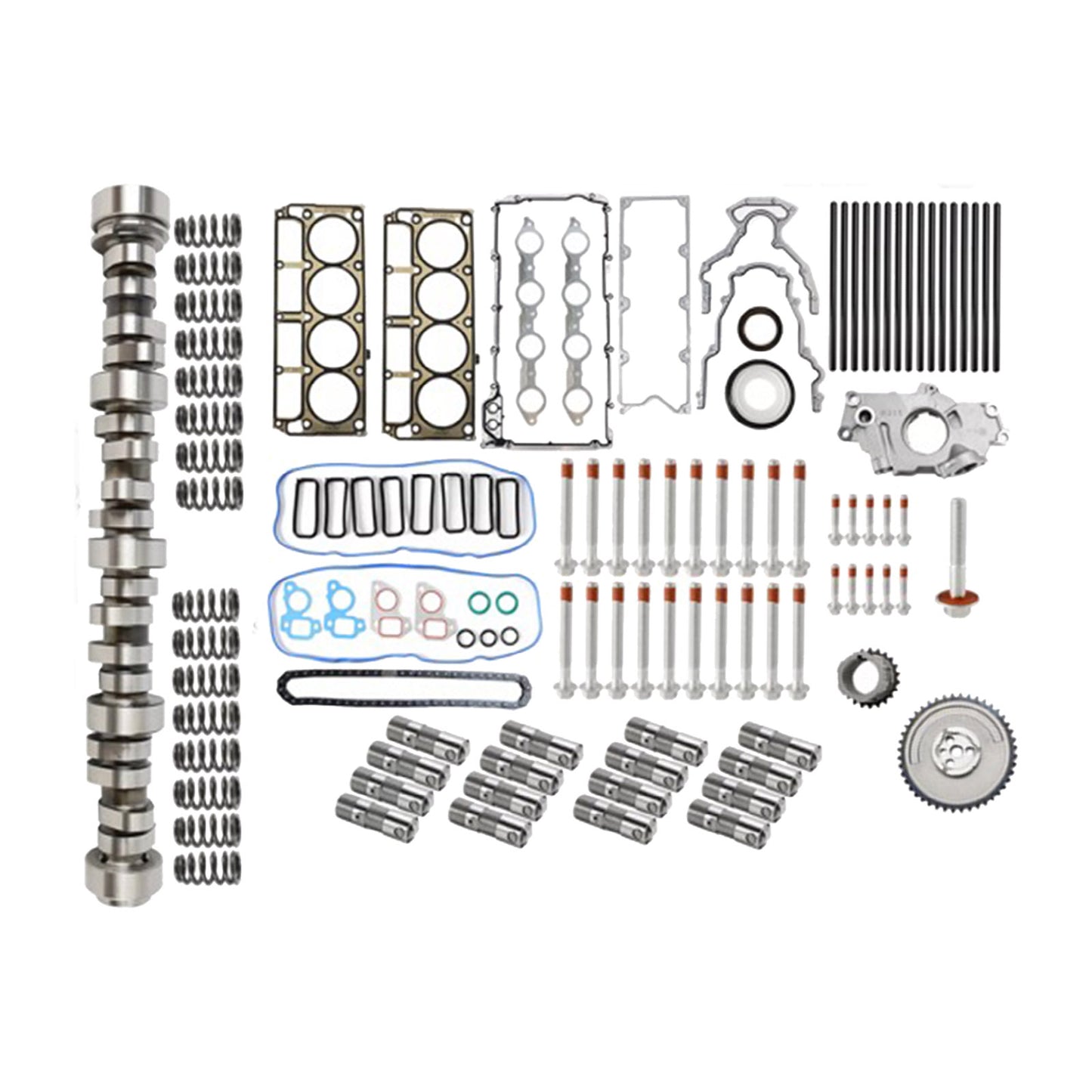

Camshaft + Valve Lifter + Push Rod: Camshaft + Screw Set + Spacer Set with 16 Valve Lifters + 16 Putters + Oil Pump + Timing Chain
Note:
Professional installation is highly recommended.
Please refer to the listing's images for a detailed description of the parts included in the kit.
Please note that all parts sold on this platform are aftermarket products.
While they are compatible with specific vehicle models, they are neither manufactured nor endorsed by the original equipment manufacturers (OEM).
All trademarks and brand names are used for identification purposes only and remain the property of their respective owners.
