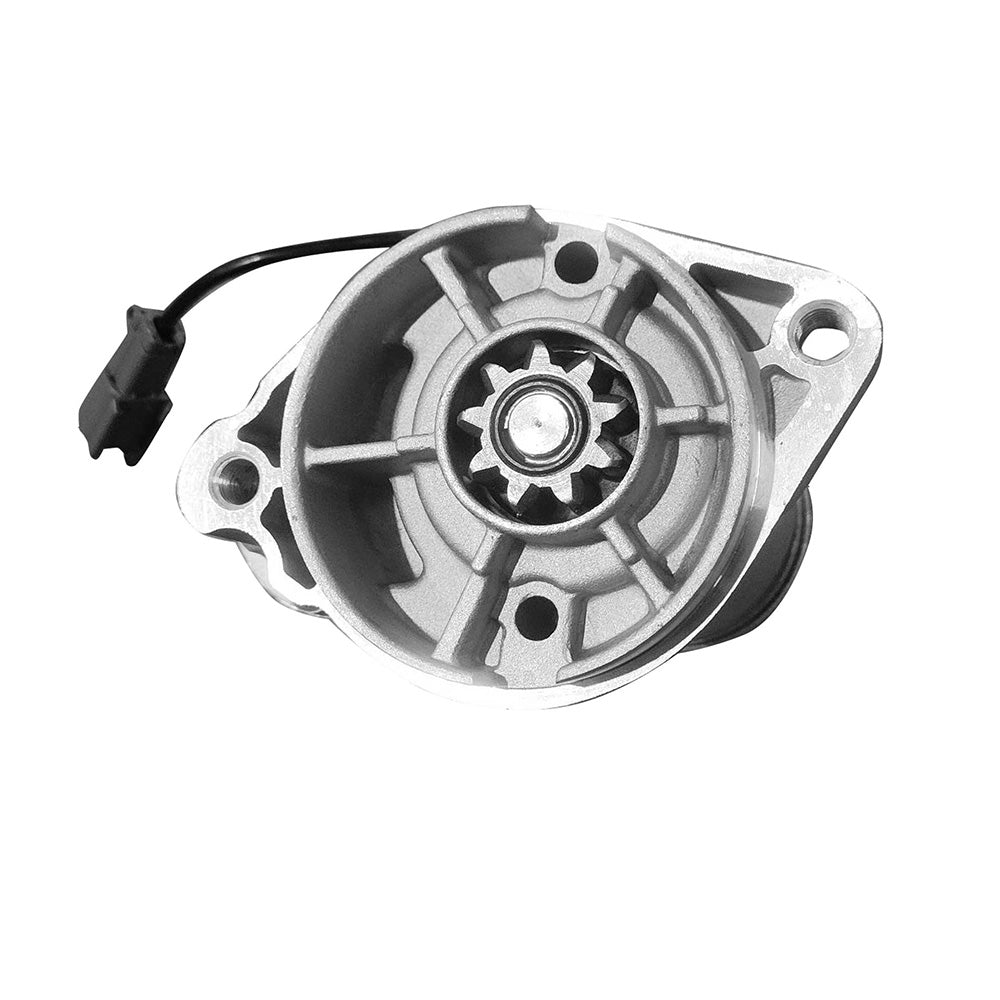

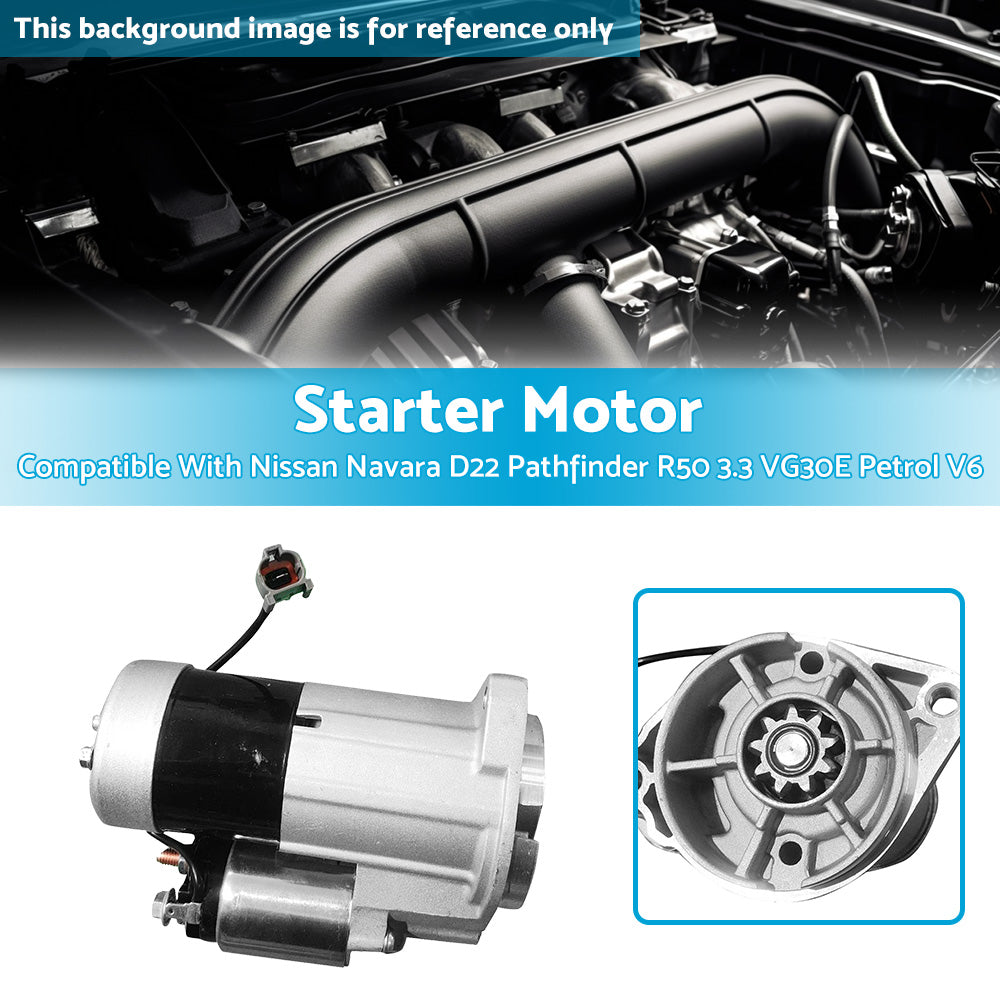

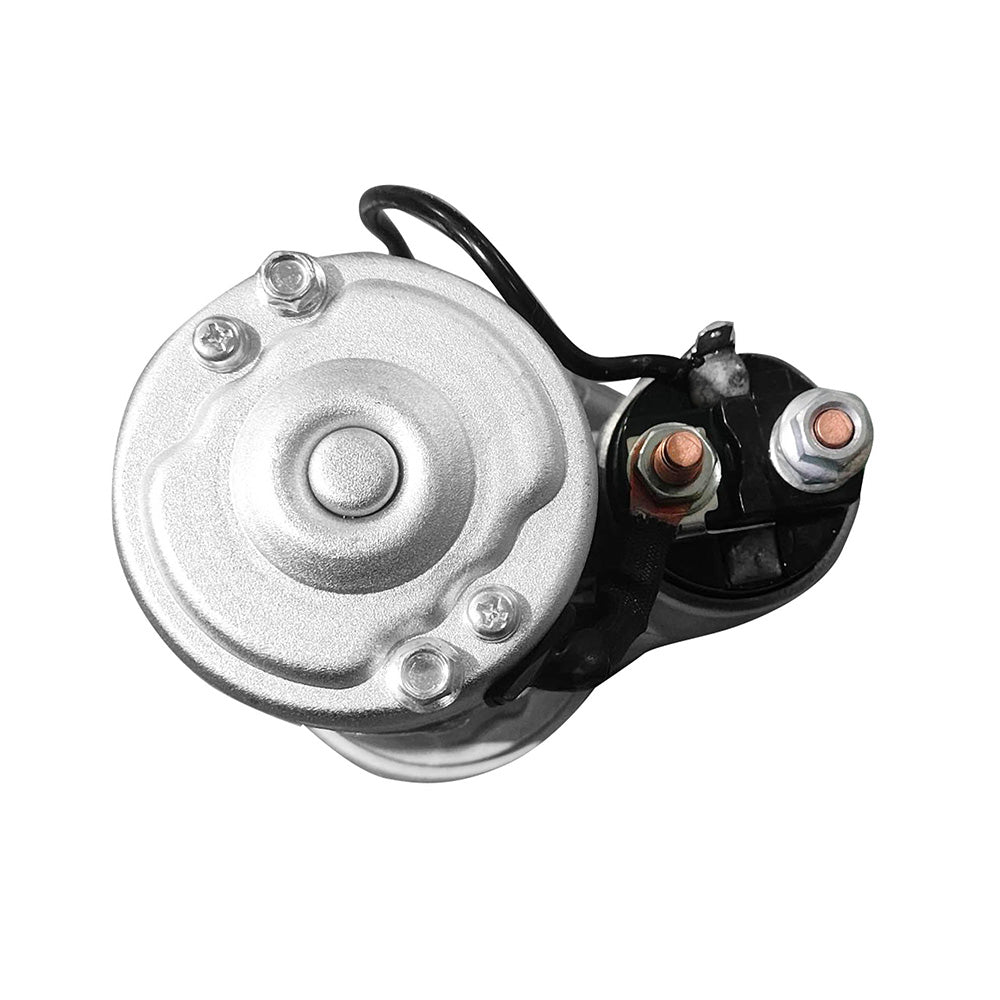

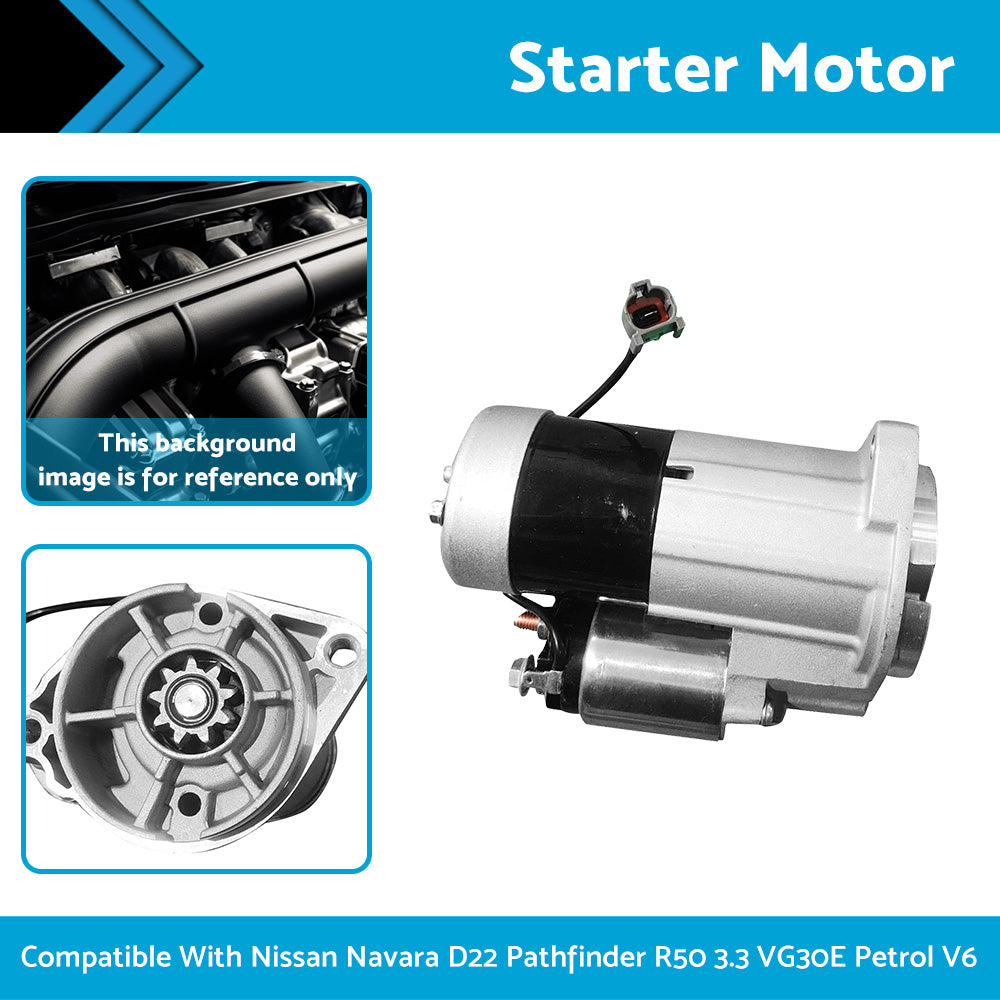

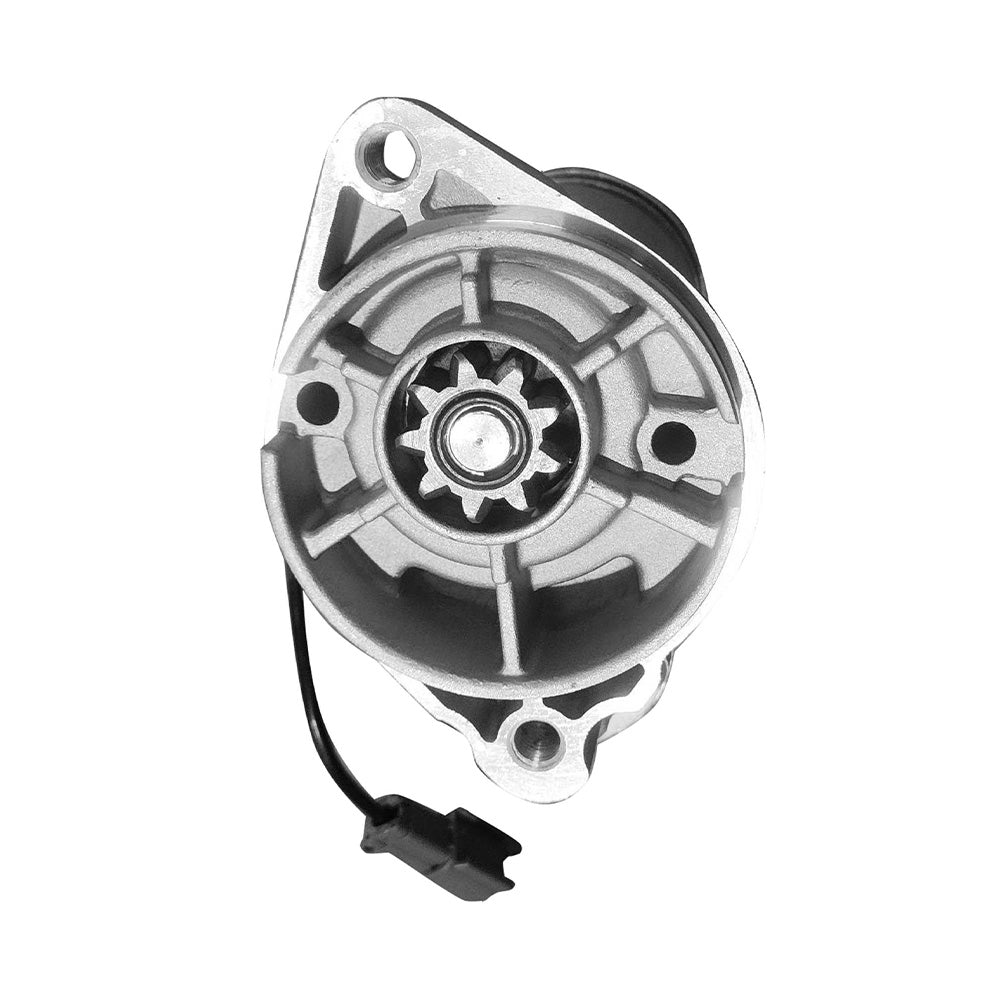

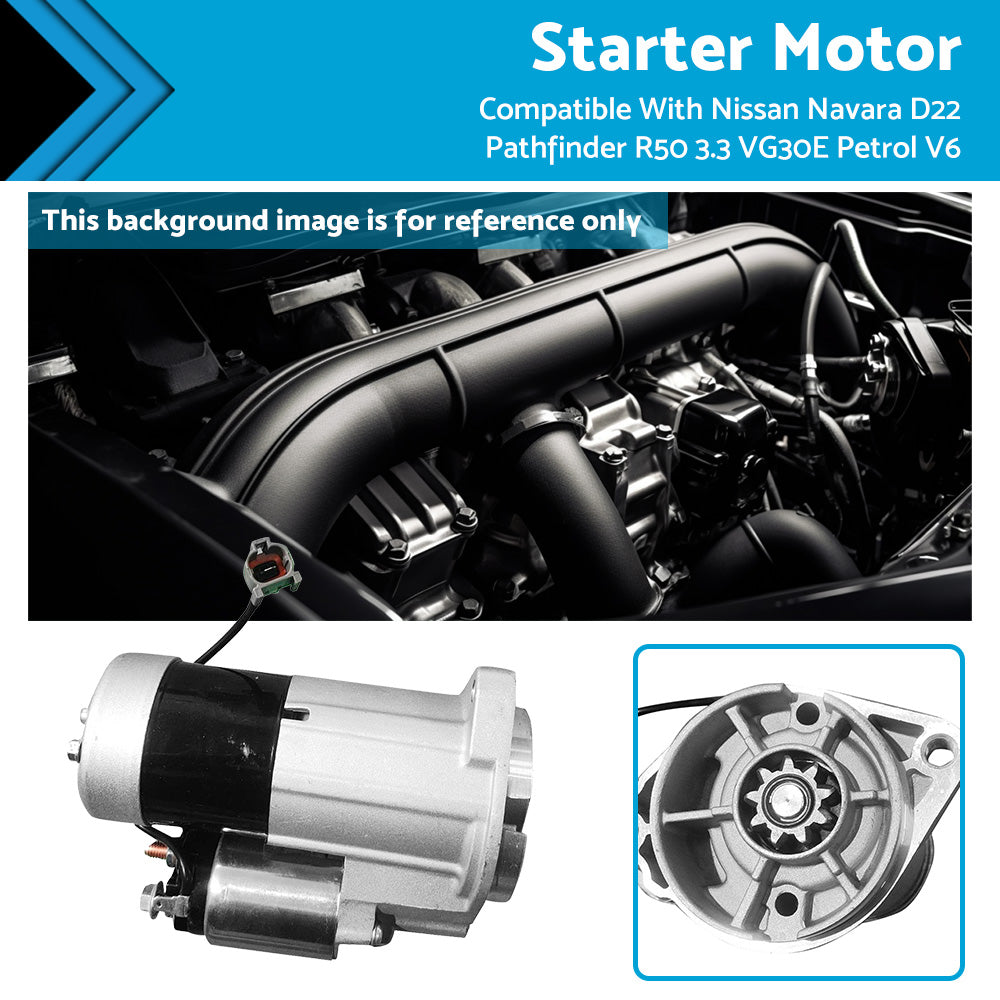

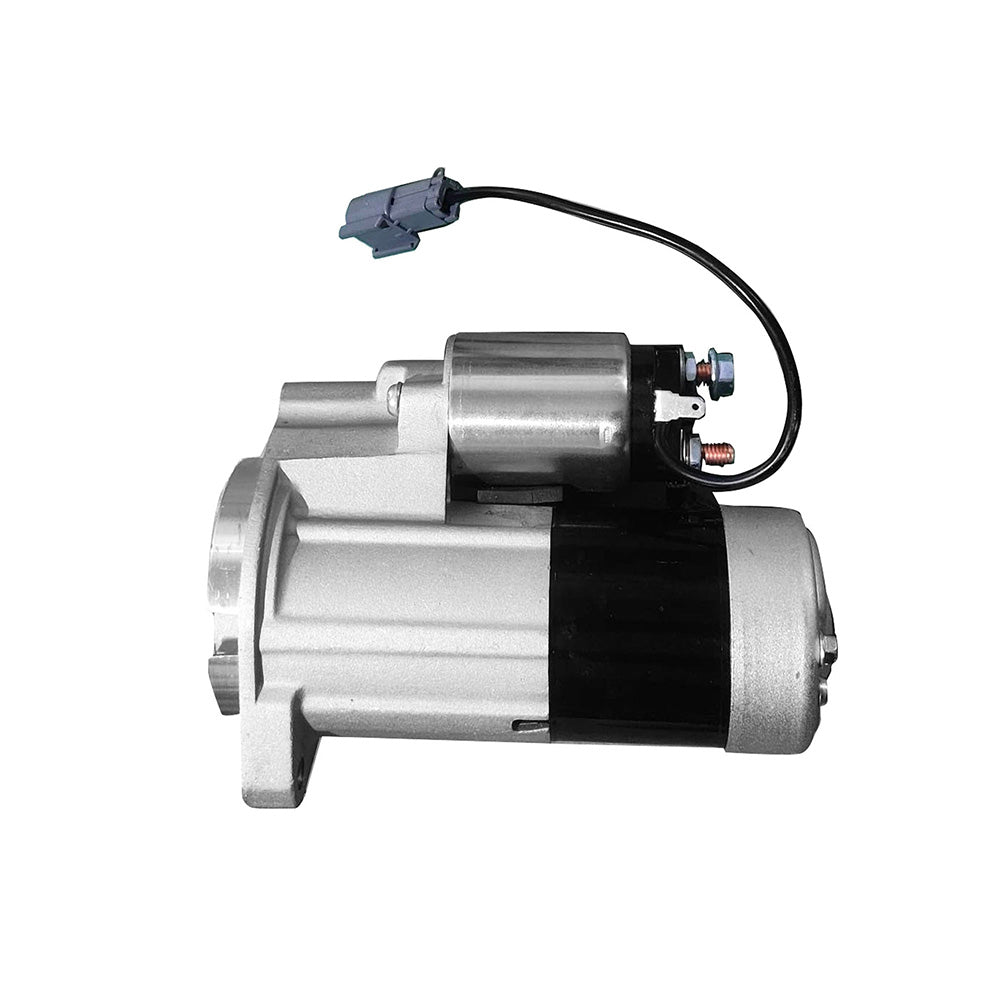

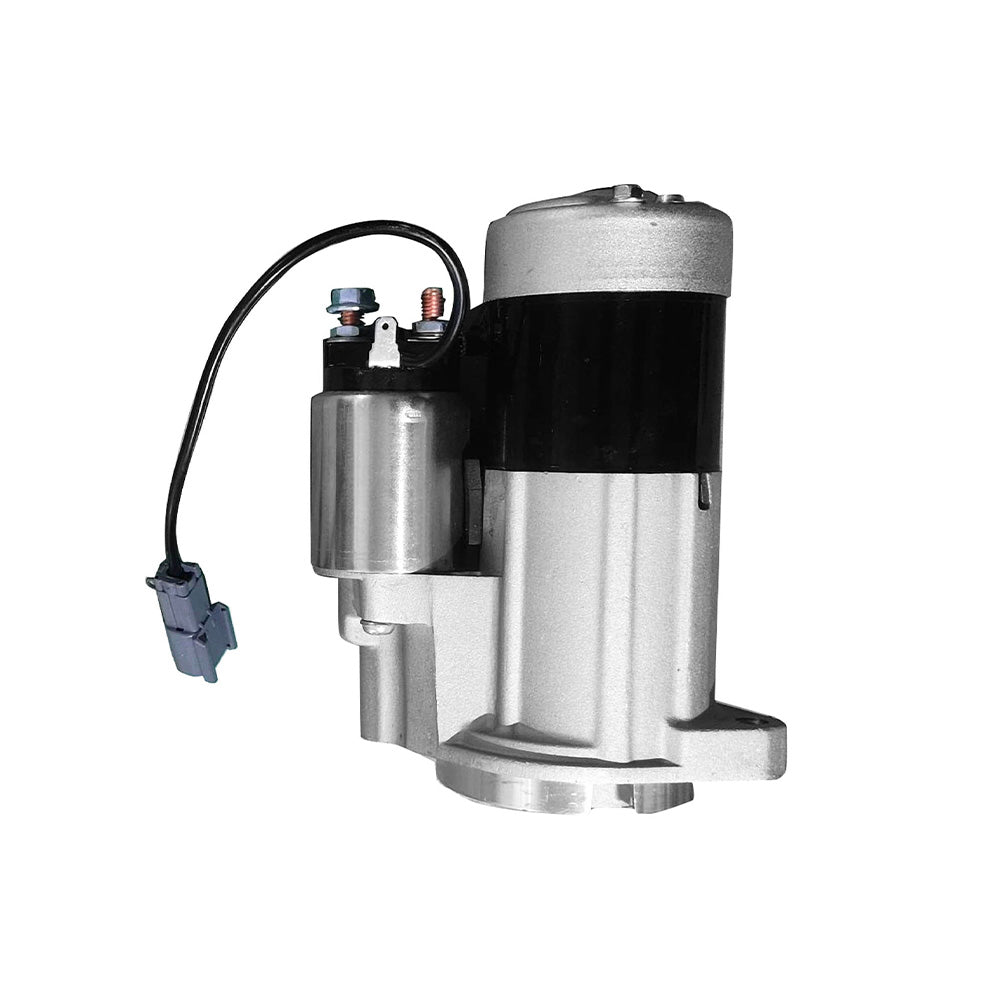

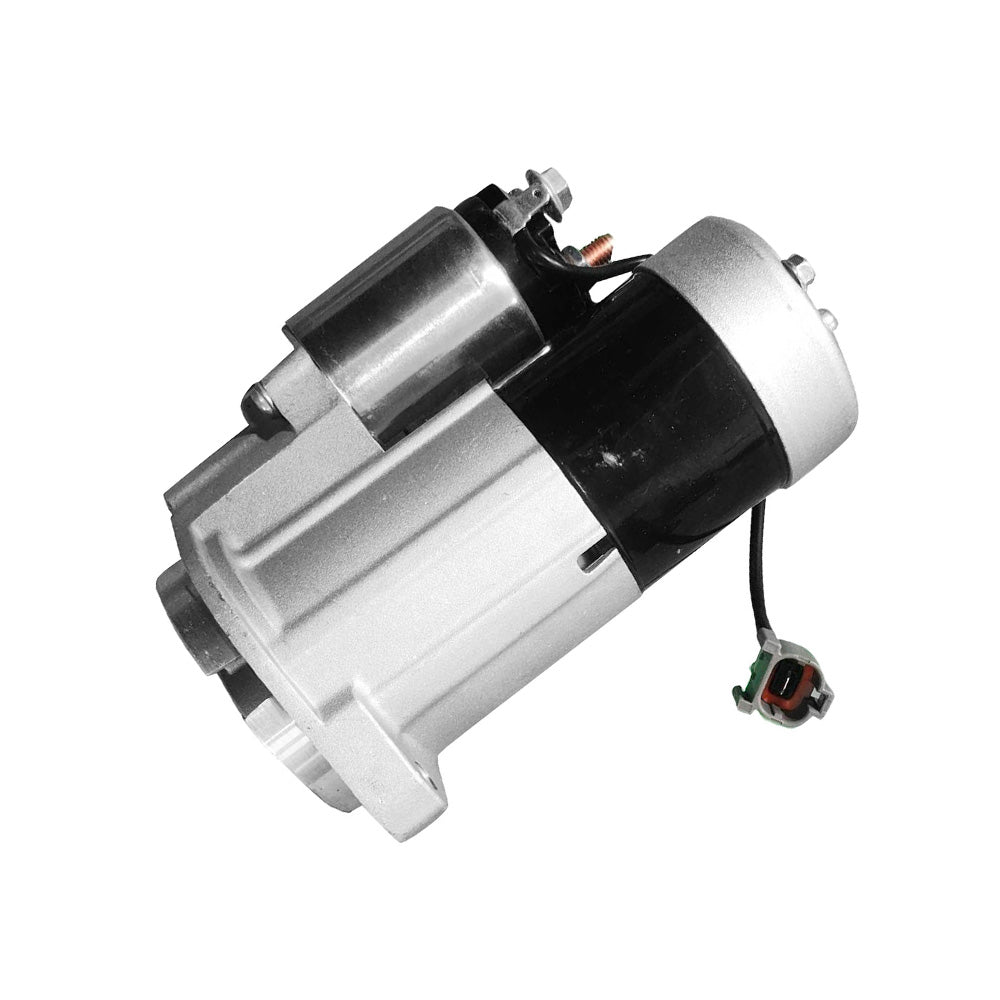

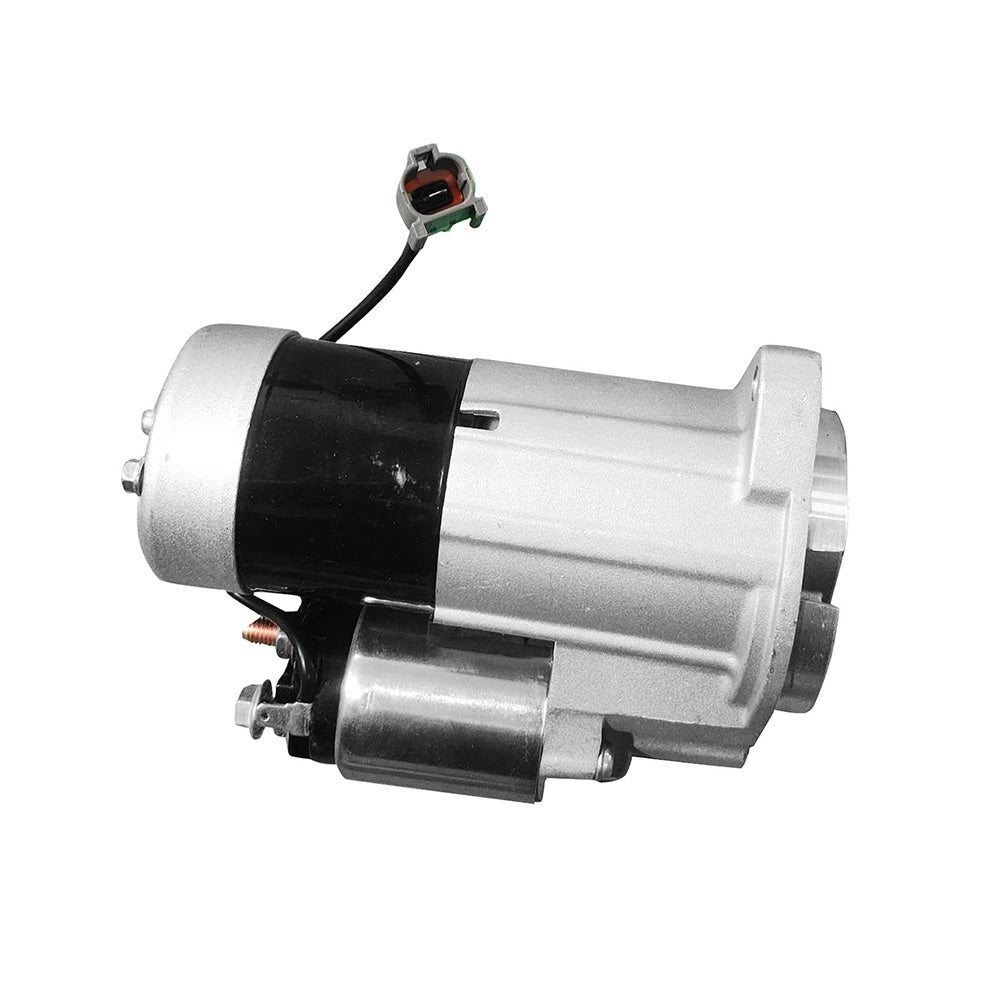

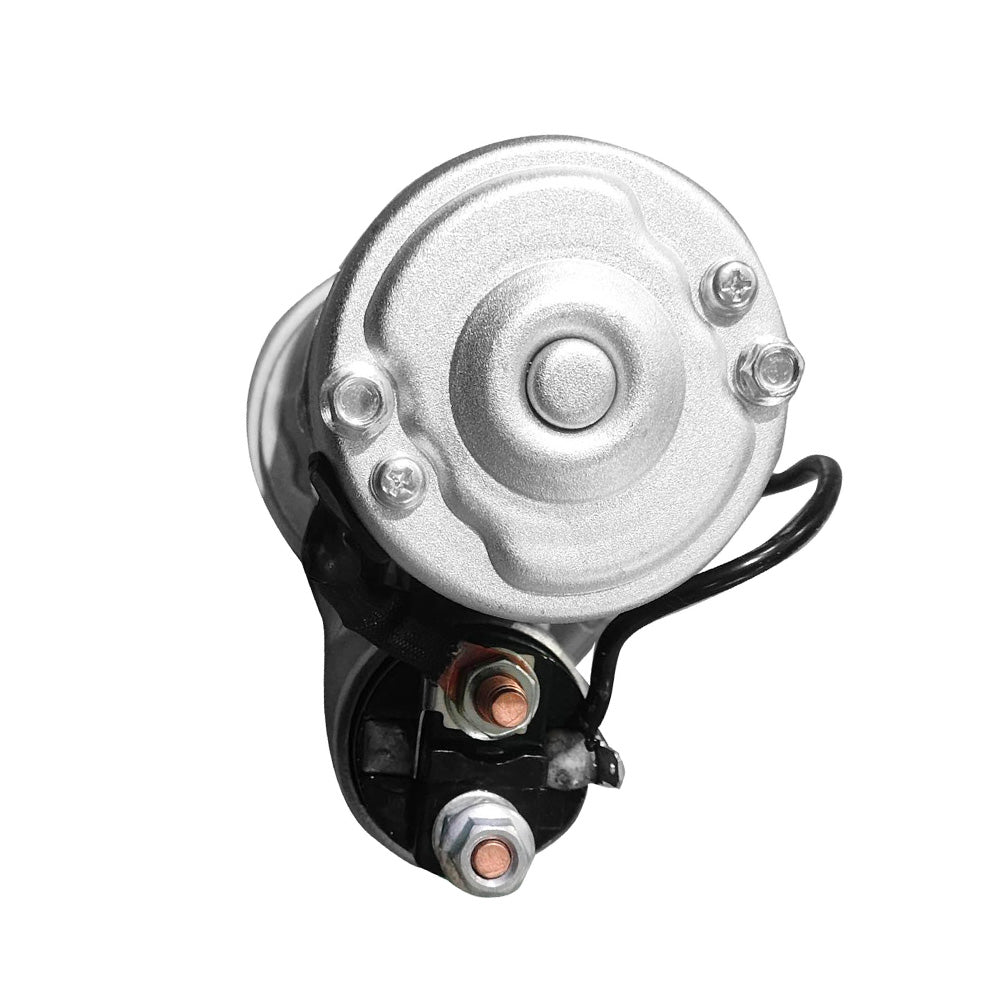

STARTER MOTOR Suitable For NISSAN PATHFINDER R50 VG33E V6 3. 3L PETROL 1995-2005
STARTER MOTOR Suitable For NISSAN PATHFINDER R50 VG33E V6 3. 3L PETROL 1995-2005
SKU:30NS212-SMO
Compatible With:
Suitable For Nissan Pathfinder R50 3.3L VG33E SOHC-PB MPFI Auto Wagon 1995-2005
Suitable For Nissan Elgrand E50 VG33E SOHC-PB MPFI Auto Wagon 1997-2002
Suitable For Nissan Navara D22 3.0L VG30E SOHC-PB MPFI Auto/Man Cab Chassis & Pickup 2000-2005
Suitable For Nissan Navara D22 3.3L VG33E SOHC-PB MPFI Man Cab Chassis & Pickup 2003-2005
Specification:
Voltage: 12 voltKW Rating: 1.4 KW
Rotation: Clockwise
# of Pinion Teeth: 9th
Starter Mount Type: 2 Hole
Pinion Diameter: 29 mm
Pinion at Rest: 15 mm
Flange Diameter: 87 mm
Mounting Centre to Centre: 110 mm
Style: Compatible With Mitsubishi Style
OEM Part Number:
BXN005M,23300-0W011,23300-0W010,M0T60181
M0T60181A,23300 0W010,23300 0W011,35 262361868,19133983,89016103,88864499,233000W010
233000W011
Package Included:
1PC Starter Motor
Notice:
* Professional installation is highly recommended (No Instruction Included)
How to Replace Starter Motor?
1 Turn off the ignition and remove the negative battery cable from the battery.
2 Remove the positive cable (the large cable that runs to the battery) from the starter.
3 Disconnect all the bolts that hold the starter to the block, using a ratchet.
4 Remove any other supporting brackets holding the starter in place.
5 Remove all the bolts holding the starter. Don't force any bolts that are very tight and are difficult to remove. Rather, use a lubricant or grease to help you loosen the bolt.
6 Remove the starter from the car.
7 Mount the new starter on the block and attach it with the bolts. Before you tighten the bolts, reconnect the battery cable to the starter.
8 Tighten the bolts of the starter.
9 Reconnect the negative cable to the battery.
Tips & Warnings:
Once the starter is out of the car, take it to the automotive-parts store to be bench tested. This will tell you if the starter is good or bad.
Use caution when working with electrical components. Ensure the battery is isolated.
Tested to Meet or Exceed OEM Quality Standard.
Top quality Aftermarket part.
Quality & Fitment Tested.
Note:
*Sourced From Professional Aftermarket Manufacturer, QUALITY GUARANTEED.*
