Timing Pin & Injector Height Tool Barring Socket Set Suitable For Cat 3406E C-15 C-16
Timing Pin & Injector Height Tool Barring Socket Set Suitable For Cat 3406E C-15 C-16
SKU:74CAT001-2
Application:
Adjust tools set for Caterpillar 3406E, C-15 and C-16.
J-42083 Timing Pin works for Caterpillar C-7, C-9, C-11, C-13, C-15, C-16, 3179, 3196, 3200, 3300 and 3400.

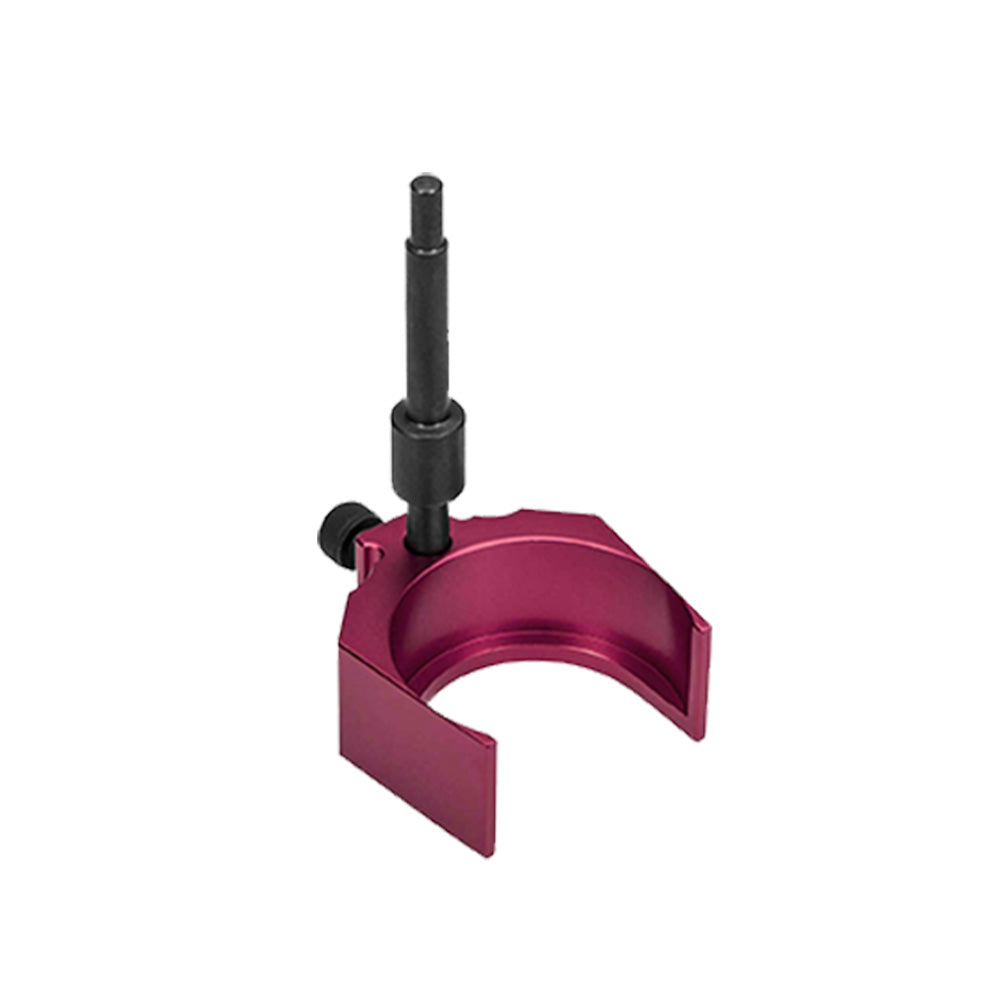

9U-7227 Injector Height Tool works for Caterpillar 3406E, C-15, C-16.

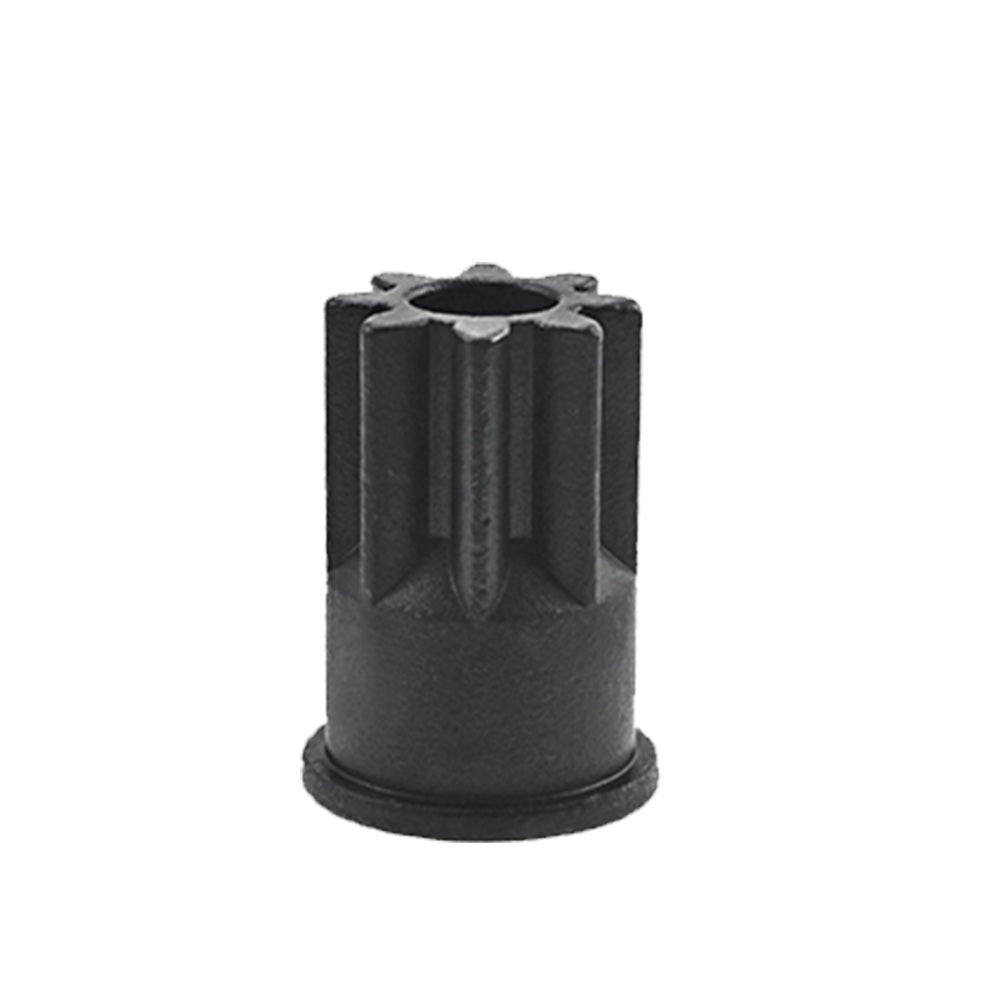

9S-9082-A Engine Barring Socket for Caterpillar (CAT) engines 3200/3406 series C13/C15/C16/3208/3400/3406E/3508/3512/3500.
Description:

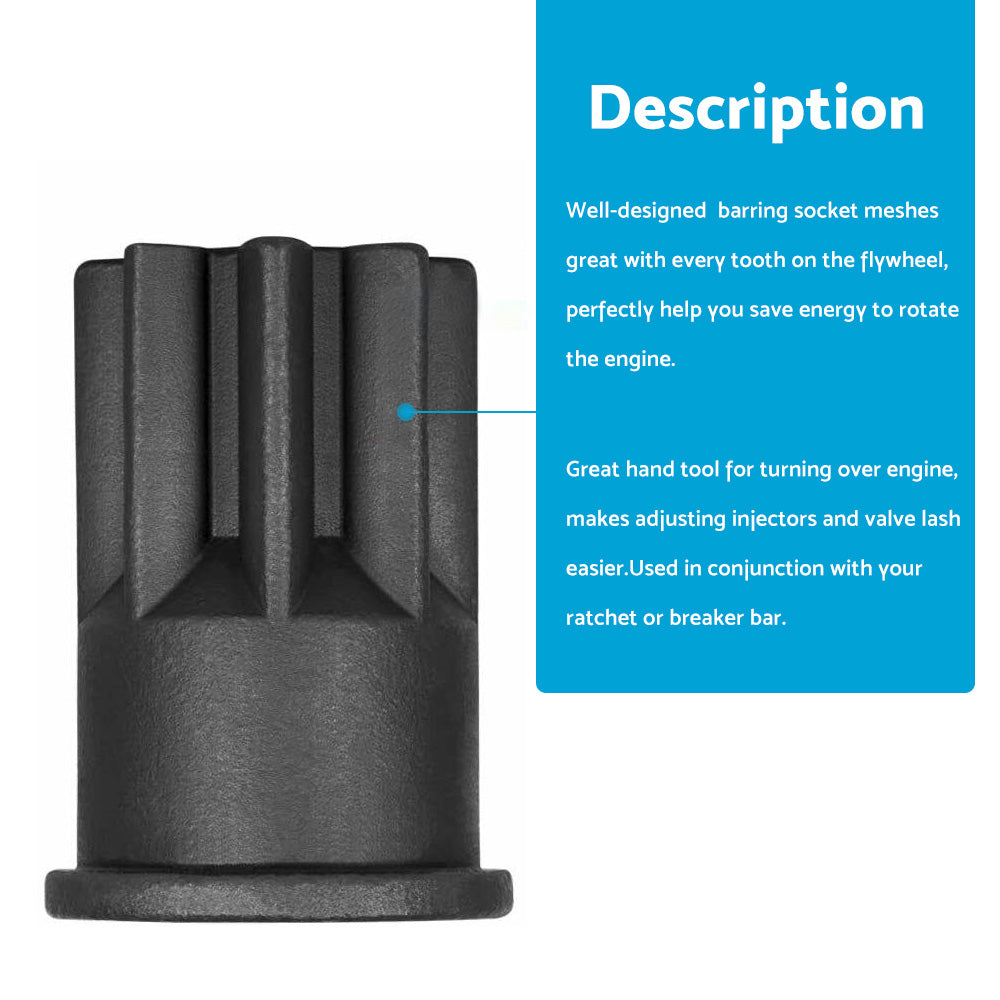

Function: Timing Pin and Adapter - makes timing easier, acquire TDC, and begin valve and fuel injection timing procedures; Injector Height Tool - accurately adjust the injector height; Engine Barring Socket - turn over engine, making adjusting injectors and valve lash easier, and able to pin flywheel.
High quality material: Constructed with high quality carbon steel and aluminum alloy, providing strength and durability for years of use.
Specifications:
Brand: MAXCOOL
Type: Adjust Tool Set
Material: Steel, Aluminum Alloy
Warranty: 1 year

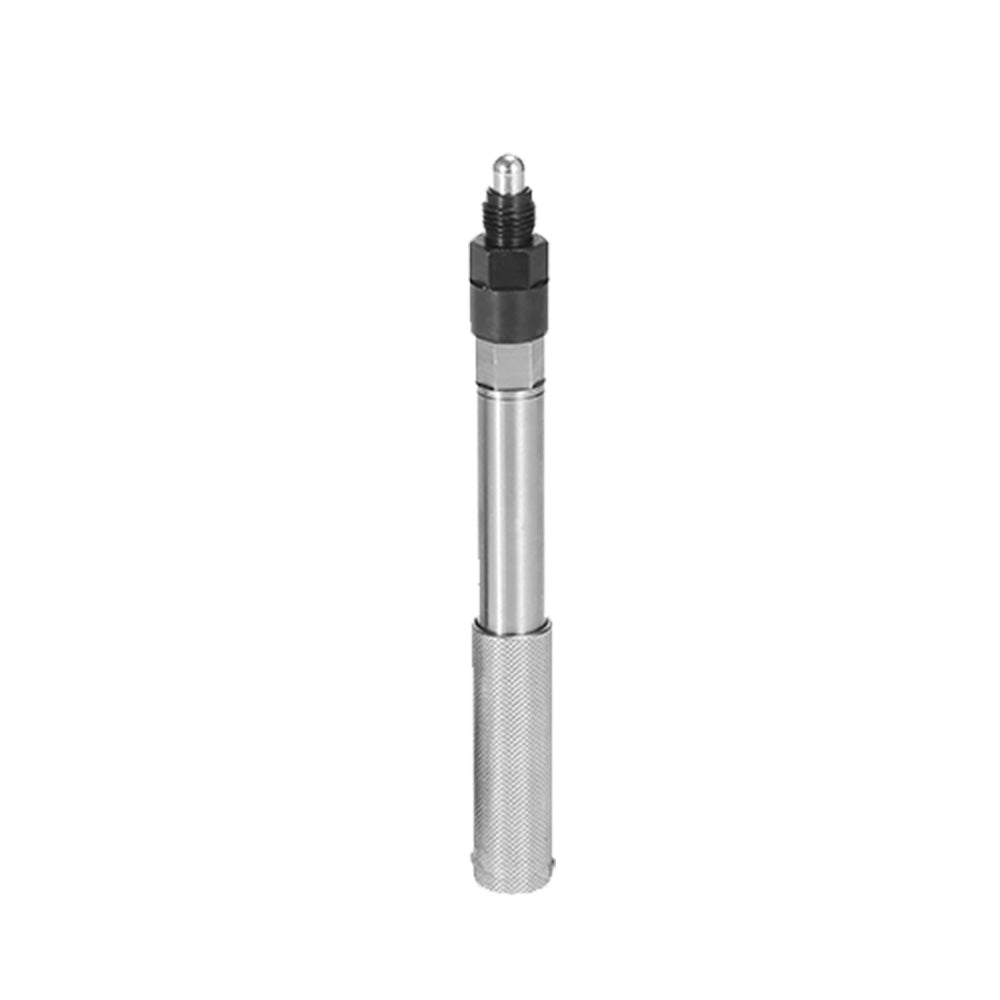

Timing Pin OEM: J-42083
Injector Height Tool OEM: 9U-7227
Engine Barring Socket OEM: 9S-9082-A
Placement on Vehicle: for Caterpillar Engine
Timing Pin Size: 17.5cm/6.89" (H)
Timing Pin Thread Size: M13x1.25

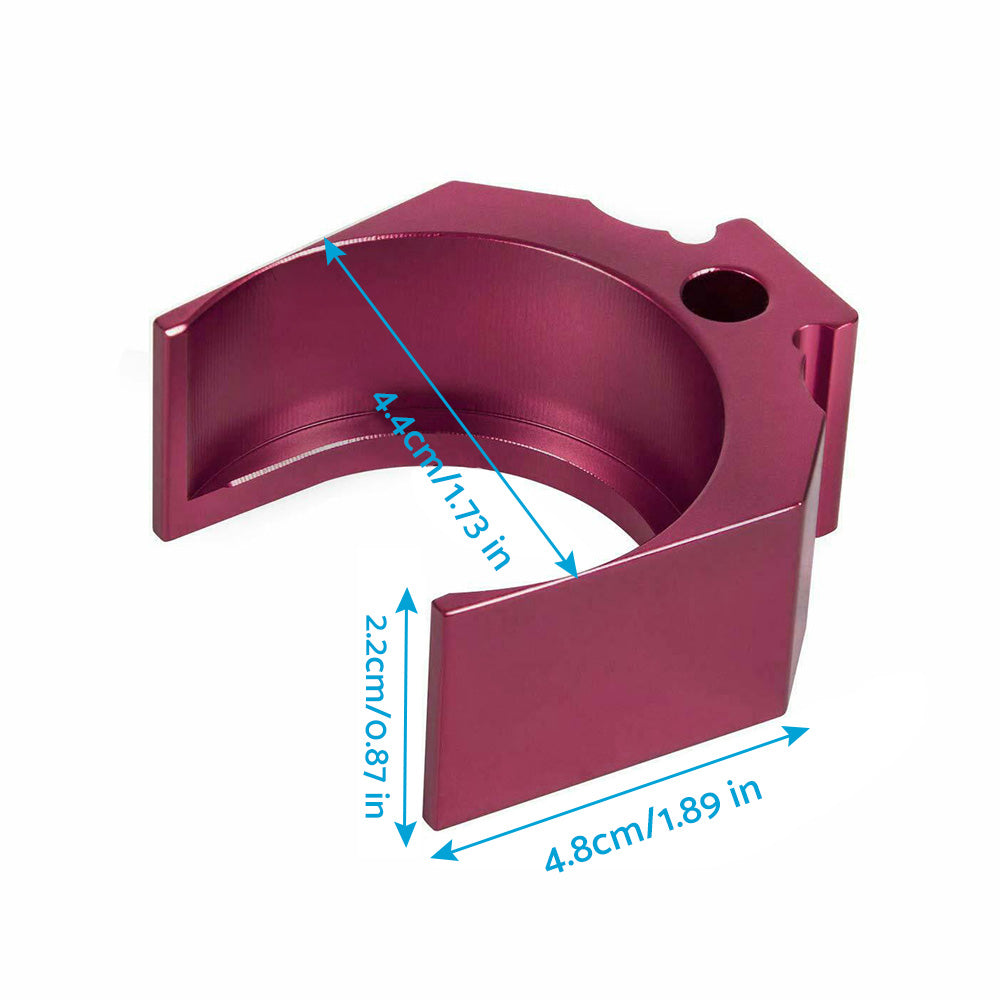

Injector Height Tool Size: 4.2x4.7x2.2cm / 1.65"x1.85"x0.87"
Engine Barring Socket Size: 5x7.1cm / 1.97"x2.8" (OD"H)

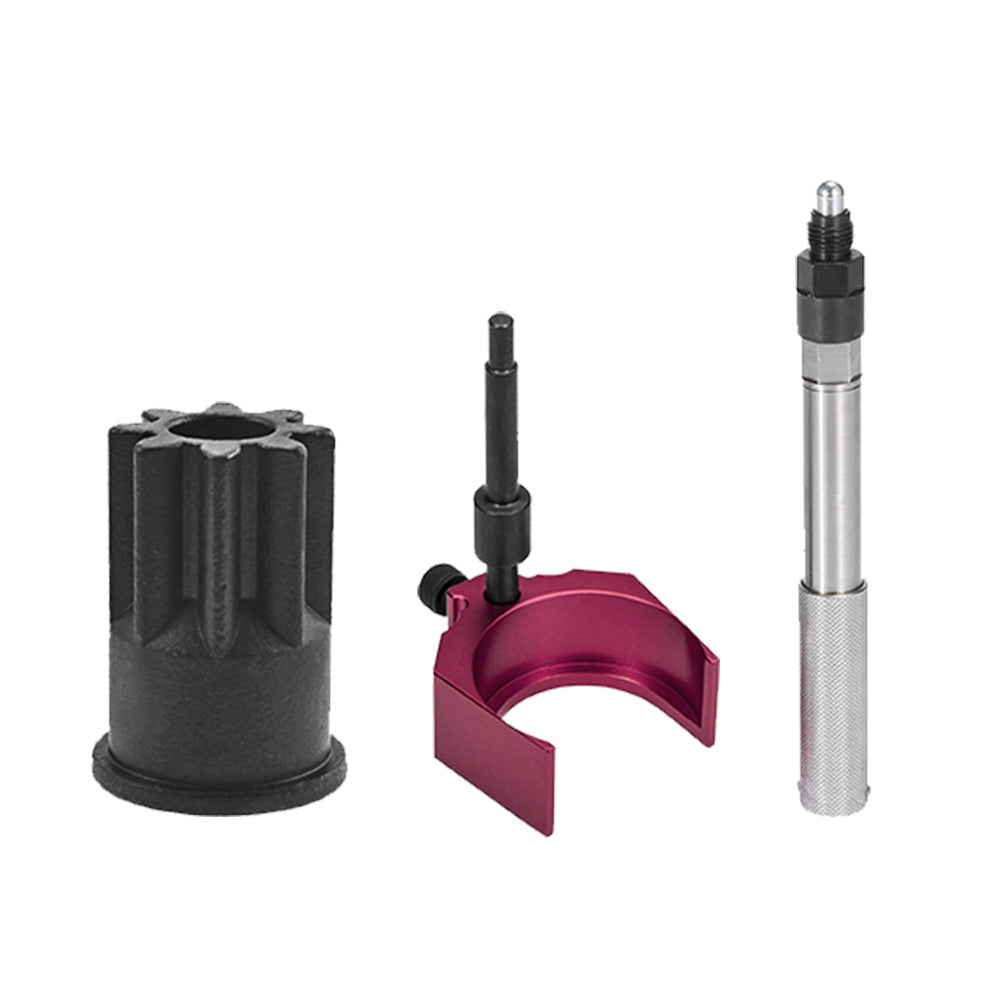

Package Included:
1 x Automatic Timing Pin
1 x Injector Height Adjustment Tool
1 x Engine Barring Socket
Timing Pin Use Instruction:
Remove the plug from either the left or right side timing access holes.
Hand tighten the J-42083 Automatic Timing Pin Lock into the timing access hole.
Preload the spring by pushing the slide handle forward and turn clockwise to engage a locking slot.
Turn engine manually (usually counter clockwise) until a click is heard.
Automatic timing pin plunger now engaged in flywheel timing holes.
To remove, turn slide handle counter clockwise to release spring, then unscrew from flywheel housing.

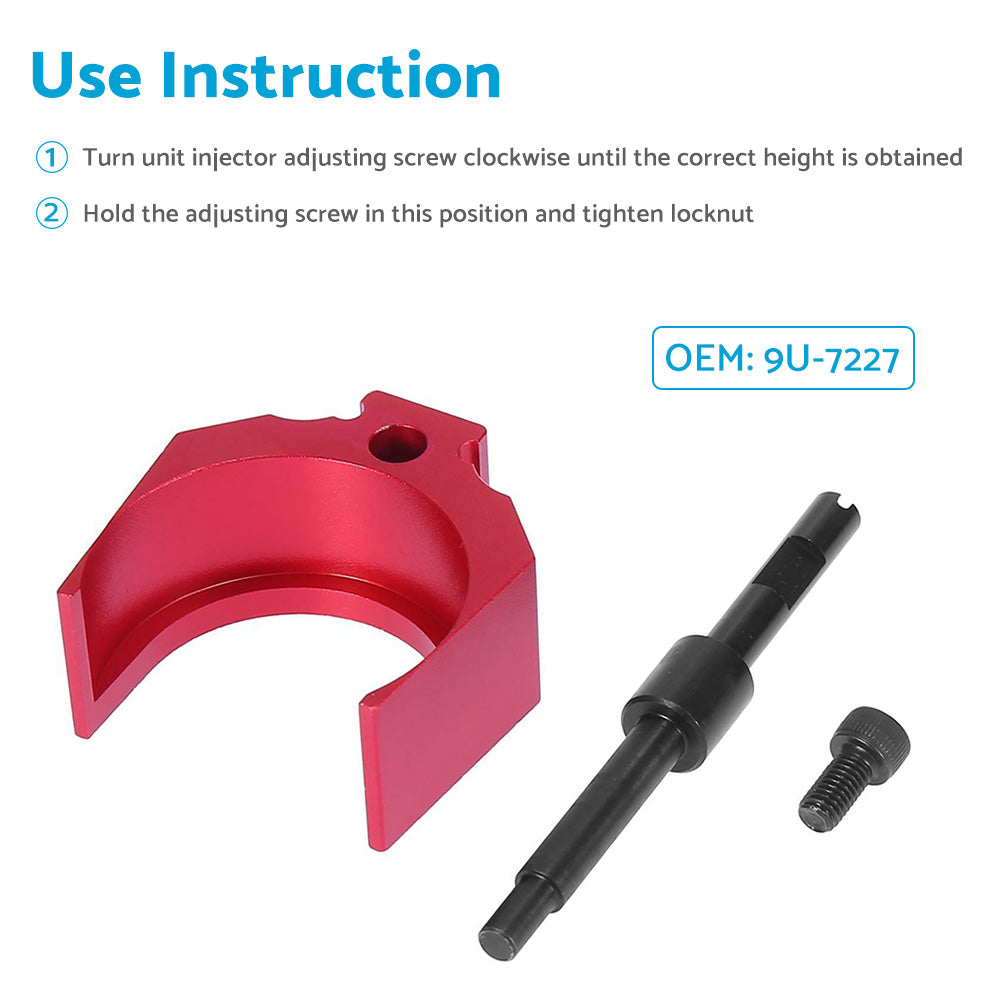

Injector Height Tool Use Instruction:
Adjust injector height to 78.0 ± 0.2 mm (3.07 ± 0.01 inch) from top of unit injector to machined ledge.
Tighten lock nut to a torque of 100 ± 10 N·m (74 ± 7 lb ft).

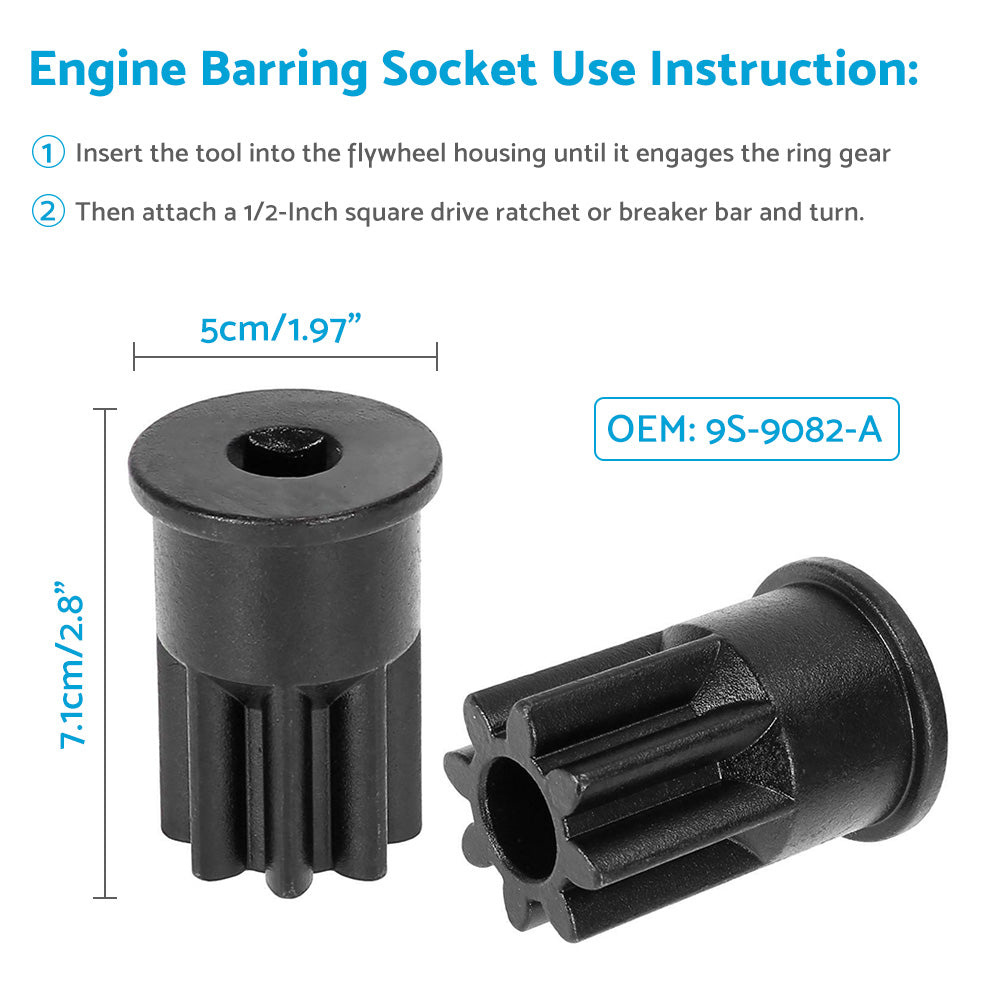

Engine Barring Socket Use Instruction:
Insert tool into flywheel housing until it engages ring gear.
Attach a 1/2-inch square drive ratchet or breaker bar and turn.
