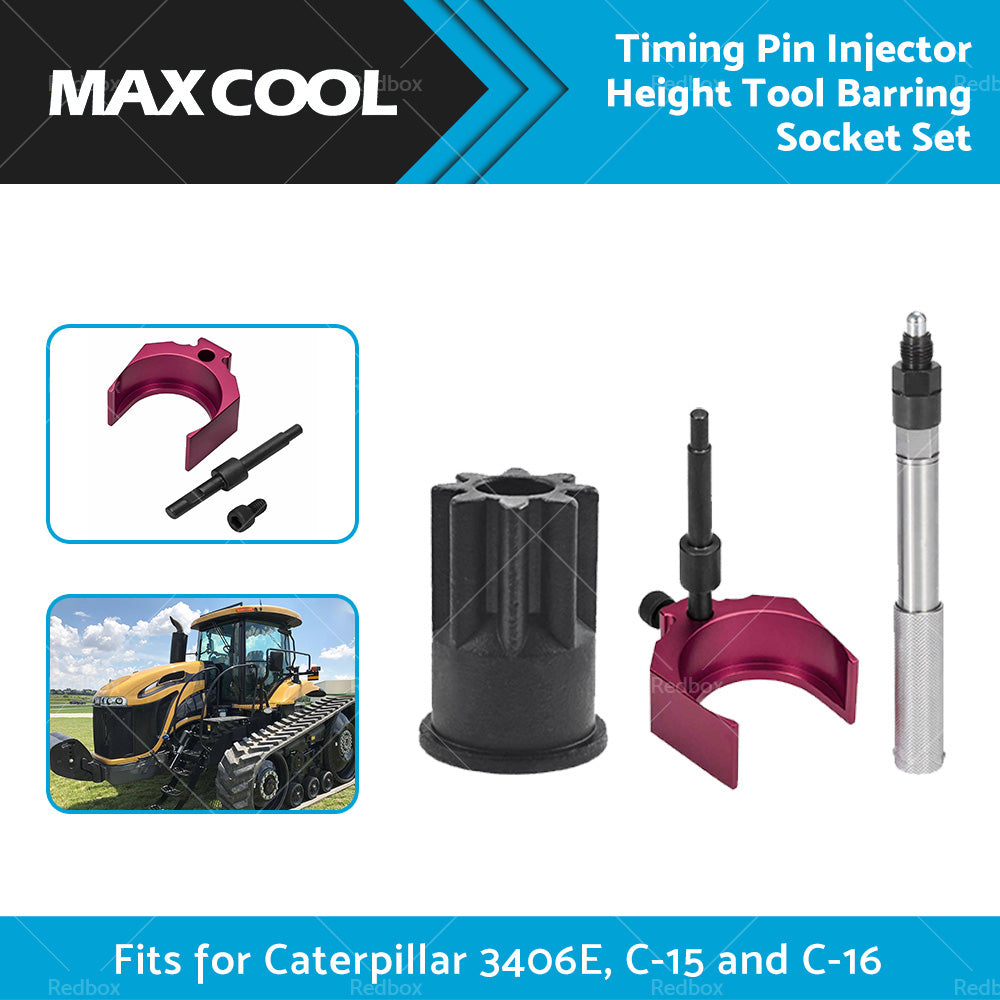

Timing Pin Injector Height Tool Barring Socket Set Fits For Cat 3406E C-15 C-16
Timing Pin Injector Height Tool Barring Socket Set Fits For Cat 3406E C-15 C-16
SKU:74CAT001-2
Application:
Adjust tools set for Caterpillar 3406E, C-15 and C-16.
J-42083 Timing Pin works for Caterpillar C-7, C-9, C-11, C-13, C-15, C-16, 3179, 3196, 3200, 3300 and 3400.
9U-7227 Injector Height Tool works for Caterpillar 3406E, C-15, C-16.
9S-9082-A Engine Barring Socket for Caterpillar(CAT) engines 3200/3406 series C13/C15/C16/3208/3400/3406e/3508/3512/3500.
Description

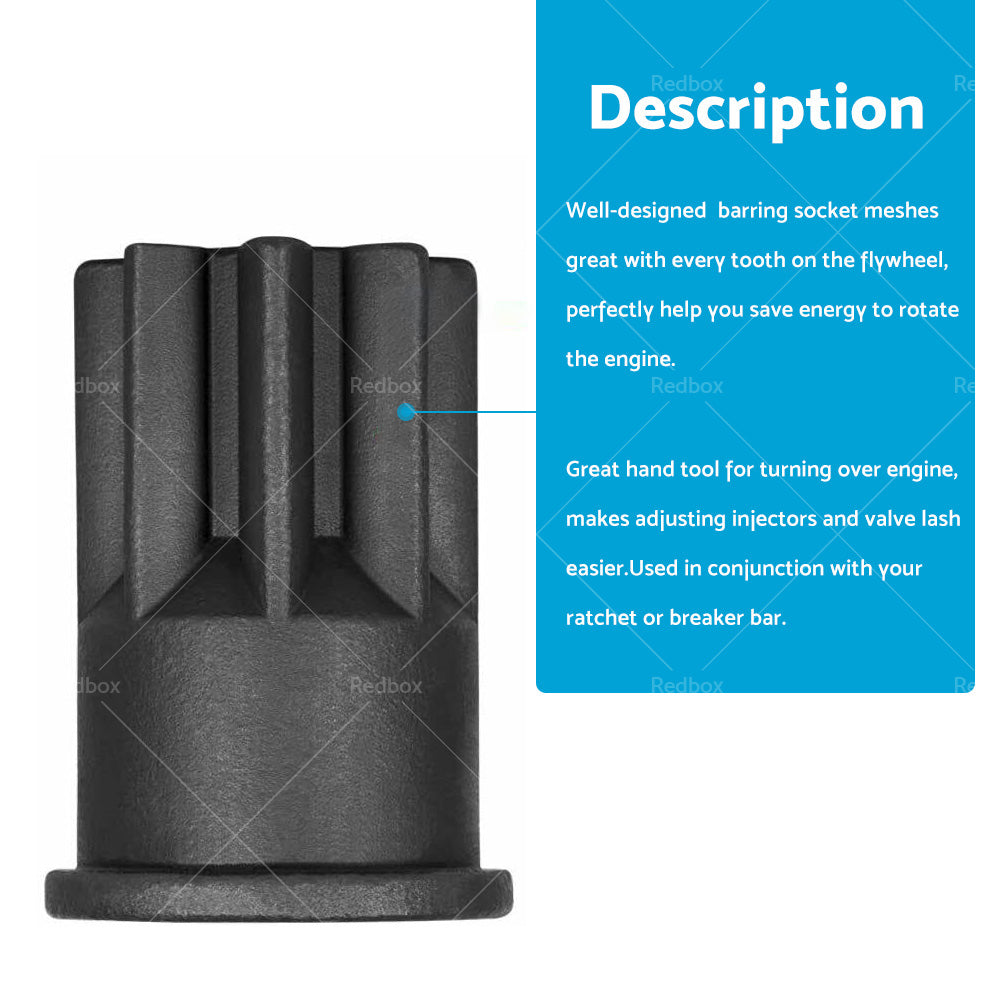

Function: Great Tool Set Timing Pin and Adapater - Make timing easier, acquire TDC and begin valve and fuel injection timing procedures; Injector Height Tool-Accurately adjust the Injector Height of the engine; Engine Barring Socket--Turn over engine, makes adjusting injectors and valve lash easierIt was able to pin flywheel
High quality material: Constructed with high quality carbon steel, which is the best quality of those markets in sale, with great strength and durability for years of trouble-free use.
Specifications
Brand: MAXCOOL
Type: Adjust Tool Set
Material: Steel, Aluminum Alloy
Warranty: 1 year
Timing Pin OEM: J-42083
Injector Height Tool OEM: 9U-7227
Engine Barring Socket OEM: 9S-9082-A
Placement on Vehicle: for Caterpillar Engine
Timing Pin Size: 17.5cm/6.89"(H)
Timing Pin Thread Size: M13x1.25

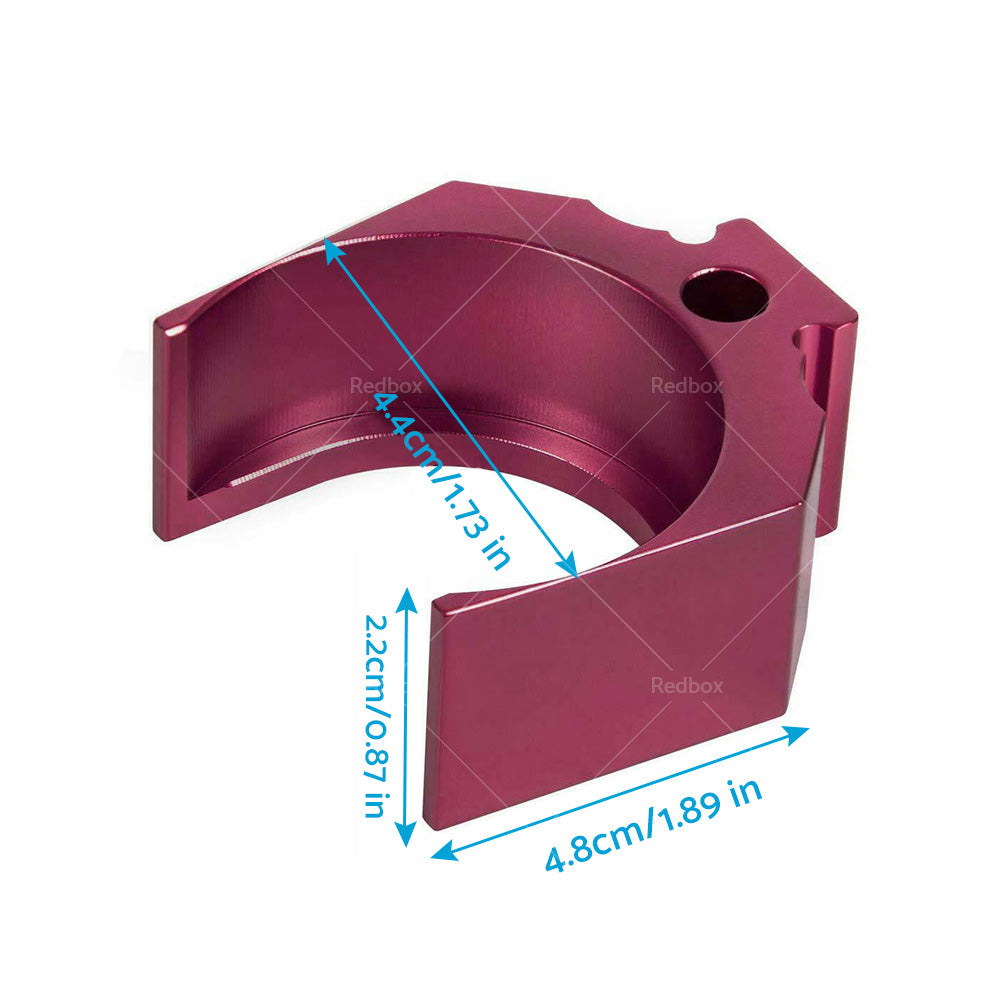

Injector Height Tool Size: 4.2x4.7x2.2cm/1.65"x1.85"x0.87"

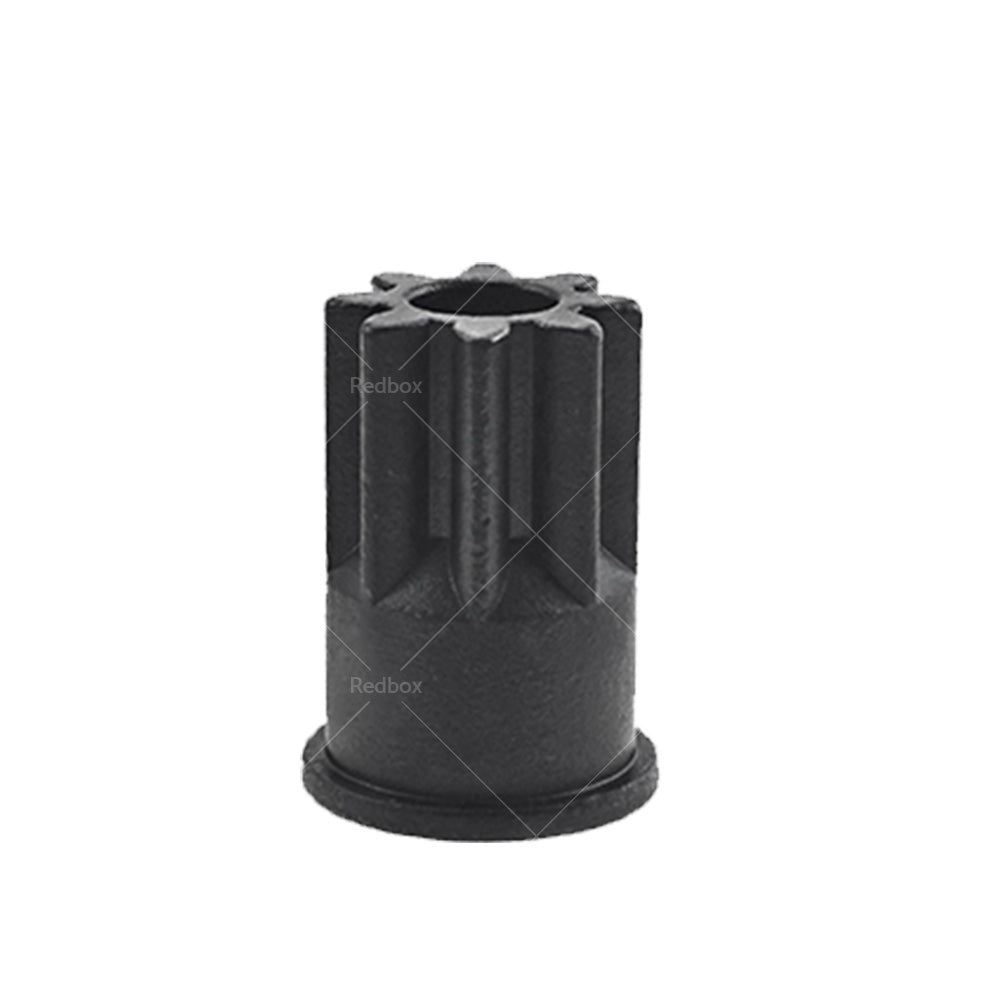

Engine Barring Socket Size: 5x7.1cm/ 1.97"x2.8" (OD"H)

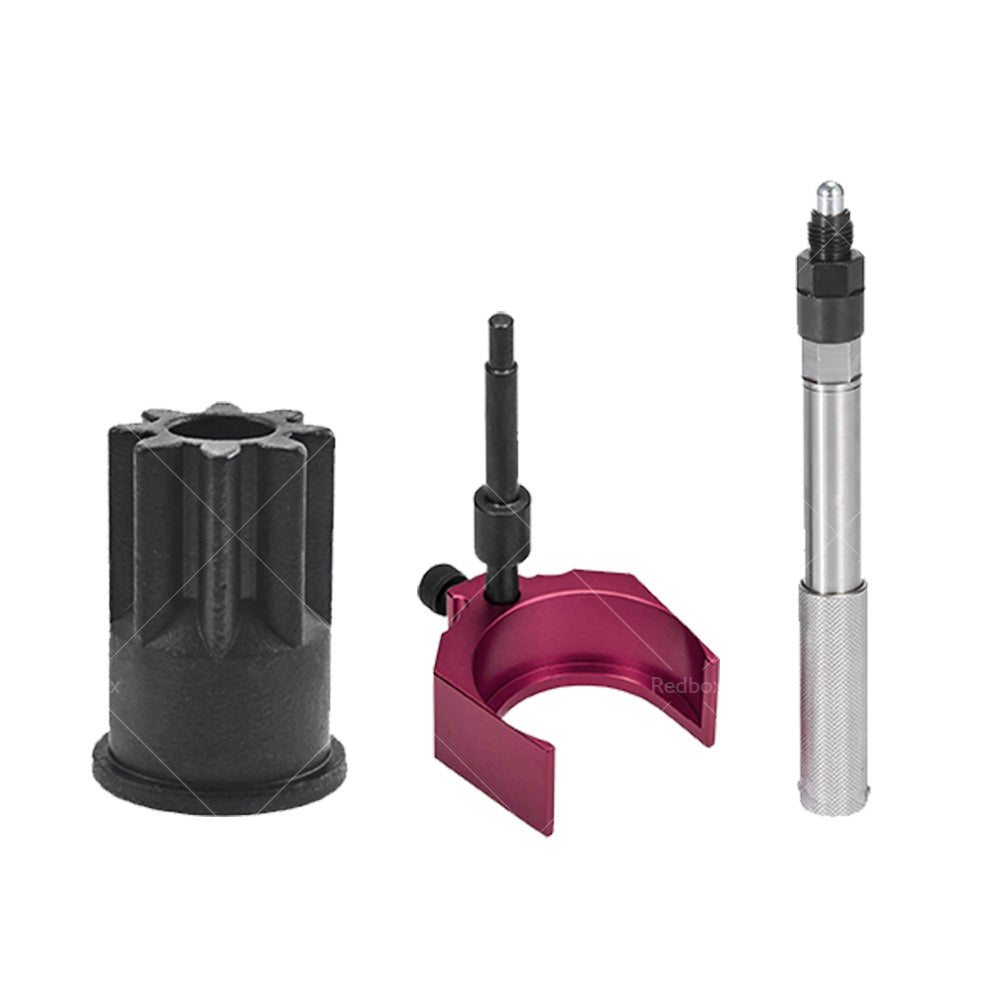

Package Included:
1 x Automatic Timing Pin
1 x Injector Height Adjustment Tool
1 x Engine Barring Socket

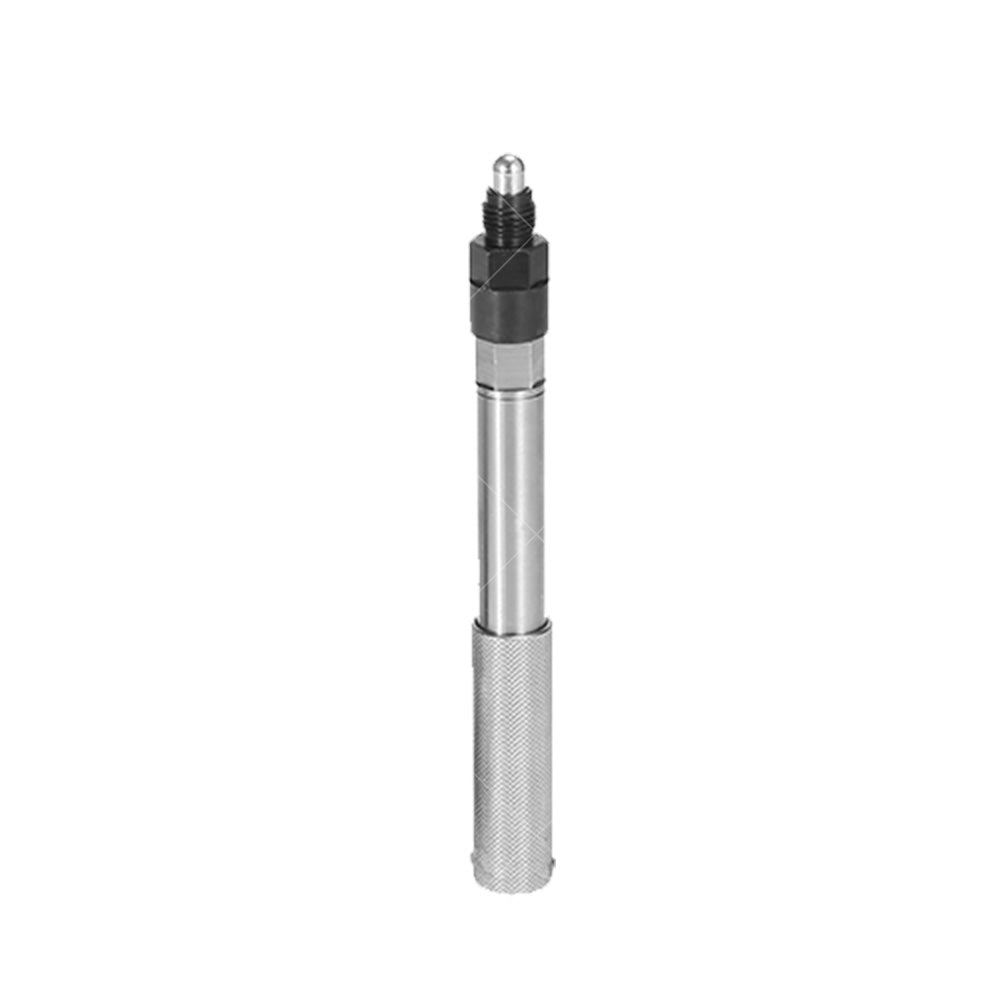

Timing Pin Use Instruction:
1. Remove the plug from either the left or right side timing access holes.
2. To install, hand tighten the J42083 Automatic Timing Pin Lock into the timing access hole.
3. Preload the spring on the automatic timing lock by pushing the slide handle forward and turn it clockwise to engage either of the two locking slots.
4. Manually, turn engine in direction of rotation(usually counter clockwise)until a notice “click” sound is heard.
5. The automatic timing pin plunger has now engaged the flywheel timing holes in either the top center compression or exhaust stroke.
6. To remove, turn slide handle counter clockwise to release spring tensile force on the plunger (if plunger doesn't retract from flywheel with light pressure, jog the flywheel back and forth). Unscrew from flywheel housing.

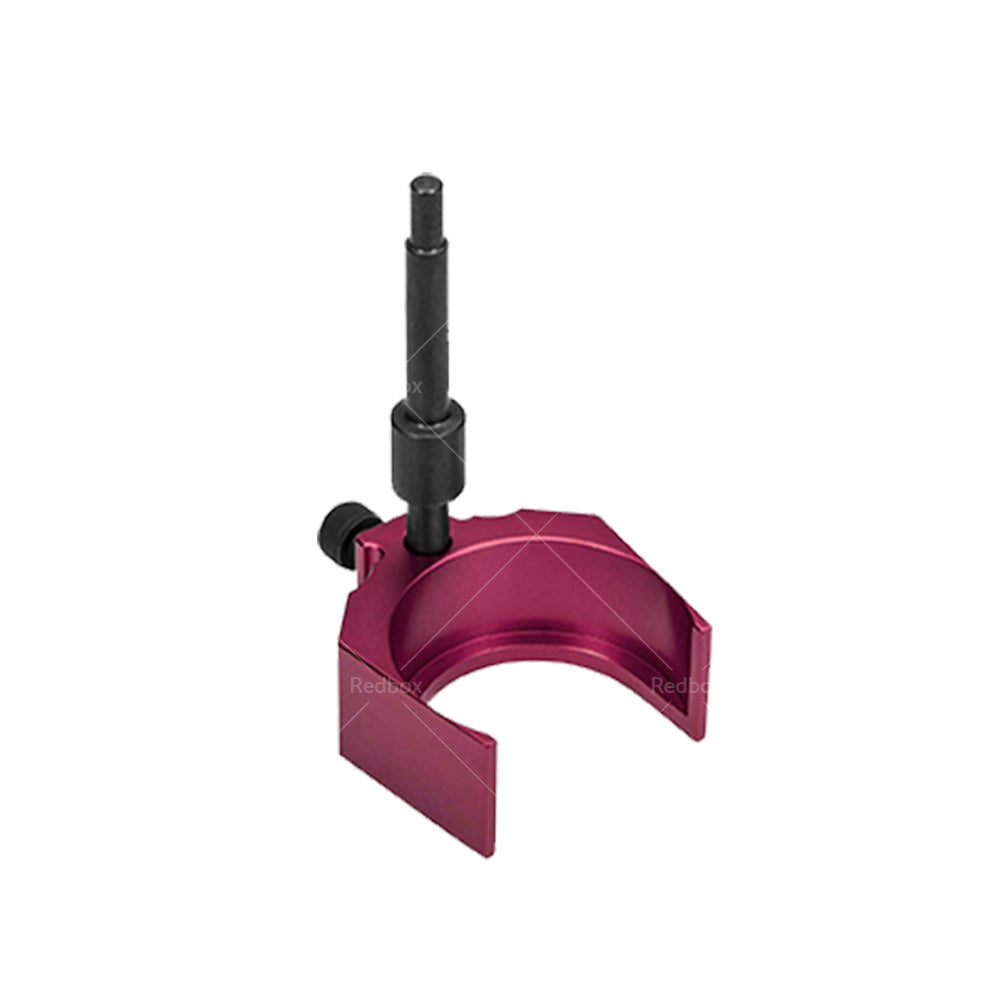

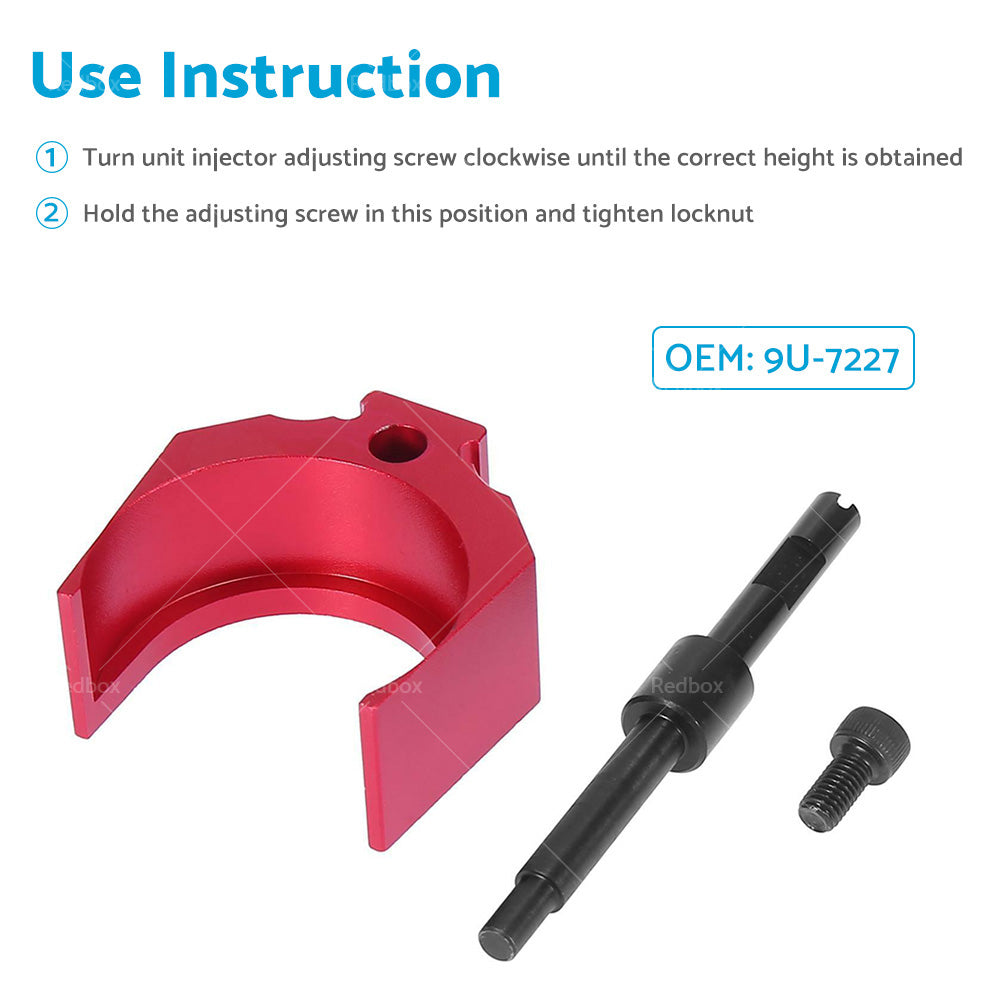

Injector Height Tool Use Instruction:
1. When you finish the valve adjustments to theinjector height, you can use the tool to accurately adjust the injector height to 78.0 ± 0.2 mm (3.07 ± 0.01 inch).
Tip: The dimension is measured from the top of the unit injector to the machined ledge of the fuel injector body.
2. Tighten lock nut to a torque of 100 ± 10 N·m (74 ± 7 lb ft).

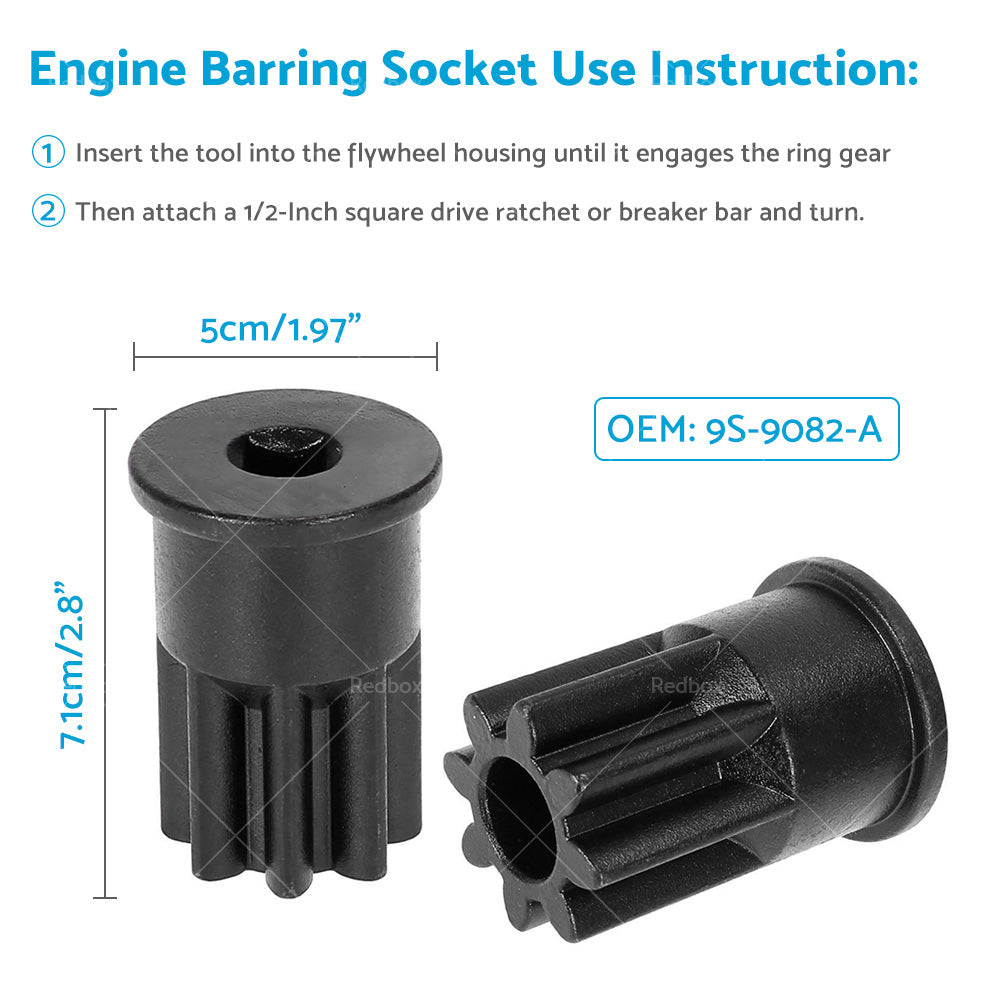

Engine Barring Socket Use Instruction:
1. Insert the tool into the flywheel housing until it engages the ring gear
2. Then attach a 1/2-Inch square drive ratchet or breaker bar and turn.
Note:
*Sourced From Professional Aftermarket Manufacturer, QUALITY GUARANTEED.*
