Wireless DMXController XLR Receiver Transmitter 2. 4G Stage DMX512
Wireless DMXController XLR Receiver Transmitter 2. 4G Stage DMX512
SKU:100MI011-3
Features:
Real-time data transmission without any time delay.
Ability to set 7 different ID codes.
Portable and easy to handle.
Cost-effective.
One transmitter can
Specification:
Type: DMX Controller
Connectivity: Wireless
Input voltage: DC 5V 0.5A
Communication distance: 300M (visible distance)
Work frequency section: 2.4G ISM, 126 channels, frequency section
Max transmitting power rate: 20dBm
Receiver Sensitivity: -94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface:RS485
Operating temperature: -40 ~ 85 Celsius
Storage Temperature: -65 ~ 150 Celsius
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Technical Parameters:
Tricolor LED display.
Automatic frequency hopping across 126 channels for high anti-jamming capability and reliable operation.
Settable ID codes with 7 groups, allowing multiple wireless systems to work simultaneously without interference.
Input voltage: 5VDC 500mA minimum.
Communication distance: 500 meters.
Operating frequency range: 2.4GHz ISM band with 126 channels.
Maximum transmitting power rate: 23dBm.
Receiver sensitivity: -94dBm.

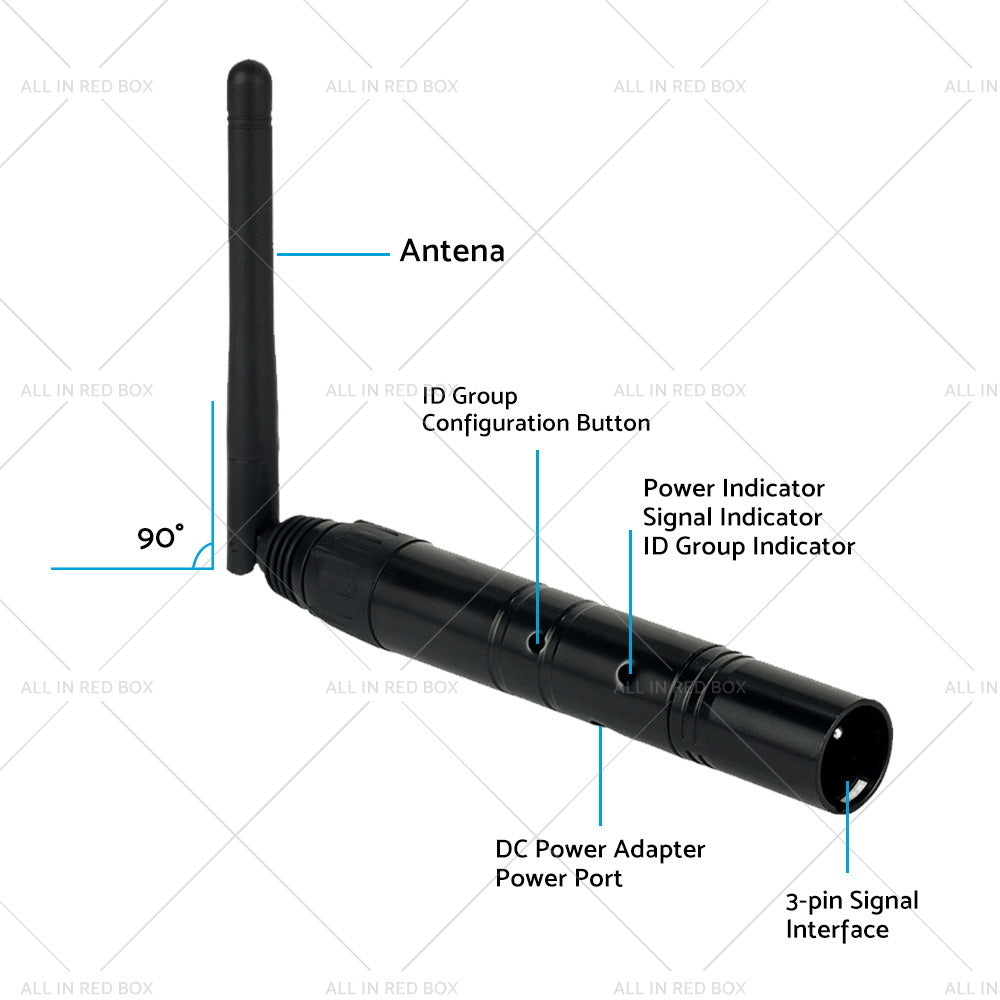

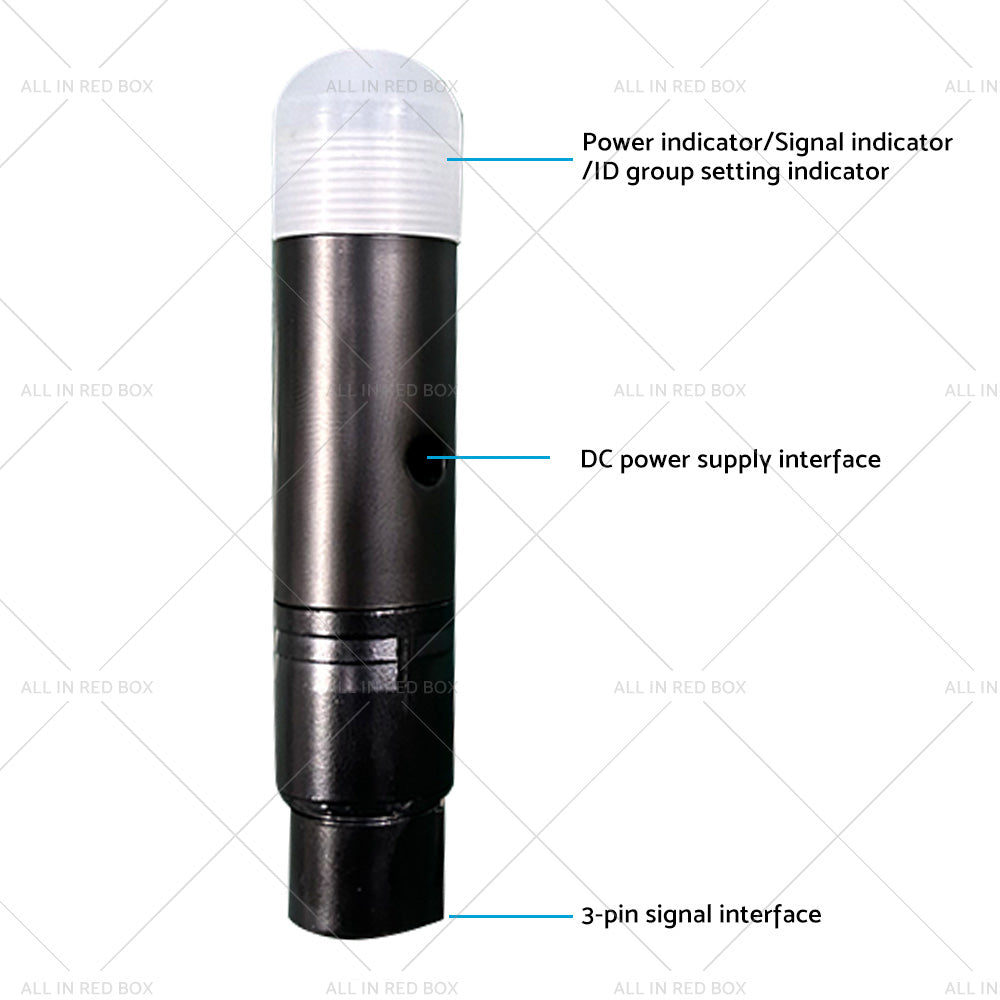

Signal ports: 3-pin male plug (for transmitter) and female plug (for receiver).
Operating Manual:
ID code and corresponding LED colors:
1: RED
2: GREEN
3: YELLOW (RED + GREEN)
4: BLUE
5: PURPLE (RED + BLUE)
6: CYAN (GREEN + BLUE)
7: WHITE (RED + GREEN + BLUE)
Press the key once to enter ID setting mode, press again to set the ID value, and continue pressing to increment the ID value.
Working Conditions:
Constantly lit LED: No DMX or wireless signal detected.
Flashing red LED: Transmitter is transmitting.
Flashing green LED: Receiver is receiving.
RF frequency range: 2.400-2.525GHz, total of 126 channels, automatically searching.
ID Codes: 17 groups of ID codes, set using the "Key" button. Transmitter and receiver must have the same ID code to function together.
Establishing Communication:
Power on the DMX512 wireless receiver and transmitter.
Press the "Key" button to set the same ID value on the transmitter and receiver. Use different ID values for multiple wireless systems in the same location.
The red LED flashes when the transmitter transmits DMX data on an interference-free frequency section, and the receiver changes its communication frequency section. The green LED flashes until the correct ID value is received. The LED flashes faster as the DMX data transmission speed increases.

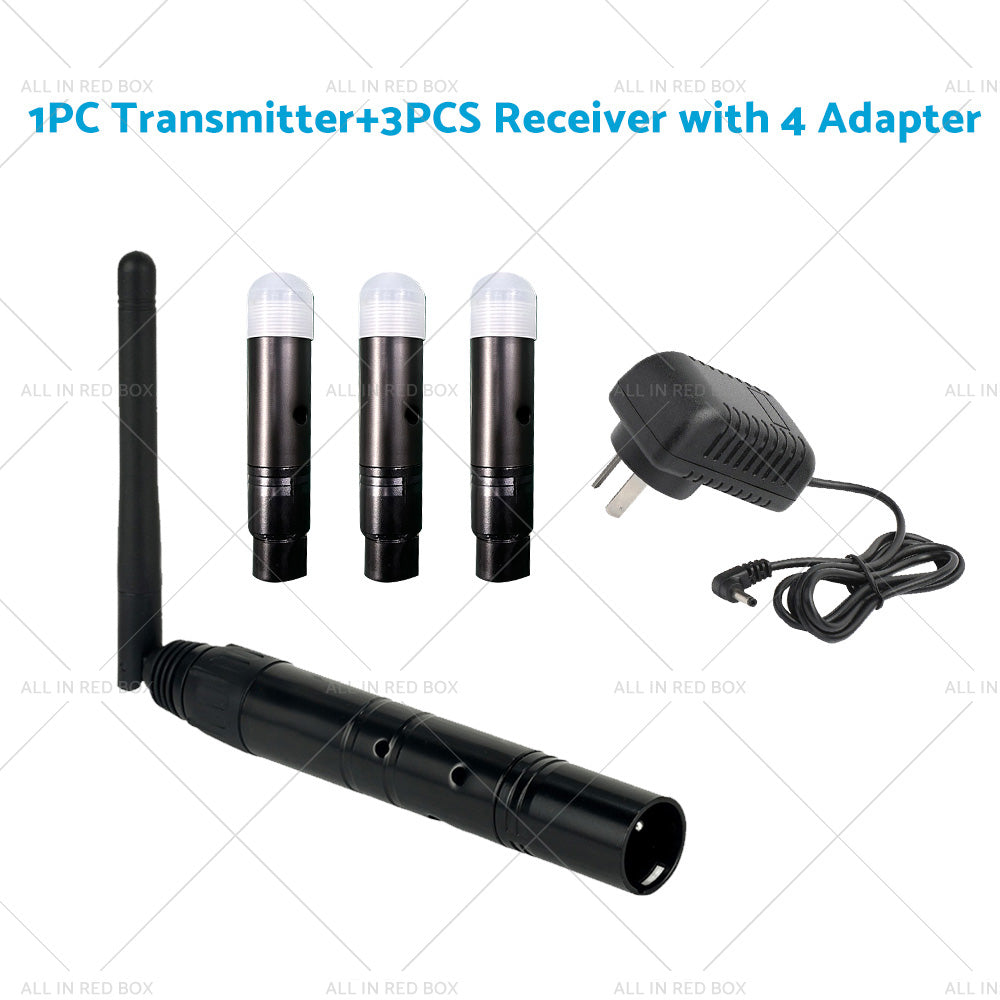

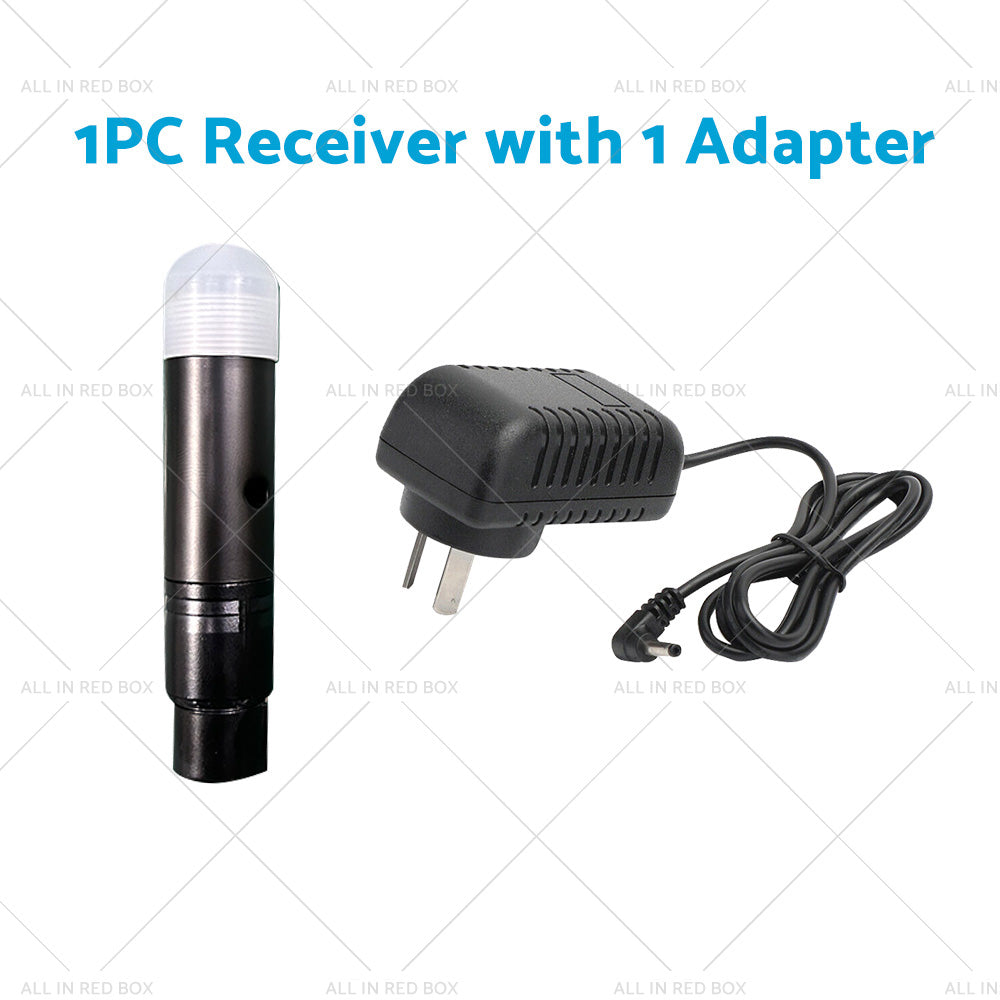

Package Included:

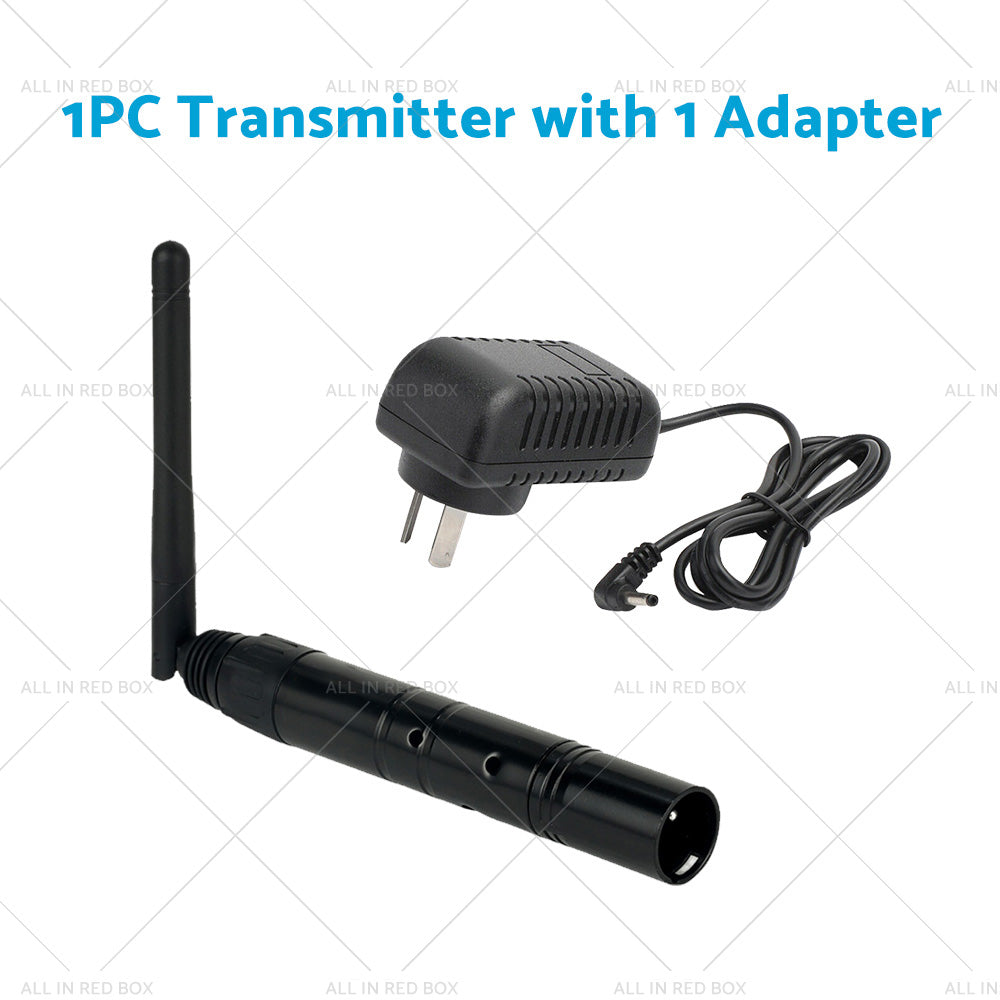

1PC Transmitter
1PC or 3PCS Receiver(according to your choice)
Note:
Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
Note:
*Sourced From Professional Aftermarket Manufacturer, QUALITY GUARANTEED.*
